West Penn 25227B 12G Unshielded Speaker Wire | Color: White, Length: 500 feet

West Penn 25227B 12G Unshielded Speaker Wire | Color: White, Length: 500 feet

SoundPro Item: 133100 | Part Number: 25227BWH0500

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • 12G Unshielded Speaker Wire
Log in or register for YOUR best price

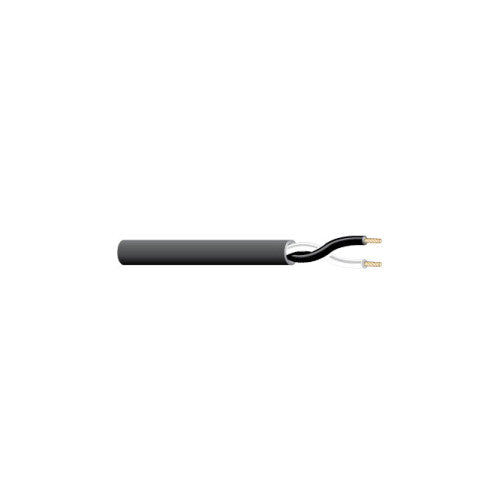

The 25227B from West Penn is a 12G Unshielded Speaker Wire. Available in black, gray, and white (only black pictured).

View full details

Specifications

Certifications
NEC UL Rating
CL3P, FPLP
RoHS Compliant
Yes
Dimensions
AWG Size
12
Cabling Lay Length
4.25 in
Weight
Cable Weight
54 lbs
Electrical
UL Voltage Rating
300
Connectivity
Nominal Cable O.D.
0.263 in
Construction
Insulation Color Code
1. Black 2.White
Environmental
UL Flammability
NFPA 262 Plenum
General
Number of Conductors
2
Conductor Stranding
19x25
Conductor Type
Bare copper
Nominal DCR
1.7 Ohm/1000ft
Insulation Type Plenum
PVC
Insulation Thickness
0.012 in
SHIELDING PARAMETERS
Shield Type None
Jacket Type Flexible
Plenum
Jacket Thickness
0.015 in
Plenum
Yes
Pull Tension
146 lbs
Bend Radius
2.367 in
Operating Range
-0 to 60 Deg C
