West Penn 25291B 22G Shielded Audio Wire | Color: Black, Length: 1000 feet

West Penn 25291B 22G Shielded Audio Wire | Color: Black, Length: 1000 feet

SoundPro Item: 68086 | Part Number: 25291BBK1000

Pricing available upon request

Pricing available upon request

Your Price Sold out

In stock and ready to ship

  • 22/2 shielded CMP
  • Audio and control
  • Aluminum foil shield type

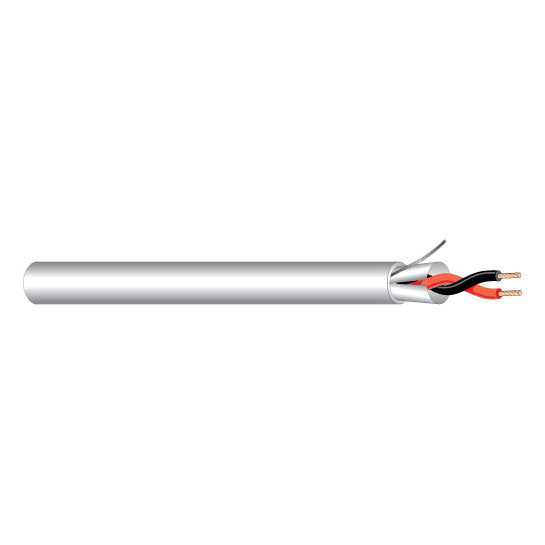

The West Penn 25291B is a 22/2 shielded CMP audio cable available in different lengths and colors.

View full details

Specifications

Certifications
NEC UL Rating
CMP
Dimensions
AWG Size
22
Cabling Lay Length
2.5"
Nominal Cable Diameter
0.116"
Electrical
UL Voltage Rating
300
Construction
Insulation Color Code
1.Black 2.Red
Shield Type
overall 100% aluminum foil
Environmental
Operating Temperature
32°F to 140°F (0°C to 60°C)
UL Flammability
NFPA 262 Plenum
General
Conductors
2
Conductor Stranding
7x30
Conductor Type
bare copper
Nominal DCR
17Ohm/1000ft
Twists/foot
4.8
Insulation Type
Plenum PVC
Insulation Thickness
0.008"
Drain Wire Type
tinned copper
Drain Wire AWG
24 AWG
Nom. cap. Between Conducotrs
54pF/ft
Nom. cap. Conductor to Shield
97pF/ft
Jacket Type
flexible Plenum
Jacket Thickness
0.015"
Ratings
RoHS Compliant
