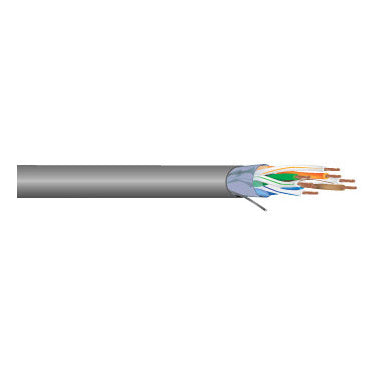

West Penn 254245F 24G Shielded CAT5E Wire | Color: Black, Length: 500 feet

West Penn 254245F 24G Shielded CAT5E Wire | Color: Black, Length: 500 feet

SoundPro Item: 24601 | Part Number: 254245FBK0500

$391.80
$391.80 $391.80
Your Price Sold out
MSRP: $391.80 | MAP: $391.80

Usually ships in 5-7 business days

  • 24G Shielded CAT5E Wire
  • Available in black
Log in or register for YOUR best price

The 254245F from West Penn is a 24G Shielded CAT5E Wire. Available in black.

View full details
  • CONDUCTOR PARAMETERS
    • Number Of Pairs: 4
    • AWG Size: 24
    • Conductor Stranding: Solid
    • Conductor Type Bare: Copper
    • Nominal DCR: 26 Ohm/1000ft
  • INSULATION PARAMETERS
    • Insulation Type: Flouropolymer
    • Insulation Color Code: 1.Blue,WH-Blue 2.Orange,WH-Orange 3.Green,WH-Green 4.Brown, WH-Brown
  • SHIELDING PARAMETERS
    • Shield Type: Overall 100% Aluminum Foil (F/UTP)
    • Drain Wire AWG Size: 24 AWG
    • Drain Wire Type: Tinned Copper
  • ELECTRICAL CHARACTERISTICS
    • Nominal Impedance: 100 Ohm
    • Nominal Capacitance Between Conductors: 15 pF/ft
  • OVERALL CONSTRUCTION PARAMETERS
    • Total Number of Conductors: 8
    • Jacket Type Flexible: Plenum
    • Nominal Cable O.D.: 0.235 in
    • Plenum: Yes
    • NEC UL Rating: CMP
    • RoHS Compliant: Yes
    • ANSI/TIA Category: Category 5E TIA/EIA 568C.2
    • TIA Test: ANSI/TIA-568-C.2
    • Pull Tension: 35 lbs
    • Bend Radius: 1.175 in
    • Cable Weight: 31 lbs
  • OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
    • Nominal Velocity of Propagation (VP): 72%
    • Delay Skew: 45 ns/100m
    • UL Flammability: NFPA 262 Plenum
    • CSA Flammability: FT6
    • Operating Range: -0 to 75 Deg C
    • UL Voltage Rating: 300
