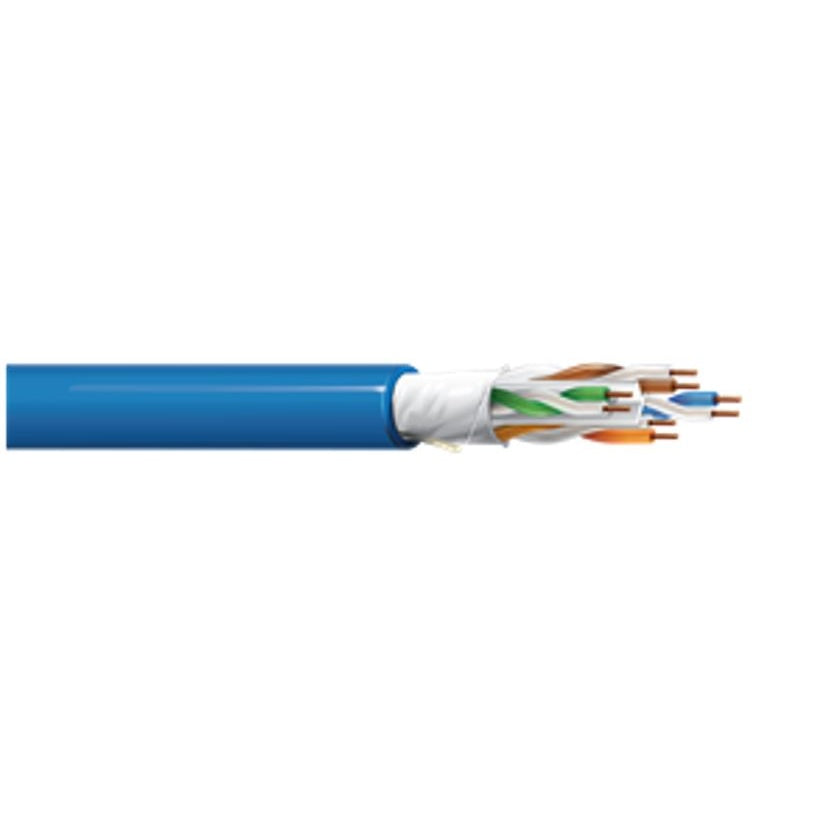

West Penn 254346ABK1000 Cat 6A UTP Plenum Bulk Cable 10G | 1000 ft
West Penn 254346ABK1000 Cat 6A UTP Plenum Bulk Cable 10G | 1000 ft
SoundPro Item: 139871 | Part Number: 254346ABK1000
Usually ships in 5-7 business days
- ASTM Solid Bare Copper Conductors Ensure Low-Resistance Signal Integrity
- Small-O.D. Design Allows Higher Density Routing In Congested Conduit
- CMP-Rated FEP Plenum Jacket Meets Code For Air-Handling Space Installations
- UL 1666 And NFPA 262 Flame Ratings Satisfy Strict Fire Safety Requirements
- ANSI/TIA-568.2-D Compliance Confirms Interoperability With Standard LAN Infrastructure
- Tested Beyond Category Baseline For 10G Ethernet And IPBaseT 4K AV Distribution
The West Penn 254346ABK1000 is a 23 AWG solid bare-copper Category 6A unshielded twisted-pair plenum cable designed for network integrators and AV systems engineers who need reliable high-density horizontal LAN infrastructure in air-handling spaces. Its small-O.D. construction simplifies routing in congested conduit and plenum pathways without sacrificing the electrical performance required for 10G-BASE-T Ethernet links.
Tested to 750 MHz and ANSI/TIA-568.2-D compliant, this cable exceeds the 500 MHz Cat 6A baseline, providing headroom for demanding installed AV applications including IPBaseT 4K video distribution over standard network infrastructure. The FEP plenum jacket carries a CMP NEC rating and meets both UL 1666 and NFPA 262 flame requirements, making it code-compliant for above-ceiling and HVAC plenum installations where fire performance is non-negotiable.
Supplied on a standard 1000 ft spool, the 254346ABK1000 is well suited for structured cabling deployments in corporate AV, higher education, broadcast facilities, and large-venue installs where Cat 6A capacity and plenum compliance are both mandatory. The UTP design avoids the termination complexity of shielded variants while meeting 100-ohm impedance and 10G performance targets across the full horizontal segment length.
Downloads
Downloads
Specifications
