West Penn 254346AFBK1000 Cat 6A F/UTP Plenum Cable 10G | 1000 ft

West Penn 254346AFBK1000 Cat 6A F/UTP Plenum Cable 10G | 1000 ft

SoundPro Item: 151430 | Part Number: 254346AFBK1000

$906.12
$906.12 $906.12
Your Price Sold out
MSRP: $906.12 | MAP: $906.12

Usually ships in 5-7 business days

  • F/UTP Overall Shield Controls Alien Crosstalk In High-Density Bundled Runs
  • Tested To 750 MHz Provides Performance Headroom Beyond Cat 6A Requirements
  • Small O.D. Profile Increases Bundle Density Through Standard Pathways
  • CMP Plenum Jacket Meets Fire Code For Above-Ceiling And Air-Handling Zones
  • ANSI/TIA-568.2-D Compliant For Structured Cabling System Interoperability
  • ASTM Solid Bare Copper Conductors Ensure Consistent Electrical Performance
Log in or register for YOUR best price

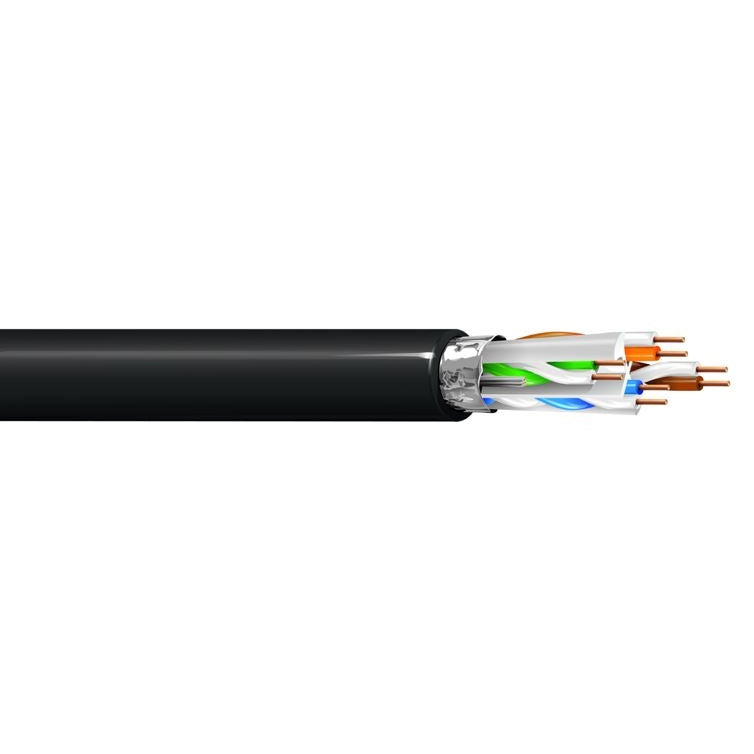

The West Penn 254346AFBK1000 is a 23 AWG solid bare-copper F/UTP Category 6A plenum cable designed for installers pulling horizontal LAN infrastructure, 10GBase-T network backbones, and AV-over-IP distribution in commercial and institutional environments. The CMP-rated jacket satisfies plenum-space fire codes without requiring conduit, making it a practical choice for above-ceiling and air-handling zone installations where compliance is non-negotiable.

Tested to 750 MHz — well beyond the 500 MHz Category 6A benchmark — this cable delivers headroom for 4K AV signal distribution, PoE++ powered devices, and dense digital integration scenarios where margin against crosstalk and return loss directly affects system reliability. The overall F/UTP shield controls alien crosstalk in bundled runs, addressing one of the most common failure points in high-density Cat 6A deployments.

The small outer-diameter profile reduces fill calculations and allows higher-count bundles through standard pathways compared to full-size Cat 6A alternatives, giving integrators more flexibility on retrofit projects and new builds alike. ANSI/TIA-568.2-D compliance ensures interoperability across structured cabling systems and satisfies specifier and owner acceptance requirements on commercial AV and IT infrastructure projects.

Downloads

View full details

Specifications

Certifications
NEC Type
CMP
UL Listed
Yes
Flame Rating
UL 1666 and NFPA 262
Compliance
ANSI/TIA-568.2-D
Construction
Conductor
23 AWG Solid Bare Copper
Pair Count
4
Insulation
Thermoplastic (FEP)
Shield Type
F/UTP
Jacket
Plenum
Electrical
Nominal Impedance
100 Ohm
Nominal Capacitance
14 pF/ft
Performance
Tested Frequency
750 MHz
Data Rate
10G Ethernet (10GBase-T)
Shipping
Spool Length
1000 ft
Identifiers
MPN
254346AFBK1000
