• West Penn 291 Shielded Audio Cable
1 1

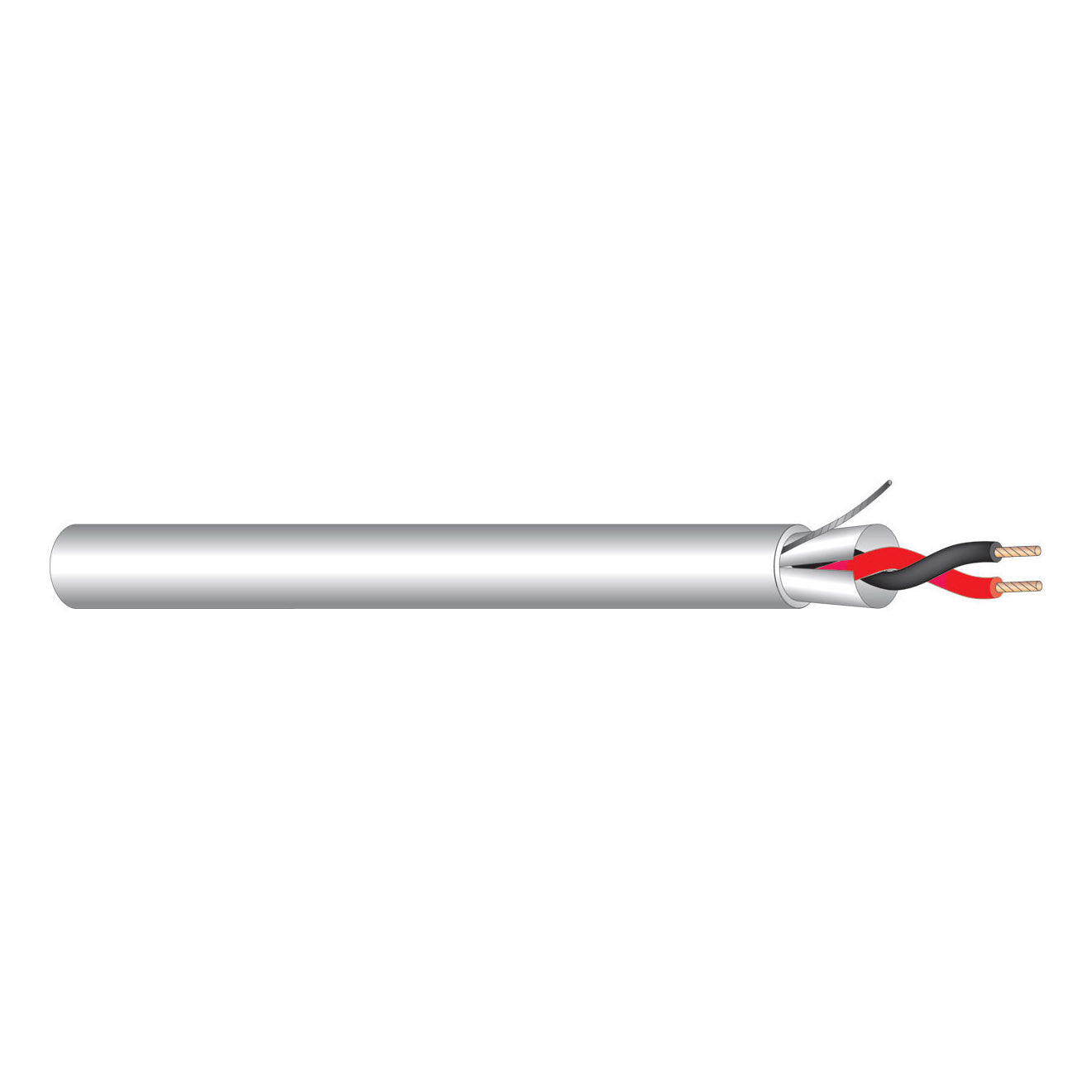

West Penn 291 22G Shielded Audio Wire | Color: Grey, Length: 1000 feet

West Penn 291 22G Shielded Audio Wire | Color: Grey, Length: 1000 feet

SoundPro Item: 45849 | Part Number: 291GY1000

$143.30
$143.30 $143.30
Your Price Sold out
MSRP: $143.30 | MAP: $143.30

In stock and ready to ship

  • ASTM tinned copper
  • PVC insulation
  • PVC fillers as required
  • Polyester binders as required
  • Overall shield 100% coverage of aluminum polyester foil with TC drain wire
  • Overall 75 Degree PVC jacket
Log in or register for YOUR best price

WP291 is a popular 2 conductor shielded cable with drain wire and foil shield. Famous for all-purpose console facility use. Cable is available in different colors and lengths.

View full details
  • Conductor parameter
    • Conductors: 2
    • AWG size: 22
    • Conductor stranding: 7x30
    • Conductor type: bare copper
    • Nominal DCR: 17Ohm/1000ft
    • Cabling lay length: 2.5"
    • Twists/foot: 4.8
  • Insulation parameter
    • Insulation type: thermoplastic
    • Insulation thickness: 0.007"
    • Insulation color code: 1.Black 2.Red
  • Shielding parameter
    • Shield type: overall 100% aluminum foil
    • Drain wire type: tinned copper
    • Drain wire AWG: 24 AWG
  • Nom. cap. between conductors34pF/ft
  • Nom. cap. conductor to shield67pF/ft
  • Jacket typePVC
  • Jacket thickness0.017"
  • Nominal cable diameter0.127"
  • Operating temperature-4°F to 140°F (-20°C to 60°C)
  • Ratings
    • NEC UL Rating: CMR, CMG
    • RoHS Compliant
    • UL Flammability: UL1666 Vertical Shaft
    • CSA Flammability: FT4
    • UL Voltage Rating: 300
