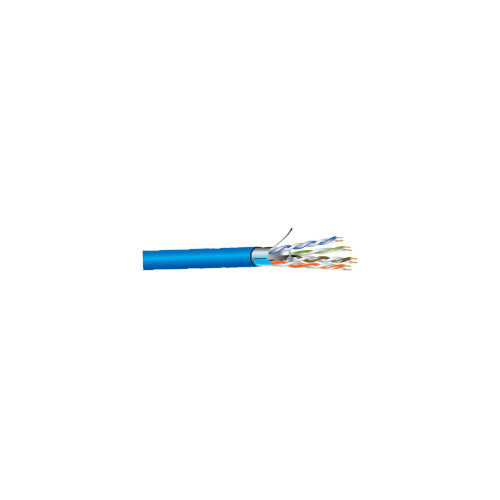

• West Penn 4245F 24G Shielded CAT5E Wire blue
  • West Penn 4245F 24G Shielded CAT5E Wire gray
1 2

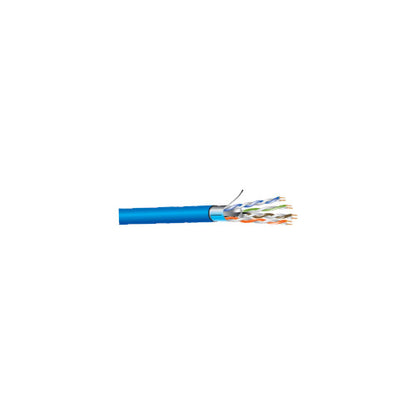

West Penn 4245F 24G Shielded CAT5E Wire | Color: Blue, Length: 1000 feet

West Penn 4245F 24G Shielded CAT5E Wire | Color: Blue, Length: 1000 feet

SoundPro Item: 119977 | Part Number: 4245FBL1000

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • 24G Shielded CAT5E Wire
  • Available in gray, blue, and black (black not pictured)
Log in or register for YOUR best price

The 4245F from West Penn is a 24G Shielded CAT5E Wire. Available in gray, blue, and black (black not pictured).

View full details

Specifications

Certifications
NEC UL Rating
CMR
RoHS Compliant
Yes
Dimensions
AWG Size
24
Drain Wire AWG Size
24 AWG
Weight
Cable Weight
29 lbs
Electrical
UL Voltage Rating
300
Connectivity
Nominal Cable O.D.
0.252 in
Construction
Insulation Color
Code 1.Blue,WH-Blue 2.Orange,WH-Orange 3.Green,WH-Green 4.Brown, WH-Brown
Environmental
UL Flammability
UL1666 Vertical Shaft
CSA Flammability
FT4
General
Number of Pairs
4
Conductor Stranding
Solid
Conductor Type
Bare Copper
Nominal DCR
26 Ohm/1000ft
Insulation Type
Polyolefin
Shield Type Overall
100% Aluminum Foil (F/UTP)
Drain Wire Type
Tinned Copper
Nominal Impedance
100 Ohm
Nominal Capacitance Between Conductors
15 pF/ft
Total Number of Conductors
8
Jacket Type
PVC
Plenum
No
ANSI/TIA Category
Category 5E TIA/EIA 568C.2
TIA Test
ANSI/TIA-568-C.2
Pull Tension
35 lbs
Bend Radius
1.26 in
Nominal Velocity of Propagation (VP)
72 %
Delay Skew
45 ns/100m
Operating Range
-20 to 75 Deg C
