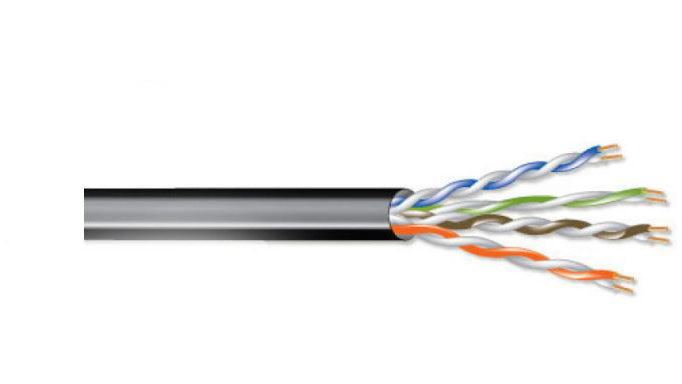

West Penn 4246EZBK1000 Wire

West Penn 4246EZBK1000 Wire

SoundPro Item: 13268 | Part Number: 4246EZBK1000

Pricing available upon request

Pricing available upon request

Your Price Sold out

In stock and ready to ship

  • Solid Conductor Stranding
  • Bare Copper Conductor Type
  • Available in Blue, WH-Blue, Orange, WH-Orange, Green, WH-Green, Brown, WH-Brown colors
  • Unshielded Twisted Pair (UTP) Shield Type

West Penn 4246EZ Black,1000 ft.,  4P 23G4 Pair 23 AWG UTP Category 6 CMR 10/100/1000 Base-T Ethernet, IP CCTV, Digital Integration, HD Base-T.

View full details

Specifications

Nominal DCR
24 Ω/1000 ft
Insulation Type
Polyolefin
Nominal Impedance
100 Ω
Nominal Capacitance Between Conductors
15 pF/ft
Total Number of Conductors
8
Jacket Type
PVC
Nominal Cable O.D
0.22 in
Plenum
No
NEC UL Rating
CMR
RoHS Compliant
Yes
ANSI/TIA Category
Category 6 TIA/EIA 568C.2
TIA Test
ANSI/TIA-568-C.2
Pull Tension
40 lbs
Bend Radius
1.1 in
Cable Weight
29 lbs
Nominal Velocity of Propagation (VP)
72%
Delay Skew
45 ns/100 m
UL Flammability
UL1666 Vertical Shaft
CSA Flammability
FT4
Operating Range
0 to 75ºC
UL Voltage Rating
300
