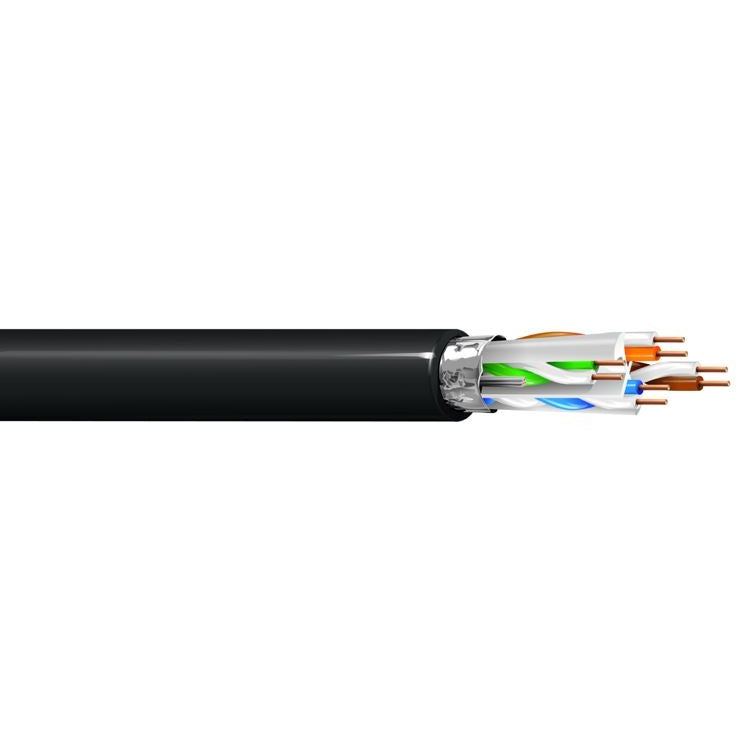

West Penn 4346AFBK1000 Cat 6A F/UTP Shielded Bulk Cable 1000 ft

West Penn 4346AFBK1000 Cat 6A F/UTP Shielded Bulk Cable 1000 ft

SoundPro Item: 145404 | Part Number: 4346AFBK1000

$513.17
$513.17 $513.17
Your Price Sold out
MSRP: $513.17 | MAP: $513.17

Usually ships in 5-7 business days

  • F/UTP Foiled Shield Provides Effective Noise Rejection For AV-Over-IP Environments
  • Small Outer Diameter Simplifies High-Density Conduit Pulls And Pathway Fill
  • ASTM Solid Bare Copper Conductors Ensure Consistent Signal Integrity Across Full Spool
  • CMR Riser Rating Meets NEC Requirements For Between-Floor Vertical Cable Runs
  • ANSI/TIA-568.2-D Compliance Supports Formal Project Commissioning And Documentation
  • Tested Beyond Category 6A Standard For Additional Performance Margin In Demanding Installs
Log in or register for YOUR best price

The West Penn 4346AFBK1000 is engineered for network integrators and AV system designers who require dependable 10GBase-T performance in horizontal LAN cabling applications. The small outer-diameter design eases pathway fill calculations and simplifies pulls through conduit or cable trays in tight building infrastructure environments where space is at a premium.

With a foiled F/UTP shield construction over four individually twisted pairs, this cable provides effective noise rejection critical in AV-over-IP and enterprise network installations where adjacent cable runs and interference sources are common. The 23 AWG solid bare-copper conductors deliver consistent signal integrity across the full 1000-foot spool, while the overall PVC jacket with CMR (riser) rating satisfies NEC requirements for vertical runs between floors without the cost of plenum-rated cable where code does not require it.

ANSI/TIA-568.2-D compliance and UL listing give system integrators and specifiers the documentation needed to satisfy commissioning requirements on commercial AV and IT infrastructure projects. Testing to 750 MHz — well beyond the 500 MHz Category 6A requirement — provides margin for long-term performance in demanding installed environments.

Downloads

View full details

Specifications

Certifications
NEC Type
CMR
Flame Rating
UL 1666 and NFPA 262
UL Listed
Yes
ANSI/TIA Compliance
ANSI/TIA-568.2-D
Construction
Conductor
23 AWG Solid Bare Copper
Number of Pairs
4
Insulation
Thermoplastic
Shield Type
F/UTP
Jacket Material
PVC
Nominal OD
0.265"
Electrical
Conductor Resistance
24 Ohm/Mft
Nominal Impedance
100 Ohm
Nominal Capacitance
14 pF/ft
Performance
Tested Frequency
750 MHz
Rated Application
10GBase-T Ethernet
Identifiers
Spool Length
1000 ft
