• West Penn 454 1P 22G Shielded Mic/Line Bulk Wire
1 1

West Penn 454 1P 22G Shielded Mic/Line Bulk Wire | Color: Blue, Length: 1000 feet

West Penn 454 1P 22G Shielded Mic/Line Bulk Wire | Color: Blue, Length: 1000 feet

SoundPro Item: 141571 | Part Number: 454BL1000

$149.00
$149.00 $149.00
Your Price Sold out
MSRP: $149.00 | MAP: $149.00

Usually ships in 5-7 business days

  • 1P 22G Shielded Mic/Line Bulk Wire
  • Available in a variety of colors (not pictured)
Log in or register for YOUR best price

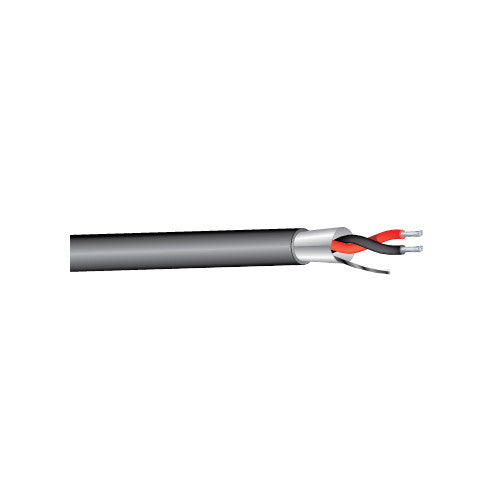

The 454 from West Penn is a 1P 22G Shielded Mic/Line Bulk Wire. Available in a variety of colors (not pictured).

View full details
  • CONDUCTOR PARAMETER
    • Number of Pairs: 1
    • AWG Size: 22
    • Conductor Stranding: 7x30
    • Conductor Type: Tinned Copper
    • Nominal DCR: 17 Ohm/1000ft
  • INSULATION PARAMETER
    • Insulation Type Polypropylene - PP
    • Insulation Thi kness 0.008 in
    • Insulation Color Code 1. Black 2.Red
  • SHIELDING PARAMETER
    • Shield Type Bonded Overall: 100% Aluminum Foil
    • Drain Wire Type: Tinned Copper
    • Drain Wire AWG: 22 AWG
  • ELECTRICAL CHARACTERISTICS
    • Nominal Impedance: 45 Ohm
    • Nom. Cap. Between Conductors: 34 pF/ft
    • Nom. Cap. Conductor to Shield: 67 pF/ft
  • OVERALL CONSTRUCTION PARAMETERS
    • Jacket Type: PVC
    • Jacket Thickness: 0.02 in
    • Nominal Cable O.D.: 0.135 in
    • Plenum :No
    • NEC UL Rating: CMR
    • RoHS Compliant: Yes
    • Pull Tension: 28 lbs
    • Bend Radius: 1.215 in
    • Cable Weight: 15 lbs
  • OVERALL ELECTRICAL/OPTICAL CHARACTERISTICS
    • Nominal Velocity of Propagation (VP): 66%
    • UL Flammability: UL1666 Vertical Shaft
    • CSA Flammability: FT4
    • Operating Range: -20 to 60 Deg C
    • UL Voltage Rating: 300
