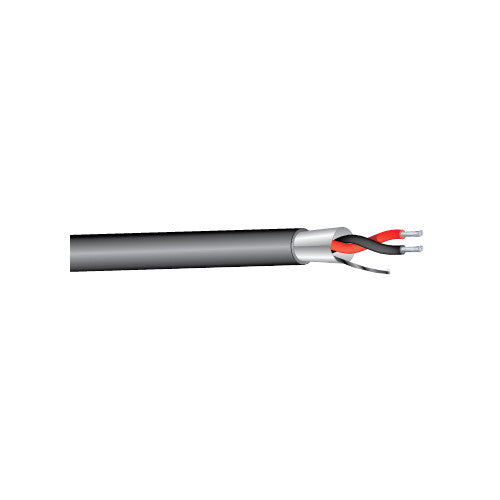

West Penn 454 1P 22G Shielded Mic/Line Bulk Wire | Color: White, Length: 500 feet

West Penn 454 1P 22G Shielded Mic/Line Bulk Wire | Color: White, Length: 500 feet

SoundPro Item: 131762 | Part Number: 454WH0500

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • 1P 22G Shielded Mic/Line Bulk Wire
  • Available in a variety of colors (not pictured)

The 454 from West Penn is a 1P 22G Shielded Mic/Line Bulk Wire. Available in a variety of colors (not pictured).

View full details

Specifications

Certifications
NEC UL Rating
CMR
RoHS Compliant
Yes
Dimensions
AWG Size
22
Weight
Cable Weight
15 lbs
Electrical
UL Voltage Rating
300
Connectivity
Nominal Cable O.D.
0.135 in
Environmental
UL Flammability
UL1666 Vertical Shaft
CSA Flammability
FT4
General
Number of Pairs
1
Conductor Stranding
7x30
Conductor Type
Tinned Copper
Nominal DCR
17 Ohm/1000ft
INSULATION PARAMETER
Insulation Type Polypropylene - PP, Insulation Thi kness 0.008 in, Insulation Color Code 1. Black 2.Red
Shield Type Bonded Overall
100% Aluminum Foil
Drain Wire Type
Tinned Copper
Drain Wire AWG
22 AWG
Nominal Impedance
45 Ohm
Nom. Cap. Between Conductors
34 pF/ft
Nom. Cap. Conductor to Shield
67 pF/ft
Jacket Type
PVC
Jacket Thickness
0.02 in
Plenum
No
Pull Tension
28 lbs
Bend Radius
1.215 in
Nominal Velocity of Propagation (VP)
66%
Operating Range
-20 to 60 Deg C
