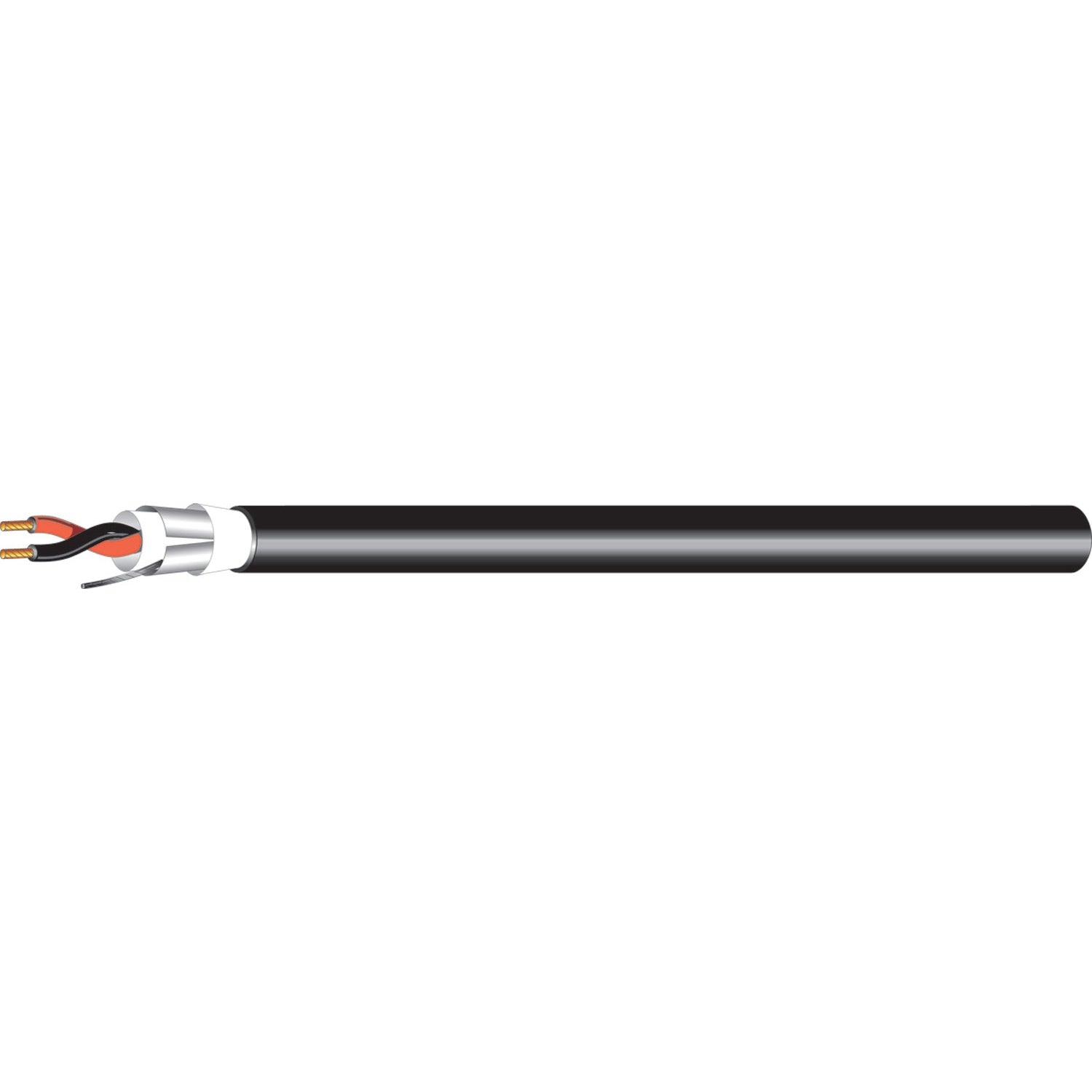

West Penn AQC293GY0500 18 AWG 2-Conductor Shielded Aquaseal Cable

West Penn AQC293GY0500 18 AWG 2-Conductor Shielded Aquaseal Cable

SoundPro Item: 152366 | Part Number: AQC293GY0500

$198.44
$198.44 $198.44
Your Price Sold out
MSRP: $198.44 | MAP: $198.44

Usually ships in 5-7 business days

  • Aquaseal Waterblocked Construction Prevents Moisture Ingress At The Conductor Level
  • Sunlight- And Moisture-Resistant PVC Jacket Withstands Outdoor UV Exposure
  • Aluminum Polyester Foil Shield With Drain Wire Ensures Consistent Noise Rejection
  • Short Overall Twist Lengths Minimize Crosstalk On Long Cable Runs
  • CM/CL3/FPL NEC Rating Meets Commercial And Institutional Installation Requirements
  • ASTM Bare Copper Conductors Deliver Reliable Conductivity For Permanent Installs
Log in or register for YOUR best price

The West Penn AQC293GY0500 is designed for systems integrators and low-voltage installers who need a dependable shielded cable for permanent indoor/outdoor audio and low-voltage power runs. Its Aquaseal waterblocked construction protects against moisture ingress at the conductor level, making it appropriate for applications where standard CM-rated cable would be a liability — outdoor speaker circuits, distributed audio in covered venues, or conduit runs exposed to humidity and weather cycling.

Rated CM/CL3/FPL and UL Listed with a UL 1685 flame rating, this cable meets the NEC requirements commonly specified in commercial and institutional installs. The 100% aluminum polyester foil shield with a 24 AWG drain wire provides consistent noise rejection on line-level audio and low-voltage signal runs, reducing interference pickup in mixed-use conduit. Short overall twist lengths further minimize crosstalk, keeping signal integrity consistent across longer pull distances. The sunlight- and moisture-resistant PVC jacket handles direct UV exposure without degradation, a practical requirement for any cable exiting a building or running through an outdoor enclosure.

Supplied on a 500 ft spool, this cable suits mid-size installations where a full 1000 ft standard spool would result in excess waste. ASTM bare copper conductors and PVC insulation complete a construction spec that balances conductivity, flexibility, and long-term environmental durability for production and install teams alike.

Downloads

View full details

Specifications

Certifications
NEC Type
CM/CL3/FPL
UL Listed
Yes
Flame Rating
UL 1685
Electrical
Conductors
2 x 18 AWG (7x26)
Resistance
6.2 Ohm/Mft
Nominal Capacitance (Cond-Cond)
46 pF/ft
Nominal Capacitance (Cond-Shield)
83 pF/ft
Construction
Insulation Thickness
.010 in
Shield
Al Foil 100% + 24 AWG Drain
Jacket Thickness
.025 in
Nominal OD
.257 in
Shipping
Spool Length
500 ft
