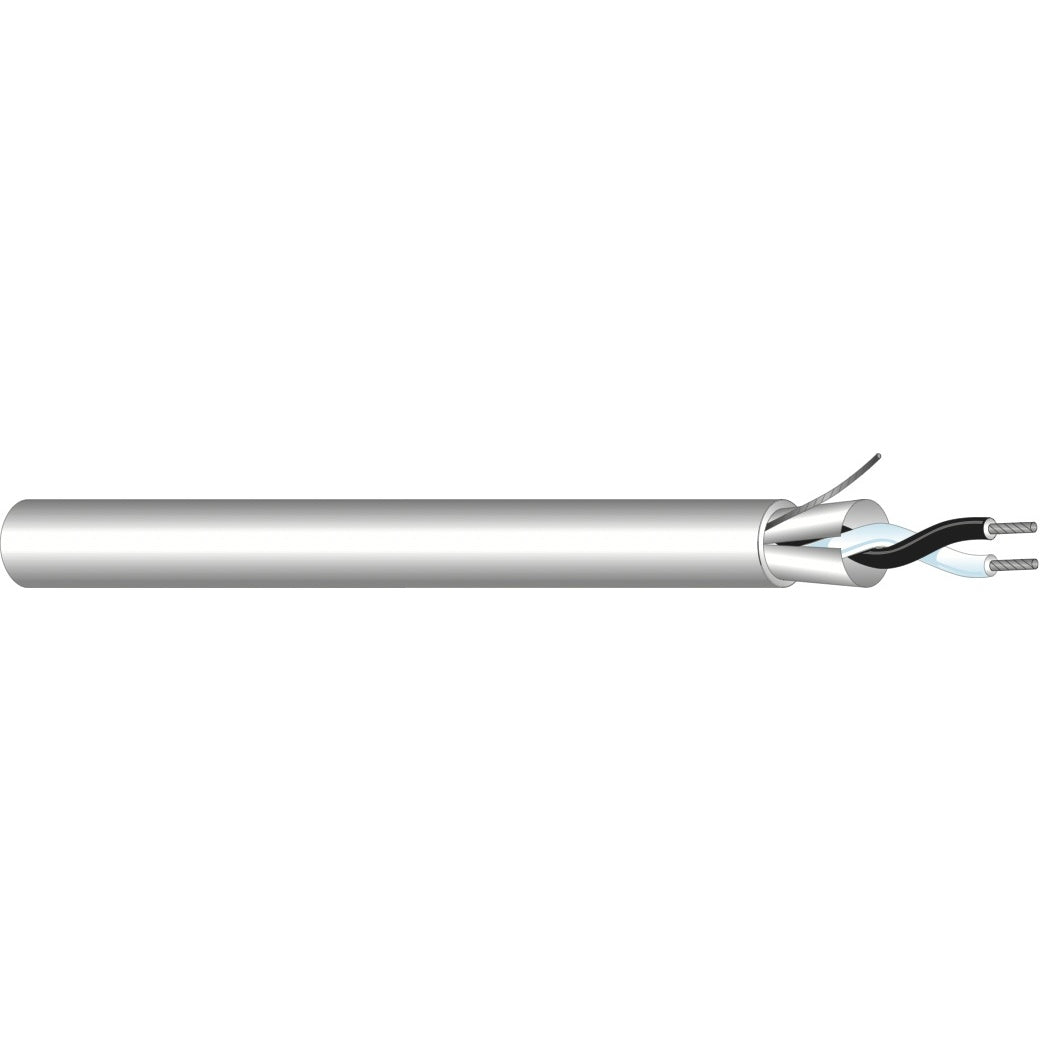

West Penn D25291GY1000 22 AWG Shielded Plenum Audio Cable

West Penn D25291GY1000 22 AWG Shielded Plenum Audio Cable

SoundPro Item: 146036 | Part Number: D25291GY1000

$394.00
$394.00 $394.00
Your Price Sold out
MSRP: $394.00 | MAP: $394.00

Usually ships in 5-7 business days

  • CMP Plenum Rating Meets NEC Requirements For Open Air-Handling Space Installations
  • UL And cUL Listed With NFPA 262 Flame Rating For Verified Code Compliance
  • Teflon (FEP) Insulation Delivers Superior Dielectric Stability Versus Standard PVC
  • ASTM Tinned Copper Conductors Resist Oxidation For Long-Term Connection Reliability
  • 100% Aluminum Foil Shield With Drain Wire Provides Complete EMI/RFI Rejection
  • Flexible Plenum Jacket Enables Easier Routing Through Tight Plenum Pathways
Log in or register for YOUR best price

The West Penn D25291GY1000 is a broadcast-quality 22 AWG individually shielded plenum audio cable designed for system integrators and AV installers working in commercial facilities, broadcast plants, and any installation requiring cable routed through air-handling plenum spaces. Its CMP rating satisfies NEC requirements and UL/cUL listing for plenum environments without conduit, streamlining compliance in facilities where open-plenum runs are standard practice.

Teflon (FEP) insulation provides superior dielectric performance and high-temperature stability compared to standard PVC-insulated alternatives, making it well-suited for dense rack cabling, low-voltage audio distribution, and line-level signal runs where signal integrity over long distances is non-negotiable. The 100% aluminum polyester foil shield with 24 AWG drain wire delivers complete EMI/RFI rejection — critical in environments shared with data, lighting, or RF infrastructure.

At 55 ohm impedance with a nominal capacitance of 35 pF/ft conductor-to-conductor and 69% velocity of propagation, this cable maintains predictable signal characteristics across the full 1000 ft spool length. Whether specifying for house-of-worship installs, corporate AV infrastructure, or permanent broadcast facility wiring, the D25291GY1000 offers the material consistency and regulatory compliance that professional AV system designs require.

Downloads

View full details

Specifications

Certifications
NEC Type
CMP
Listing
UL and cUL Listed
Flame Rating
NFPA 262
Construction
Conductor
1 Pair 22 AWG (7x30)
Insulation
Teflon (FEP), 0.010"
Shield
Aluminum Foil 100% + 24 AWG Drain Wire
Jacket
Flexible Plenum, 0.017"
Nominal OD
0.134"
Performance
Conductor Resistance
17 Ohm/Mft
Impedance
55 Ohm
Nominal Capacitance (Cond-Cond)
35 pF/ft
Nominal Capacitance (Cond-Shield)
67 pF/ft
Nominal VP
69%
Shipping
Spool Length
1000 ft
