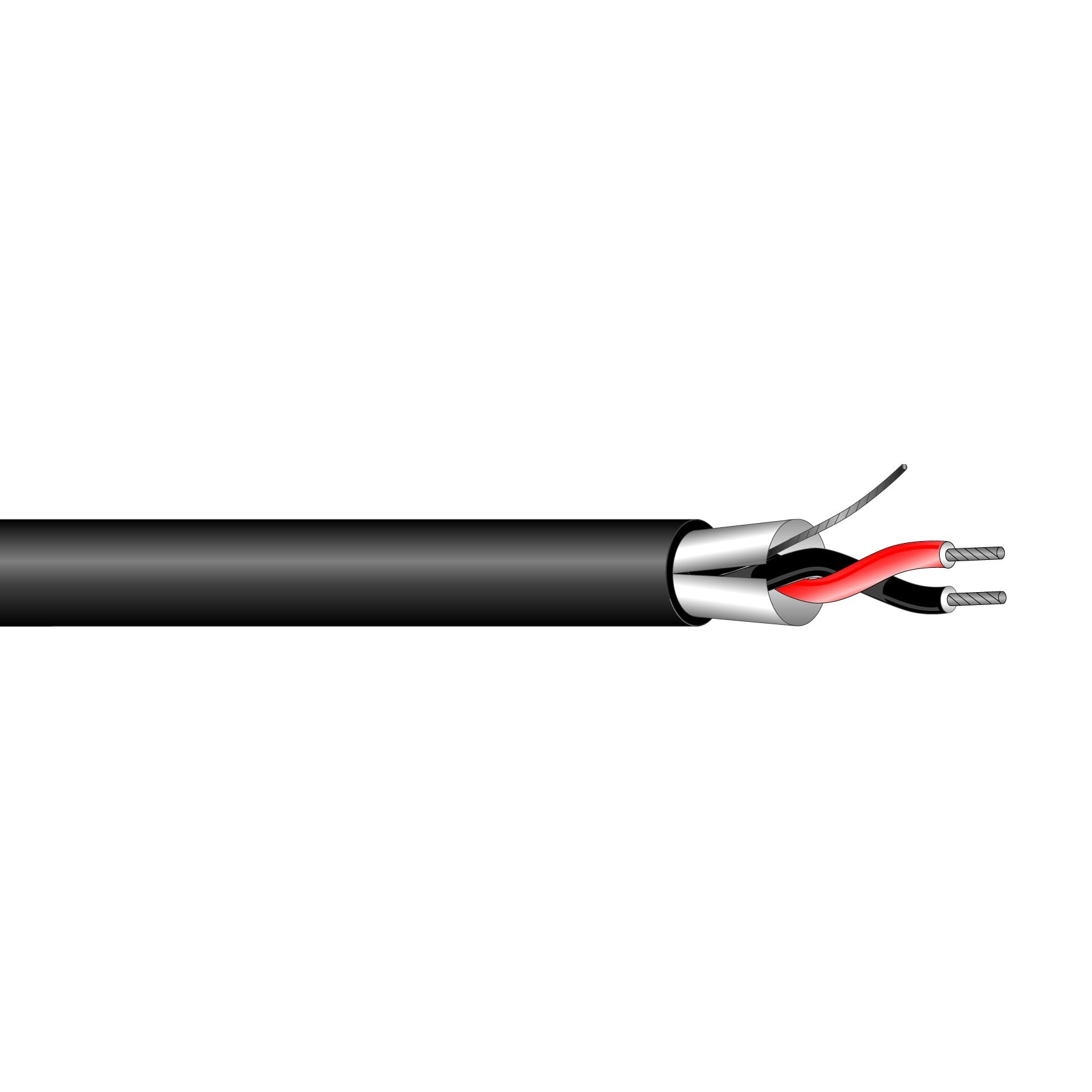

West Penn D25454BK1000 Miniature Plenum Shielded Broadcast Audio Cable

West Penn D25454BK1000 Miniature Plenum Shielded Broadcast Audio Cable

SoundPro Item: 39058 | Part Number: D25454BK1000

$259.49
$259.49 $259.49
Your Price Sold out
MSRP: $259.49 | MAP: $259.49

Usually ships in 5-7 business days

  • CMP Plenum Rating Satisfies NEC Fire Code For Above-Ceiling Audio Runs
  • FEP Insulation Provides Thermal Stability And Chemical Resistance In Plenum Spaces
  • ASTM Tinned Copper Conductors Resist Oxidation At Patch And Terminal Connections
  • Twisted-Pair Construction Minimizes Crosstalk Across Long Broadcast Rack Runs
  • Aluminum Polyester Foil Shield With Inside Drain Wire Ensures Maximum EMI Rejection
  • Direct Belden 9451P Equivalent Enables Drop-In Substitution On Existing Specifications
  • Overall Flexible Plenum Jacket Maintains Manageability In Tight Pathway Installations
Log in or register for YOUR best price

The West Penn D25454BK1000 is a broadcast-grade miniature audio cable engineered for AV integrators and broadcast engineers routing line-level audio, low-voltage power, or rack cabling through plenum-rated indoor spaces. Its CMP NEC designation satisfies fire code requirements in commercial and broadcast facilities where standard cables cannot be used, making it a practical choice for above-ceiling and air-handling plenum pathways without conduit.

The twisted-pair construction with 100% aluminum polyester foil shielding and a drain wire positioned inside the foil shield delivers consistent EMI and RFI rejection across long runs in electrically dense rack environments and broadcast suites. ASTM tinned copper conductors resist oxidation over time, preserving connection integrity at patch points and terminal blocks. At 22 AWG with FEP insulation, the cable maintains flexibility in tight plenum spaces while meeting the stringent NFPA 262 flame rating required by UL and cUL listings.

Supplied on a 1000 ft standard spool, this cable is a direct Belden 9451P equivalent, allowing integrators to substitute on existing bill-of-materials without requalification. Its slim nominal OD keeps conduit fill efficient and termination clean across high-density audio infrastructure projects.

Downloads

View full details

Specifications

Certifications
NEC Type
CMP
Listing
UL and cUL Listed
Flame Rating
NFPA 262
Electrical
Conductor
1 pair 22 AWG (7x30)
DC Resistance
17 Ohm/Mft
Nominal Capacitance (Conductor to Conductor)
35 pF/ft
Nominal Capacitance (Conductor to Shield)
67 pF/ft
Construction
Insulation
FEP, 0.007"
Shield
100% Aluminum Foil + 22 AWG Standard Drain Wire
Drain Wire Position
Inside of Foil Shield
Jacket
Flexible Plenum, 0.018"
Nominal OD
0.130"
Identifiers
Belden Equivalent
9451P
Spool Length
1000 ft
