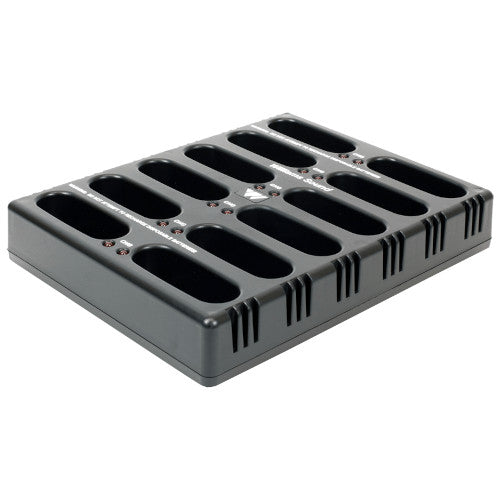

Williams AV CHG 3512 12 Bay Bodypack Charger

Williams AV CHG 3512 12 Bay Bodypack Charger

SoundPro Item: 35581 | Part Number: CHG 3512

$669.00
$740.00 $669.00
Your Price Sold out
MSRP: $740.00 | MAP: $669.00

Usually ships in 5-7 business days

  • Drop-in, 12-unit charger
  • For body-pack style transmitters and receivers
  • 12-1/4" x 11" x 2-3/8"
  • 2.48 lbs
  • Includes Power Supply
Log in or register for YOUR best price

Drop-in, 12-unit charger for body-pack style transmitters and receivers.(For use in US). 12-1/4" x 11" x 2-3/8", 2.48 lbs. Includes Power Supply.

The CHG 3512 isa 12-unit, drop-in battery charger and charges a maximum of 24 AA size NiMH batteries while they are installed into the Williams Sound PPA R37, PPA R35-8, R36, R863, RX22-4 style 3V receivers, or PPA T36, PPA T46, PFM T36, T863 style 3V transmitters.

The charger CHG 3512 is microprocessor controlled and enclosed in ABS plastic, measuring 9.5″ L x 7.4″ W x 1.7″ H (24.1cm L x 18.8cm W x 4.3cm H). The CHG 3512 unit weighs 1.2 lbs (2.64 Kg) without power supply, 2.48lbs (1.1 Kg) shipping weight.

The charger includes a timed charger at 16 hours, and will provide a maintain charge once the timer has completed its charging cycle. Each bay on the charger has a red LED indicating charging status. The LEDs are on constantly during charging and will blink indicating when batteries are fully charged.

The charger CHG 3512 is powered by an external switching power supply (90-240 VAC input; 5 VDC, 4A output) via a CD barrel connector. The charger has CE approval, and be compliant with RoHS and WEEE regulations.

For use with:

  • PLR BP1 Loop receiver
  • PPA R37 FM receiver
  • PPA R38 FM receiver
  • PPA T46 FM transmitter
  • WIR RX22-4 Infrared receiver
View full details

Specifications

Certifications
Warranty
1 year (cables and power supply warrantied for 90 days)
Approvals
CE, WEEE, RoHS
Dimensions
Dimensions (LxWxH)
9.5x7.4x1.7″ (24.1x18.8x4.3 cm)
Construction
Color
Black ABS
Unit Capacity
12 Units
Shipping
Weight
1.2 lbs (.54 kg), excluding power supply
General
Power Supply
TFP 037 Switching AC adapter, 5 VDC – 4A output
Charging Rate
16 Hour Charge: 140 mA
Pulse/Maintain
140 mA
Indicators
Individual Charging Indicators: Red LEDs. LEDs blink when batteries are charged
Power
Power Supply Input
90 – 240 VAC input
Charging Time
16 hours nominal
