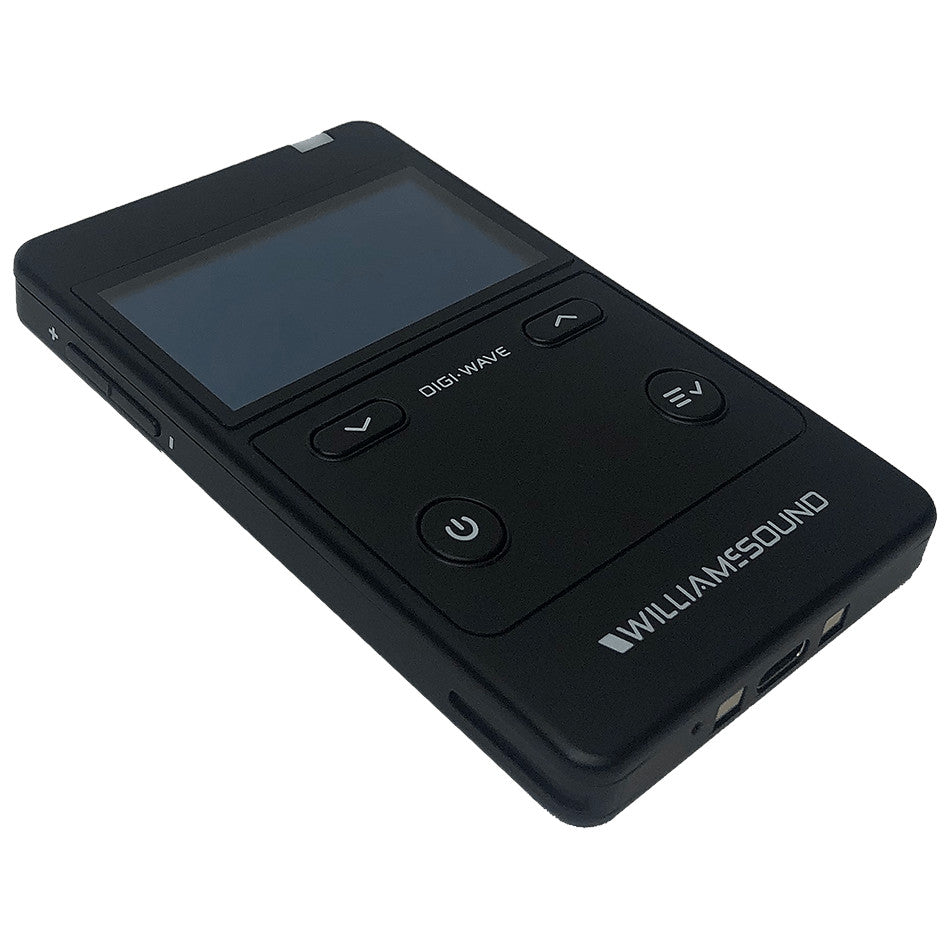

Williams AV DLR 400 RCH Digi-Wave 400 Rechargable Receiver
Williams AV DLR 400 RCH Digi-Wave 400 Rechargable Receiver
SoundPro Item: 54331 | Part Number: DLR 400 RCH
Usually ships in 5-7 business days
- Digital spread-spectrum (DSS), simultaneous two-way wireless listening system
- Avoids interference and is a very secure method of communication
- Allows users to listen and talk to one another wirelessly in a variety of scenarios
The Digi-Wave™ system is a digital spread-spectrum (DSS), simultaneous two-way wireless listening system. Using it's frequency-hopping algorithm, it avoids interference and is a very secure method of communication. The Digi-Wave communication system allows users to listen and talk to one another wirelessly in a variety of scenarios.
A Digi-Wave system consists of at least one transceiver (DLT 400) and various combinations of transceivers and receivers (DLR 400 RCH or DLR 400 ALK). Combinations of one or more DLT's and DLR's can be used to facilitate different events, depending on what needs to be spoken and what needs to be heard. Typical scenarios include:
- Guided Tours - with one or more tour guides (2-way), with audience participation (2-way), or without audience participation (1-way)
- Language Interpretation - one or more interpreted languages transmitted to audience (1-way)
- Intercom - with up to six people able to speak simultaneously, and even more listening
- Hearing Assistance - featuring boosted audio for improved comprehension
The DLR 400 has an internal rechargeable battery. The DLR 400 RCH is rechargeable. If alkaline batteries are preferred, see the DLR 400 ALK.
- Dimensions (WxHxD)4.22x2.6x0.5″ (107.3x66x12.6 mm)
- Weight3.3 oz (94 g) including battery
- ColorBlack
- Battery typeLithium Polymer with smart charge built into transceiver; 1800 mAH
- Battery lifeUp to 32 hrs per charge @ 1ch Rx
- Power SaveAuto Sleep Mode after 5 minutes of no RF signal from compatible devices
- Charge time5 hrs. approx.
- System VoltageOLED 14VDC; RF 5VDC; Logic 3.3 VDC
- Operating frequencies2.4 GHz (ISM band); 2402 – 2476 MHz FHSS
- Audio Frequency response (-3dB Level)
- Intercom Mode: 100 – 7,200 Hz
- Other Modes: 100 – 11,500 Hz
- SNR73 dB (A-weighted)
- THD0.1 % (Default Volume, 1kHz)
- Headphone Output3.5 mm TRRS headphone jack; 25 mW, R32 Ω
- Line Audio Output USB-C, Adjustable Level
- Range Up to 900 ft (274 m) (depending upon environmental conditions)
- Modulation FSK
- RF Sensitivity -92 dBm
- Security 87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings
- Indicators OLED
- LEDs Bi-color, changing green and red LED at top
- Charging Connectors USB-C; Two contacts for use with CHG 412
- Compatible Units DLT 400, DLT 300 with some limitations
- Operating Tempurature Range 14º to 113ºF (-10º to 45ºC)
- Approvals FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki
- Warranty 2-year warranty against component failure and manufacturing defects; 6 months on internal battery
