Williams AV DWS PCS 3 400 RCH Digi-Wave Personal Communication System

Williams AV DWS PCS 3 400 RCH Digi-Wave Personal Communication System

SoundPro Item: 91335 | Part Number: DWS PCS 3 400 RCH

$975.00
$1,083.00 $975.00
Your Price Sold out
MSRP: $1,083.00 | MAP: $975.00

Usually ships in 5-7 business days

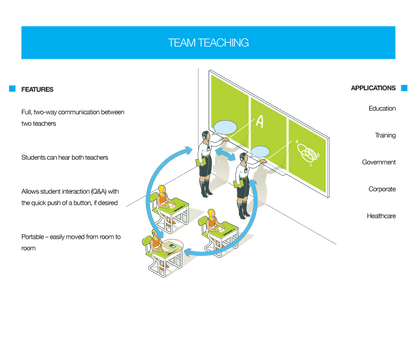

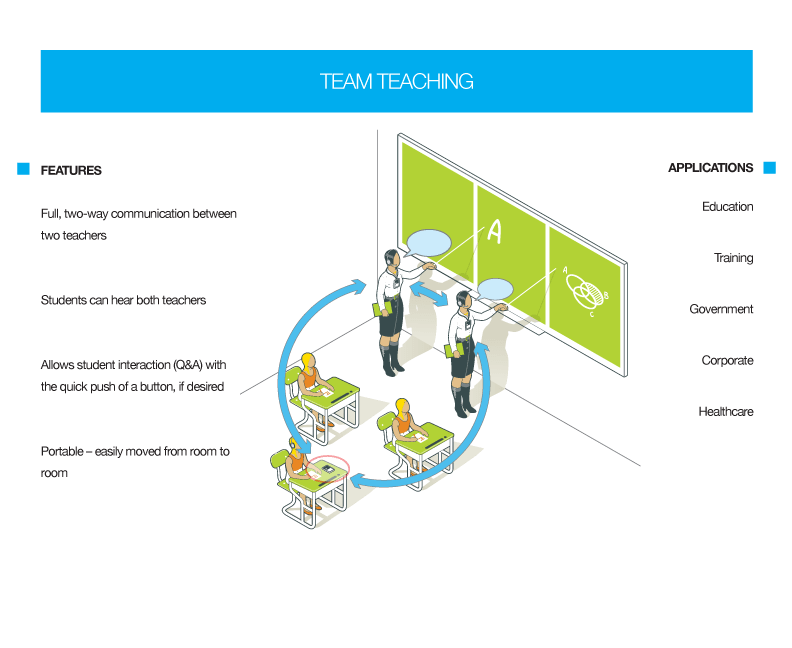

  • Full 2-way communication between 2 presenters
  • Audience can hear both presenters
  • Allows interaction at the push of a button
  • Portable
  • For education, training, government, corporate, healthcare, etc.
Log in or register for YOUR best price

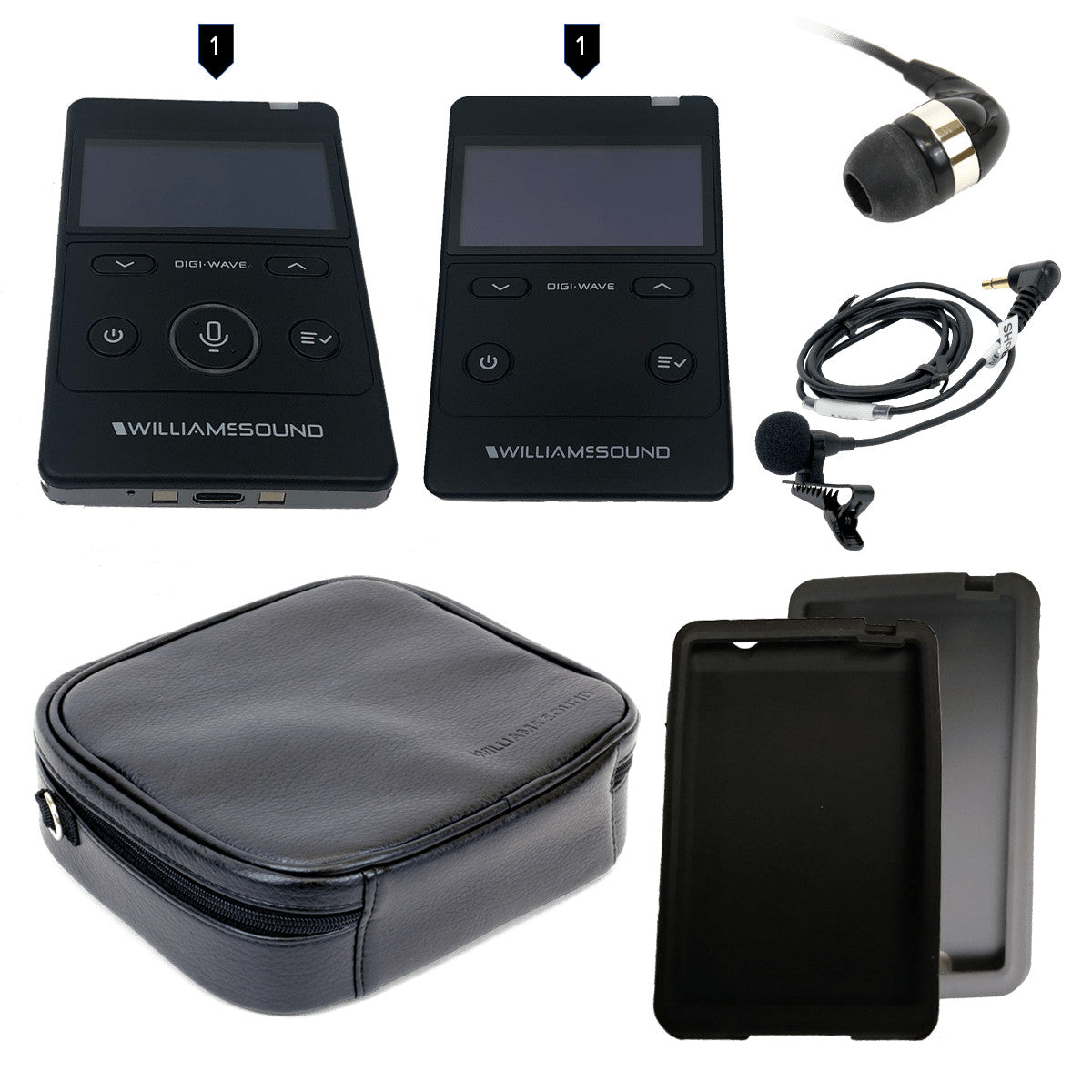

The Williams AV DWS PCS 3 400 RCH Digi-Wave Personal Communication System allows users to listen and talk to one another wirelessly in a variety of scenarios.

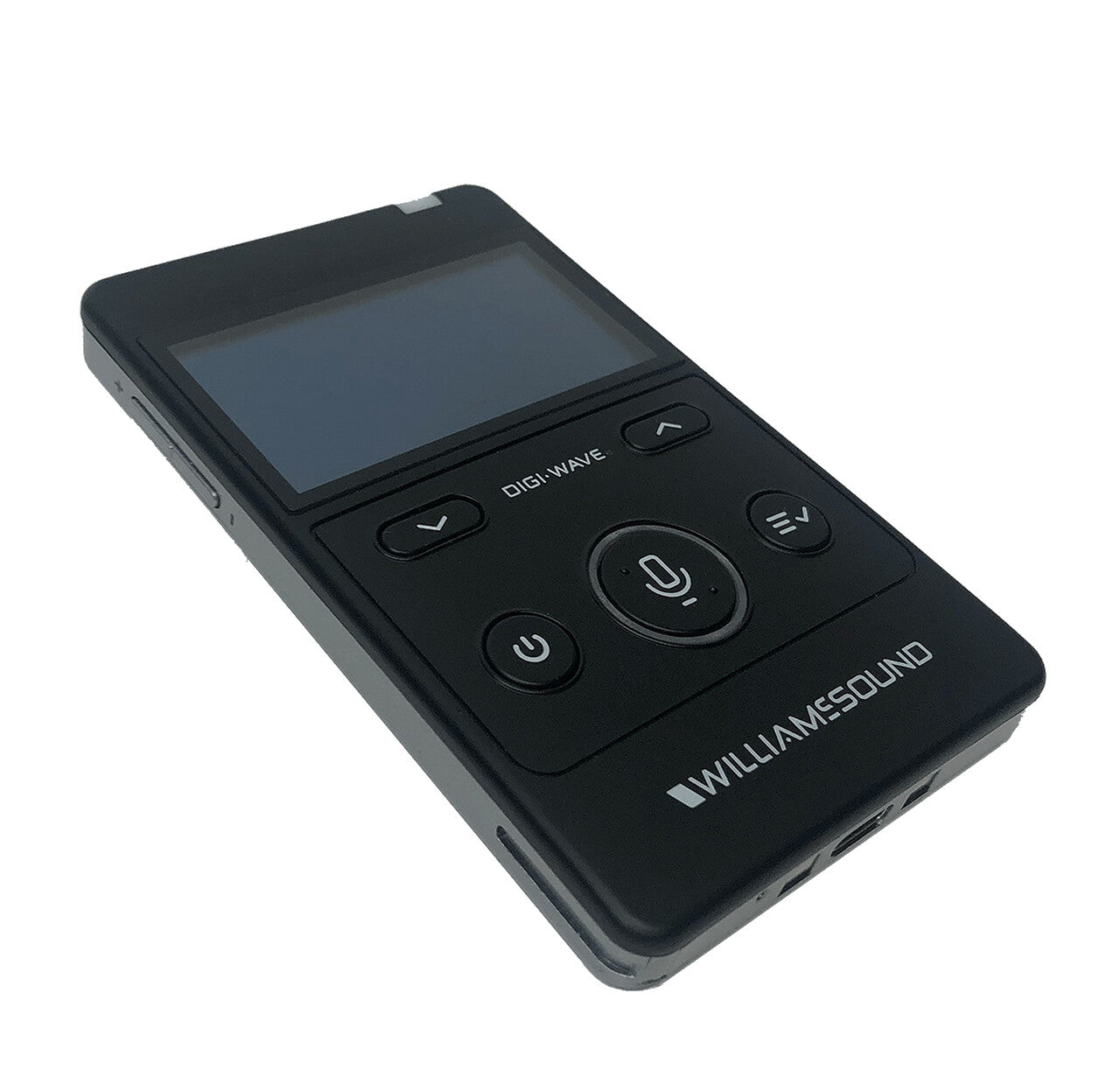

The transceiver in the system is DLT 400 from the Digi-Wave™ system. It is a digital spread-spectrum (DSS), simultaneous two-way wireless listening system. Using a frequency-hopping algorithm, it avoids interference and is a very secure method of communication.

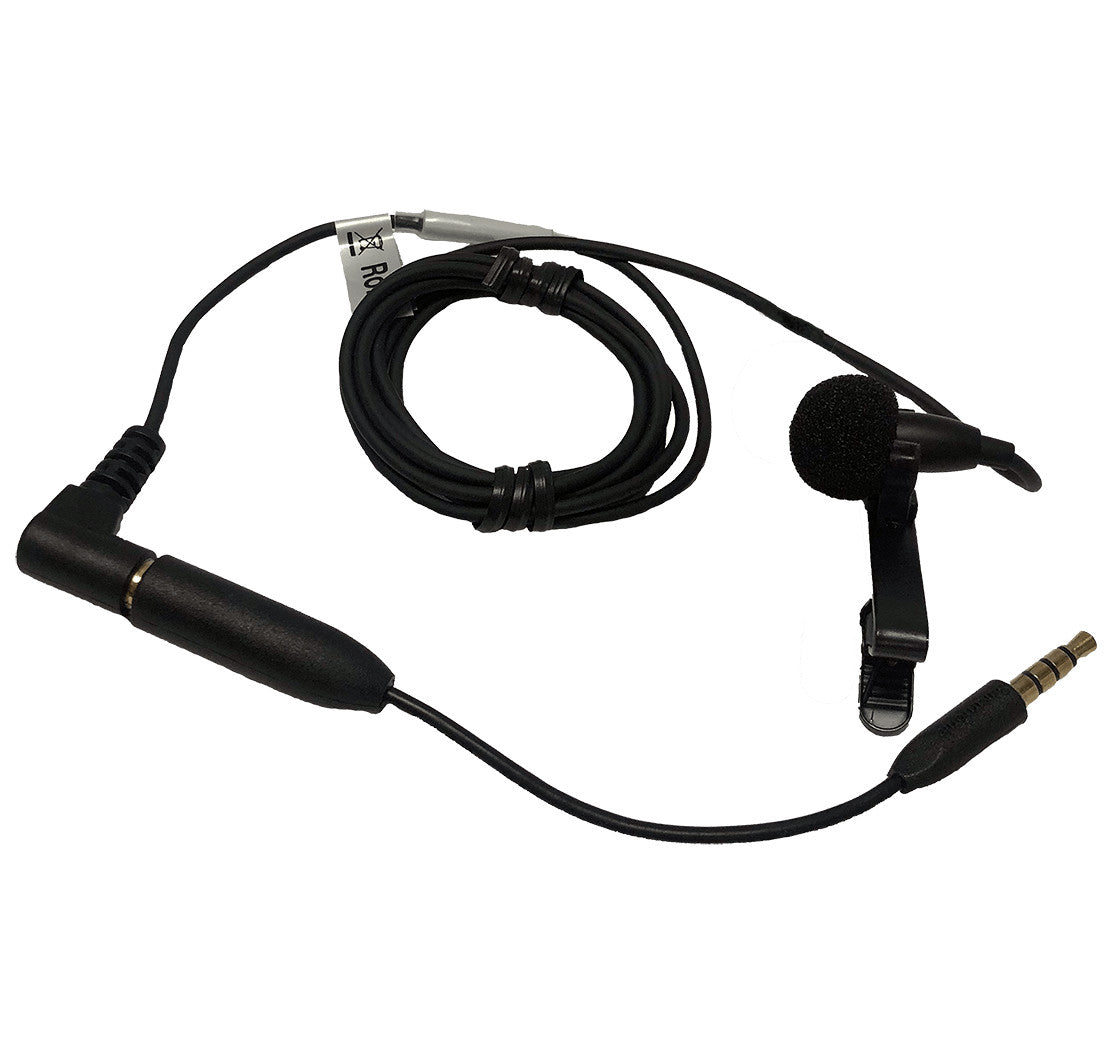

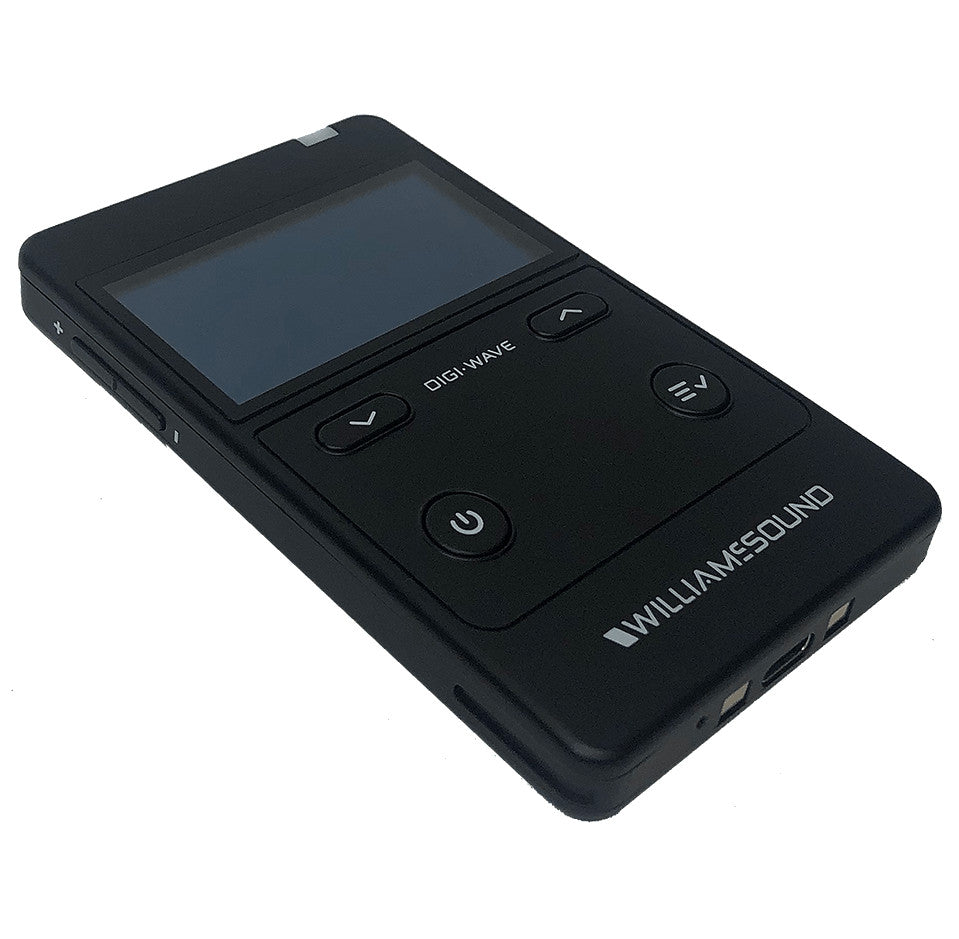

The receiver with this system is rechargeable using CHG 412 12-bay charger (sold separately). Lavalier microphone MIC 190 is another component to this system. The lav mic has an omnidirectional polar pattern and clips conveniently to your shirt.

View full details

Specifications

Certifications
Approvals
FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki
Warranty
2-year warranty against component failure and manufacturing defects; 6 months on internal battery
Dimensions
Dimensions
4.22"W x 2.60"H x 0.50"D (107.3 mm x 66 mm x 12.6 mm)
Electrical
System Voltage
OLED 14VDC; RF 5VDC; Logic 3.3 VDC
System Voltages
OLED 14VDC; RF 5VDC; Logic 3.3 VDC
Cord
39"
Audio
SNR
73 dB (A-weighted)
THD
0.1 % (Default Volume, 1kHz)
Headphone Output
3.5 mm TRRS headphone jack; 25 mW, R32 Ω
Line Audio Output
USB-C, Adjustable Level
RF Sensitivity
-92 dBm
Microphone Input
Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range.
Audio Output
Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Line: USB-C, Adjustable level
Side Tone
-6 dB below volume, tone variation (Off, Low and High settings available)
Driver Size
10 mm
Max Power Input
5 mW
Sensitivity
104 dB @ 1kHz
Connectivity
Charging Connectors
USB-C; Two contacts for use with CHG 412
Line Input
USB-C, Adjustable level
RF Output
19 dBm Typical
Plug
3.5mm mono
Construction
Color
Black
Case Material
Black ABS plastic
Compatibility
Compatible Units
DLT 400, DLT 300 with some limitations
Compatible Receiver
DLR 400 RCH, DLR 400 ALK, DLT 300 with some limitations and DLR 360 with some limitations
Environmental
Operating Temperature Range
14º to 113ºF (-10º to 45ºC)
Shipping
Weight
3.3 oz (94 g) including battery
General
Power Save
Auto Sleep Mode after 5 minutes of no RF signal from compatible devices
Charge Time
5 hrs. approx.
Operating Frequencies
2.4 GHz (ISM band); 2402 – 2476 MHz FHSS
Level) Intercom Mode
100 - 7,200
HzOther Modes
100 - 11,500 Hz
Range
Up to 900 ft (274 m) (depending upon environmental conditions)
Security
87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings
Indicators
OLED
Operating Tempurature Range
14º to 113ºF (-10º to 45ºC)
Style
Single, in-ear, isolation earphone
Nominal Impedance
16Ω
Freq. Response
20 - 20kHz
Replacement Silicone Tip
EAR 043 (0ne pair)
Power
Battery Type
Lithium Polymer with smart charge built into transceiver; 1800 mAH
Battery Life
Up to 32 hrs per charge @ 1ch Rx
Radio
Modulation
FSK
Indicators
LEDs
Bi-color, changing green and red LED at top
