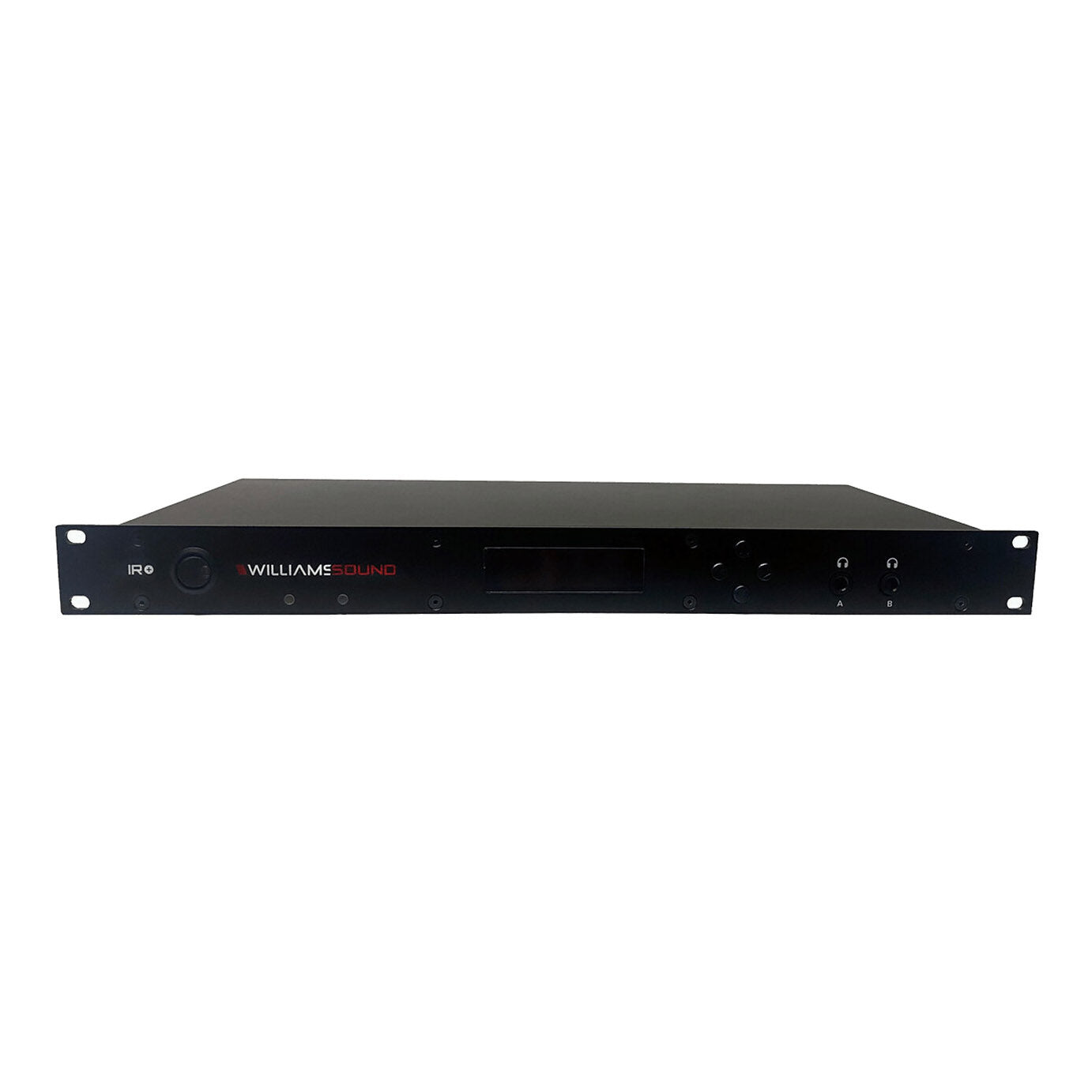

• Williams AV IR M1 D IR+ Control Center with Dante

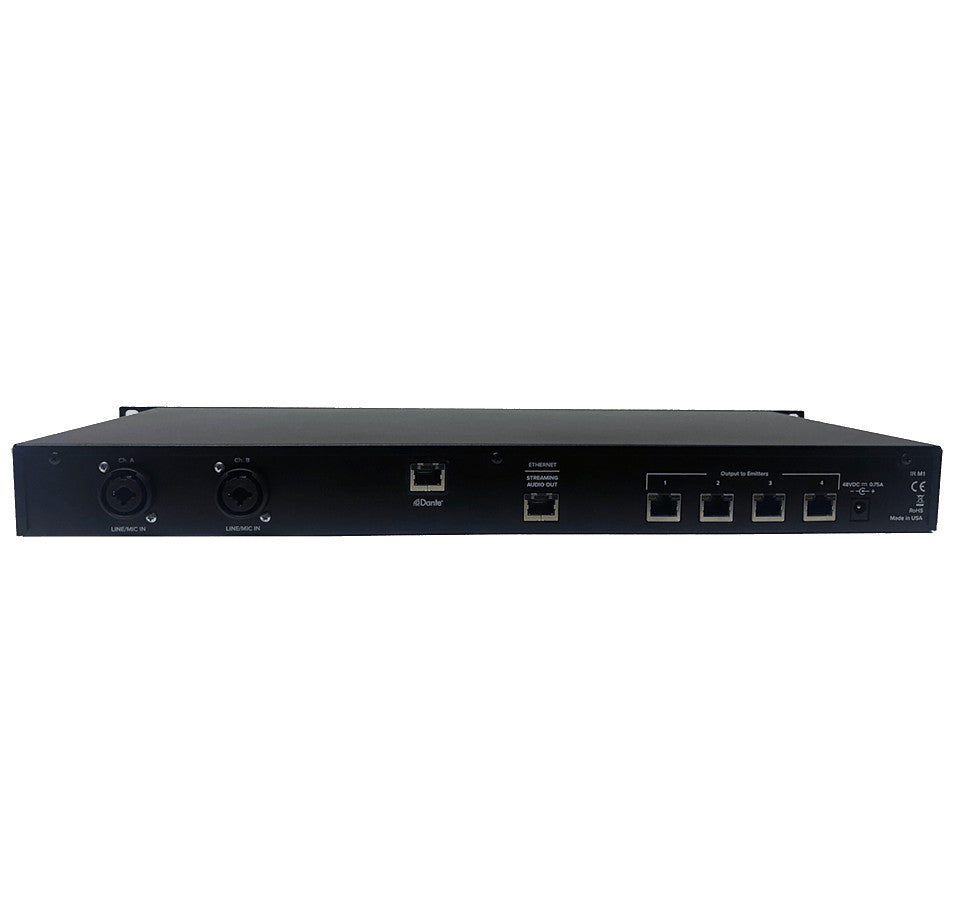

  • Williams AV IR M1 D IR+ Control Center with Dante back
1 2

Williams AV IR M1 D IR+ Control Center with Dante

Williams AV IR M1 D IR+ Control Center with Dante

SoundPro Item: 91387 | Part Number: IR M1 D

$3,385.00
$3,385.00 $3,385.00
Your Price Sold out
MSRP: $3,385.00 | MAP: $3,385.00

Usually ships in 5-7 business days

  • Provides audio over Wi-Fi and Infrared
  • Dante included
  • Distributed infrared emitter array architecture allows up to four emitters either stacked together or distributed throughout
  • Comes standard with support for up to four IR emitters
  • Each emitter runs back to the modulator via a CAT5e cable, providing the audio and power needed to support the remote emitter
  • Each emitter has a coverage area of 18,000 sq. ft.
Log in or register for YOUR best price

The Williams AV IR M1 D IR+ Control Center with Dante provides audio over Wi-Fi and Infrared. Infrared is best used for assistive audio in large spaces, or for secured audio transmission within a room. Connect the IR M1 to a Wi-Fi multicast router or in-house network you can stream audio over Wi-Fi to the Williams AV WaveCAST app (available in the iOS app store or Google Play store). The control center features Dante.

The IR+ Control Center features a distributed infrared emitter array architecture allowing up to four emitters either stacked together for large room arrays or distributed throughout the room to accommodate wings in room design, balconies or other obscured venue locations.

The rack mounted or remotely located IR M1 Control Center comes standard with support for up to four IR emitters. Each emitter runs back to the modulator via a CAT5e cable, providing the audio and power needed to support the remote emitter. Each emitter has a coverage area of 18,000 sq. ft.

View full details

Specifications

Certifications
Approvals
CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
Warranty
2 years on Modulator, 90 days on accessories
Dimensions
Dimensions
19” (W) x 1.75” (H) x 8.2” (D) (48.3 cm x 4.5 cm x 20.8 cm)
Audio
Output
+48VDC, 0.75A center-positive
Signal to Noise Ratio
67 dB (typical)
Frequency Response
40 to 16,000Hz, +1 dB, -3dB, electrical response
Total Harmonic Distortion
Less than 2%, electrical response
Audio Processor Functions
DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control
Audio Input
(2x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power
Headphone Output
(2) 1/4″ headphone jacks on front panel for monitoring CH A and CH B audio inputs
Connectivity
Input
36 W, 110-240 VAC 50-60 Hz
Emitter Output Jack
Four RJ-45 ports for CAT5e cables; provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission.
Construction
Color
Black
Rack Mount
Single Rack Unit
Controls
Power Switch
Rocker switch with LED
Shipping
Weight
5.2lbs (2.4 kg)
General
Power Supply
International Desktop Supply
Carrier Frequency
Selectable, 2.3/2.8 or 3.3/3.8MHz
Auto Carrier Shut-Off
Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage.
Infrared Test LED
Dual IR LED for receiver testing, monitoring, and audio signal testing.
Dante
Included
Internal Test Tone
400 Hz internal test tone selectable as audio input source for setup and diagnostics
Remote Configuration
Available through embedded website
Operating Requirements
0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
Radio
Modulation
FM Wideband, +50kHz deviation, 50uS pre-emphasis
