Williams AV IR SY11 D IR+ System Complete with Dante

Williams AV IR SY11 D IR+ System Complete with Dante

SoundPro Item: 91403 | Part Number: IR SY11 D

$5,512.00
$6,115.00 $5,512.00
Your Price Sold out
MSRP: $6,115.00 | MAP: $5,512.00

Usually ships in 5-7 business days

  • Discrete and efficient IR E4 Emitter
  • Each emitter provides 18,000 ft coverage (5486.4 meters)
  • Simple Cat 5e/6 installation
  • No power plug needed - uses PoE from M1
  • Emitters can be placed up to 328 feet (100 meters) from modulator
  • Up to 4 IR E4 emitters can be used with one IR M1 Distributed Control Center
  • Up to 4 IR A4 distributed arrays can be used for a total of 16 IR E4 emitters
  • True DSP backbone allows for optimization of assistive listening for the venue
Log in or register for YOUR best price

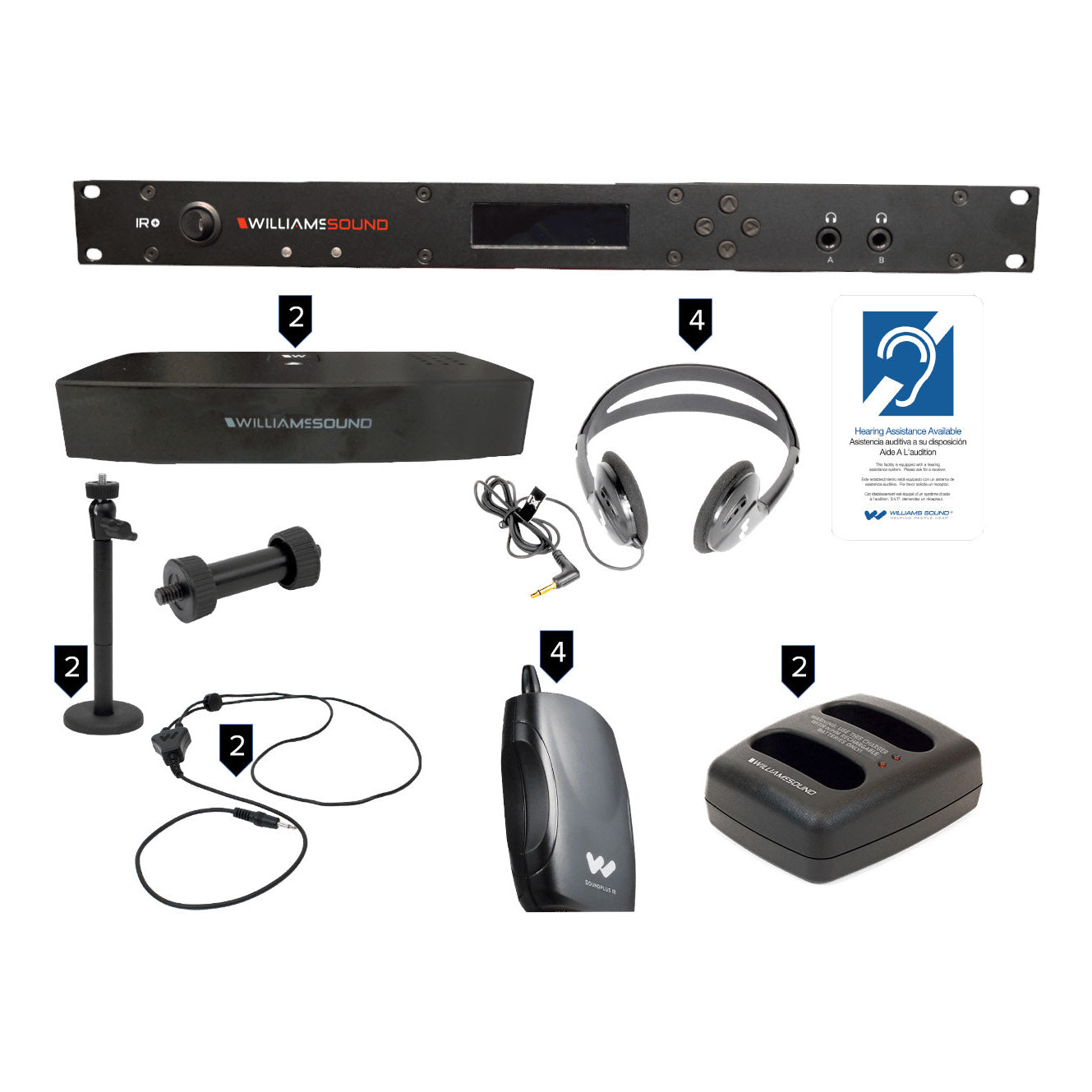

The Williams AV IR SY11 D IR+ System Complete with Dante is fully packed with all the tools needed for a large, functioning system.

More about IR+ Systems

The new IR + is the industry’s first IR system that combines secure infrared and optional WaveCast audio over Wi-Fi delivery in a single affordable box. This Scalable Infrared System uses Distributed Emitter IR array design to accommodate up to 16 emitters with flexible coverage in up to 288,000 square feet (26,750 square meters).

The IR + features a distributed IR E4 emitter architecture allowing up to four emitters either stacked together for large room arrays or distributed throughout the room to accommodate wings in room design, balconies or other obscured venue locations. The rack mounted or remotely located IR M1 Distributed Control Center comes standard with support for up to four IR E4 emitters. Each emitter runs back to the modulator via a Cat 5e/6 cable, providing the audio and power needed to support the remote emitter. Very large room applications can be supported by adding up to four IR A4 Distributed Control Arrays to support a total of 16 IR E4 emitters.

The IR + system can be controlled and monitored remotely via an internal web page, allowing for easy and flexible setup and control. The integrated Ethernet provides easy connection to the building network or a dedicated system-only network.

The IR + system also feature a WaveCAST network output for streaming audio via Wi-Fi when combined with a wireless access point. The WaveCAST audio over Wi-Fi Assistive Listening Output features an iOS or Android app for supporting mobile devices. The WaveCAST over audio Wi-Fi system can also be used with the Williams Sound WF R1 Wi-Fi receiver for those that don’t want to use mobile devices or for those looking for ADA compliance from a wireless system

View full details

Specifications

Certifications
Approvals
CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
Warranty
2 years on Modulator, 90 days on accessories
Dimensions
Dimensions
19” (W) x 1.75” (H) x 8.2” (D) (48.3 cm x 4.5 cm x 20.8 cm)
Size
4.1″ L x 2.85″ W x 1.2″ H (104.1 mm x 72.4 mm x 30.4 mm)
Weight
Shipping Weight
1.1 lbs (0.5 kg)
Electrical
Battery Drain
25 mA, nominal
Cord
39″
Audio
Output
+48VDC, 0.75A center-positive
Signal to Noise Ratio
67 dB (typical)
Frequency Response
40 to 16,000Hz, +1 dB, -3dB, electrical response
Total Harmonic Distortion
Less than 2%, electrical response
Audio Processor Functions
DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control
Audio Input
(2x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power
Headphone Output
(2) 1/4″ headphone jacks on front panel for monitoring CH A and CH B audio inputs
Audio Output Jacks
3.5 mm stereo mini phone jack Accepts 3.5 mm mono or stereo phone plug
Audio Output Power
15 mW max at 32 Ω
Sensitivity
Better than 1 nW/cm2 for 40 dB signal-to-noise ratio
Impedance
8-16 Ohms
Driver Size
30 mm
Max Power Input
100 mW
Connectivity
Input
36 W, 110-240 VAC 50-60 Hz
Emitter Output Jack
Four RJ-45 ports for CAT5e cables; provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission.
Acoustic Output
125 dB SSPL90 with HED 021; 110 dB SSPL90 w/ EAR 013
Charger Power Input
6 VDC, 300mA
Connector
NKL 001: 3.5 mm mono plug NKL 001-S: 3.5 mm stereo plug with ring disconnected
Input Power
500 mW max
Plug
3.5mm mono
Construction
Color
Black
Rack Mount
Single Rack Unit
Color and Material
Black
Charging Contacts
For use only with CHG 3512
Enclosure
Black, ABS plastic
Unit Capacity
2 Units
Controls
Power Switch
Rocker switch with LED
Compatibility
Compatible Headphones/Earphones
Mono or stereo, 8-32 ohms, 3.5 mm mini phone plug, HED 021, HED 026, EAR 013, EAR 014, EAR 022, NKL 001
Included Items
Lanyard
3 ft (0.91 m), allows receiver to be worn around the neck
Environmental
Operating Temperature
-10° C to +50° C
Shipping
Weight
5.2lb. (2.4 kg)
Identifiers
Length
18.5” cord
General
Power Supply
International Desktop Supply
Carrier Frequency
Selectable, 2.3/2.8 or 3.3/3.8MHz
Auto Carrier Shut-Off
Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage.
Infrared Test LED
Dual IR LED for receiver testing, monitoring, and audio signal testing.
Dante
Optional
Internal Test Tone
400 Hz internal test tone selectable as audio input source for setup and diagnostics
Remote Configuration
Available through embedded website
Operating Requirements
0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
Connectivity
+48VDC Power, RS-485 communication, and Baseband signals for IR trasmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1.
Receiver Style
Body-Pack, dual-lens detector, lanyard
Carrier Frequency Channel 1
2.3 MHz, Channel 2: 2.8 MHzChannel 3: 3.3 MHz, Channel 4: 3.8 MHz
De-Emphasis
50 uS
FM Deviation
±50 kHz
Controls
ON/OFF/VOLUME: combination thumbwheel knob
Channel Selector
four-position rotary switch
Indicators
Red LED “ON” indicator, flashes to indicate Low battery
Center PositiveOutput
100mA per bay
Style
Mono, folding headphone
Nominal Impedance
32Ω
Freq. Response
20 – 20kHz
Replacement Pads
HED 023 (one pair)
BAT 026
NiMH, 1.2 Volt, 1500 mAh
IDP 008
10-3/8" (L) x 6-¼" (W) x 1/8" (H)
Radio
Modulation
FM Wideband, +50kHz deviation, 50uS pre-emphasis
Power
Power
48 VDC supplied by IR M1 via CAT 5e cable.
Battery Type
2 x AA, alkaline (BAT 001-2) or NiMH (BAT 026-2)
Battery Life
Alkaline: 60 hours, NiMH: 30 hours/charge
Charging Time
16 hours nominal*
IR
Coverage Area
Up to 18,000 square feet in single channel mode
RF
Squelch
Receiver squelches (mutes) at 28 dB S/N ratio
