Williams AV IR SY22 D Dante Infrared Transmitter System
Williams AV IR SY22 D Dante Infrared Transmitter System
SoundPro Item: 115511 | Part Number: IR SY22 D
Regular price
$7,290.00
Regular price
$8,080.00
Sale price
$7,290.00
Unit price
per
MSRP: $8,080.00
| MAP: $7,290.00
Usually ships in 5-7 business days
- Commercial-grade
- Large-area infrared system
- Dante enabled
- Includes IR+ transmitter, 2 emitters, and array

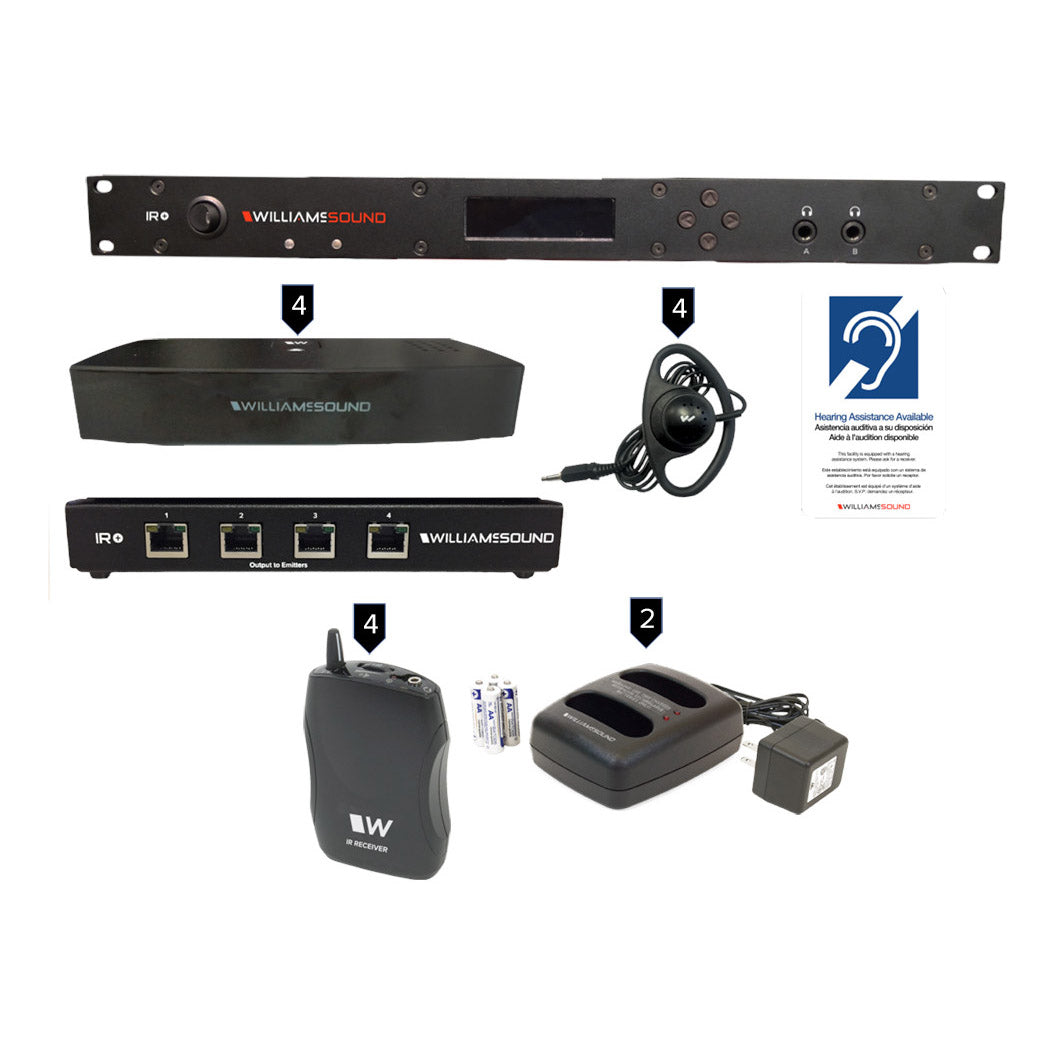

The Williams AV IR SY22 D Dante Infrared Transmitter System is a commercial-grade, large-area Dante infrared system with IR+ transmitter, 4 emitters and array.
Specifications
Certifications
Approvals
CE, FCC, RoHS, RCM, WEEE, CB Scheme, ISED, VCCI
Warranty
2 years on Modulator, 90 days on accessories
Dimensions
Dimensions
19” (W) x 1.75” (H) x 8.2” (D) (48.3 cm x 4.5 cm x 20.8 cm)
Max Cable Length
328 feet (100m)
Size
4.1″ L x 2.85″ W x 1.2″ H (104.1 mm x 72.4 mm x 30.4 mm)
Weight
Shipping Weight
1.1 lbs (0.5 kg)
Electrical
Battery Drain
25 mA, nominal
Cord
39"
Audio
Output
+48VDC, 0.75A center-positive
Signal to Noise Ratio
67 dB (typical)
Frequency Response
40 to 16,000Hz, +1 dB, -3dB, electrical response
Total Harmonic Distortion
Less than 2%, electrical response
Audio Processor Functions
DSP based; Compression 1:1, 1.5:1, or 2:1; High-pass and low-pass filter frequency control
Audio Input
(2x) Combination 3-pin XLR, 1/4” (TRS) jack for balanced or unbalanced line level, or balanced or unbalanced microphone with selectable phantom power
Headphone Output
(2) 1/4″ headphone jacks on front panel for monitoring CH A and CH B audio inputs
Audio Output Jacks
3.5 mm stereo mini phone jack Accepts 3.5 mm mono or stereo phone plug
Audio Output Power
15 mW max at 32 Ω
Sensitivity
Better than 1 nW/cm2 for 40 dB signal-to-noise ratio
Driver Size
23 mm
Max Power Input
30 mW
Connectivity
Input
36 W, 110-240 VAC 50-60 Hz
Emitter Output Jack
Four RJ-45 ports for CAT5e cables; provides +48VDC Power, RS-485 communication, and Baseband signals for IR transmission.
Acoustic Output
125 dB SSPL90 with HED 021; 110 dB SSPL90 w/ EAR 013
Charger Power Input
6 VDC, 300mA
Plug
3.5mm mono
Construction
Color
Black
Rack Mount
Single Rack Unit
Color and Material
Black
Charging Contacts
For use only with CHG 3512
Enclosure
Black, ABS plastic
Unit Capacity
2 Units
Controls
Power Switch
Rocker switch with LED
Compatibility
Compatible Headphones/Earphones
Mono or stereo, 8-32 ohms, 3.5 mm mini phone plug, HED 021, HED 026, EAR 013, EAR 014, EAR 022, NKL 001
Included Items
Lanyard
3 ft (0.91 m), allows receiver to be worn around the neck
Environmental
Operating Temperature
-10° C to +50° C
Shipping
Weight
5.2lb. (2.4 kg)
General
Power Supply
International Desktop Supply
Carrier Frequency
Selectable, 2.3/2.8 or 3.3/3.8MHz
Auto Carrier Shut-Off
Adjustable timer shuts off carrier when no audio is present. Adjustable through webpage.
Infrared Test LED
Dual IR LED for receiver testing, monitoring, and audio signal testing.
Dante
Optional
Internal Test Tone
400 Hz internal test tone selectable as audio input source for setup and diagnostics
Remote Configuration
Available through embedded website
Operating Requirements
0-50ºC ambient temperature, non-condensing, non-corrosive atmosphere
Connectivity
+48VDC Power, RS-485 communication, and Baseband signals for IR trasmission are all provided via a single CAT5e cable inserted into an RJ-45 jack from the IR M1.
Heat Dissipation
1W
Plenum Rating
The IR A4 is not rated for use in plenum spaces and will need to be installed in a plenum box for use in such areas.
Receiver Style
Body-Pack, dual-lens detector, lanyard
Carrier Frequency Channel 1
2.3 MHz, Channel 2: 2.8 MHzChannel 3: 3.3 MHz, Channel 4: 3.8 MHz
De-Emphasis
50 uS
FM Deviation
±50 kHz
Controls
ON/OFF/VOLUME: combination thumbwheel knob
Channel Selector
four-position rotary switch
Indicators
Red LED “ON” indicator, flashes to indicate Low battery
Center PositiveOutput
100mA per bay
Style
Around-ear speaker
Nominal Impedance
32Ω
Freq. Response
20 - 20kHz
IDP 008
10-3/8" (L) x 6-¼" (W) x 1/8" (H)
Radio
Modulation
FM Wideband, +50kHz deviation, 50uS pre-emphasis
Power
Power
48 VDC supplied by IR M1 via CAT 5e cable.
Battery Type
2 x AA, alkaline (BAT 001-2) or NiMH (BAT 026-2)
Battery Life
Alkaline: 60 hours, NiMH: 30 hours/charge
Charging Time
16 hours nominal*
IR
Coverage Area
Up to 18,000 square feet in single channel mode
RF
Squelch
Receiver squelches (mutes) at 28 dB S/N ratio
