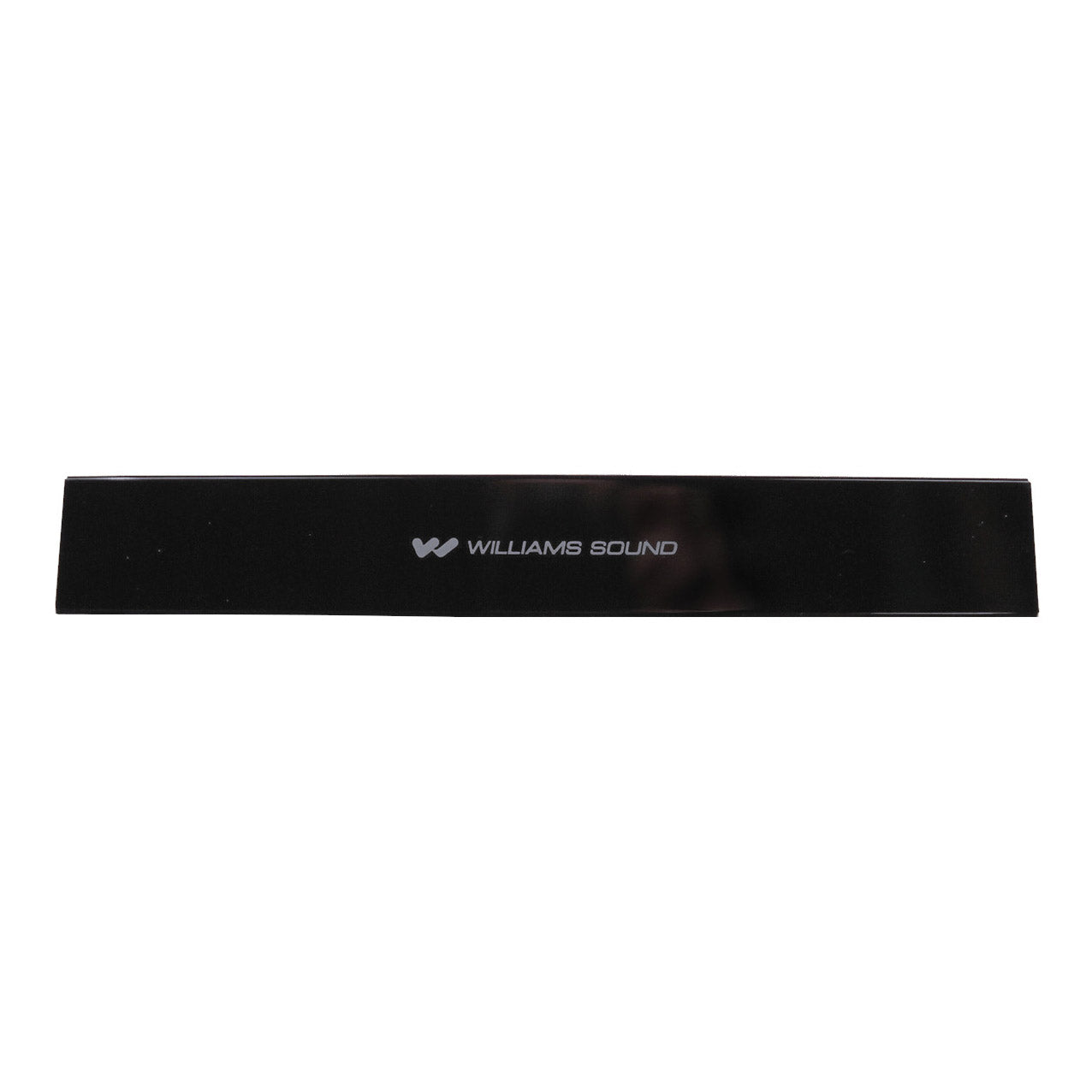

Williams AV IR T2 Commercial-Grade Infrared Transmitter
Williams AV IR T2 Commercial-Grade Infrared Transmitter
SoundPro Item: 91408 | Part Number: IR T2
Usually ships in 5-7 business days
- Commercial-grade
- Medium-area infrared transmitter
- Sleek, compact footprint
- Ideal for assistive listening and language interpretation in commercial spaces
- 50 percent greater coverage than the previous IR device (WIR TX75)
- Can be controlled remotely via RS-232 commands
The IR T2 from William AV is a commercial-grade, medium-area infrared transmitter. Its sleek, compact footprint is ideal for assistive listening and language interpretation in commercial spaces such as conference rooms, assisted living facilities, small cinema/theaters, classrooms and courtrooms. The new IR T2 infrared transmitter offers 50 percent greater coverage than the previous IR device (WIR TX75) and new control system readiness — all at a more affordable price. With a significantly wider coverage pattern and more power, there is no need for the additional expense of secondary units.
The IR T2 can be controlled remotely via RS-232 commands. The commands include:
- Powering the unit on/off
- Remotely setting the IR frequency (2.3/2.8 or 3.3/3.8)
- Muting the outgoing audio without powering off
- Turning back panel LEDs on or off
- Troubleshooting abilities
- Dimensions (WxDxH)9x3.8x1.4" (229x97x36mm)
- ColorBlack
- Power SupplyFP 057 Desktop style international certified power supply with IEC line cord, 100-240 VAC input, 50-60 Hz, 18 W; 48 VDC output
- DC Power Input2.1 mm ID barrel connector, 48 VDC, 0.2A, center positive
- Power IndicatorGreen LED
- Sleep/Power Save ModeShuts off IR when no audio present for 12 minutes
- ModulationFM Wideband, ±50 kHz deviation max, 50 μS pre-emphasis
- Baseband Frequencies2.3, 2.8, 3.3, 3.8 MHz
- Coverage Area
- Up to 18,000 sq. ft (1,673 sq. m) in single-channel mode with the RX22-4 receiver
- Up to 11,500 sq. ft (1,068 sq. m) with the RX20 receiver

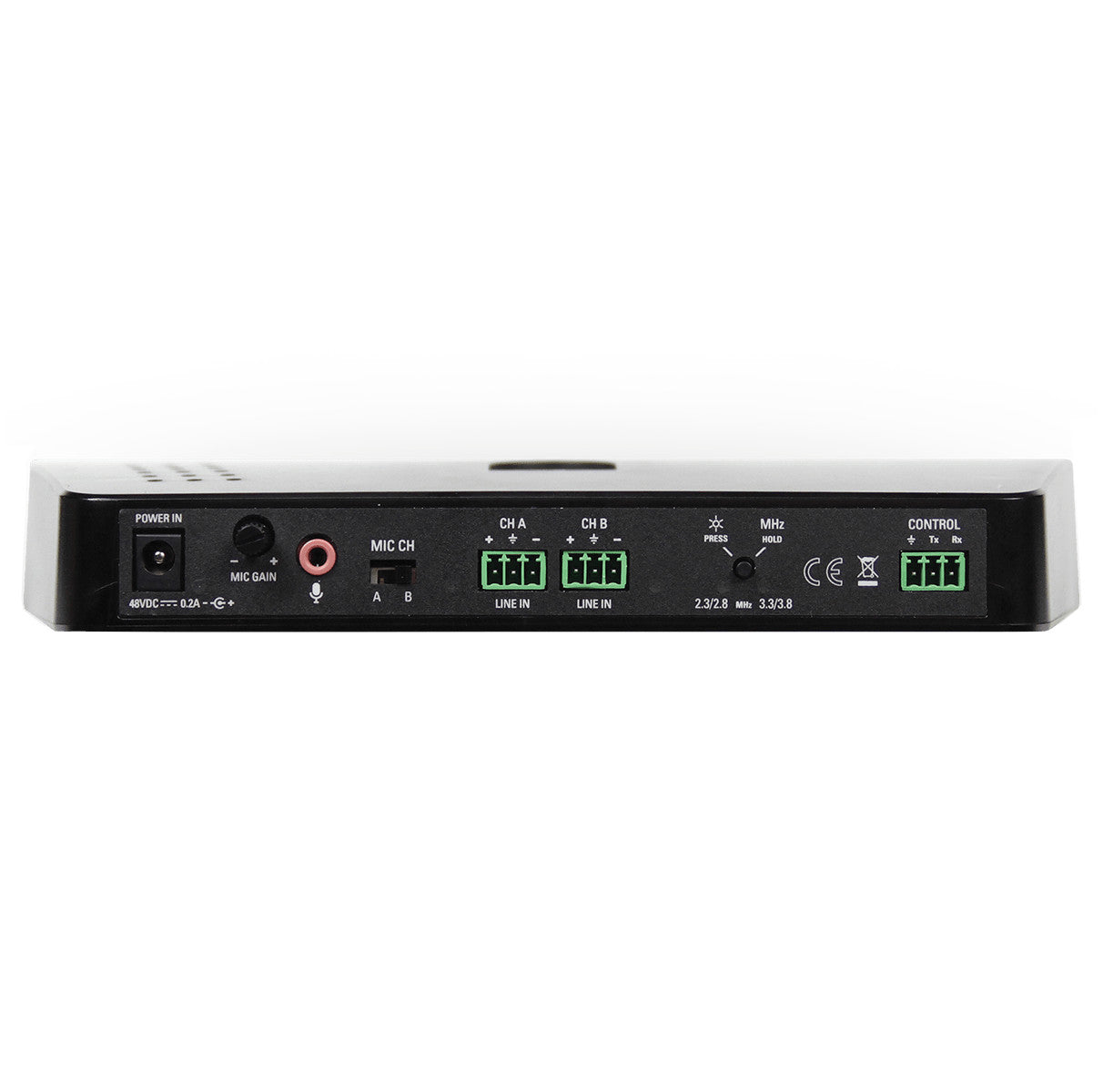

- Microphone gain adjustRotary 10 dB range
- Microphone channel switchSelects microphone input to Ch. A or Ch. B
- Microphone input3.5 mm, stereo jack with signal and bias connected to tip, electret microphone compatible (6 VDC bias supply with 2.7 k ohm series resistor)
- Line inputsPhoenix style connector jack for Ch A and Ch B accept line level, balanced or unbalanced audio
- Audio IndicatorsOne yellow LED per channel. Lights up and stay on steady with minimum audio level.
- Signal-to-Noise Ratio70 dB (line input)
- Frequency Response
- 95 Hz to 17.6 kHz, -3 dB re 1 kHz (line inputs)
- 125 Hz to 17.0 KHz, -3 dB re 1 kHz (microphone input)
- Operating Requirements32°-122°F (0-50°C)
- Mounting KitWall or Ceiling mount: BKT 024 Omnidirectional mount
- Compatible ReceiversWIR RX22-4, IR RX20
- Warranty5-year warranty against component failure and manufacturing defects. See Full Warranty statement on the website for details.
- Approvals/Regulatory ComplianceCE, FCC, Industry Canada, WEEE, RoHS, CB Scheme, RCM, PSE
