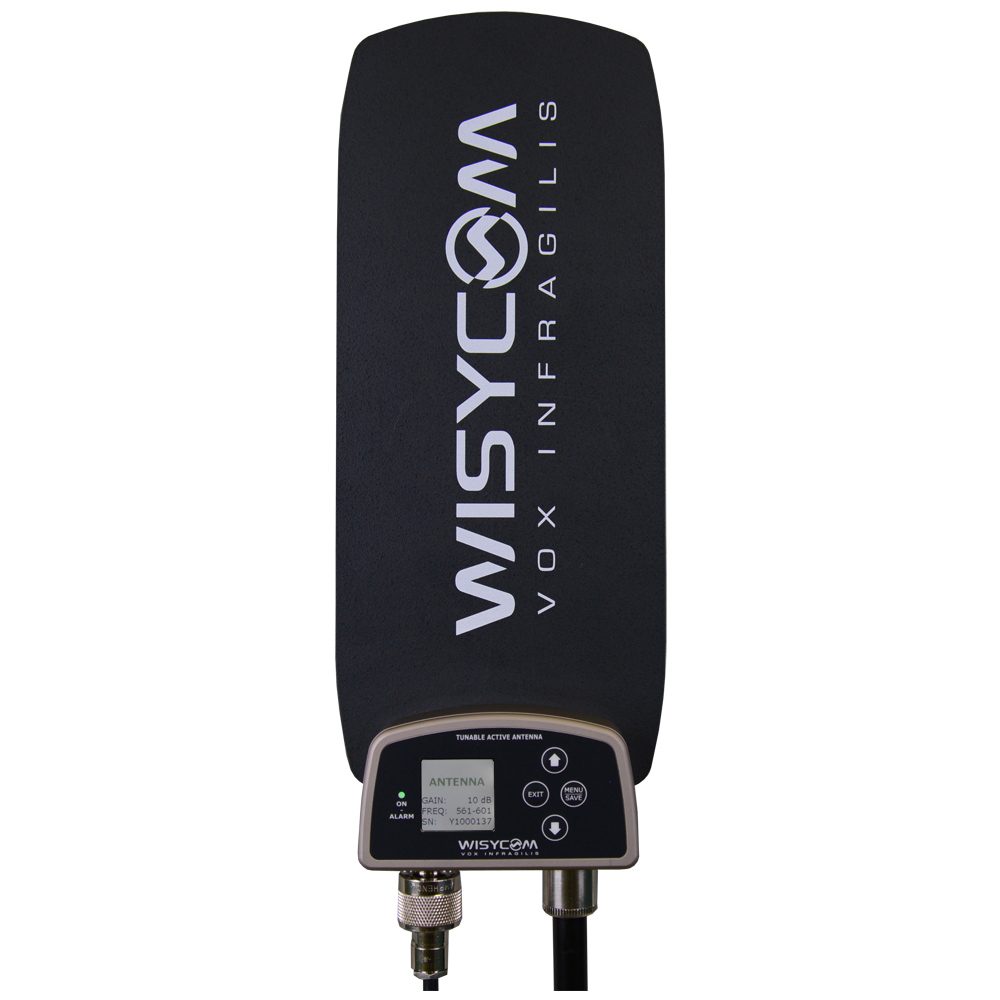

Wisycom ADFA-B-F2 Omnidirectional Wideband Active Antenna with Tunable Filt
Wisycom ADFA-B-F2 Omnidirectional Wideband Active Antenna with Tunable Filt
SoundPro Item: 150829
Usually ships in 5-7 business days
- Huge reception band: 430-1160 MHz
- Remote controllable thru coax cable (with MAT244/MAT288/SPL2208/SPL2216)
- RF gain from -12 to +27 dBu (1 dB step)
- Easy configuration thru a TFT display
- Tunable filter for interference control
- Antenna off for RF zone disabling
- Fixed band saw filter
- 3 High Pass & 3 Low Pass filters
- Waterproof with gasket sealing
The Wisycom ADFA is an active, filtered, UHF omnidirectional antenna. For use with certain Wisycom wireless products. The ADFA-F2 has three software selectable filter options, allowing for a wide range of use in microphone receive applications. Selectable Highpass options 470/520/550 MHz with a lowpass option 617/663/698 MHz. The second filter option is a 40MHz bandwidth tunable filter, utilizing 1MHz steps from 430MHz to 730MHz. The final filter is a fixed saw filter for the United States from 940MHz to 960MHz. The ADFA additionally offers adjustable gain from a -12dB attenuation to +27dB boost. When paired with a Wisycom MAT288/244, SPL2208/2216, or MRK16 the ADFA can be remote controlled. The ADFA requires +12V 100mA for full operation. ADFA-B-F2 is available with a BNC or N-Type connector for easy connection.
- Frequency ranges430 - 1160 MHz
- Filter Range
- Tunable: 430 - 730 MHz (UHF), 40MHz of BW
- Fixed: 940 - 960 MHz or 1240 - 1260MHz
- Selectable Filter HP: 470/520/550 MHz + LP: 617/663/698 MHz
- PolarizationVertical
- RadiationOmnidirectional
- Impedance50 Ω
- Booster Gain
- -12 - 27 dB typical (1 dB step selection)
- 0.8 dB attenuation (bypassed)
- Booster Steps± 1 dB, in the whole working window
- DisplayTFT - transflective (176 x 176 pixels, RGB)
- Power supply+12 V, 100mA
- Materialepoxy fiberglass with skeletal design
- Finishingblack matte textured weather resistance coating
- Mounting5/8" with worth or 3/8" with adapter
- Dimensions305x 111 x 28 mm (HxWxD)
- Weight315 g (BNC), 365 g (N)
- Operating voltage range9.5 - 16 Vdc
