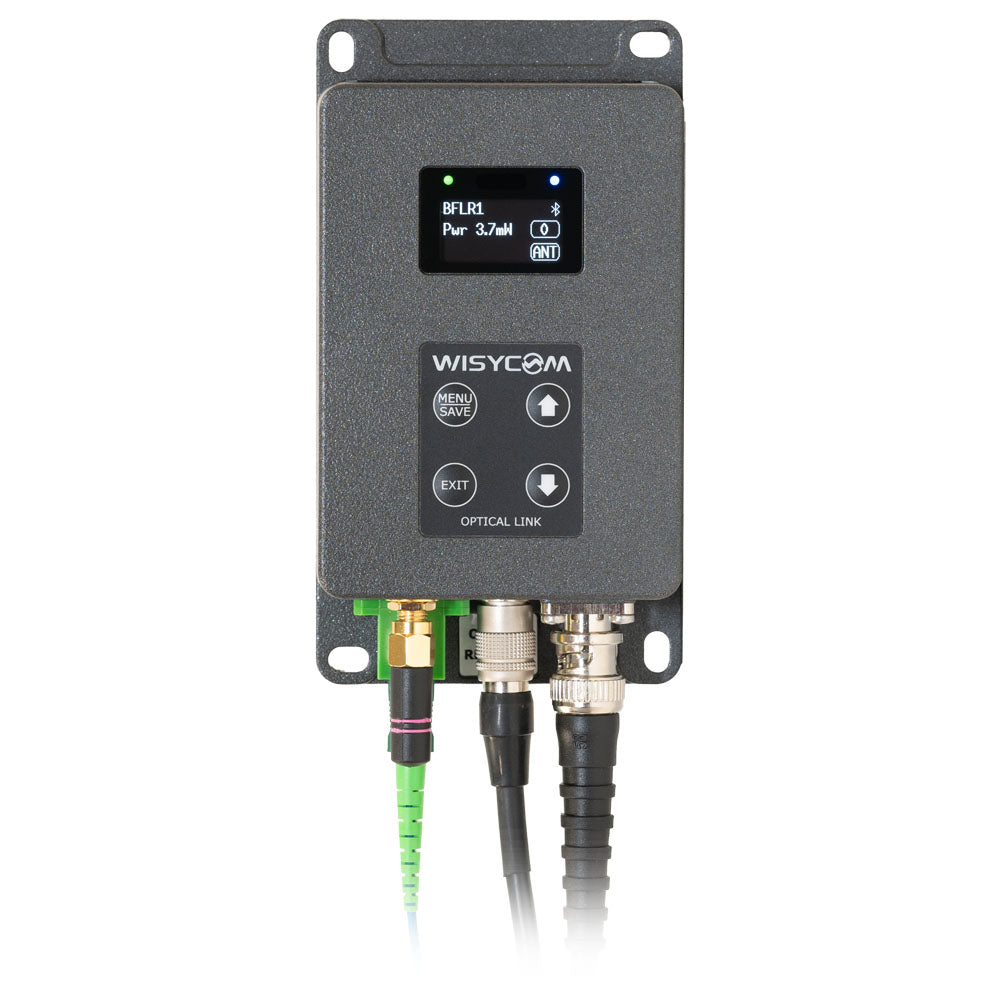

Wisycom BFLR1_B-SC-BT2 Portable RF over Fiber Receiver

Wisycom BFLR1_B-SC-BT2 Portable RF over Fiber Receiver

SoundPro Item: 150835 | Part Number: BFLR1_B-SC-BT2

$795.00
$884.00 $795.00
Your Price Sold out
MSRP: $884.00 | MAP: $795.00

Usually ships in 5-7 business days

  • Monitor & control through Bluetooth to adjust parameters in real time (Wisycom BT App)
  • Wide RF band: 170-1260 MHz
  • Operating voltage range: 9 ÷ 18 Vdc
  • 2 RGB LEDs for RF overload and system status indication
  • Easy configuration thru an high contrast OLED white display and 4 key navigation buttons
  • Antenna booster 12V, 150mA max
  • 4mW (6dBm) optical laser to cover miles away
  • 20 band pass filters and tunable filter 1MHz step software selectable to increase RF robustness
  • compatible with expansion board EXP3 and EXP2
Log in or register for YOUR best price

The Wisycom BFLR1 is an RF over Fiber receiver. The BFLR1 can work in Antenna Mode for placement in a local rack to receive RF from a remote area with minimal loss. The BFLR1 can also be set to IFB mode, allowing the unit to work on the remote area, receiving from a BFLT in IFB Mode to receive a low power single channel of IFB/IEM signal. Once the signal reaches the remote area the PAW can be used to bring the signal up to a working level. The BFLR1 offers a 12V 200mA output in Antenna Mode for powering boosters such as the PAW, or LBP. Using the Wisycom BT app for iOS and Android, remote control and monitor all the settings of the BFLR1, or use the onboard navigation buttons and high contrast OLED display. The BFLR1 features SC/APC and BNC connectors for easy connection.

View full details
  • Frequency ranges170 - 1260 MHz
  • Connector
    • Output: BNC-F
    • Input: Single Mode SC/APC
  • Impedance50 Ω
  • DisplayHigh contrast OLED white display (128 x 64 pixels)
  • Power supply9 - 18 Vdc
  • Temperature Range-10 - +55 °C
  • Antenna Booster Powering+12Vdc, 200mA max
  • Power ConsumptionBFLR1: 1,2 W (DC transmission amplifier OFF) - 3,5 W (DC transmission amplifier ON)
  • Wavelength1300 to 1650 nm
  • Input Optical Power Range-6 dBm to 6 dBm [0.25mW to 4mW]
