Wisycom LFA Directional Wideband Active Antenna with Tunable Filter | Connector: BNC

Wisycom LFA Directional Wideband Active Antenna with Tunable Filter | Connector: BNC

SoundPro Item: 150843

$1,017.00
$1,130.00 $1,017.00
Your Price Sold out
MSRP: $1,130.00 | MAP: $1,017.00

Usually ships in 5-7 business days

  • Huge reception band: 410-1300 MHz
  • Remote controllable thru coax cable (with MAT244/MAT288/SPL2208/SPL2216)
  • RF gain from -12 to +27 dBu (1 dB step)
  • Easy configuration thru a TFT display
  • Tunable filter for interference control
  • Antenna off for RF zone disabling
  • Fixed band saw filter
  • Skeletal design for low wind loading
  • 3 High Pass & 3 Low Pass filters
  • Waterproof with gasket sealing
Log in or register for YOUR best price

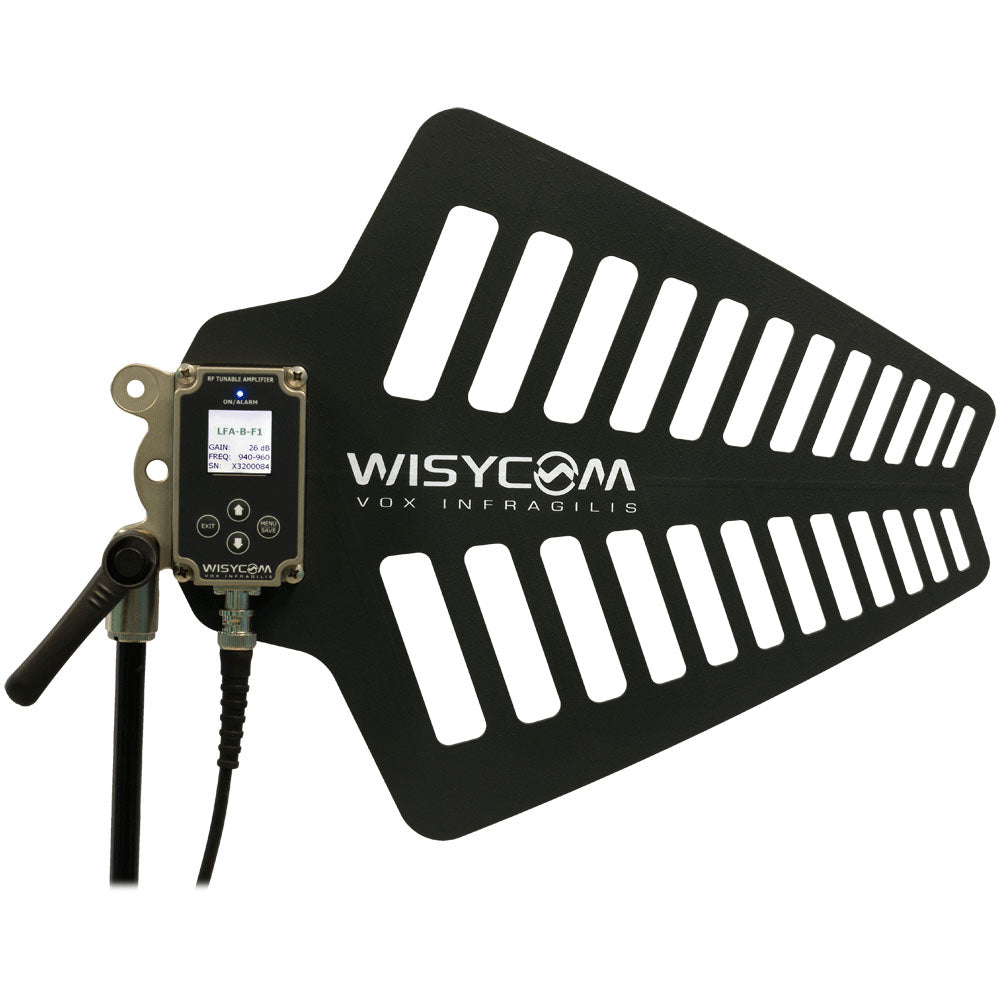

The Wisycom LFA is an active, filtered, UHF directional antenna. For use with certain Wisycom wireless products. The LFA-F2 has three software selectable filter options, allowing for a wide range of use in microphone receive applications. Selectable Highpass options 470/520/550 MHz with a lowpass option 617/663/698 MHz. The second filter option is a 40MHz bandwidth tunable filter, utilizing 1MHz steps from 430MHz to 730MHz. The final filter is a fixed saw filter for the United States from 940MHz to 960MHz. The LFA additionally offers adjustable gain from a -12dB attenuation to +27dB boost. When paired with a Wisycom MAT288/244, SPL2208/2216, or MRK16 the LFA can be remote controlled. The LFA requires +12V 100mA for full operation. Available with a BNC or N-Type connector for easy connection.

View full details
  • Frequency ranges430 - 1160 MHz
  • SWR
    • Tunable: 430 - 730 MHz (UHF), 40MHz of BW
    • Fixed: 940 - 960 MHz or 1240 - 1260MHz
    • Selectable Filter HP: 470/520/550 MHz + LP: 617/663/698 MHz
  • Impedance50 Ω
  • Booster Gain
    • -12 - 27 dB typical (1 dB step selection)
    • 0.8 dB attenuation (bypassed)
  • Booster Steps± 1 dB, in the whole working window
  • DisplayTFT - transflective (176 x 176 pixels, RGB)
  • Power supply+12 V, 100mA
  • Materialepoxy fiberglass with skeletal design
  • Finishingblack matte textured weather resistance coating
  • Mounting5/8" with worth or 3/8" with adapter
  • Dimensions276 x 336 x 61 mm (HxWxD)
  • Weight600g
  • Operating voltage range9.5 - 16 Vdc
