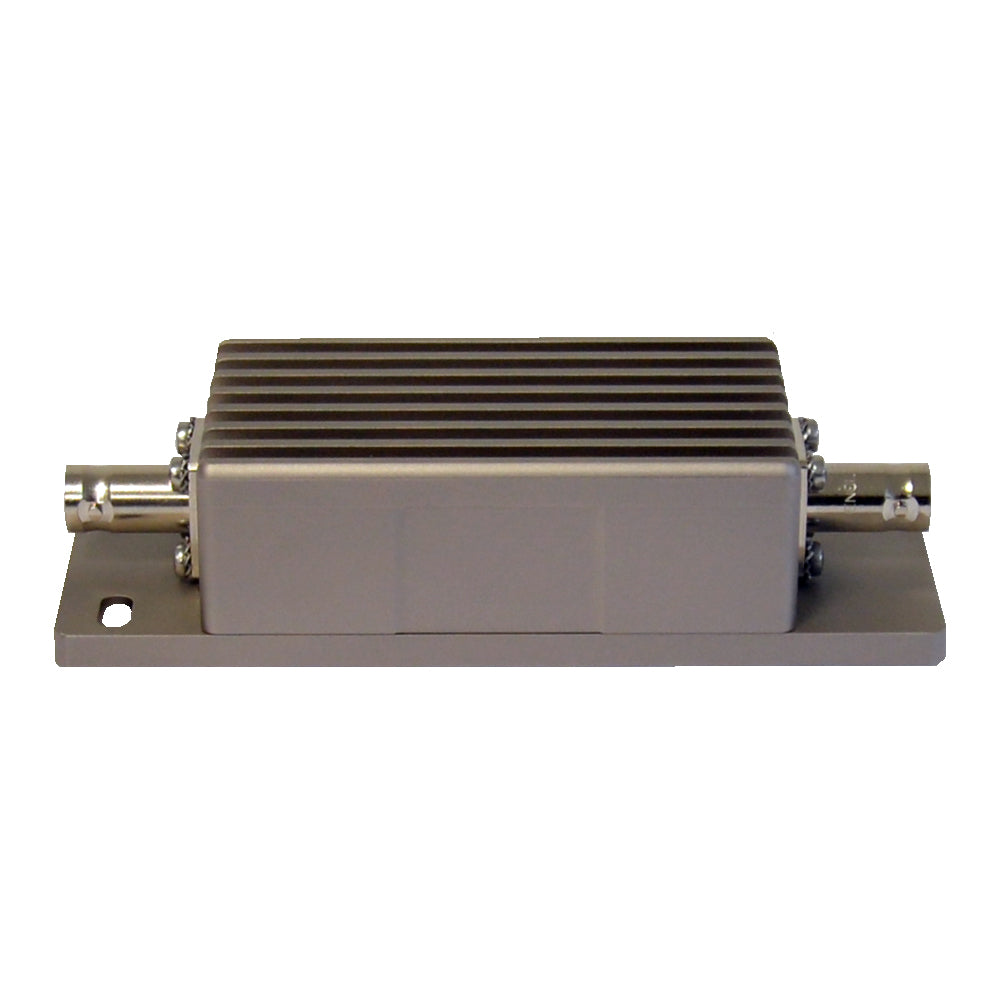

Wisycom PAW-L Wideband Transmit Power Amplifier
Wisycom PAW-L Wideband Transmit Power Amplifier
SoundPro Item: 150848 | Part Number: PAW-L
Usually ships in 5-7 business days
- designed to amplifier RF signal from 0mW (0dBm) up to 250 mW
- powered by the transmitter or MFL system through the coaxial cable
- housing is in ruggedized aluminum, with waterproof sealing (for version with N connector), suitable for outdoor installations
The Wisycom PAW is a Wideband amplifier for use only with Wisycom RF over Fiber systems. When using IFB/IEM transmission over fiber, the signal must be reduced to 0dBm, the PAW is an amplifier to bring that signal up to +20dBm(100mW). The PAW requires +12Vdc 200mA provided by the BFLR. The PAW features BNC connectors for easy connectivity.
- Frequency rangesPAW-L working in 435-700 MHz
- Max Input Power4dBm
- OIP3+42 dBm (Output 3° order Intercept Point) typical @ 27dBm - 1dB compression point
- ConnectorBNC-F
- Impedance50 Ω
- Booster Gain20dB (typical)
- Power supply'+12 V, 200 mA (thru input coax. cable)
- Materialruggedized aluminum, with waterproof sealing (suitable for outdoor installations only with N-type connector)
- Mounting2 holes for wall-installation (M4 screw type)
- Dimensions120 x 48 x 29,5 mm (HxWxD)
- Weight250g
