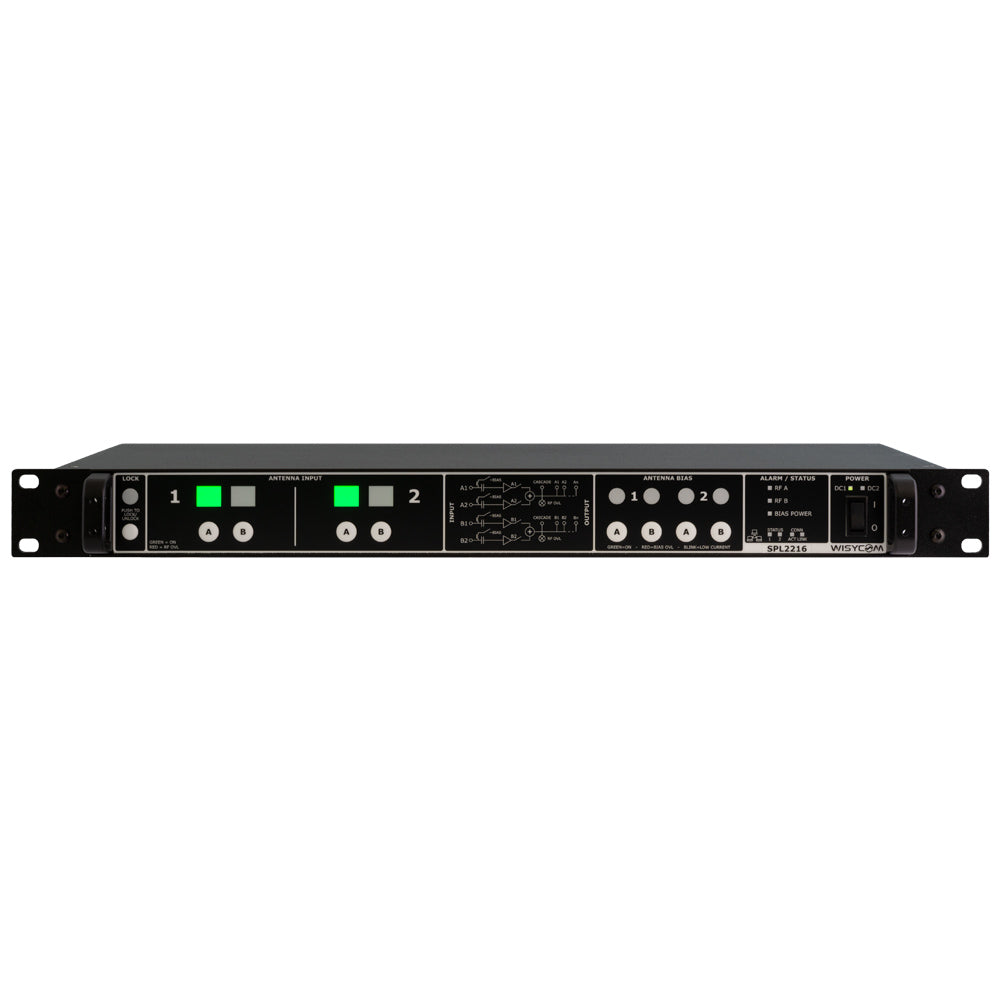

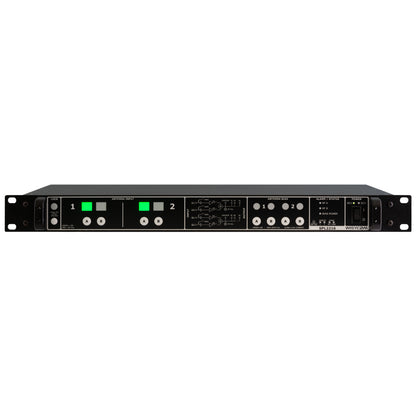

Wisycom SPL2216 Wideband Active Antenna 16x2 Combiner/Splitter

Wisycom SPL2216 Wideband Active Antenna 16x2 Combiner/Splitter

SoundPro Item: 150854 | Part Number: SPL2216

$3,805.00
$4,230.00 $3,805.00
Your Price Sold out
MSRP: $4,230.00 | MAP: $3,805.00

Usually ships in 5-7 business days

  • Wideband: 170-1260 MHz
  • High Rf robustness and linearity: for high density/equally spaced frequencies operations (i.e. with MTP60s Linear)
  • Able to feed 16 diversity receivers
  • Combine/Select signal from 4 antenna inputs
  • Redundant DC supply and antennas diagnostic features
  • Wisycom Remote Antenna Protocol to control antennas/booster remotely thru coax
  • Ethernet interface to access all of feature with a PC, making presets and real time monitoring
  • Cascade output to connect another SPL22xx or monitor devices
Log in or register for YOUR best price

The Wisycom SPL2216 is an active combiner and splitter for microphone applications from 170MHz - 1260MHz. Featuring 2 sets of diversity inputs, allowing for expanding the coverage of UHF microphones. Then splitting the combined inputs to 16 diversity outputs. The SPL2216 provides optional 12V bias to each antenna input, and can control Wisycom smart antennas, giving control of gain and filters from Wisycom Manager for PC.

View full details
  • Frequency ranges170 - 1260 MHz
  • Input/Output Gain+5dB approx.
  • OIP3Input/cascade gain+1.5dB approx.
  • Connector
    • input: 2+2 BNC-F

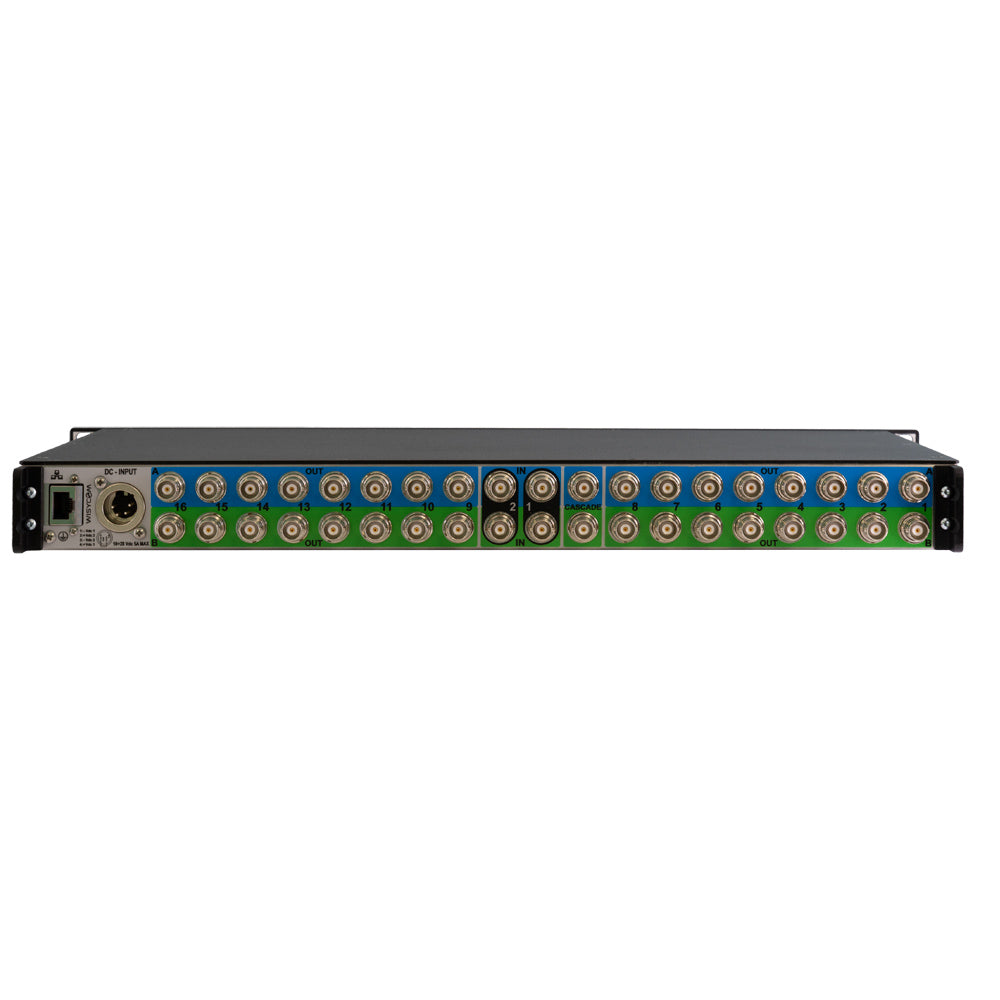

    • output: 16+16 BNC-F (SPL2216) cascade: 2 BNC-F
  • Impedance50 Ω
  • Noise figure7,5 dB
  • Power supply
    • 10- 28 Vdc, 5A max, redundant DC Vdc1 and Vdc2 on XLR M-4pin
    • 1: -Vdc1
    • 2: +Vdc2
    • 3: -Vdc2
    • 4:+Vdc1
  • Materialaluminum
  • Finishingblack varnish
  • Dimensions44 x 483 x 351 mm (HxWxD)
  • Weight3 kg
  • Temperature Range-25 - +55 °C
  • Managing Interface10/100 Base TX Ethernet port and thru frontal tactile buttons
  • Antenna Booster Powering+12Vcc / 500mA MAX (for each BNC-female input connector A & B)
  • Power Consumption40W max
