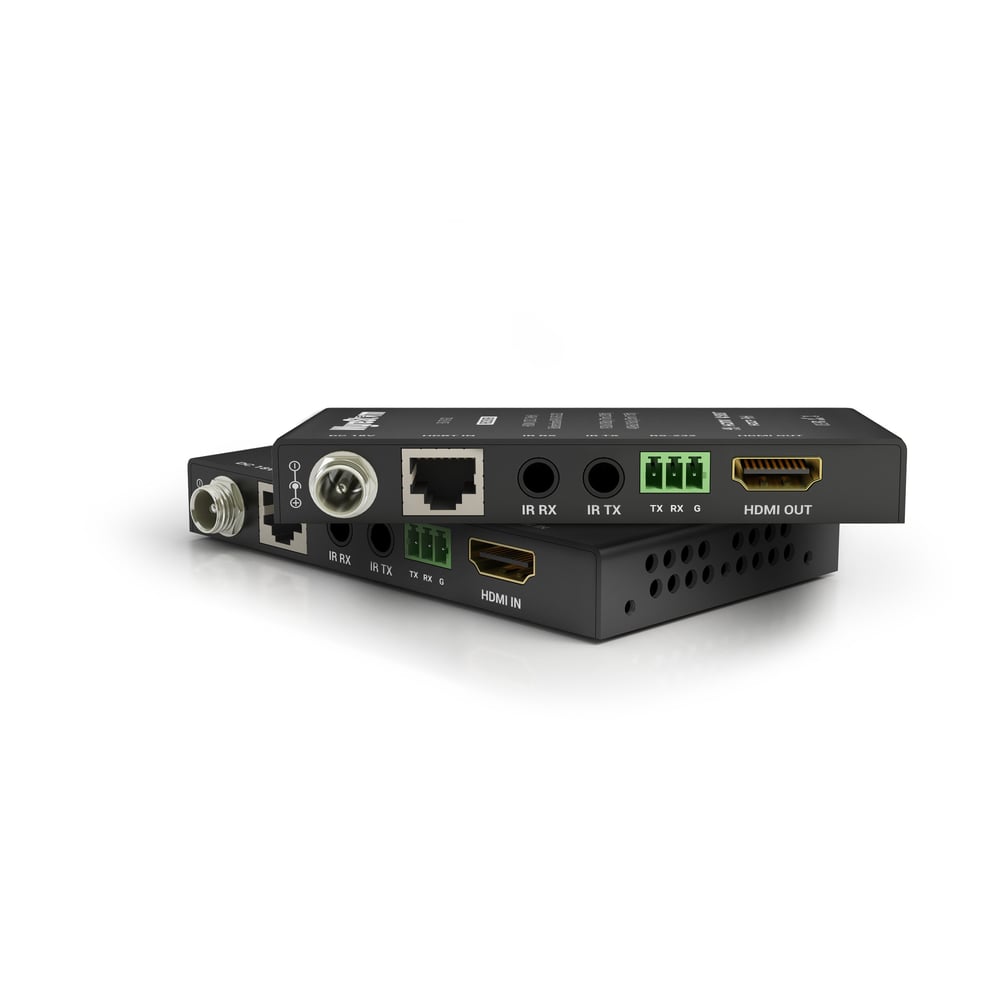

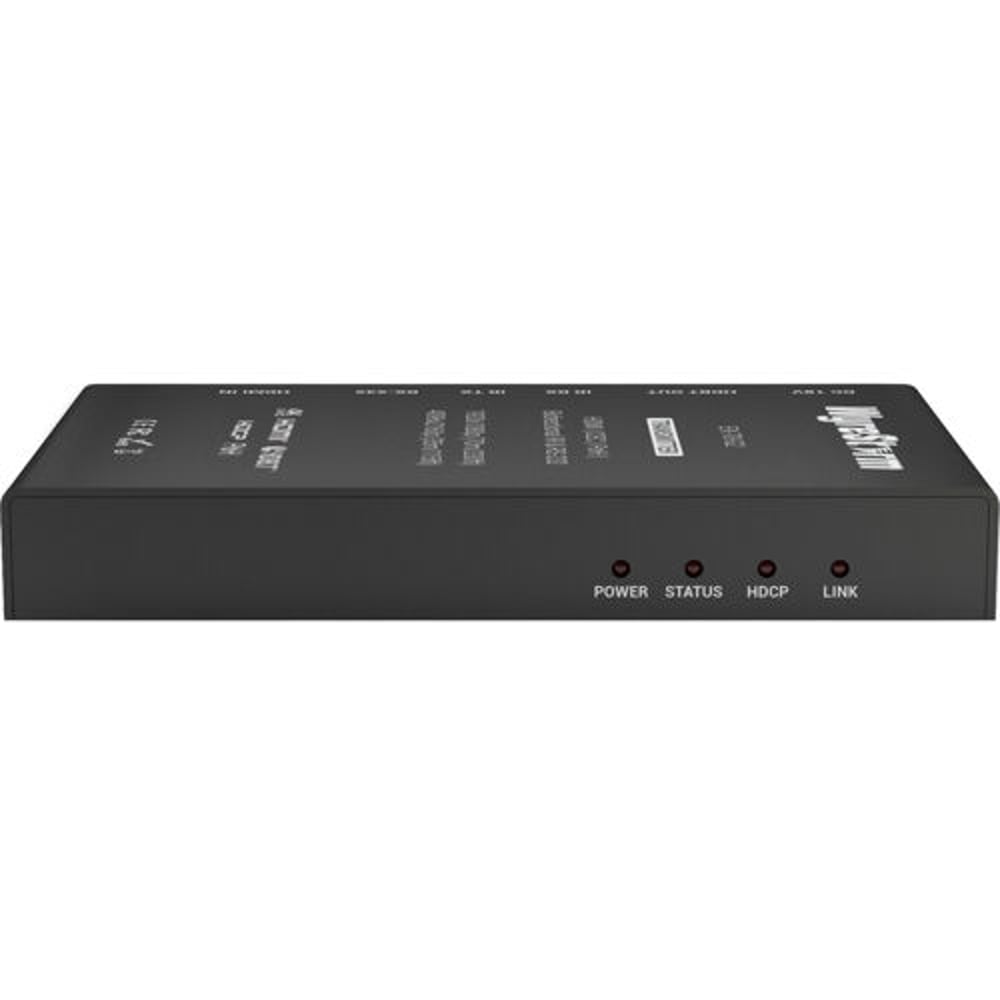

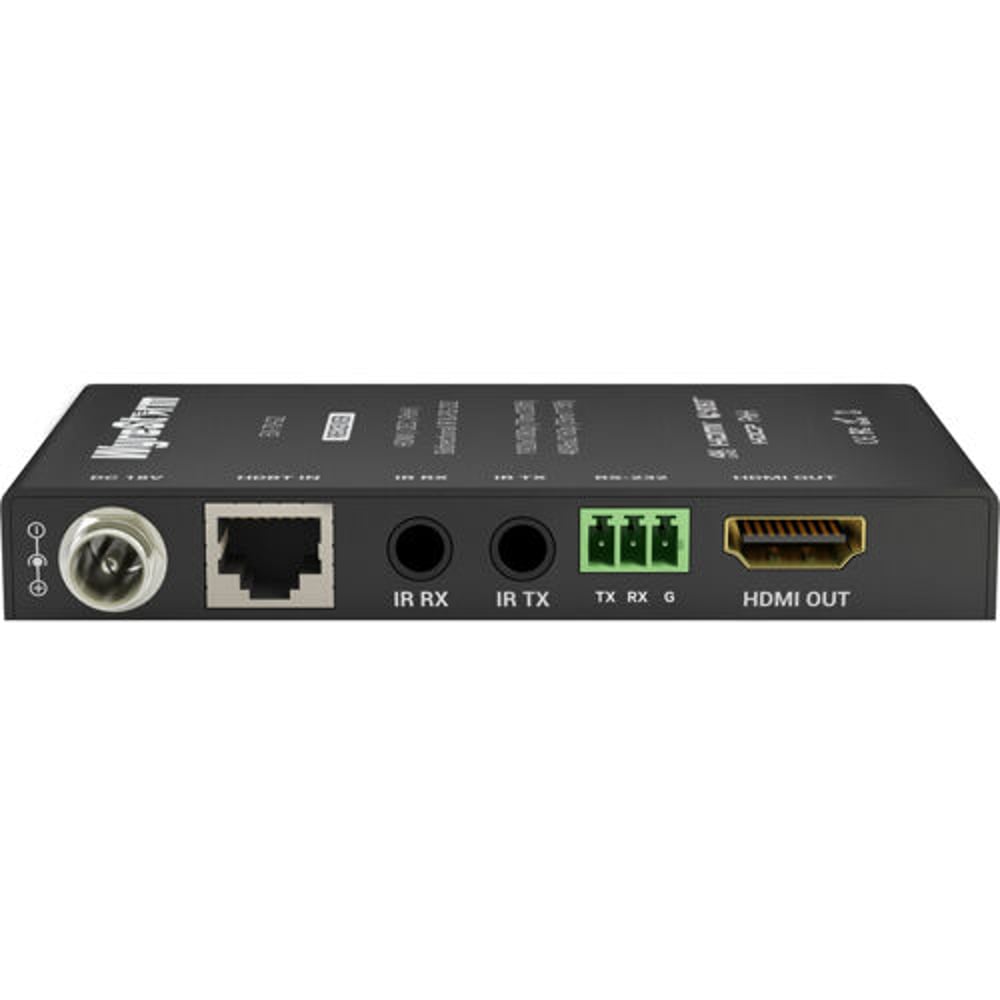

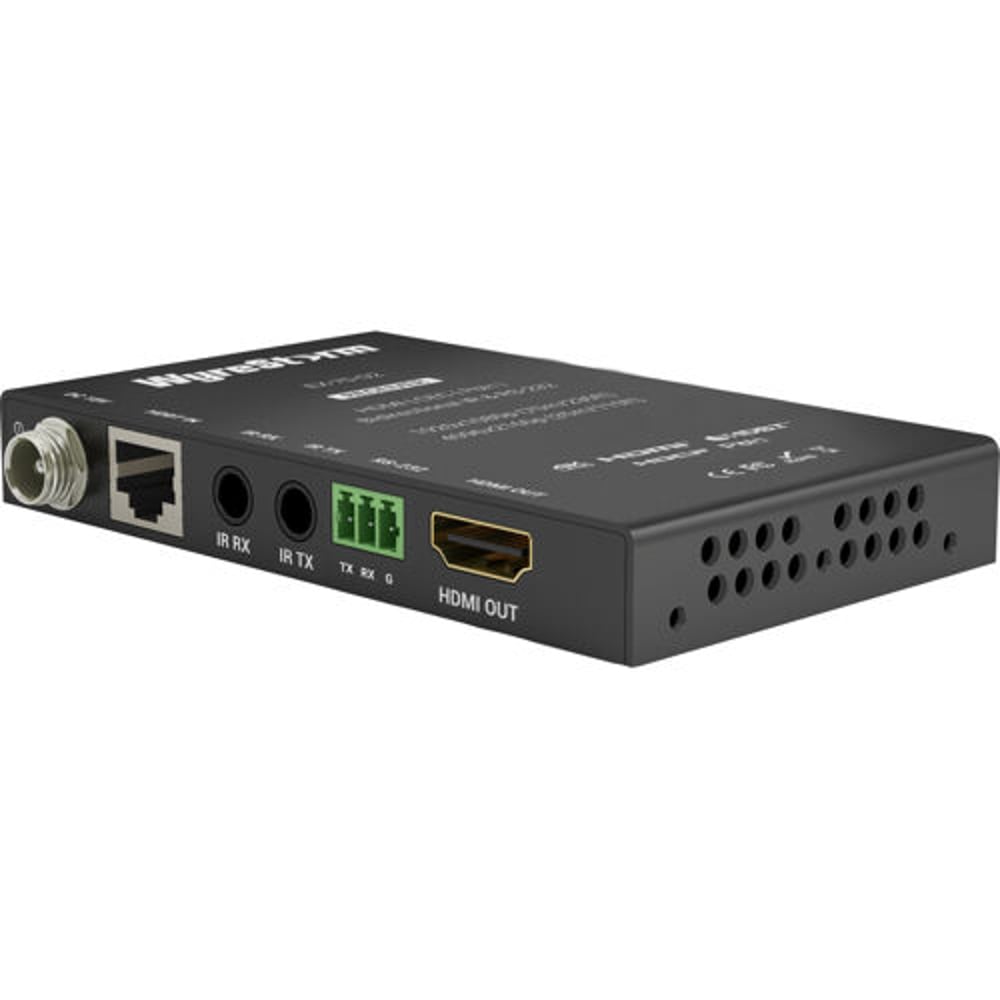

WYRESTORM EX-70-G2 4K Uhd Hdcp1.4 Hdbaset Extender Set With 2-Way Poh; 2-Way Ir

WYRESTORM EX-70-G2 4K Uhd Hdcp1.4 Hdbaset Extender Set With 2-Way Poh; 2-Way Ir

SoundPro Item: 94382 | Part Number: EX-70-G2

Regular price $348.00
Regular price $348.00 Sale price $348.00
Your Price Sold out
| MAP: $348.00

Usually ships in 5-7 business days

  • 4K HDMI extender set capable of transmitting AV content over medium distances using a single category cable
  • HDBaseT™ Class B transmission supporting 1080p up to 70m/230ft
  • 4K UHD transmissions up to 4096x2160p 60Hz 4:2:0 8bit also supported up to 35m/115ft
  • 2ch PCM and multichannel audio supported up to DTS:X and Dolby Atmos
  • 2-Way PoH allowing TX or RX to be remotely powered from either end for flexible installation options
  • Bidirectional IR pass-through
  • Bidirectional RS-232 pass-through
  • Supports CEC communication between devices
  • Automatic EDID Management (copy from RX-TX)
  • Low profile 15mm chassis allows quicker, easier installation behind flush-mounted screens

UHD & HD BEST OF BOTH WORLDS

We might live in a 4K world, but not every application needs it. Compatible with the latest 4K/60 and 1080p sources alike, the EX-70-G2 delivers whatever content you have, wherever its needed.

2-WAY POH FOR FLEXIBLE INSTALL

No two installs are the same, which is why the EX-70-G2 and all H2 Series extenders can be powered from either TX or RX side for the most convenient and flexible installation imaginable.

SMALL BUT POWERFUL

Weighing in for the featherweight title at just 15mm thick, the EX-70-G2 can be installed just about anywhere, but still packs the punch to deliver video, audio, control and power like a champ.

BIDIRECTIONAL CONTROL WHATEVER THE PROTOCOL

Need to send control signals both up and downstream? The EX-70-G2 has you covered with IR, RS-232 and even CEC signals able to be passed-through, end-to-end bidirectionally for simultaneous source & display control.

View full details

Specifications

'General Information
Manufacturer
WyreStorm
Manufacturer Part Number
EX-70-G2
Brand Name
WyreStorm
Product Model
EX-70-G2
Product Name
EX-70-G2 Video Extender Transmitter/Receiver
Product Type
Video Extender Transmitter/Receiver
Technical Information
Connectivity Technology
Wired
Number of Input Devices Supported
1
Number of Output Devices Supported
1
Maximum Operating Distance
328 ft
Video
Graphics Modes
4K
Maximum Video Resolution
4096 x 2160
Interfaces/Ports
Network (RJ-45)
Yes
HDMI In
Yes
HDMI Out
Yes
Number of Network (RJ-45) Ports
2
Number of HDMI Inputs
1
Number of HDMI Outputs
1
Media & Performance
Media Type Supported
Twisted Pair
Twisted Pair Cable Standard
Category 7
Physical Characteristics
Transmitter Height
0.59"
Transmitter Depth
2.53"
Receiver Height
0.59"
Receiver Depth
2.53"
Form Factor
Rack-mountable
Desktop
Transmitter Weight (Approximate)
12.70 oz
Receiver Weight (Approximate)
12.70 oz
Miscellaneous
Environmentally Friendly
Yes
Environmental Certification
RoHS
Country of Origin
China
Warranty
Limited Warranty
5 Year
