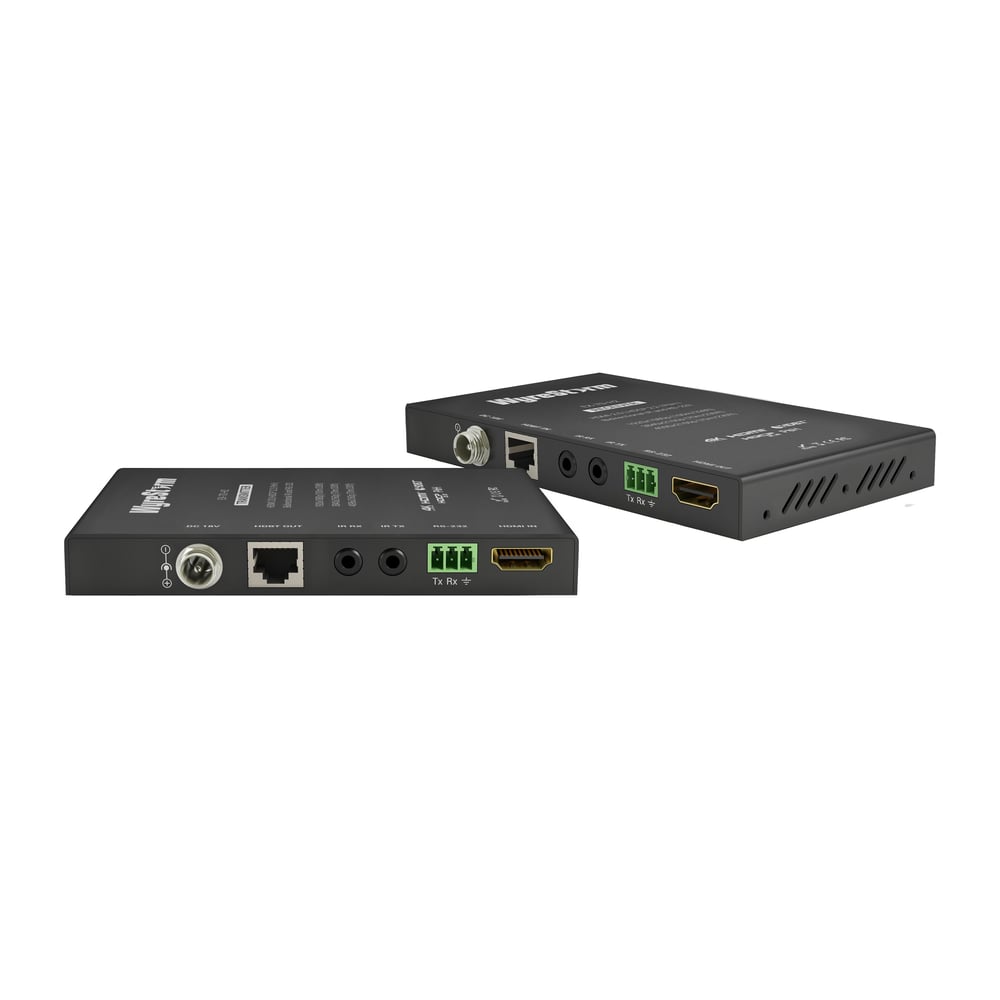

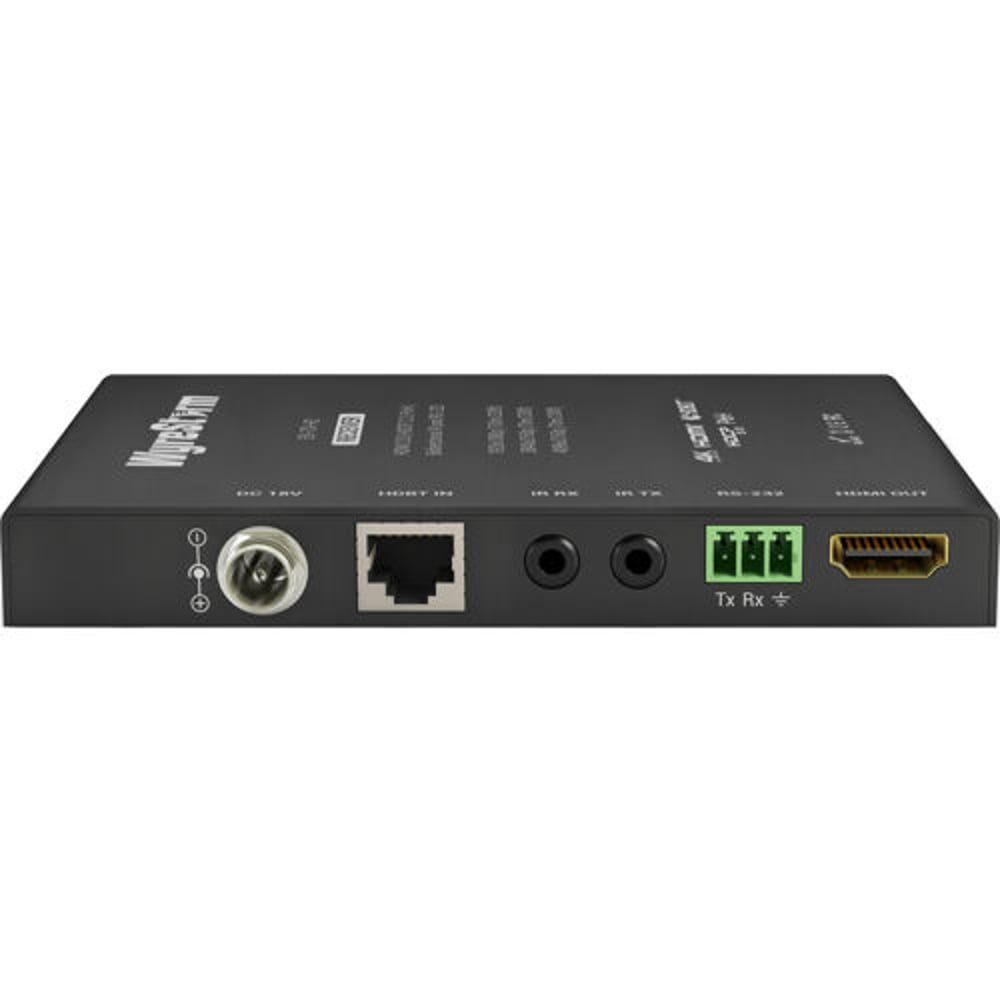

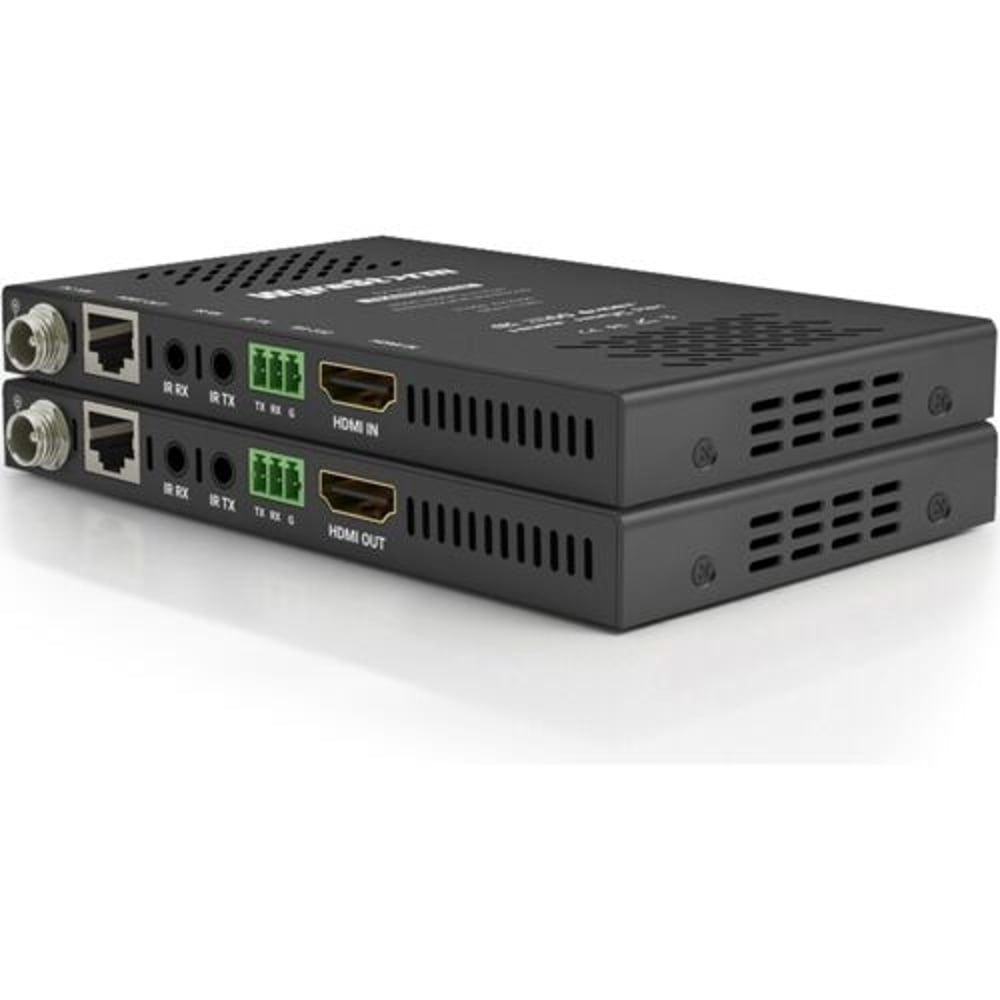

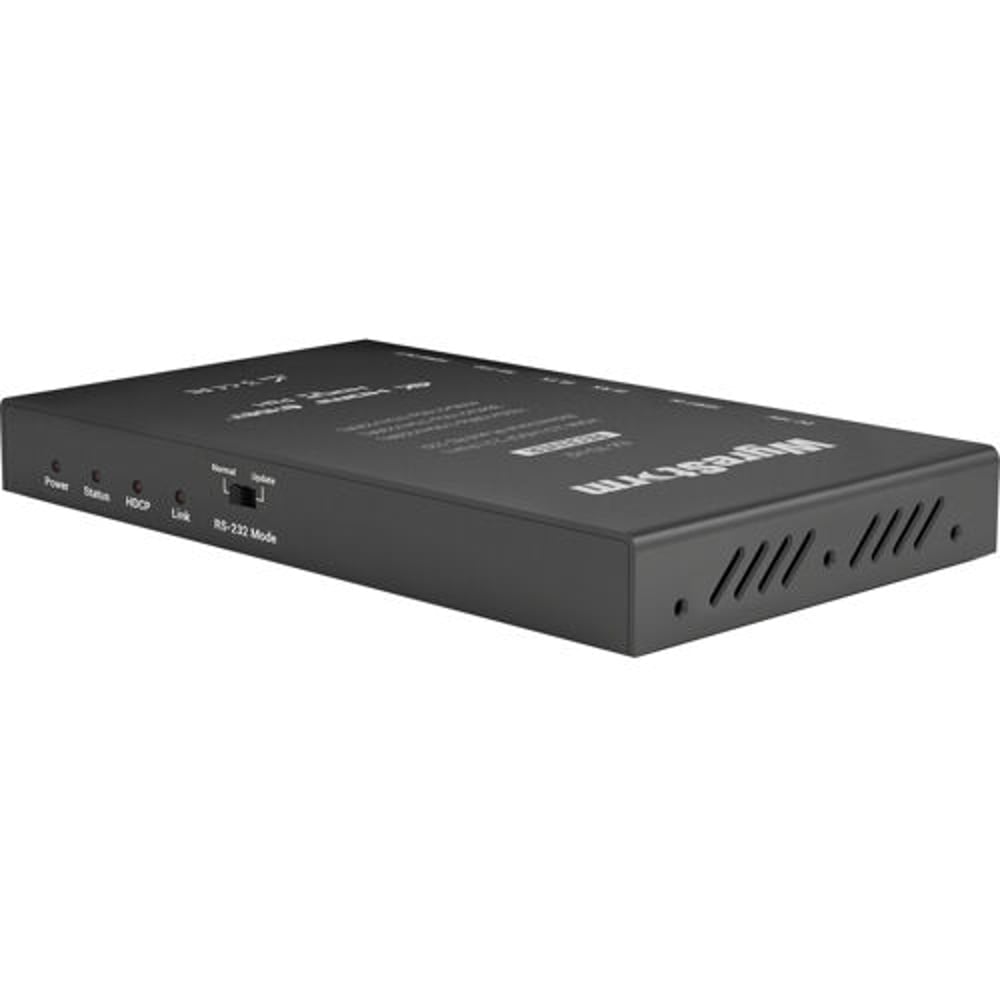

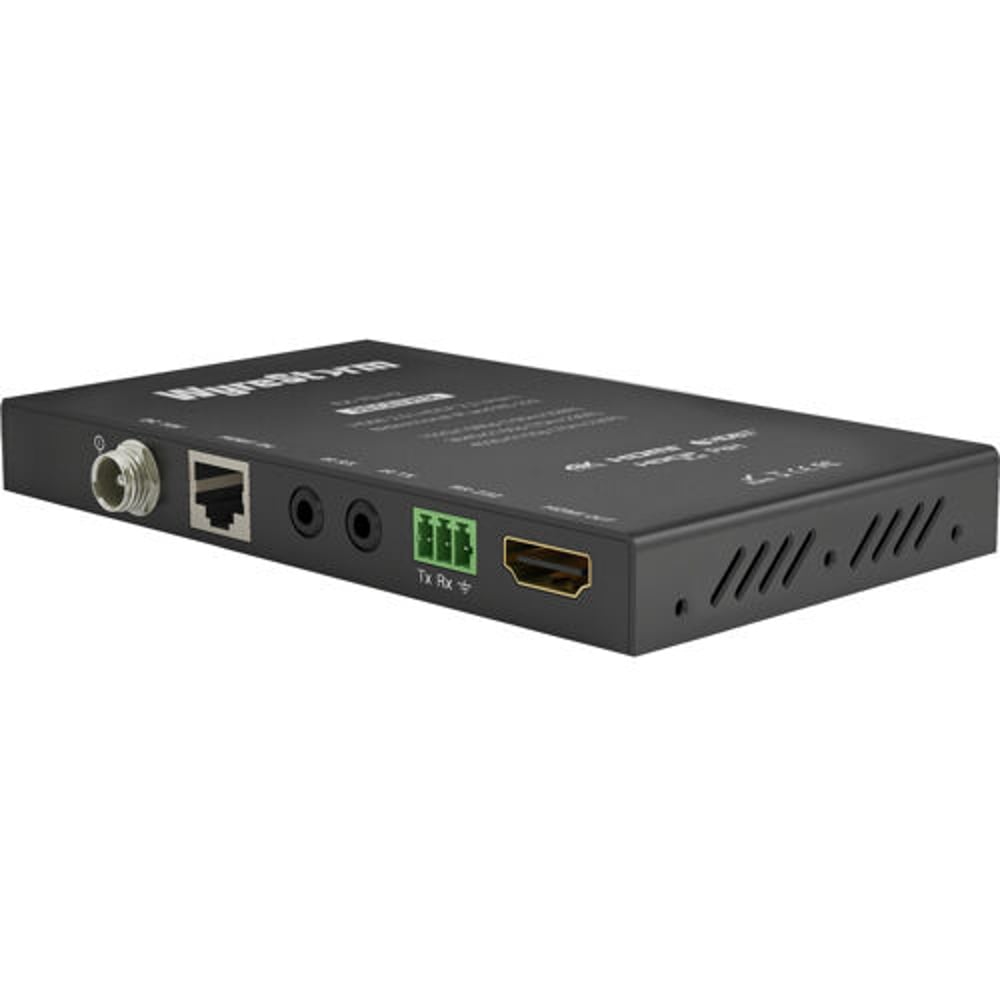

WYRESTORM EX-70-H2 4K Uhd Hdbaset Extender Set With 2-Way Poh Bidire Ctional Ir Rs-232

WYRESTORM EX-70-H2 4K Uhd Hdbaset Extender Set With 2-Way Poh Bidire Ctional Ir Rs-232

SoundPro Item: 94386 | Part Number: EX-70-H2

$811.00
$811.00 $811.00
Your Price Sold out
| MAP: $811.00

Usually ships in 5-7 business days

  • Dynamic visually lossless compression enables extension of up to 4K/60 4:4:4 or HDR 60Hz content over HDBaseT™
  • HDBaseT™ Class A transmission of 4K up to 70m/230ft and 1080p up to 100m/328ft
  • Compatible with the latest HDR standards, including HDR-10+, HLG content, with support for Dolby Vision™ up to 30Hz
  • Supports all VESA resolutions within the HDMI 2.0 specification
  • Advanced re-clocking chipset increases compatibility with new 4K UHD source devices
  • Bidirectional IR and RS-232 pass-through
  • Supports CEC communication between devices
  • Slimline 21mm/0.83in chassis for easier, more convenient installation behind displays
  • 2-way PoH (Power over HDBaseT™) enabling either transmitter or receiver to be remotely powered by the other unit.
  • Supports 2ch PCM and 7.1 multichannel audio up to DTS:X and Dolby Atmos
Log in or register for YOUR best price

Part of the latest generation of WyreStorm 4K extenders for the latest generation of 4K HDR content, the EX-70-H2 features dynamic compression technology to enable high frame rate HDR-10 and HLG content to be transmitted over standard 10Gbps HDBaseT, both visually losslessly and without latency.

View full details

Specifications

'General Information
Manufacturer
WyreStorm
Manufacturer Part Number
EX-70-H2
Brand Name
WyreStorm
Product Model
EX-70-H2
Product Name
18Gbps 4K HDR HDBaseT Extender with HDCP 2.2 and 2-way PoH
Product Type
Video Extender Transmitter/Receiver
Technical Information
Connectivity Technology
Wired
Number of Input Devices Supported
1
Number of Output Devices Supported
1
Maximum Operating Distance
230 ft
Video
Graphics Modes
4K
Maximum Video Resolution
4096 x 2160
Interfaces/Ports
Network (RJ-45)
Yes
HDMI In
Yes
HDMI Out
Yes
Number of Network (RJ-45) Ports
2
Number of HDMI Inputs
1
Number of HDMI Outputs
1
Media & Performance
Media Type Supported
Twisted Pair
Twisted Pair Cable Standard
Category 7
Physical Characteristics
Transmitter Height
0.60"
Transmitter Width
5.37"
Transmitter Depth
2.92"
Receiver Height
0.60"
Receiver Width
5.37"
Receiver Depth
2.92"
Form Factor
Rack-mountable
Transmitter Weight (Approximate)
8.47 oz
Receiver Weight (Approximate)
8.47 oz
Miscellaneous
Environmentally Friendly
Yes
Environmental Certification
RoHS
Country of Origin
China
Warranty
Limited Warranty
5 Year
