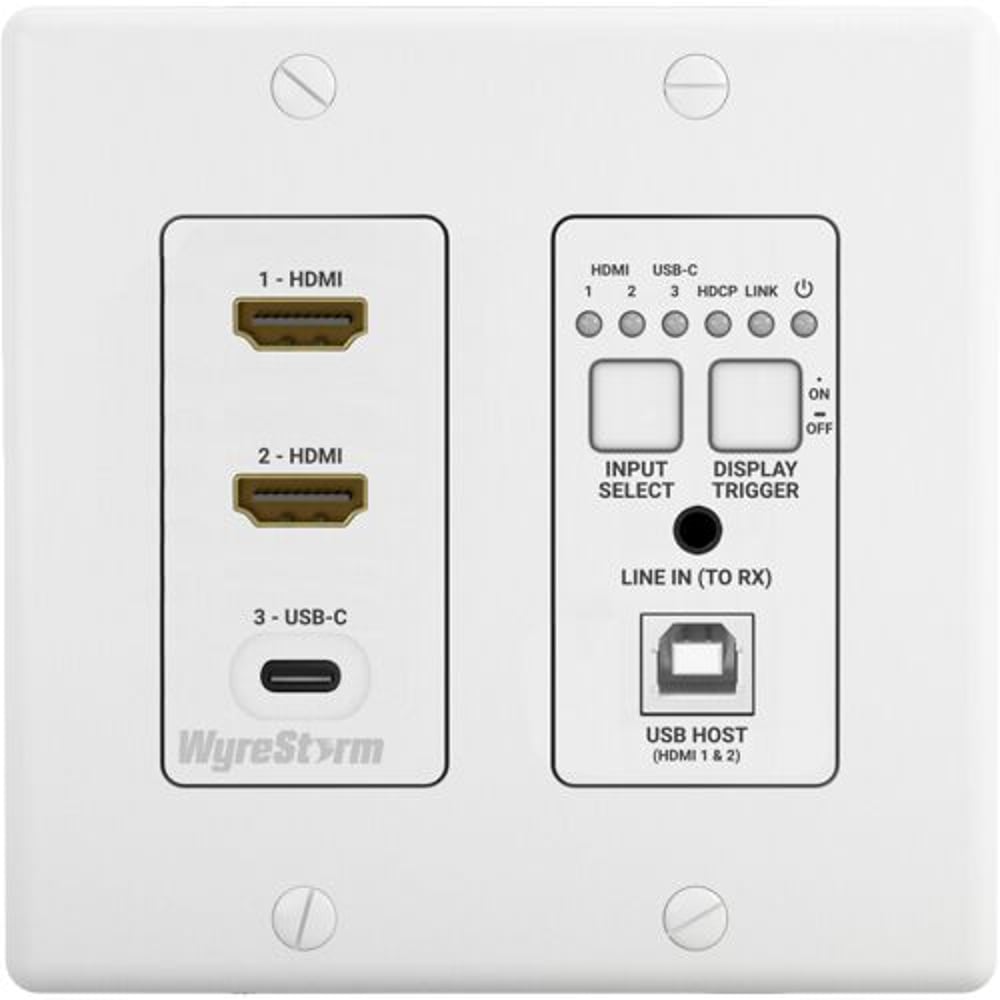

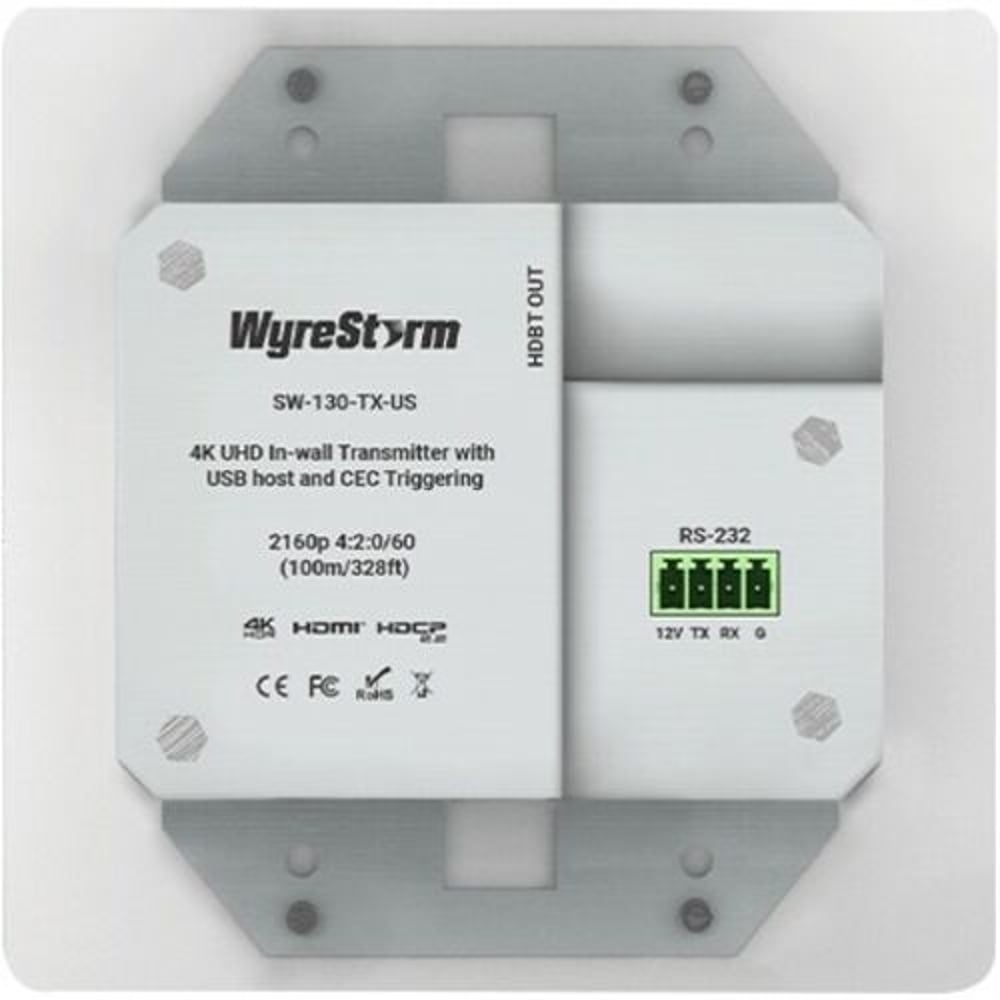

WYRESTORM SW-130-TX-US 3-Input In-Wall Hdbaset Transmitter With Usb Host And Cec
WYRESTORM SW-130-TX-US 3-Input In-Wall Hdbaset Transmitter With Usb Host And Cec
SoundPro Item: 94300 | Part Number: SW-130-TX-US
Usually ships in 5-7 business days
- Connectivity Technology: Wired
- Number of Input Devices Supported: 3
- Maximum Operating Distance: 328 ft
- Graphics Modes: 4K UHD
- Supported Video Modes: 2160p
- Maximum Video Resolution: 3840 x 2160
- Network (RJ-45): Yes
- HDMI In: Yes
- USB: Yes
- Number of Network (RJ-45) Ports: 1
- Number of USB Ports: 2
- Number of HDMI Inputs: 2
- Media Type Supported: Twisted Pair
- Twisted Pair Cable Standard: Category 7
- Transmitter Height: 4.13"
- Transmitter Width: 3.50"
- Transmitter Depth: 1.50"
- Form Factor: Wall Mountable
- Transmitter Weight (Approximate): 10.58 oz
3 inputs and powerful HDBaseT transmission result is this powerful switching transmitter, perfect for corporate meeting and classroom environments. Automatic or manual switching of 2 HDMI's or USB-C and CEC power triggering via HDBaseT mean a simple user experience when it matters most. Further functionality allows USB devices to be routed back to the source via USB host (or natively via USB-C) and charging for the connected USB-C device.
3-INPUT SWITCHING TRANSMITTER
Setting a new standard for in-wall HDBaseT transmission, the SW-130-TX-US brings features of the WyreStorm range of professional switchers and packs them into a 2-gang form factor. Automatic or manual switching of the 3 connected sources (2 HDMI and USB-C) is possible with the USB-C supporting alt-mode functionality allowing a portable device such as a tablet or phone to be connected and send its content at up to 4K/30. HDCP 2.2 is also supported for the transmission of encrypted content.
USB 2.0 PASS-THROUGH
HDBaseT2.0 affords the addition of USB 2.0 pass-through, offering not only KVM functionality for extension of a keyboard/mouse or touchscreen but also full data transfer capabilities. The SW-130-TX has a USB host port allowing USB device data to be routed into the selected laptop (via HDMI). Going further, it can send USB device data natively through the USB-C port allowing a single cable to be used for A/V and USB device connectivity.
FEATURES TURNED UP TO 11
It's not all about the A/V when it comes to HDBaseT; with increased functionality on all fronts, the SW-130-TX can be used to send power triggers to a compatible connected screen, allowing centralized control and is PoH compatible meaning it can be passively powered over HDBaseT from a compatible receiver. The SW-130-TX can even power & charge a phone or tablet connected to the USB-C port so you don't run out of juice mid-flow (max. 5v 2A)
HDCP 2.2 COMPATIBLE
The industry's latest encryption standard designed to stop the illegal copying & distribution of 4K UHD content; no longer unique to residential solutions WyreStorm presentation switchers are fully compliant with HDCP 2.2, enabling you to de-centralize source devices within an installation.
- Professional HDBaseT switcher/transmitter for video conference or meeting rooms
- 3-switchable inputs: 2 HDMI and USB-C supporting:
- Content up to 4K/30 4:4:4 & RGB or 4K/60 4:2:0 8-bit
- The latest HDR standards, including HDR-10 and Dolby Vision™ at 30Hz
- HDCP 2.2 encryption technology ensuring compatibility with the latest 4K UHD content and sources
- HD Multichannel audio up to DTS:X and Dolby Atmos™
- USB-C port supports alt-mode functionality for A/V and USB data
- USB-C charging for connected devices up to 2A
- Compatible with DVI-I and DP++ v1.3 signals from supported devices
