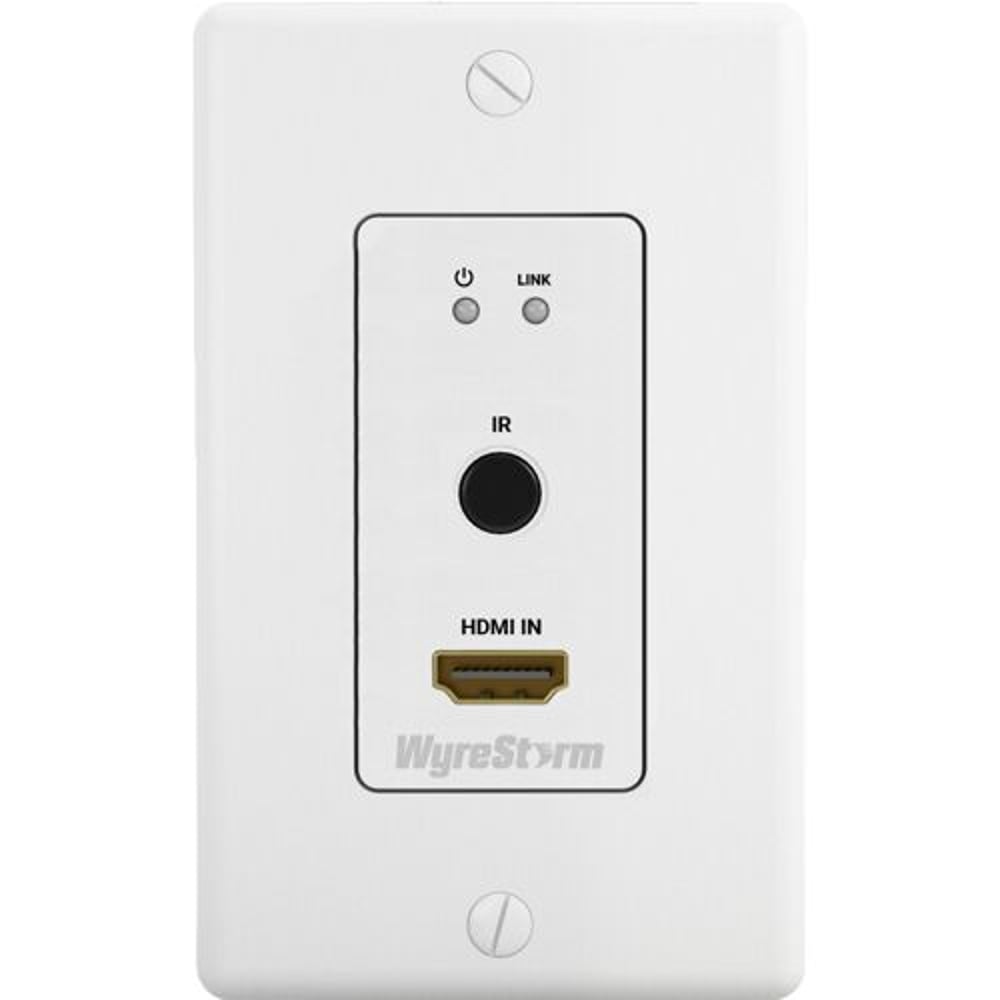

WYRESTORM TX-35-IW 4K Uhd 4 2 0 60Hz Hdbaset 1-Gang In Wall

WYRESTORM TX-35-IW 4K Uhd 4 2 0 60Hz Hdbaset 1-Gang In Wall

SoundPro Item: 118505 | Part Number: TX-35-IW

$336.00
$336.00 $336.00
Your Price Sold out
| MAP: $336.00

Usually ships in 5-7 business days

  • Connectivity Technology: Wired
  • Number of Input Devices Supported: 1
  • Maximum Operating Distance: 230 ft
  • Graphics Modes: 4K UHD
  • Supported Video Modes: 1080p
  • Supported Video Modes: 2160p
  • Maximum Video Resolution: 4096 x 2160
  • Network (RJ-45): Yes
  • HDMI In: Yes
  • Number of Network (RJ-45) Ports: 1
  • Number of HDMI Inputs: 1
  • Media Type Supported: Twisted Pair
  • Twisted Pair Cable Standard: Category 7
  • Transmitter Height: 4.13"
  • Transmitter Width: 1.77"
  • Transmitter Depth: 1.55"
  • Form Factor: Wall Mountable
  • Transmitter Weight (Approximate): 5.60 oz
  • Environmentally Friendly: Yes
Log in or register for YOUR best price

The TX-35-IW provides simple transmission of remote HDMI sources. Pair with the RX-35-POH for simple yet effective signal extension of 4K UHD content. The TX-35-IW uses standardized HDBaseT and PoH technology, meaning that it is compatible with many WyreStorm models including presentation receivers or the H2XC series of matrix switchers. The TX-35-IW is great for remote input applications including education environments such as training rooms or huddle spaces. It can be remotely powered from a compatible HDBaseT receiver and features IR and RS-232 control signal passthrough.

View full details

Specifications

'General Information
Manufacturer
WyreStorm
Manufacturer Part Number
TX-35-IW
Brand Name
WyreStorm
Product Name
4K UHD HDBaseT 1-Gang In Wall Transmitter
Product Type
Video Extender Transmitter
Technical Information
Connectivity Technology
Wired
Number of Input Devices Supported
1
Maximum Operating Distance
230 ft
Video
Graphics Modes
4K UHD
Supported Video Modes
1080p
2160p
Maximum Video Resolution
4096 x 2160
Interfaces/Ports
Network (RJ-45)
Yes
HDMI In
Yes
Number of Network (RJ-45) Ports
1
Number of HDMI Inputs
1
Media & Performance
Media Type Supported
Twisted Pair
Twisted Pair Cable Standard
Category 7
Physical Characteristics
Transmitter Height
4.13"
Transmitter Width
1.77"
Transmitter Depth
1.55"
Form Factor
Wall Mountable
Transmitter Weight (Approximate)
5.60 oz
Miscellaneous
Package Contents
4K UHD HDBaseT 1-Gang In Wall Transmitter 1 x 2 Pin Phoenix Male Connector 2 x 3 Pin Phoenix Male Connector 1 x 1-Gang Decora Wall Plate Device powers Via PoH (12V 2A DC PSU Sold Separately) 1 x Quickstart Guide
Environmentally Friendly
Yes
Environmental Certification
RoHS
