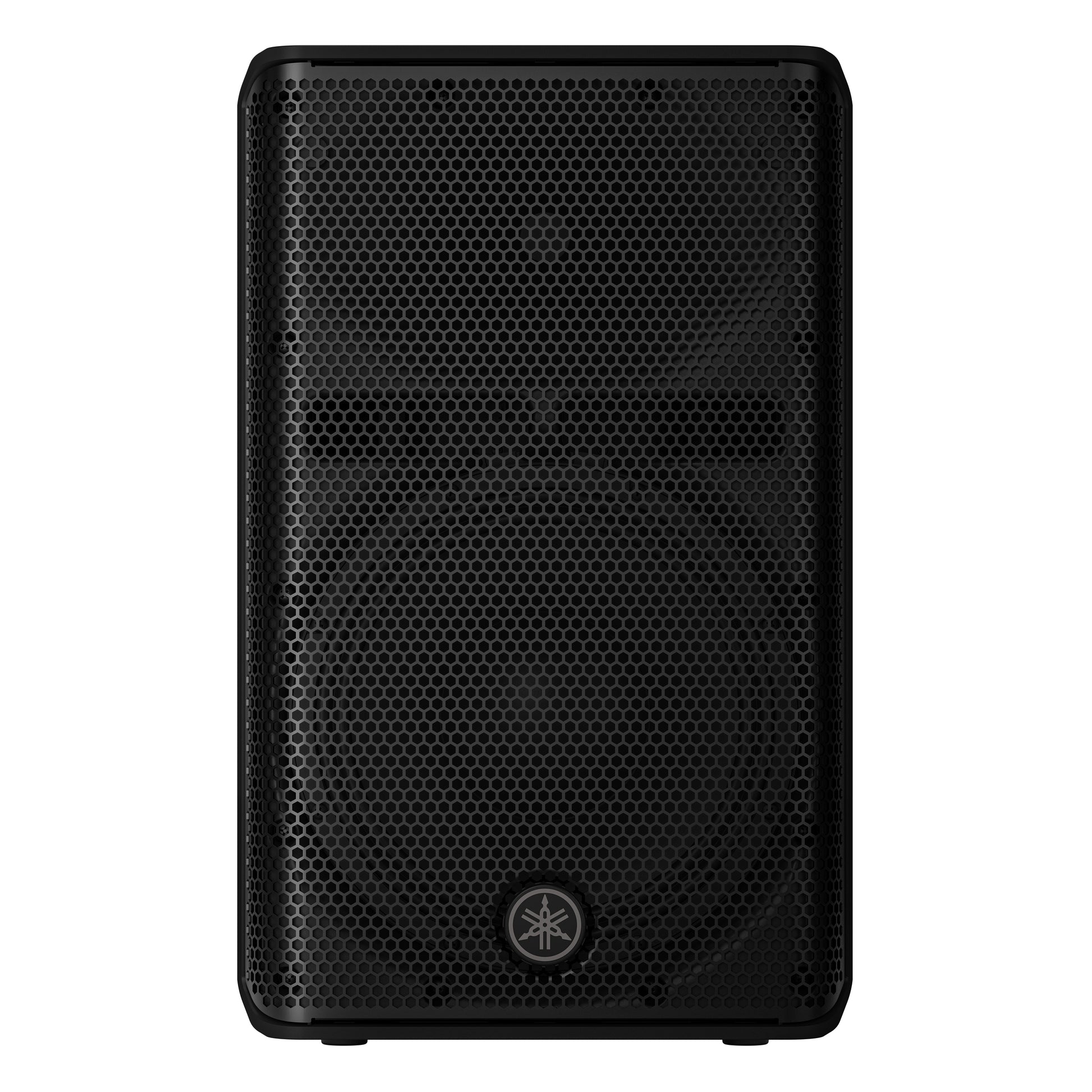

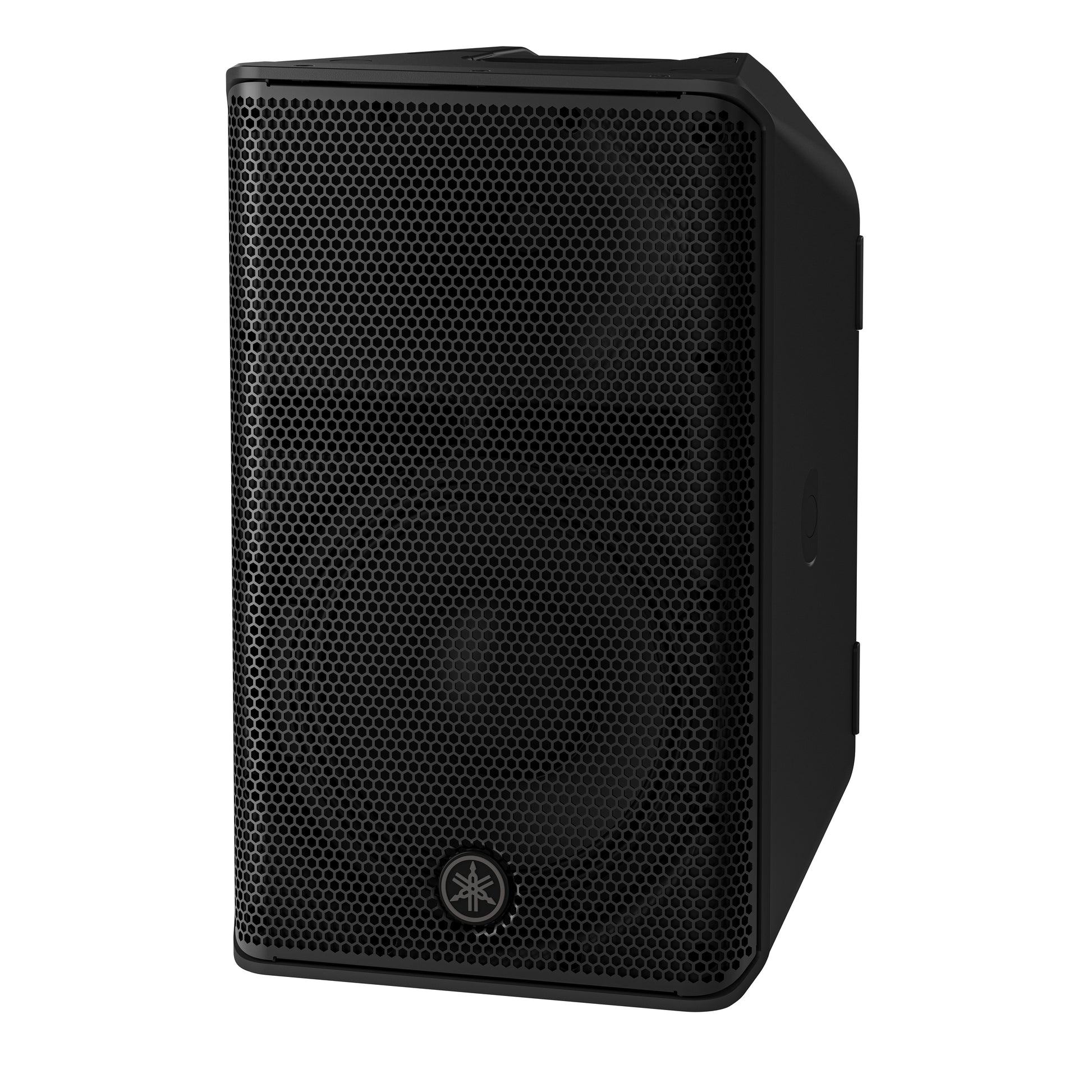

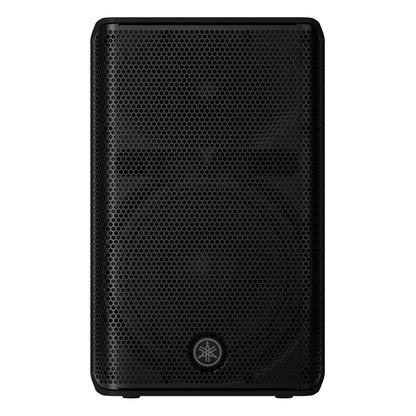

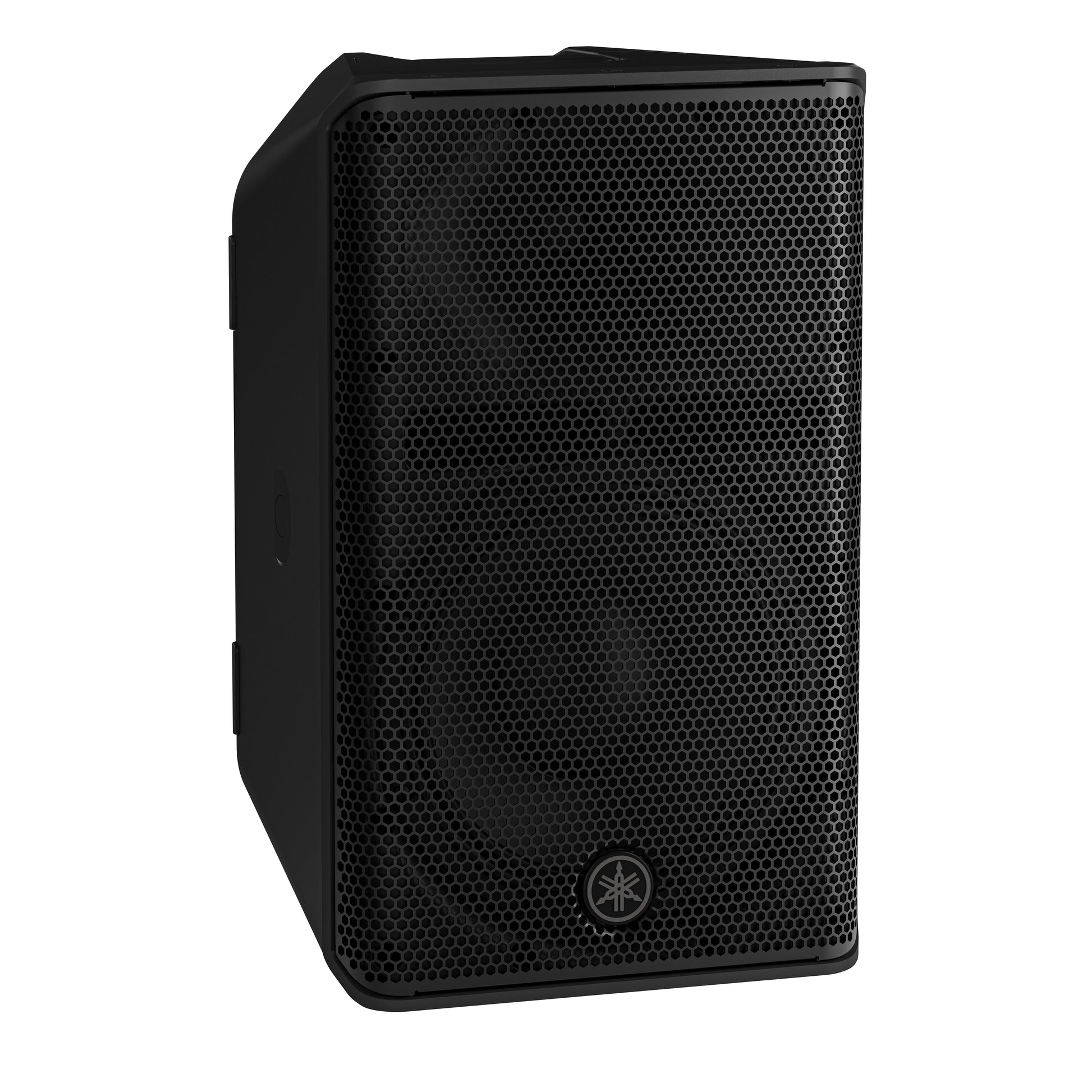

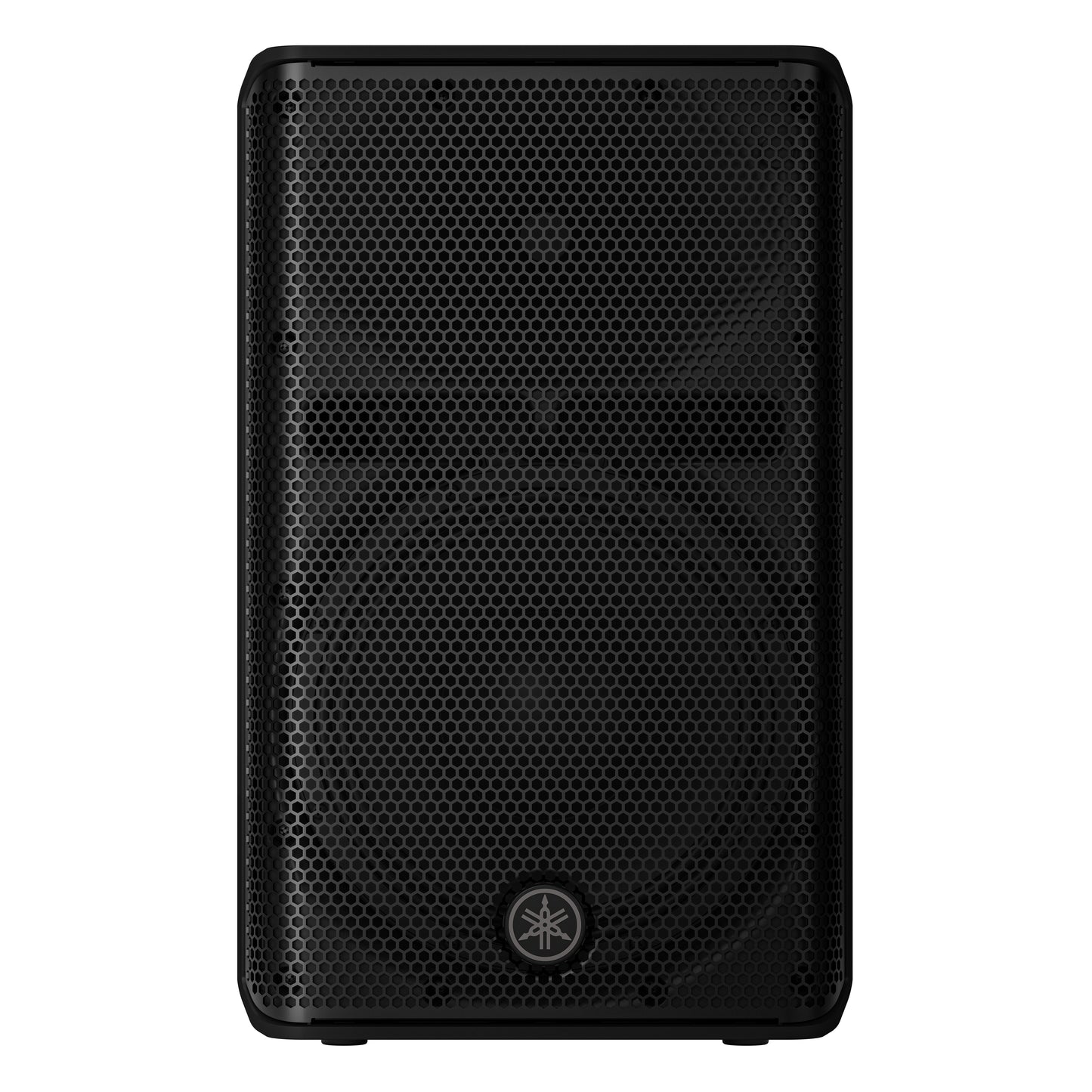

Yamaha CXR10MK3 Passive Loudspeaker | Size: 10"

Yamaha CXR10MK3 Passive Loudspeaker | Size: 10"

SoundPro Item: 203726 | Part Number: CXR10MKIII

$649.99
$680.00 $649.99
Your Price Sold out
MSRP: $680.00 | MAP: $649.99

Usually ships in 5-7 business days

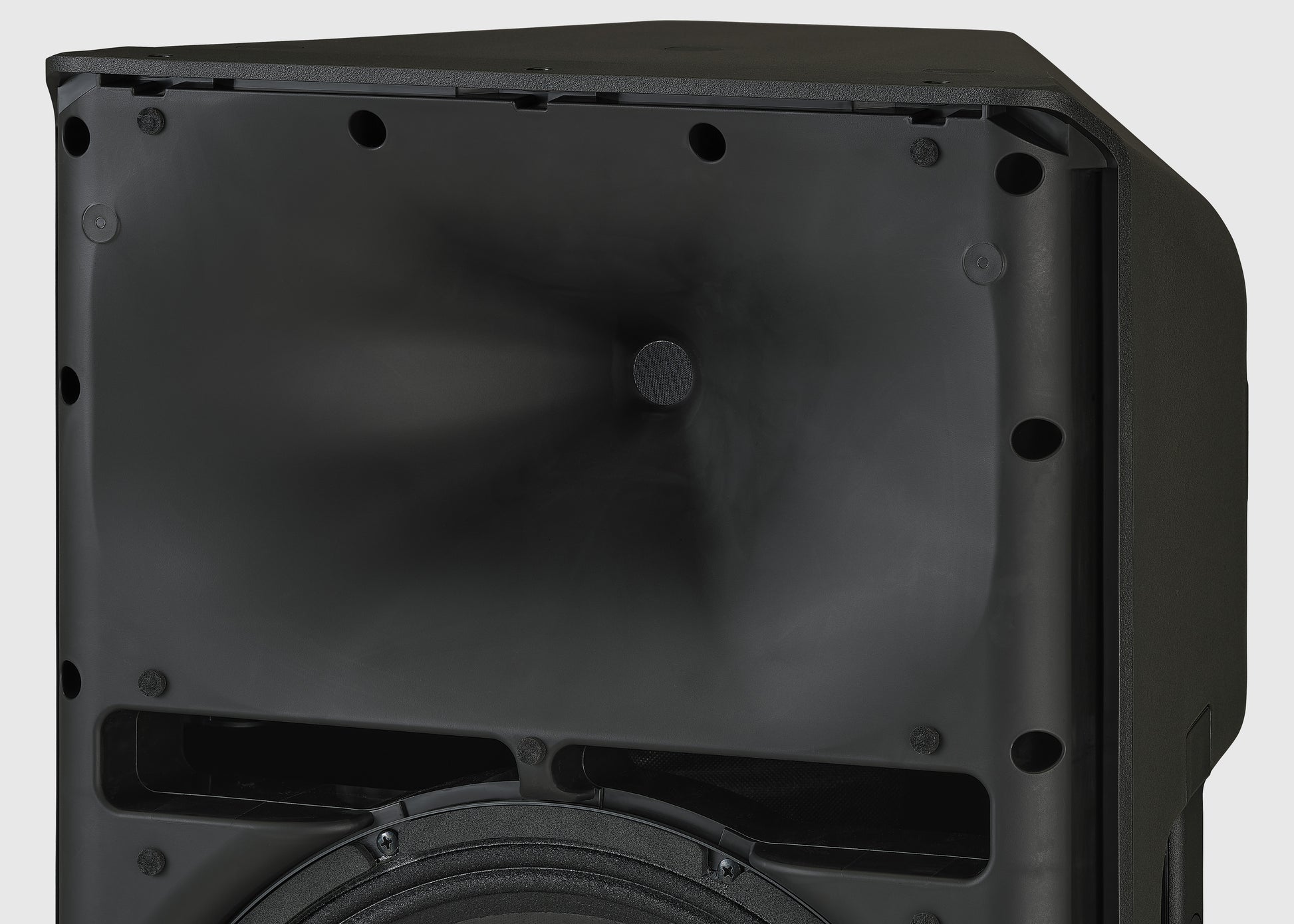

  • Updated horn improves HF coverage control
  • Port design smooths low-frequency response

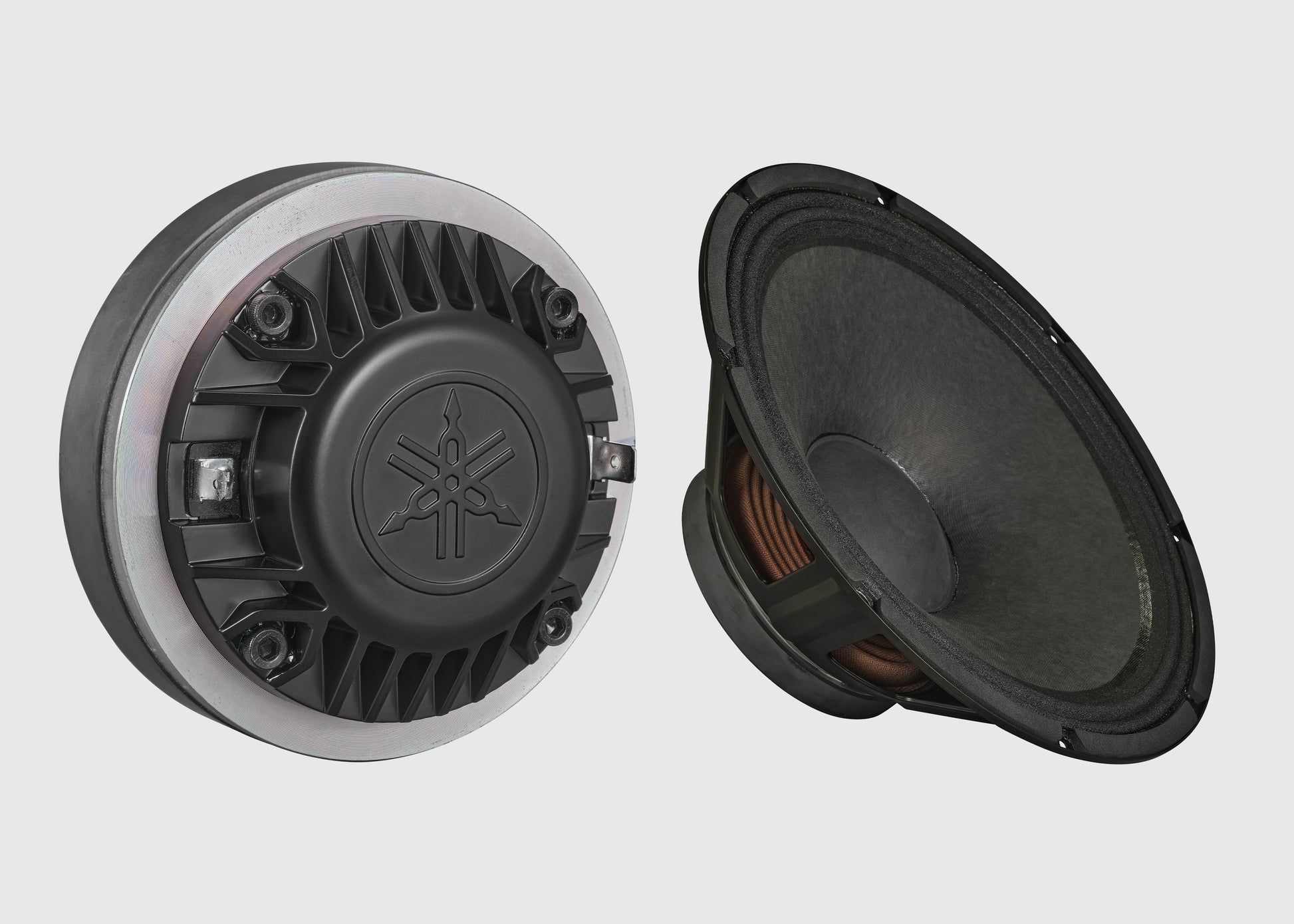

  • Custom LF/HF units support demanding use

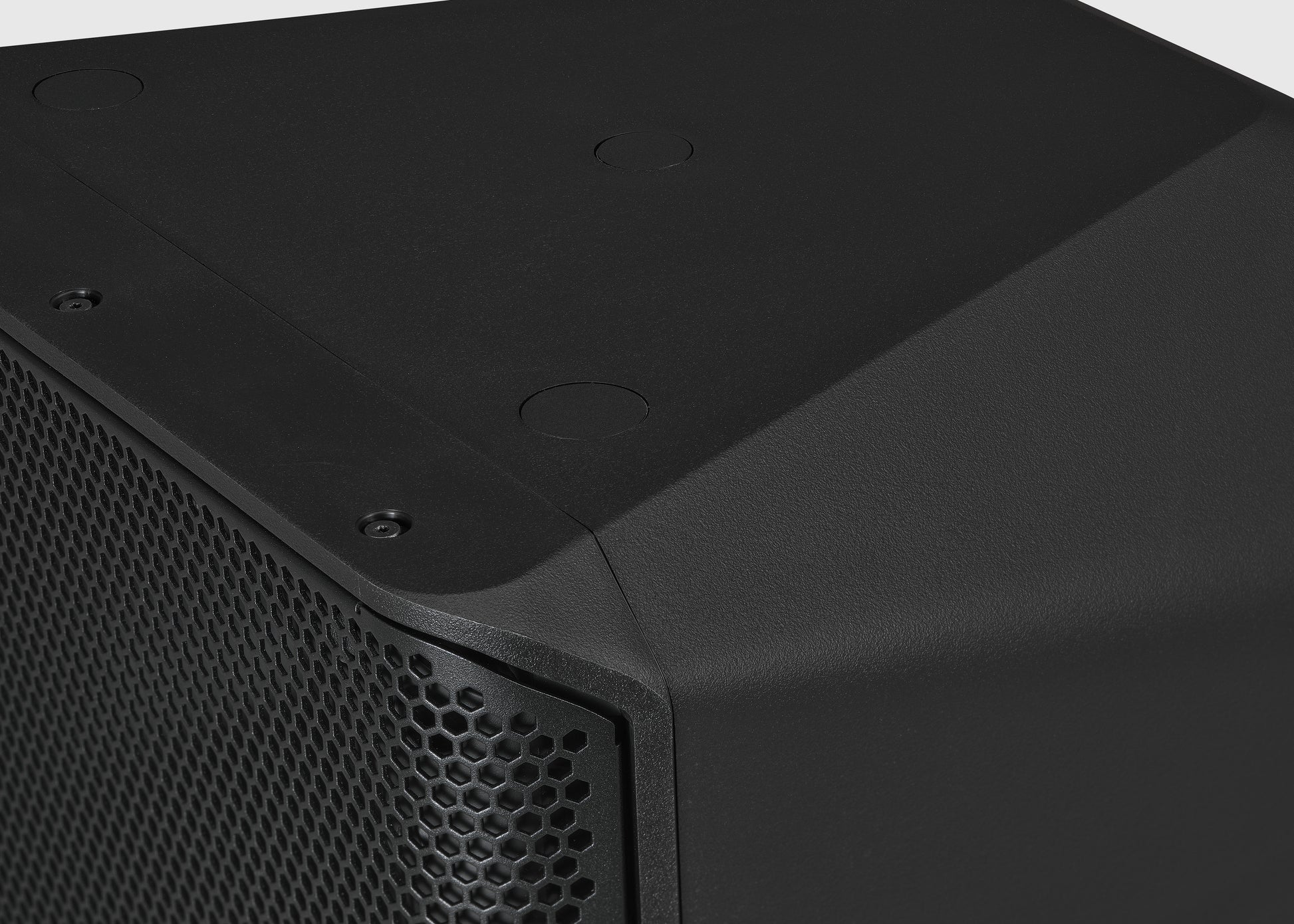

  • Molded cabinet reduces resonance effects

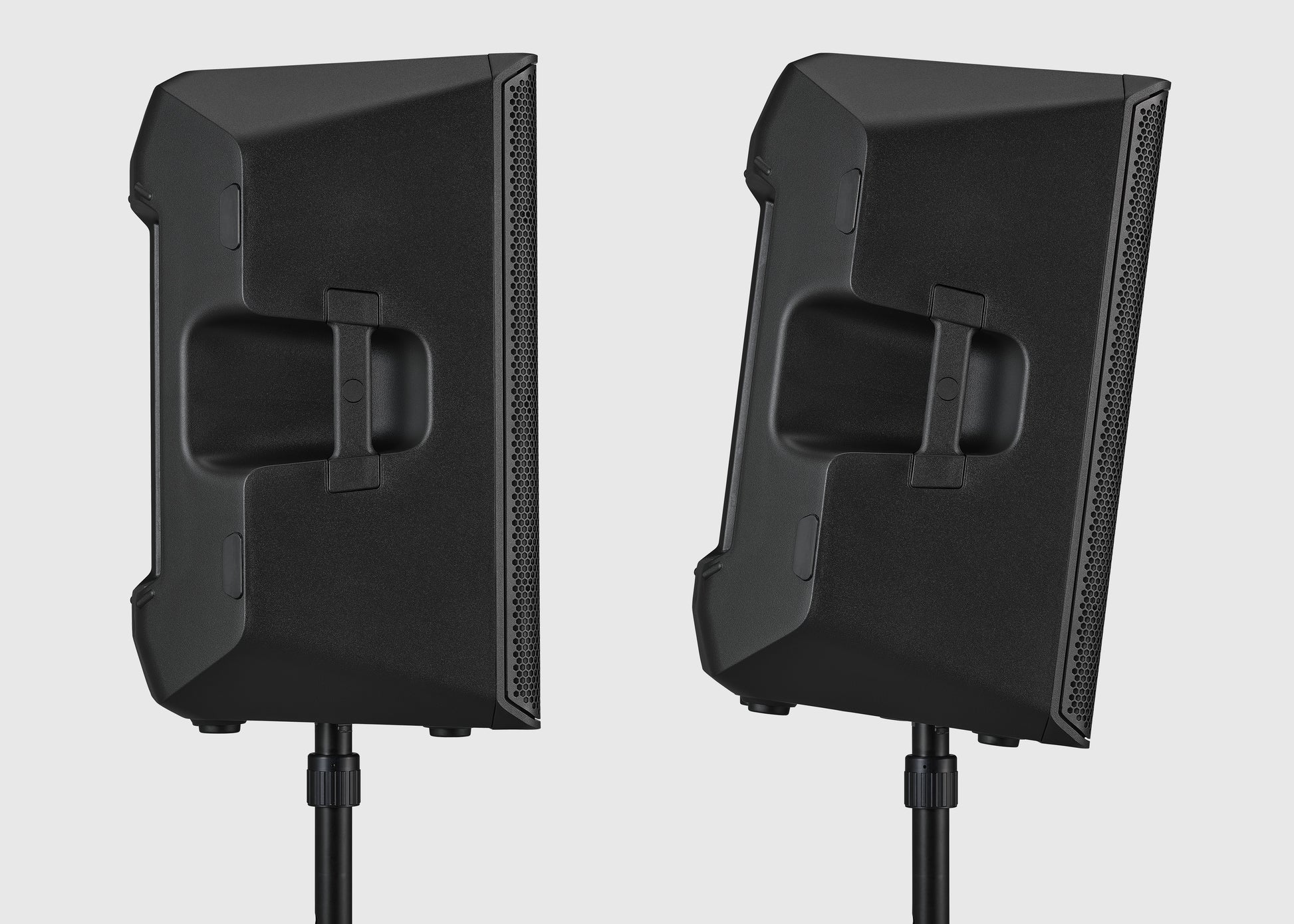

  • 0° and 7° pole angles aid audience aiming

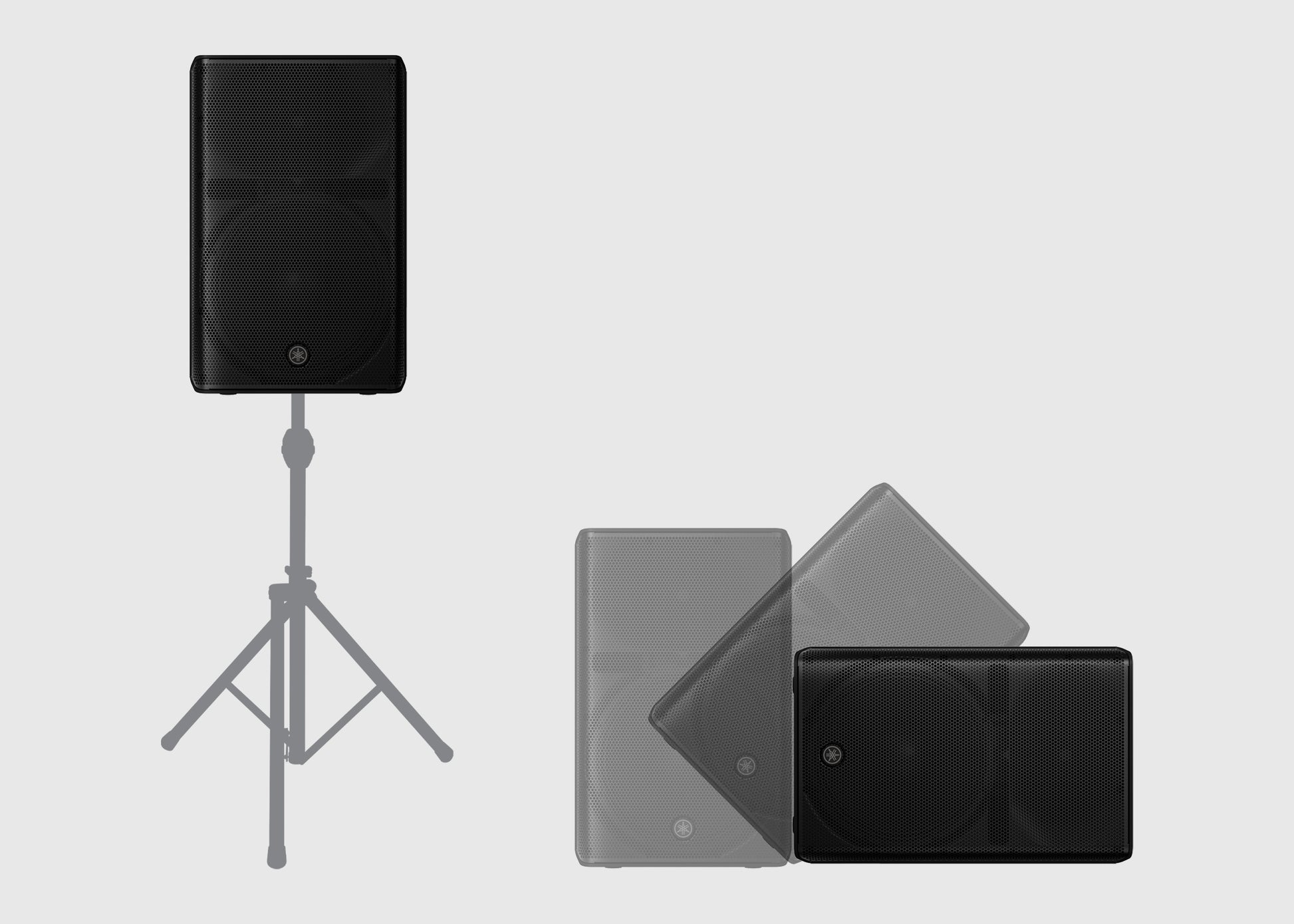

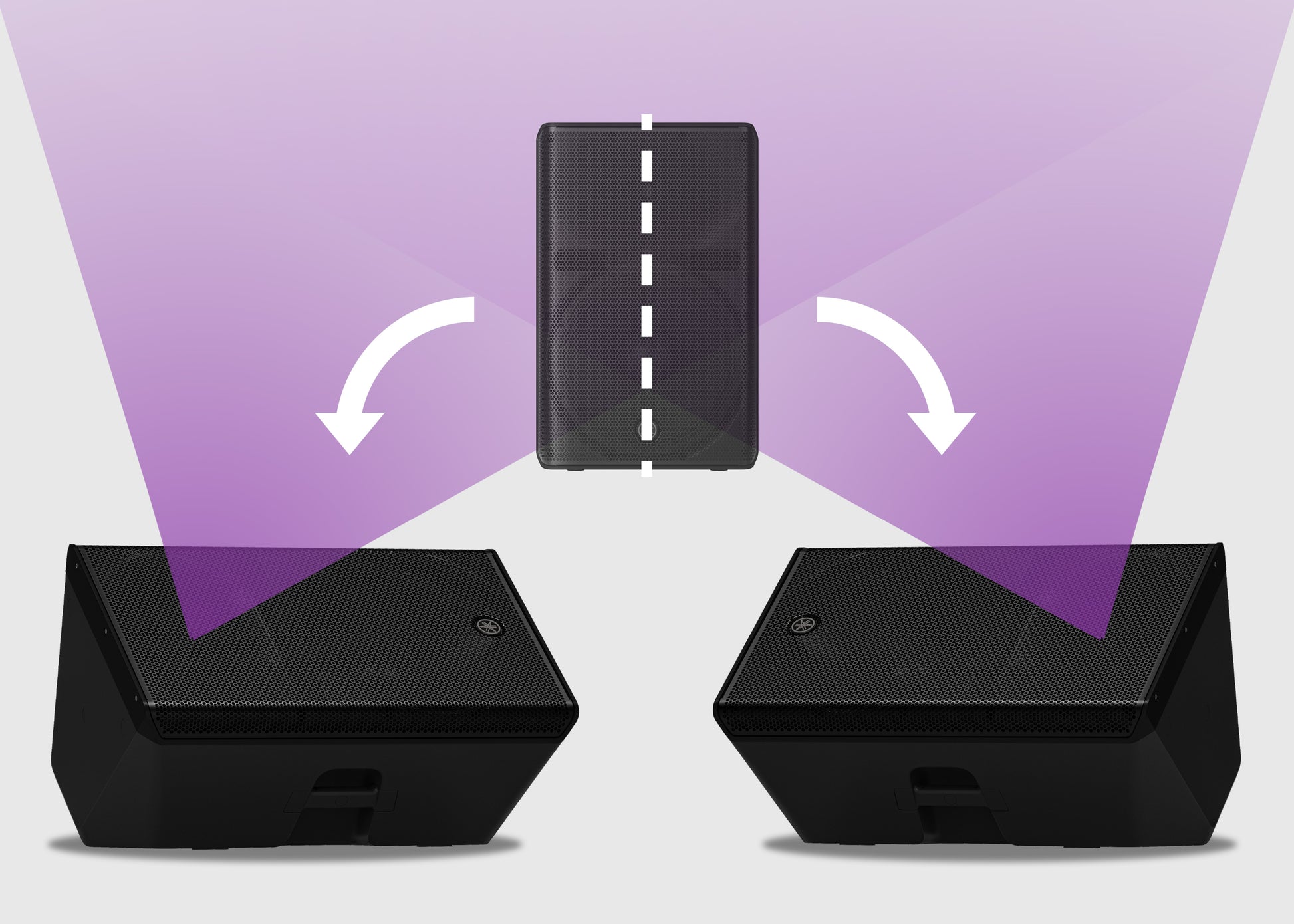

  • Symmetrical layout supports mirror placement
Log in or register for YOUR best price

The Yamaha CXR MK3 is a passive loudspeaker series designed for professional sound reinforcement in portable setups and fixed installations. Its updated acoustic design improves high-frequency directivity and low-frequency response for clearer, more controlled coverage.

Yamaha proprietary LF/HF speaker units, a lightweight molded enclosure, and optimized port placement support dependable performance under demanding use conditions. Mirror floor placement, dual-angle pole mounting, and optional bracket compatibility add flexibility for stage monitoring and installed AV applications.

View full details

Specifications

Speaker type
2-way Speaker, Bass-reflex
Frequency range (-10dB)
54 Hz - 20 kHz
Coverage area
H90ﾟ x V60ﾟ
Crossover
2.0 kHz
Nominal impedance
8Ω
Sensitivity (1W; 1m on axis)
93dB SPL
Peak (Calculated)
123dB SPL
LF
Diameter: 10" cone, Voice Coil: 2.5"
HF
Diaphragm: 1.75", Type: 1" throat compression driver
Power rating NOISE
275 W
Power rating PGM
550 W
Power rating PEAK
1100 W
I/O connectors

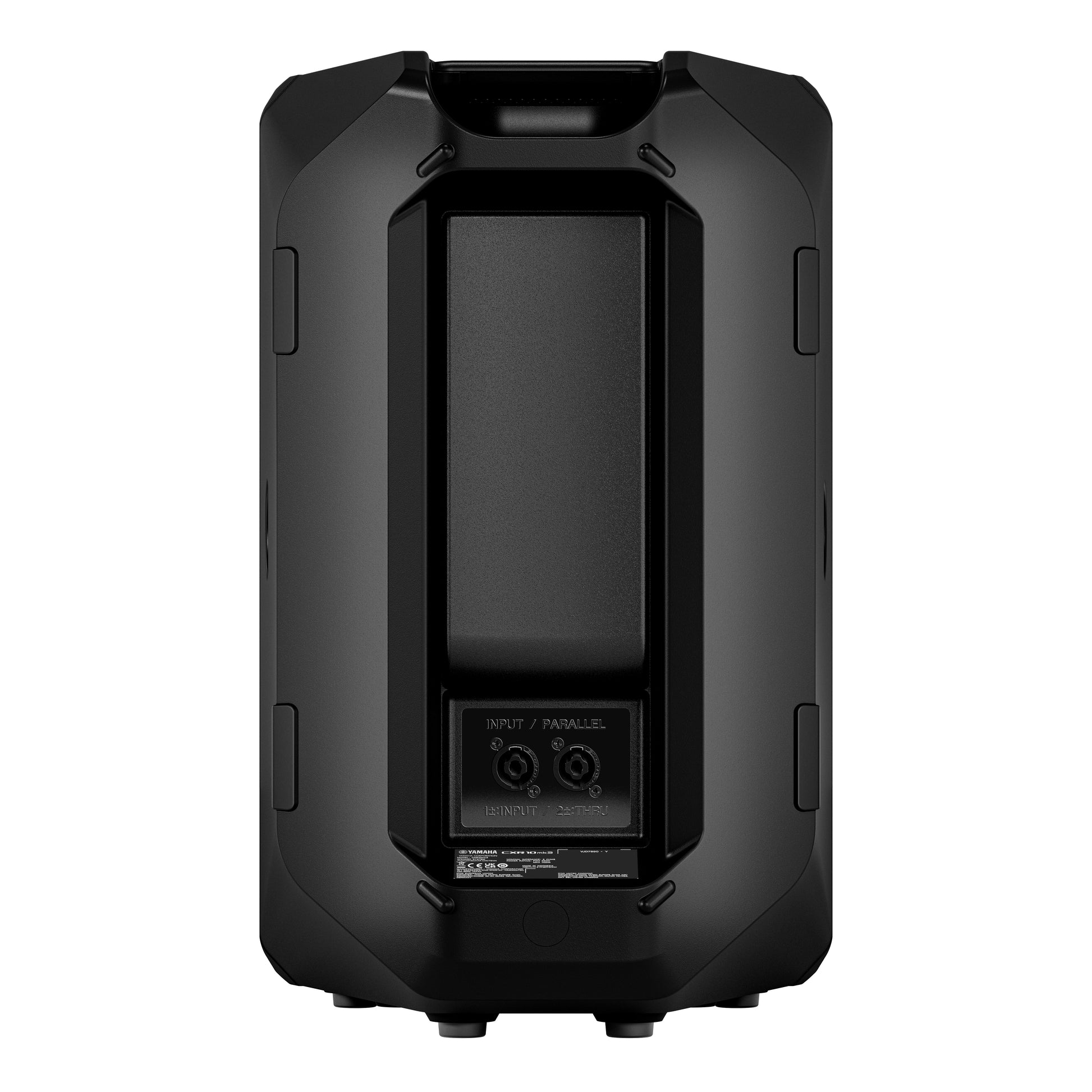

SpeakON NL4MP x 2 (parallel connected)
Cabinet material
Plastic
Finish
Black

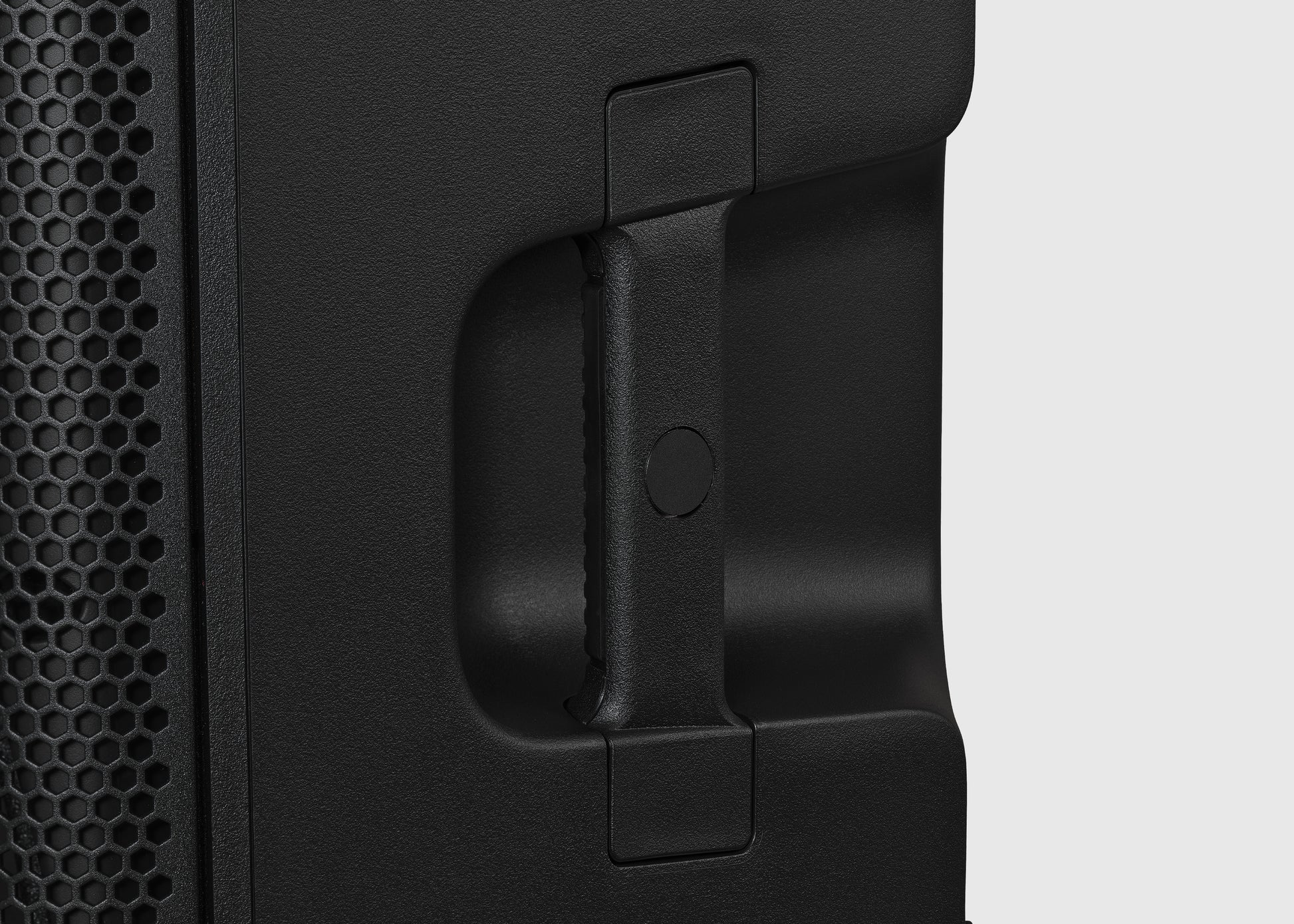

Handle
Top x1
Pole socket
Φ35 mm x2 (Bottom, 0° or -7°)

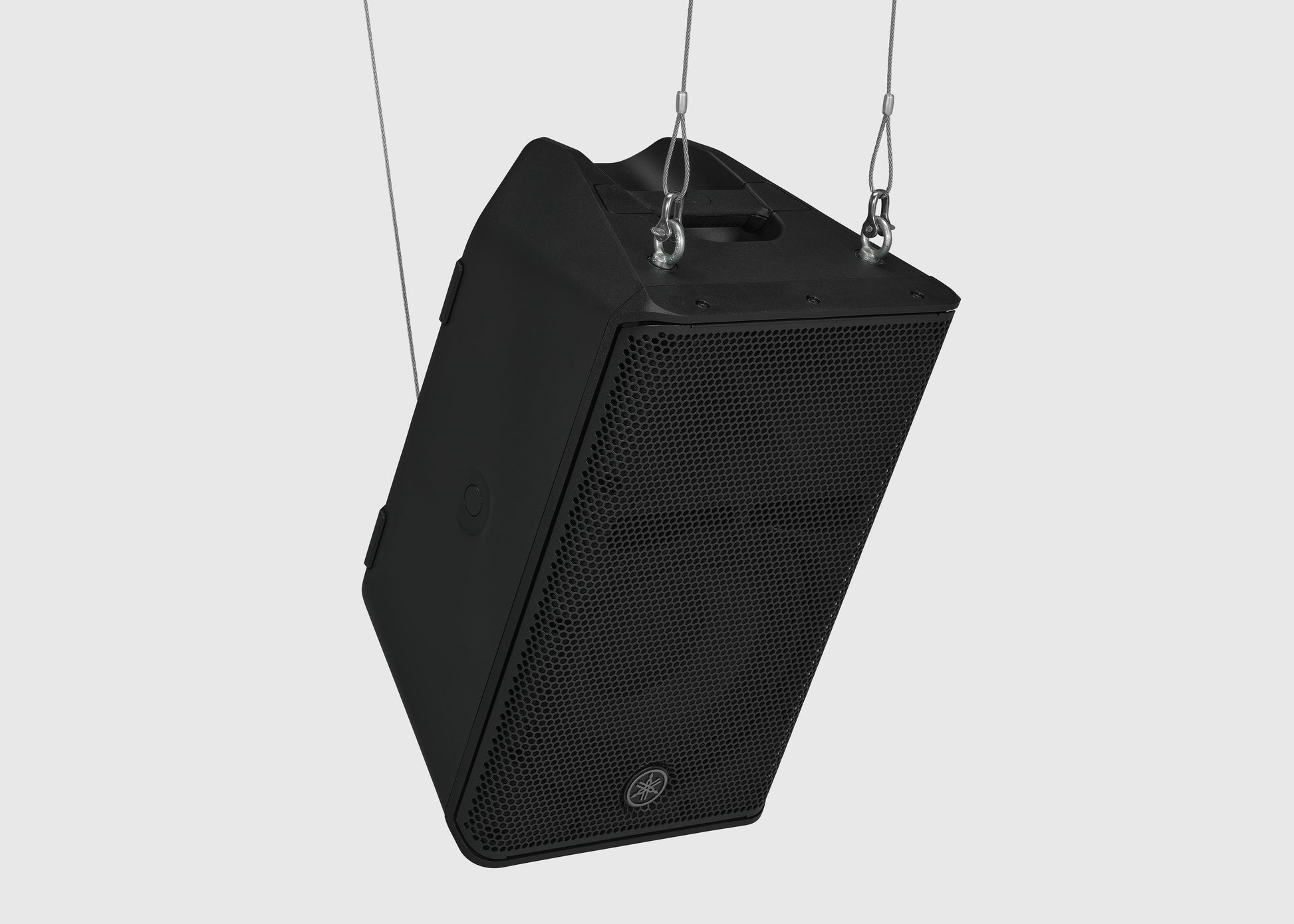

"Rigging
Top x 2, Rear x 1
(Fit for M8 x 15 mm Eyebolts), Bottom x2, Side x 2 (Fit for M8 x 25 mm UB-DXRDHR10A)"
Floor Monitor Angle
55ﾟ
Width
12.2" (310 mm)
Height
19.8" (502 mm)
Depth
12.2" (310 mm)
Net weight
26.9 lbs (12.2 kg)
Options

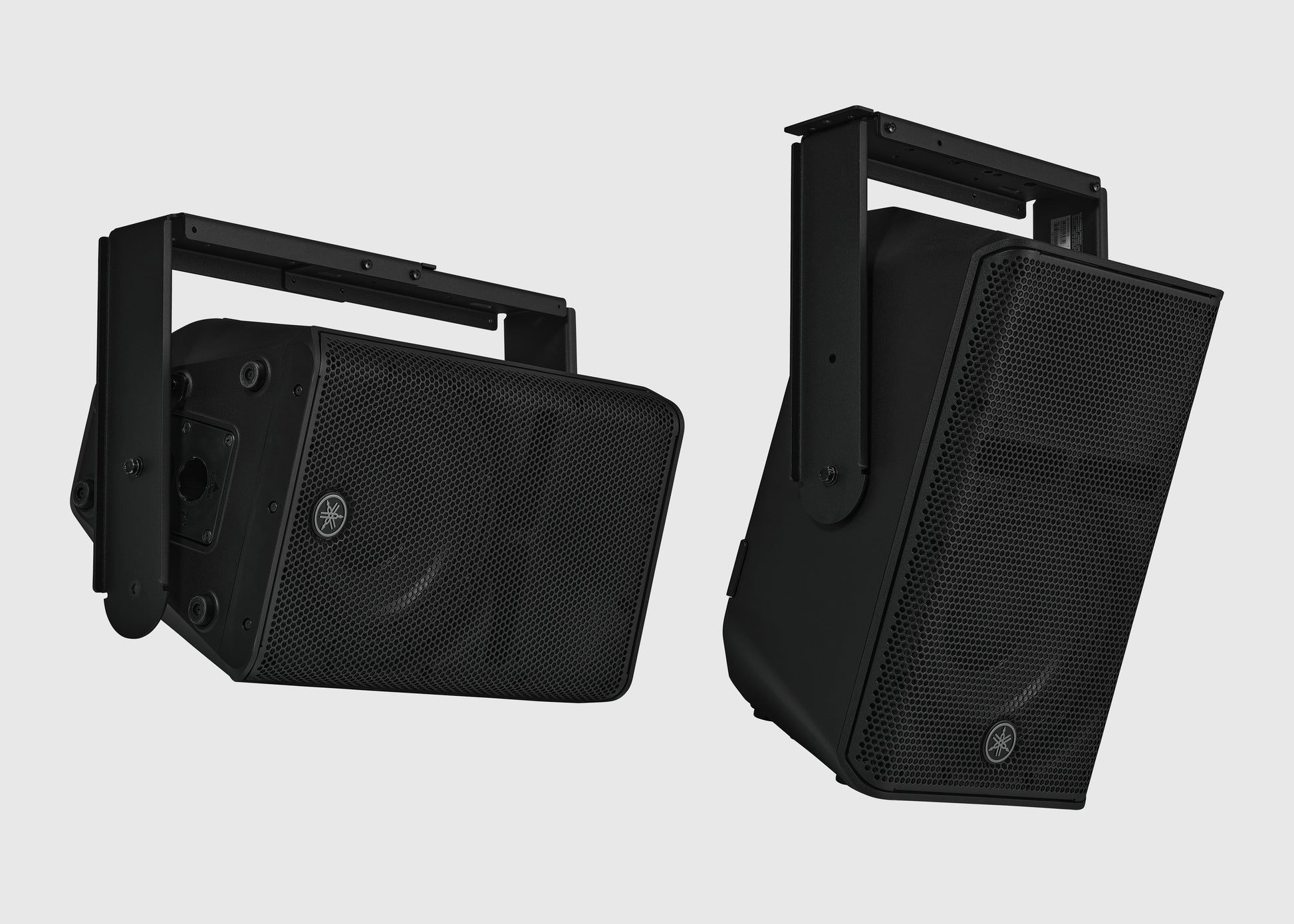

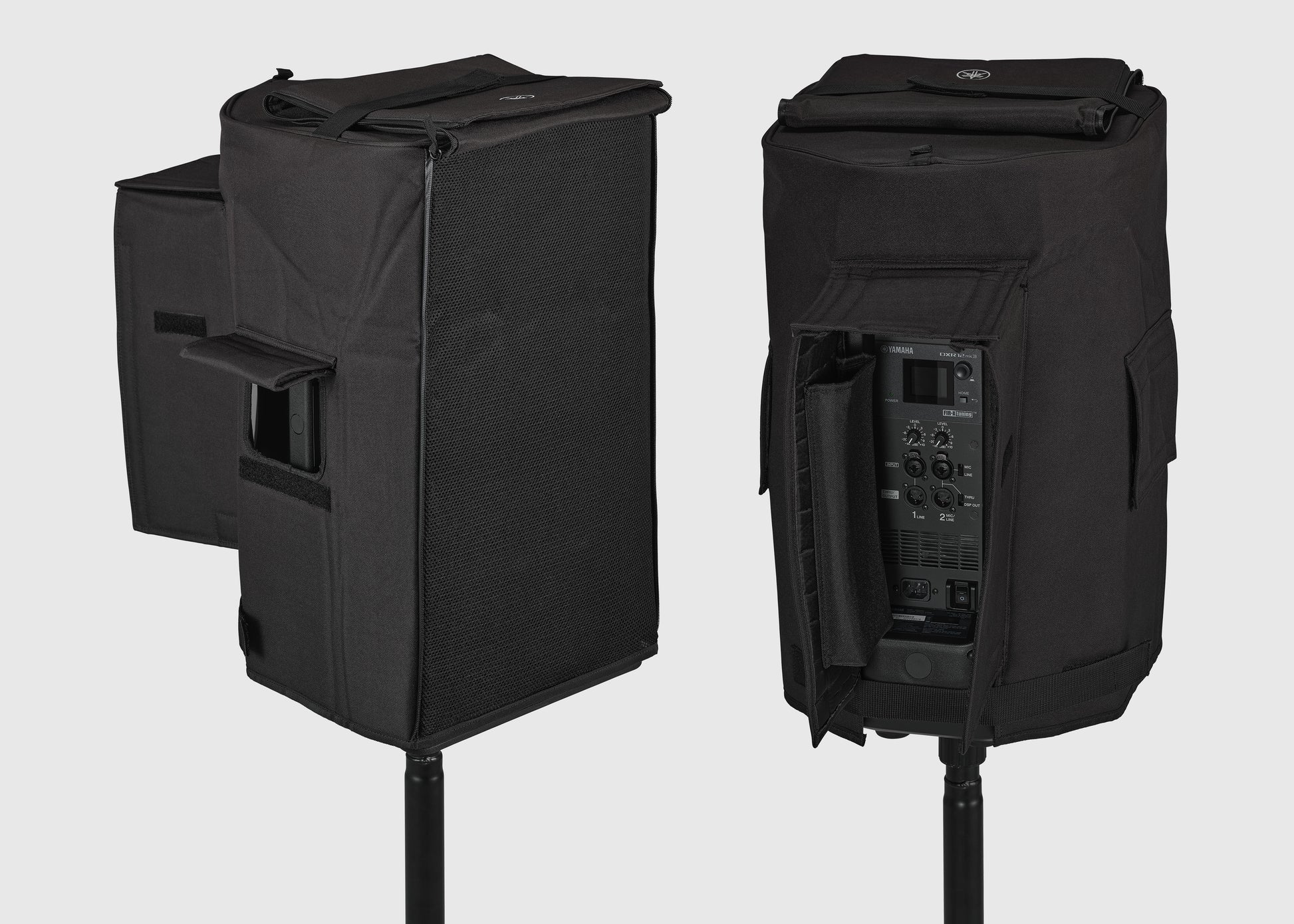

U-bracket: UB-DXRDHR10A, Cover: SPCVR-DXR103
