Specifications
Speaker type
2-way Speaker, Bass-reflex
Frequency range (-10dB)
51 Hz - 20 kHz
Coverage area
H90゚ x V60゚
Crossover
1.9k Hz
Nominal impedance
8Ω
Sensitivity (1W; 1m on axis)
94dB SPL
Peak (Calculated)
124dB SPL

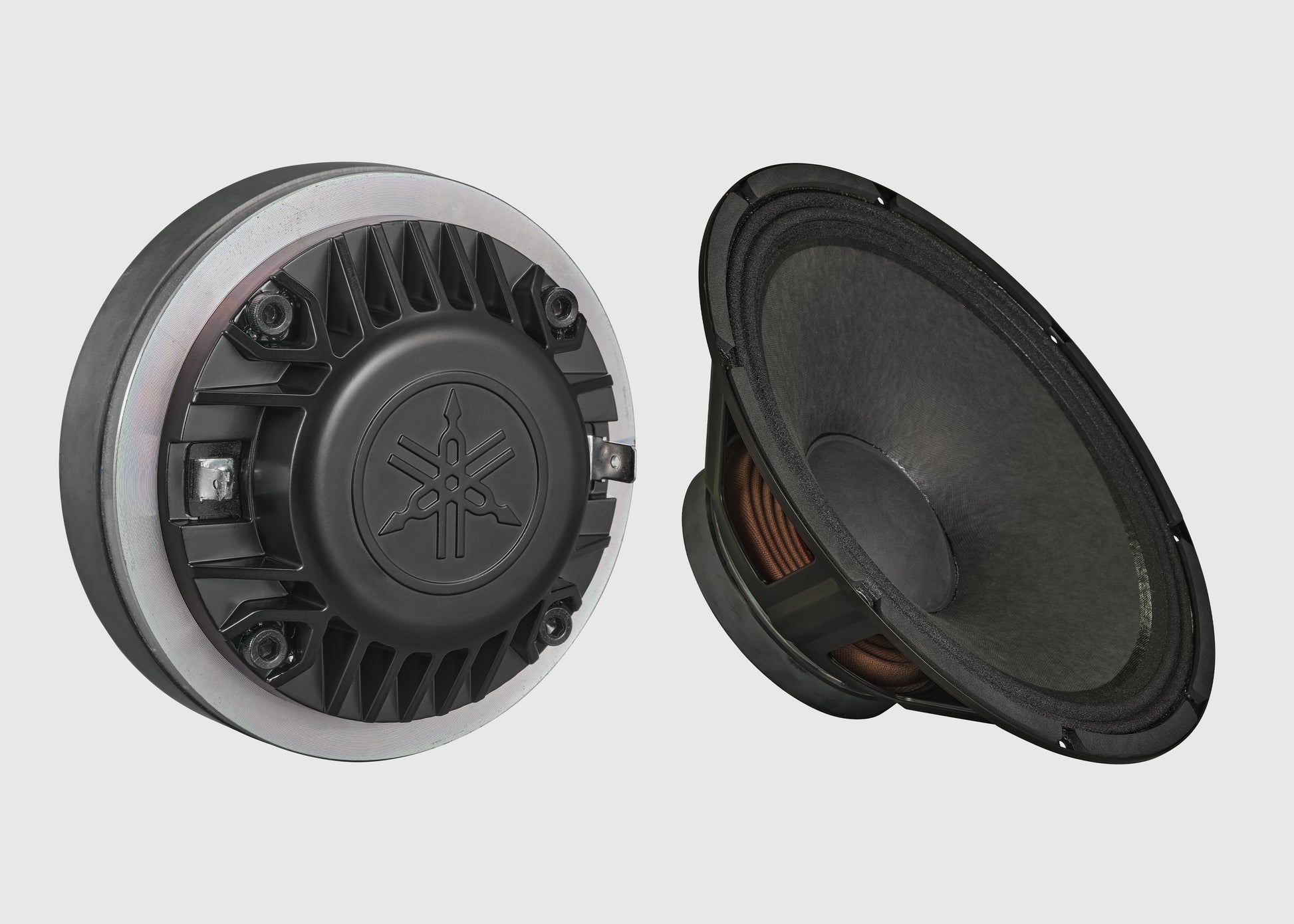

LF
Diameter: 12" cone, Voice Coil: 2.5"

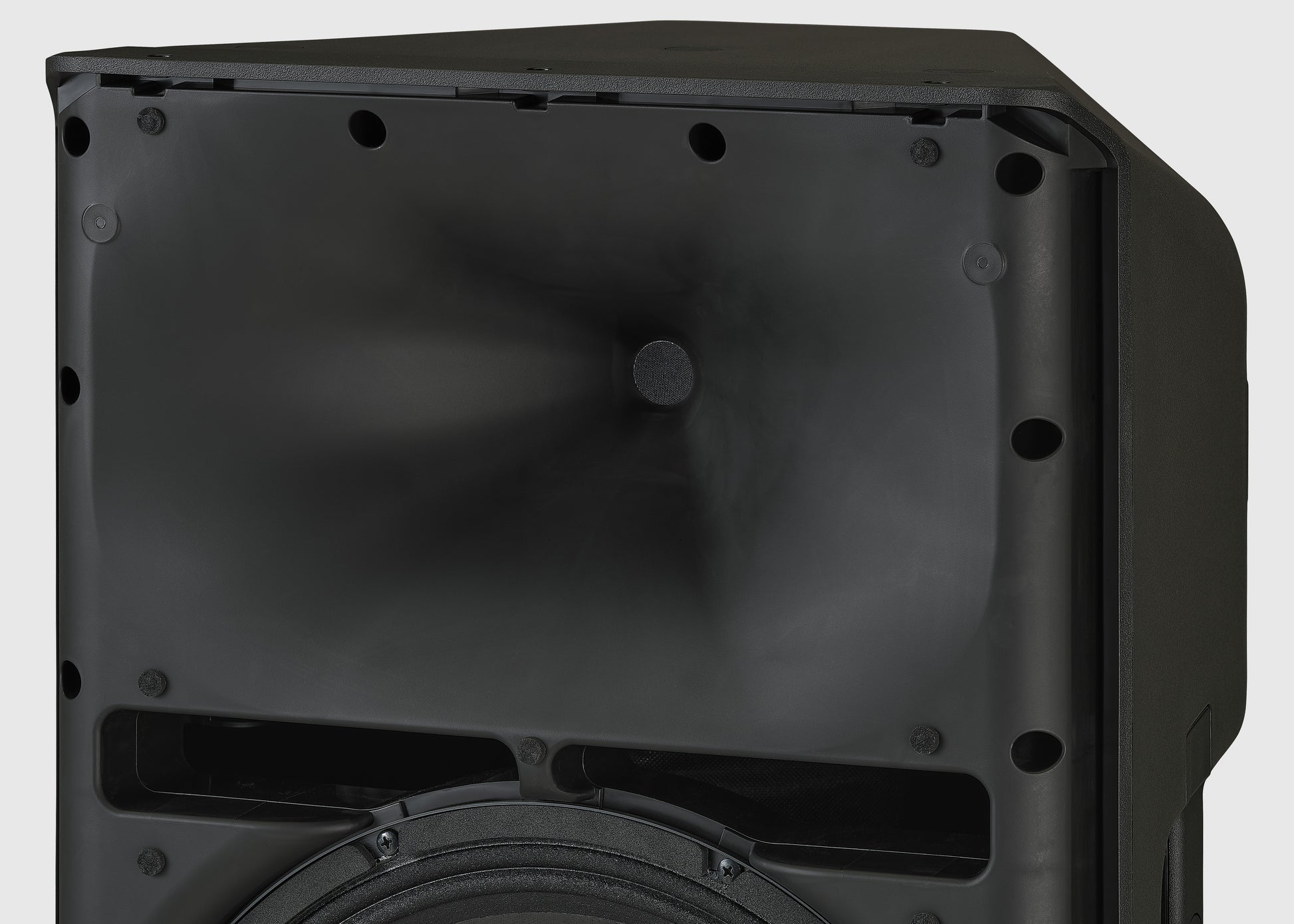

HF
Diaphragm: 1.75", Type: 1" throat compression driver
Power rating NOISE
275 W
Power rating PGM
550 W
Power rating PEAK
1100 W

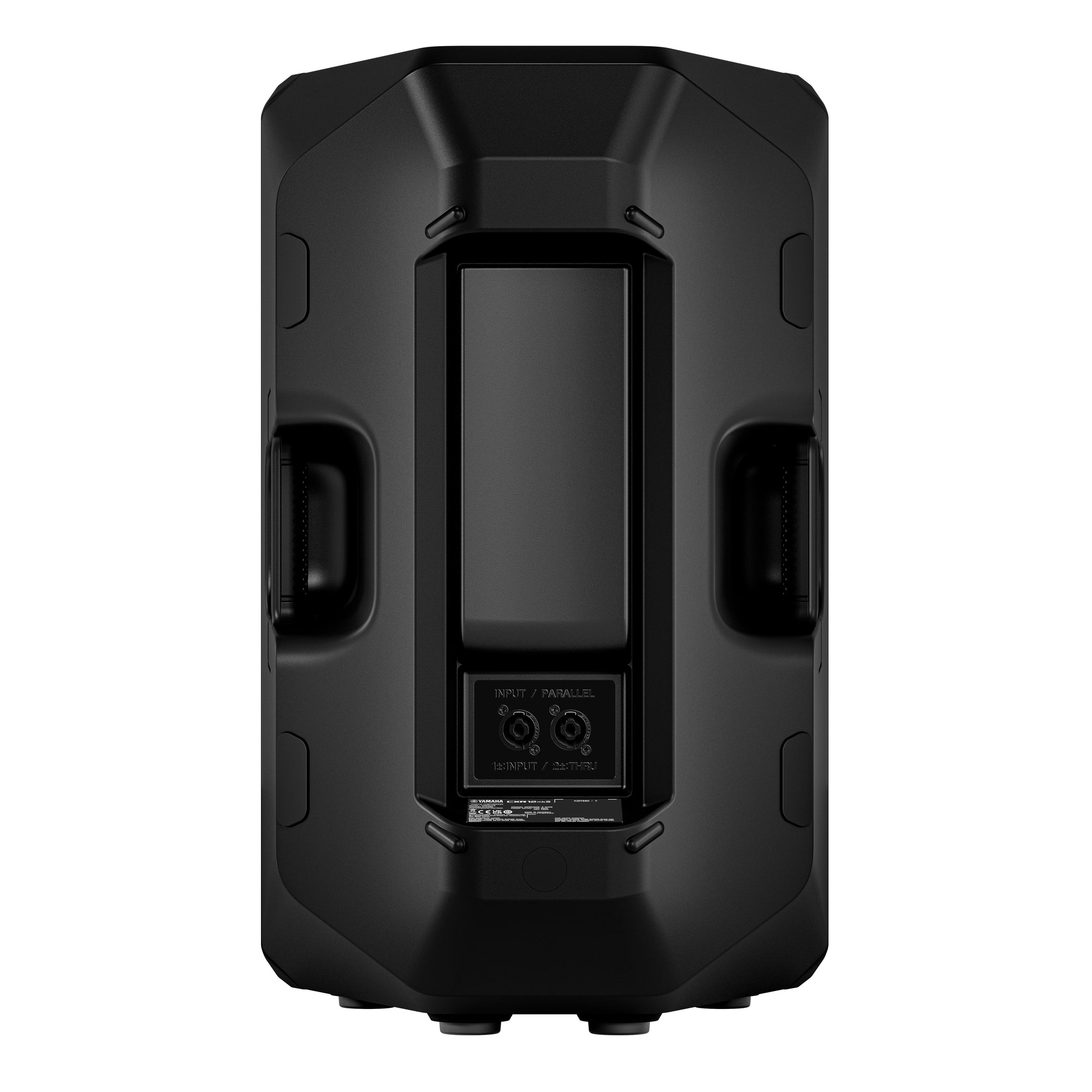

I/O connectors
SpeakON NL4MP x 2 (parallel connected)

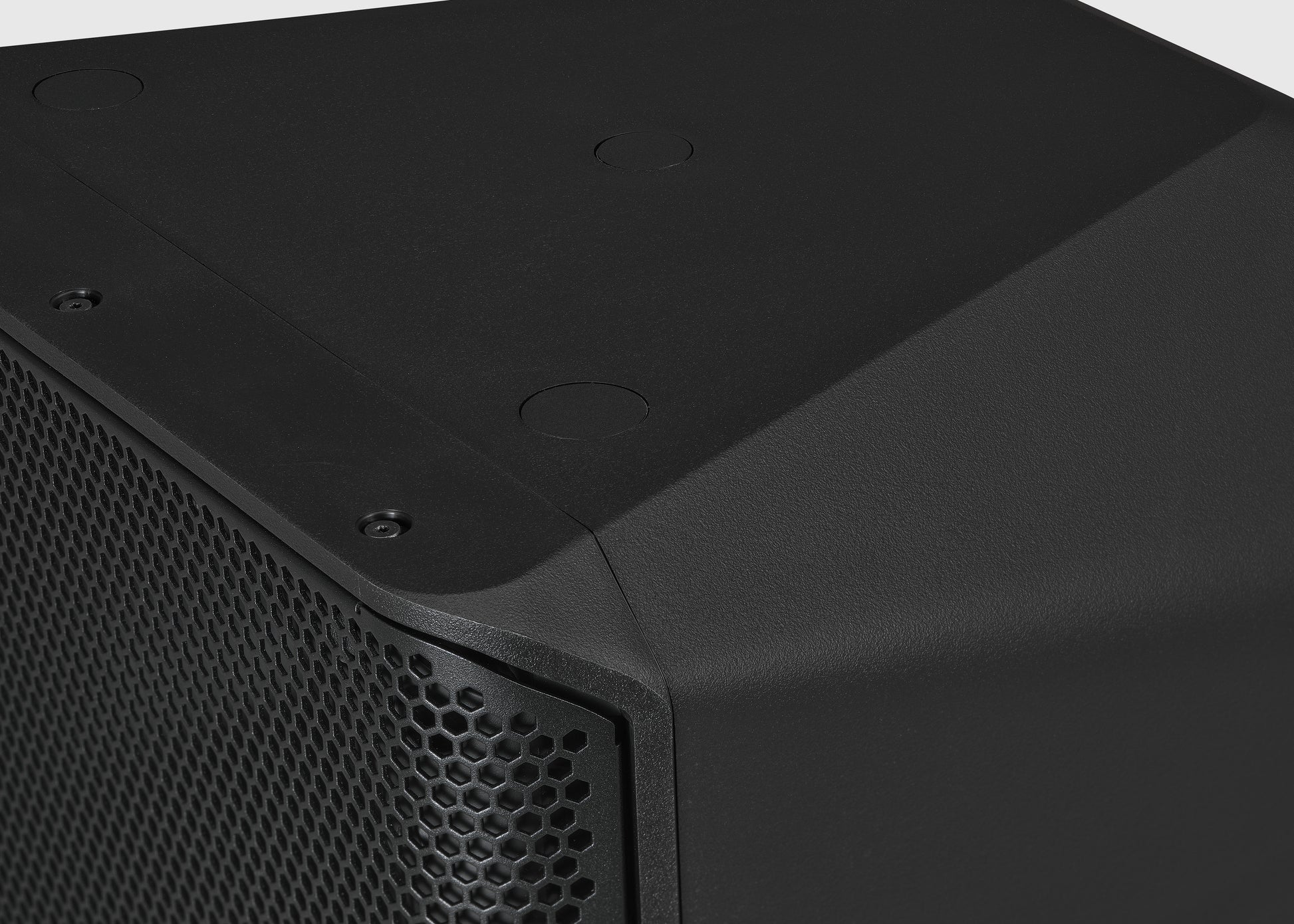

Cabinet material
Plastic
Finish
Black

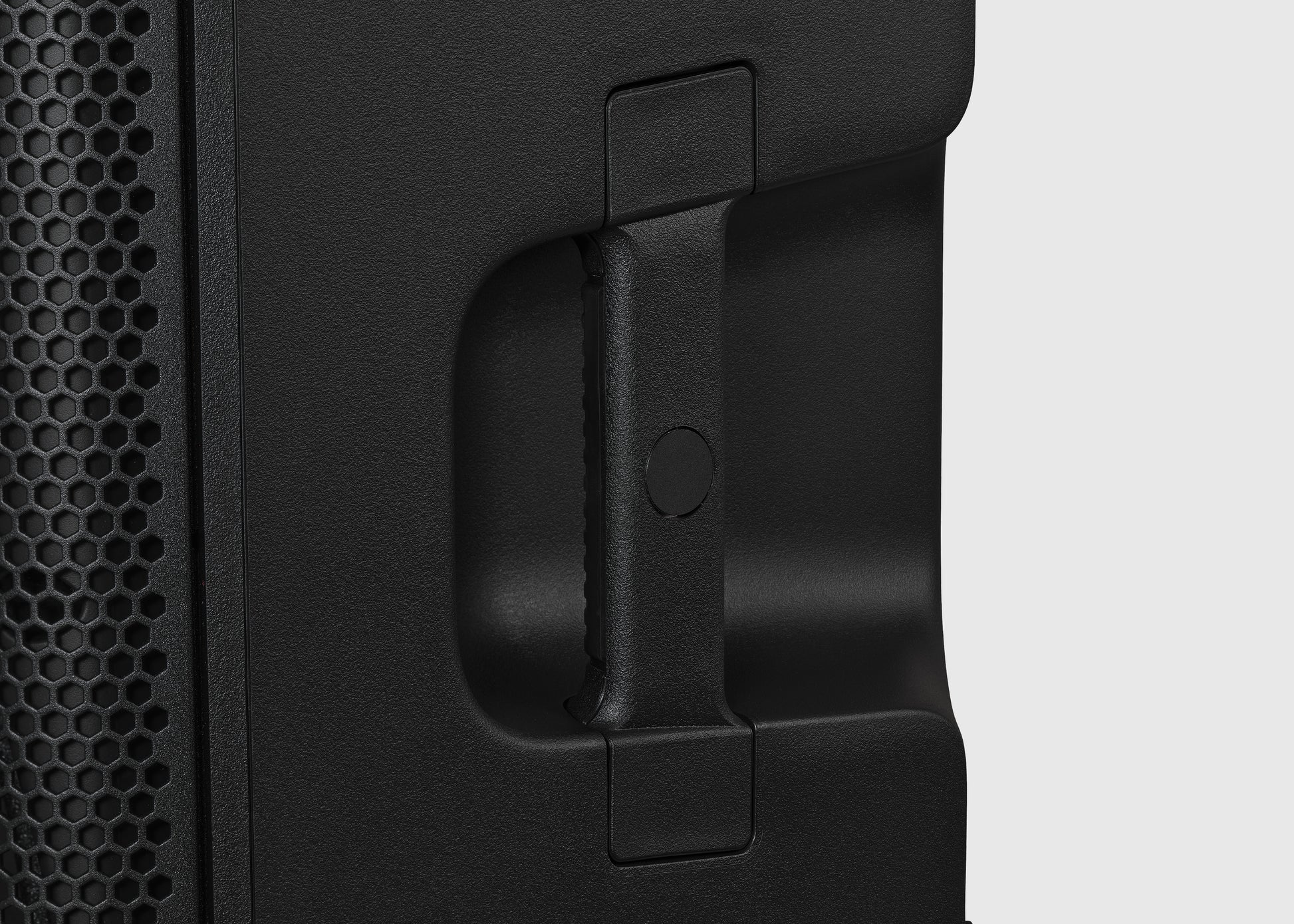

Handle
Side x2

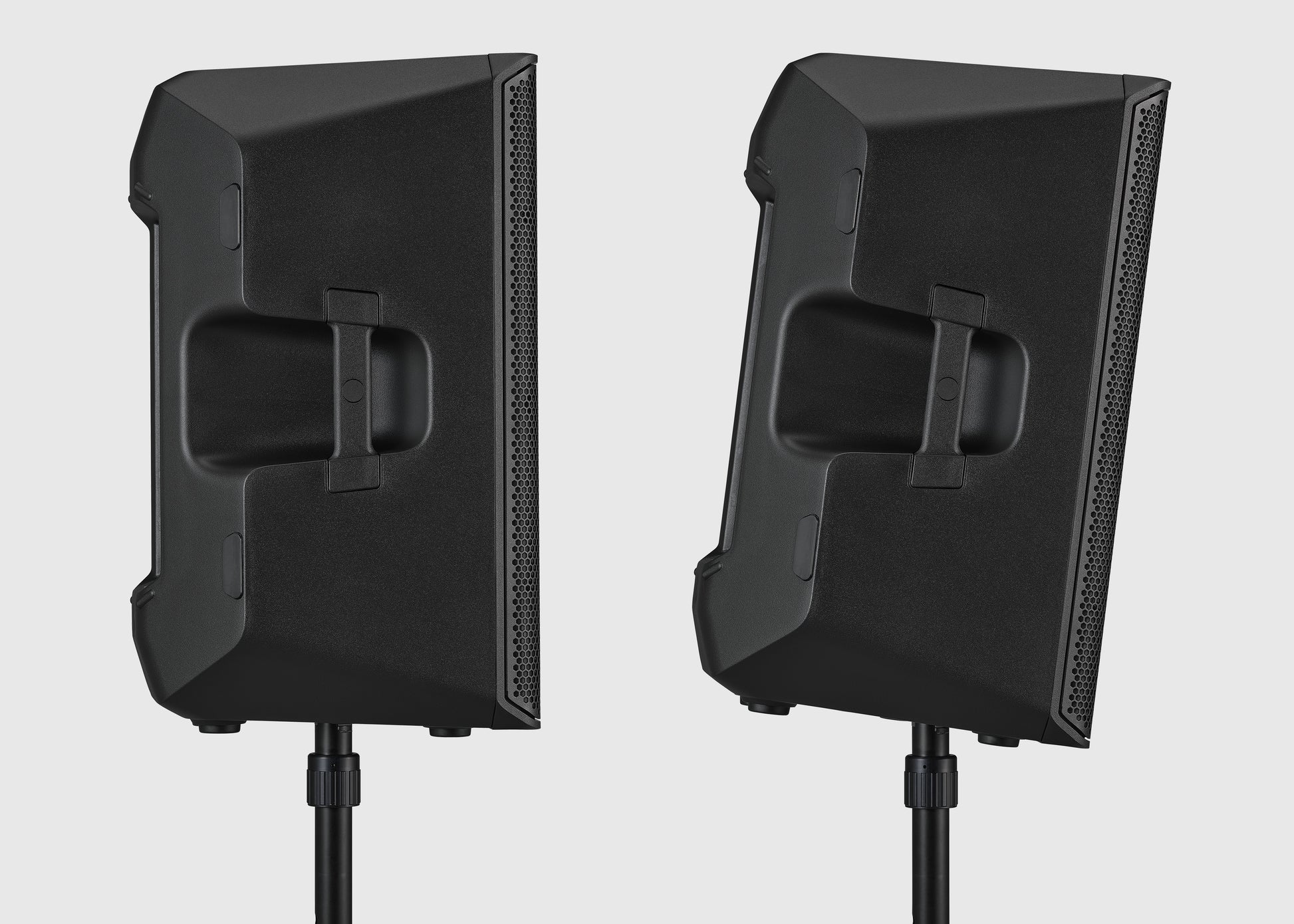

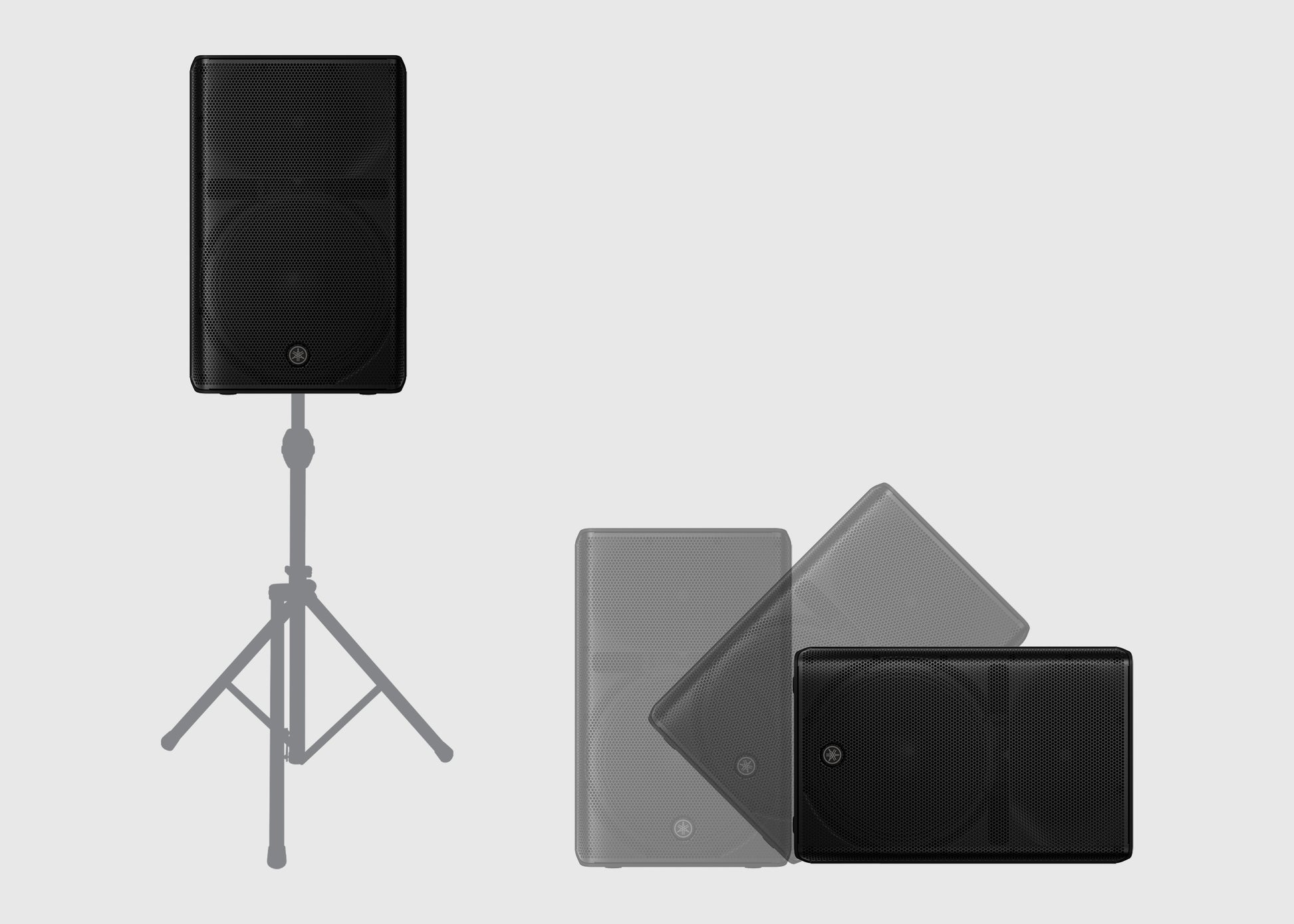

Pole socket
Φ35 mm x2 (Bottom, 0° or -7°)

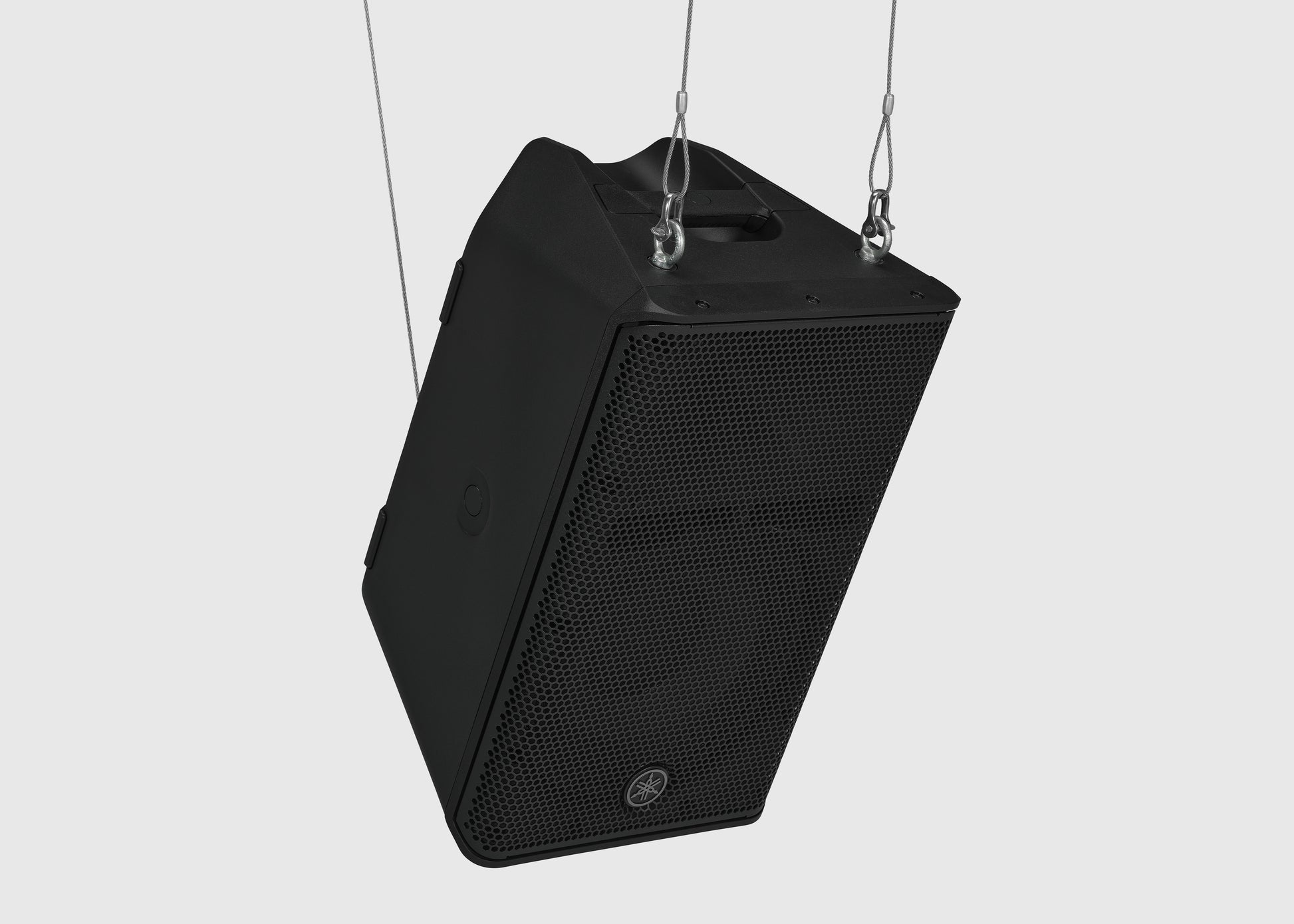

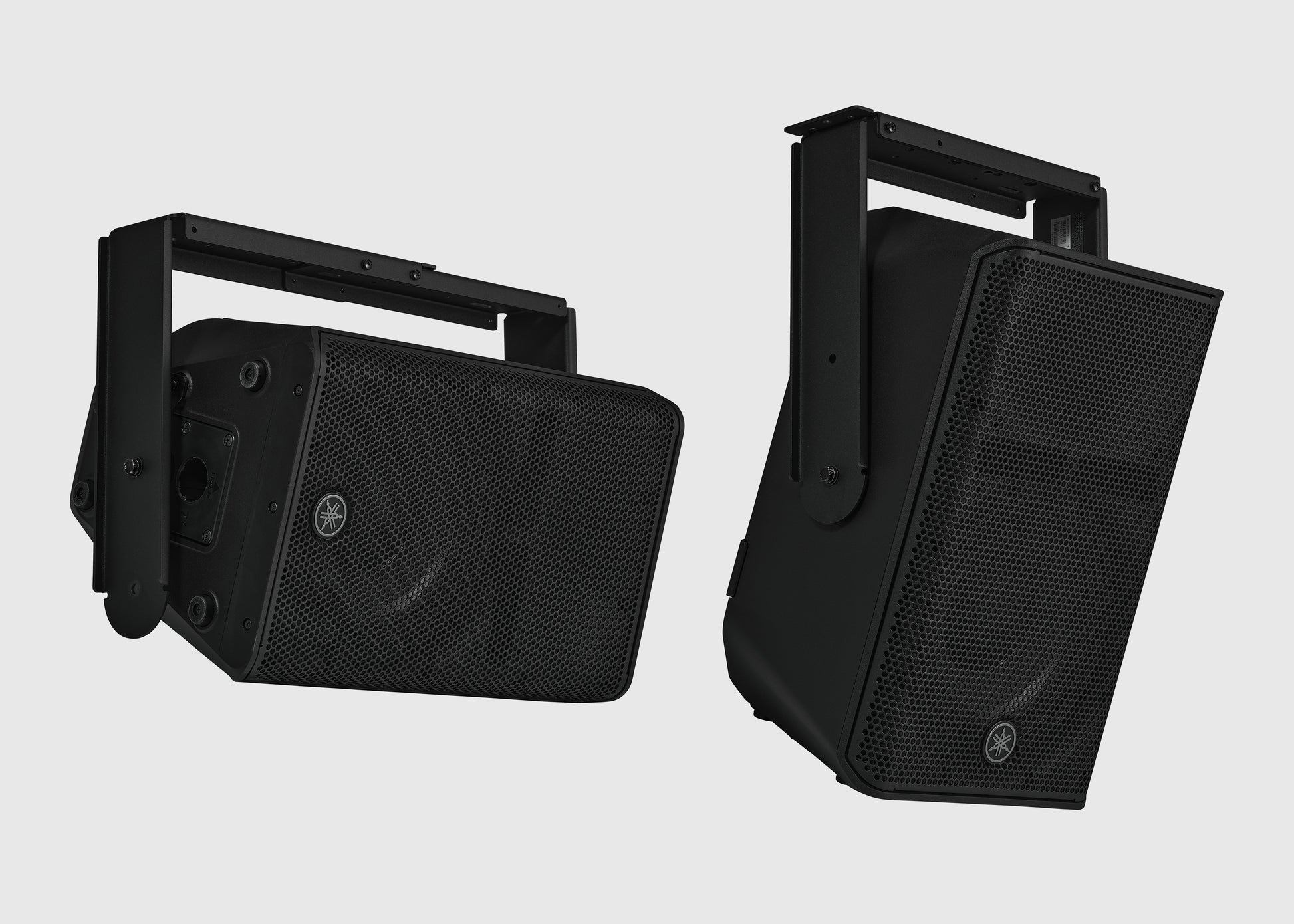

"Rigging
Top x 2, Rear x 1
(Fit for M10 x 18 mm Eyebolts), Bottom x2, Side x 2 (Fit for M8 x 25 mm UB-DXRDHR12A)"

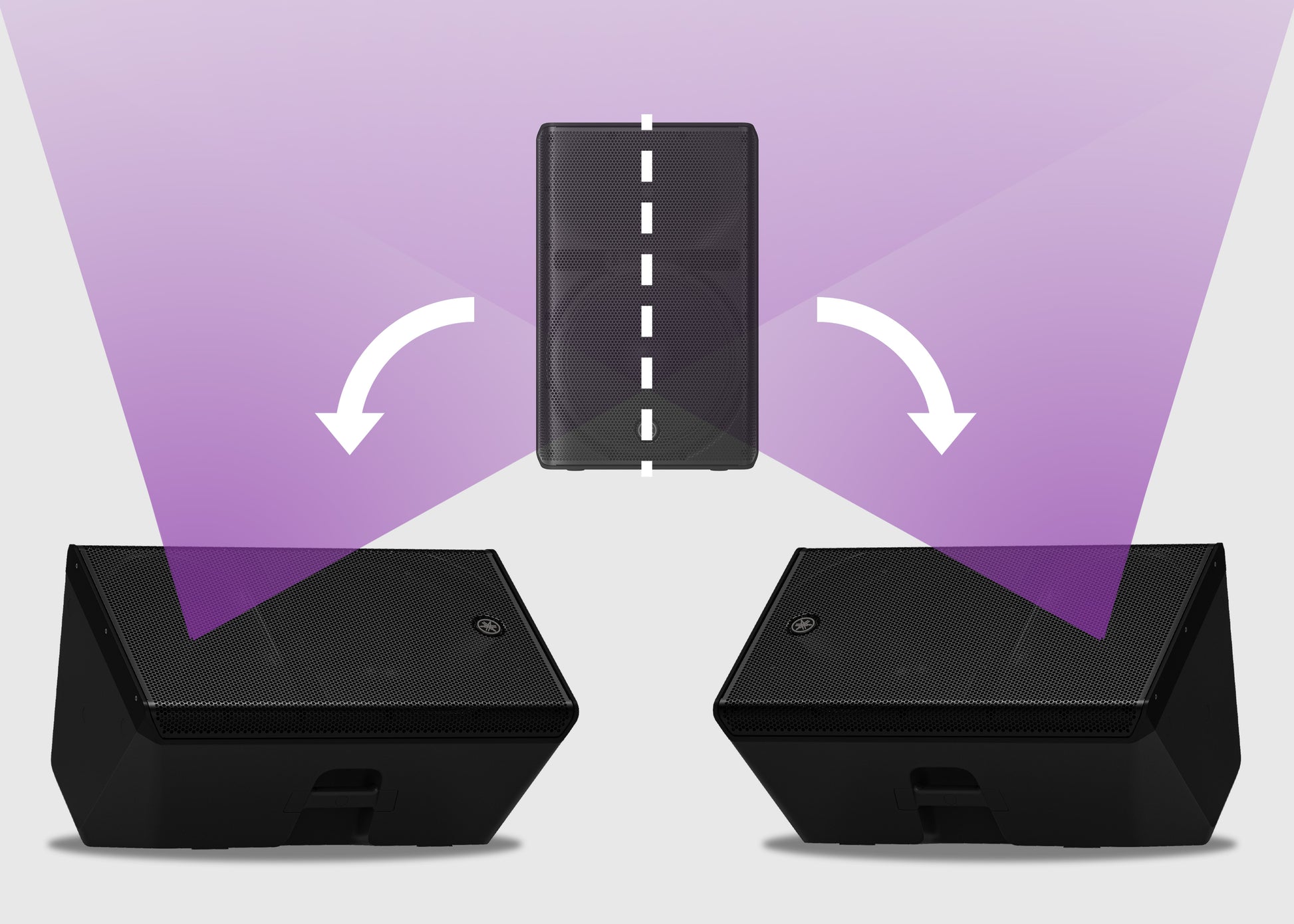

Floor Monitor Angle
52゚
Width
14.4" (366 mm)
Height
23.6" (600 mm)
Depth
13.8" (350 mm)
Net weight
34 lbs (15.4 kg)
Options

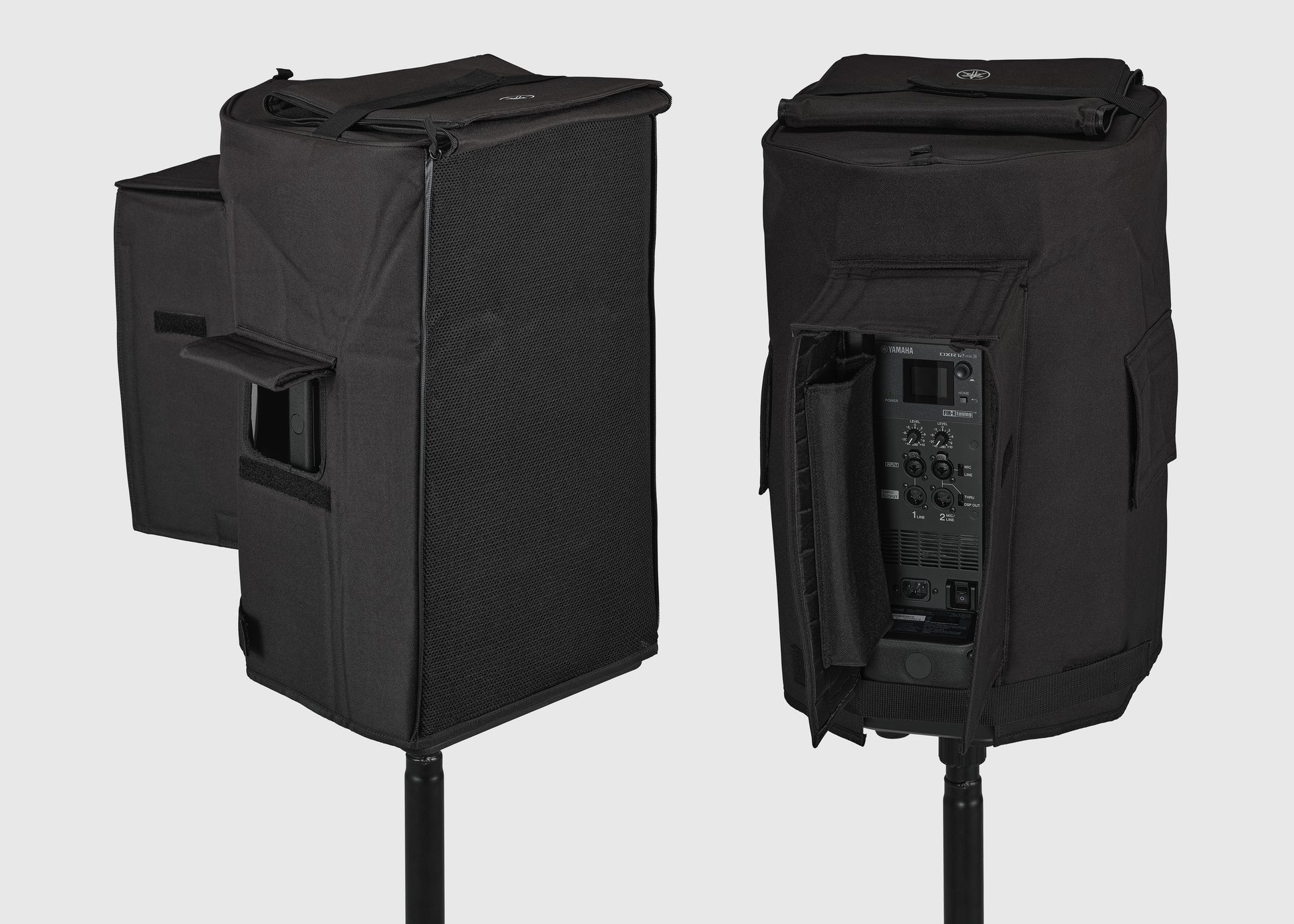

U-bracket: UB-DXRDHR12A, Cover: SPCVR-DXR123
