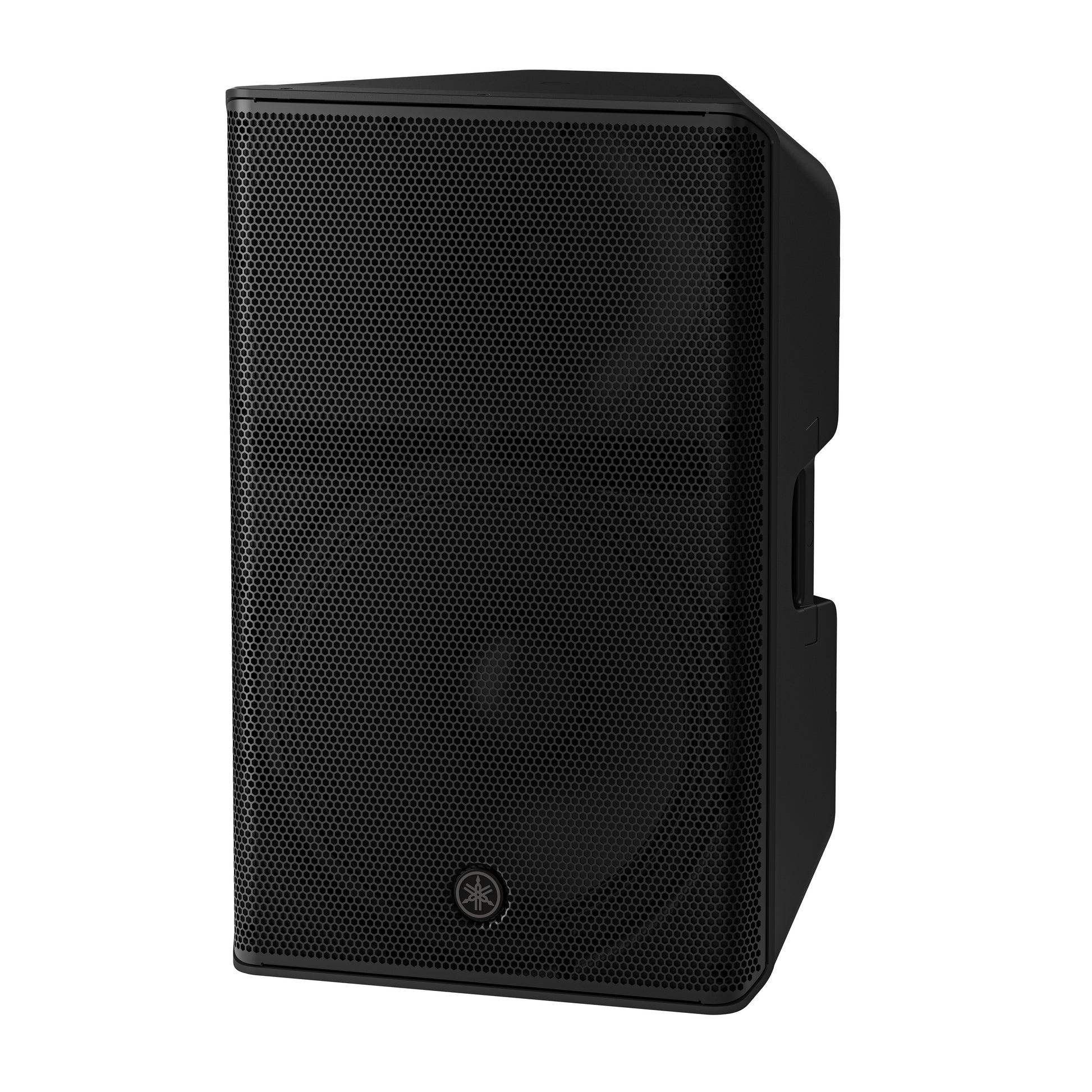

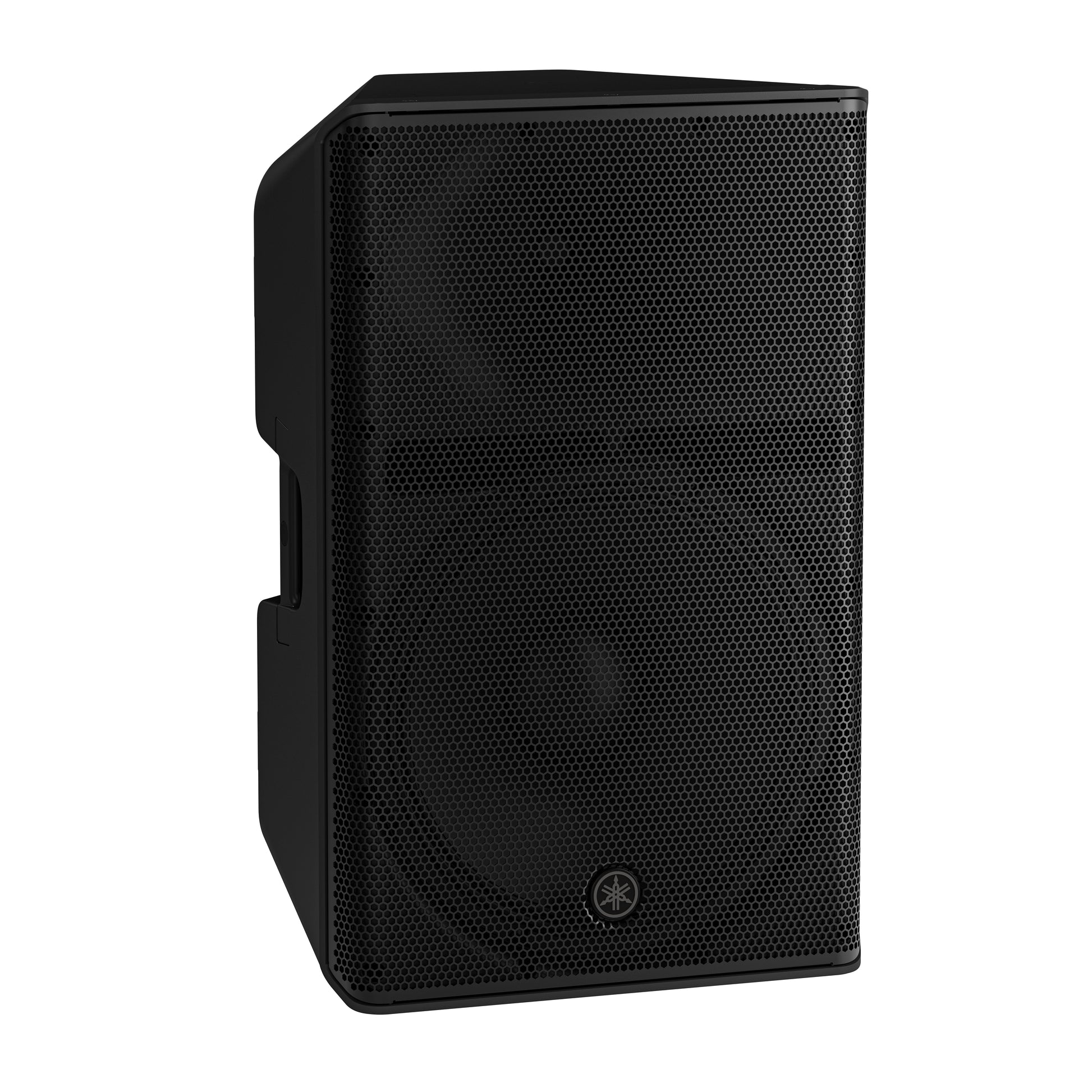

Yamaha CXR15MK3 Passive Loudspeaker | Size: 15"

Yamaha CXR15MK3 Passive Loudspeaker | Size: 15"

SoundPro Item: 203728 | Part Number: CXR15MKIII

$799.99
$830.00 $799.99
Your Price Sold out
MSRP: $830.00 | MAP: $799.99

Usually ships in 5-7 business days

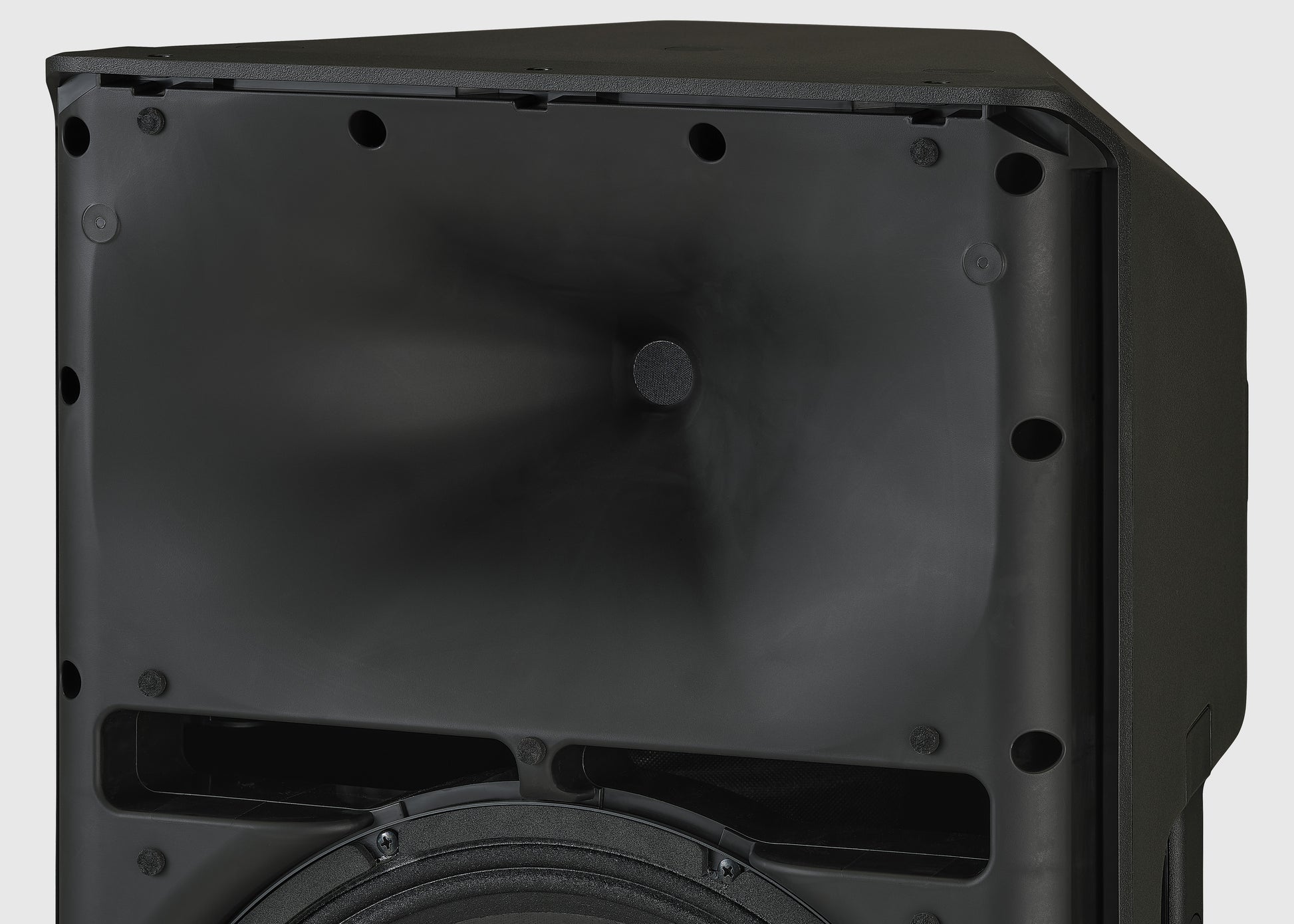

  • Updated horn improves HF coverage control
  • Port design smooths low-frequency response

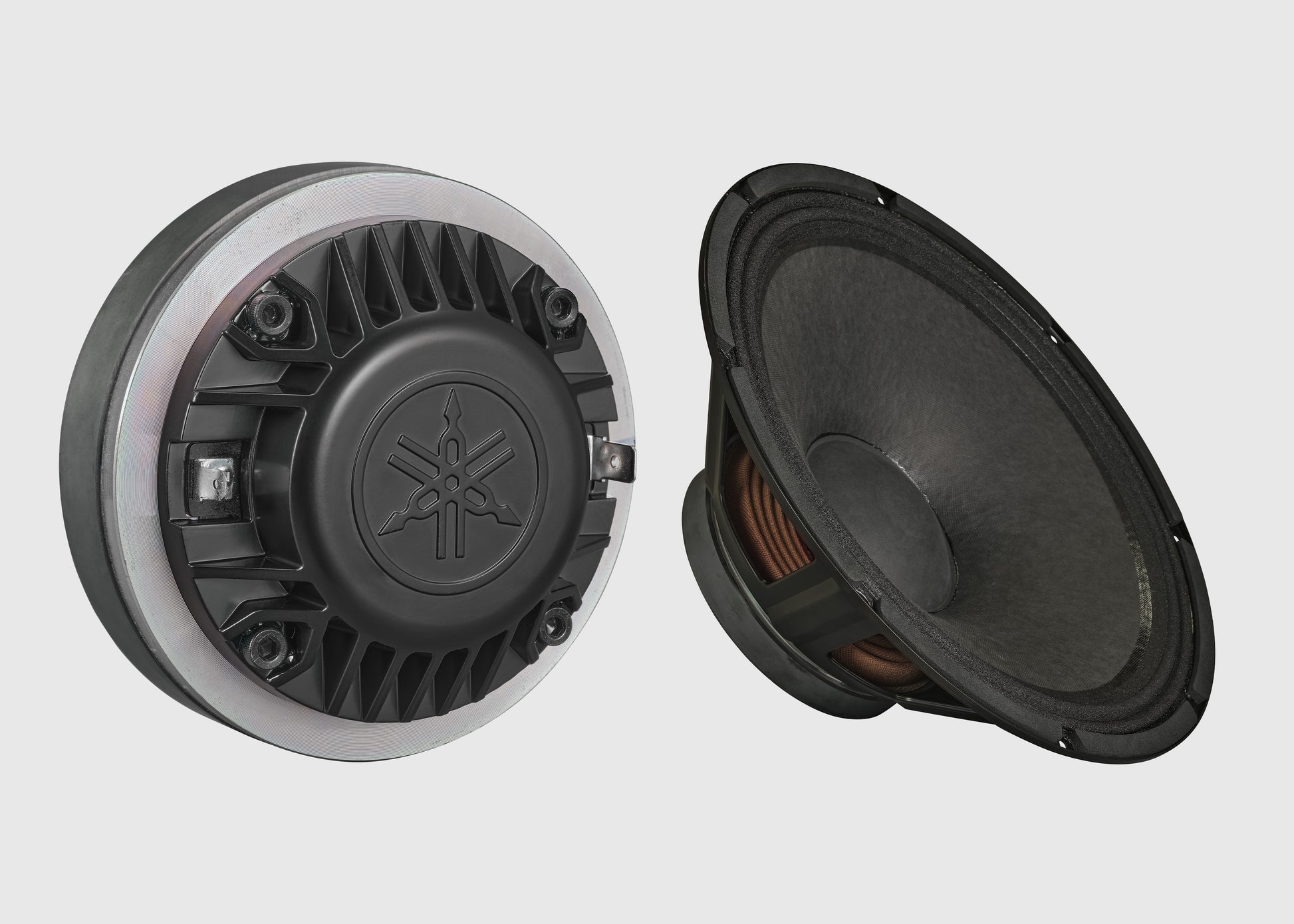

  • Custom LF/HF units support demanding use

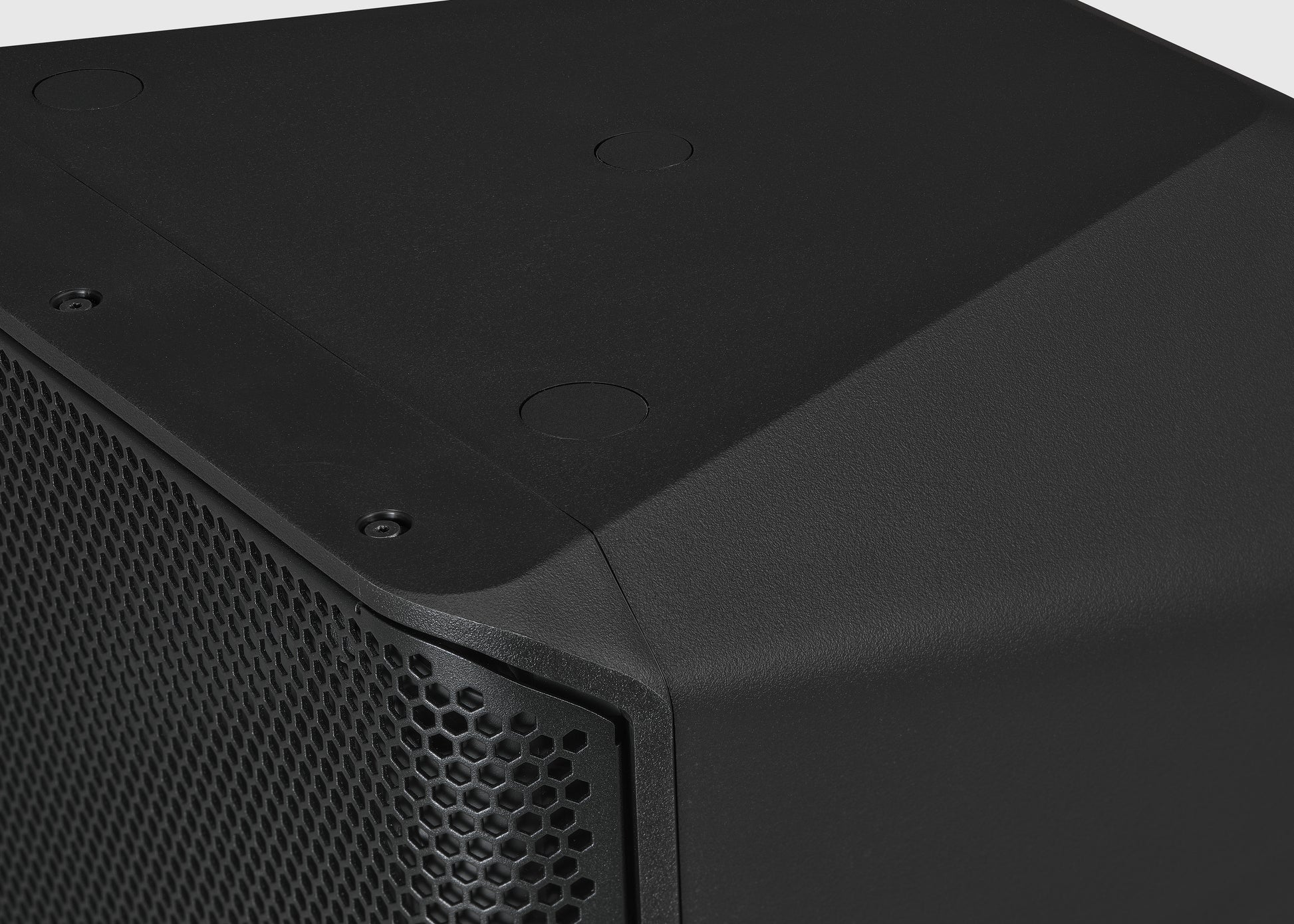

  • Molded cabinet reduces resonance effects

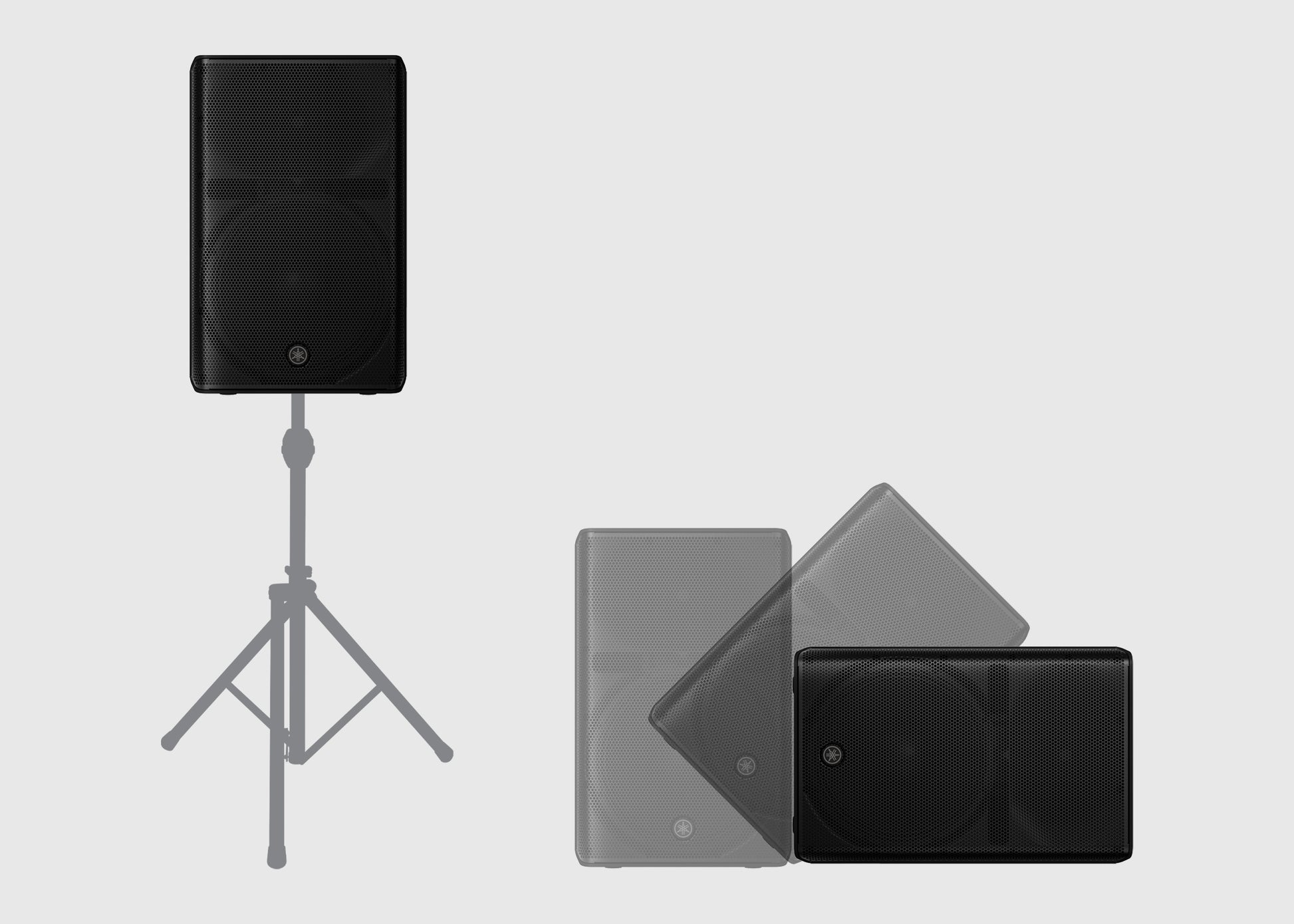

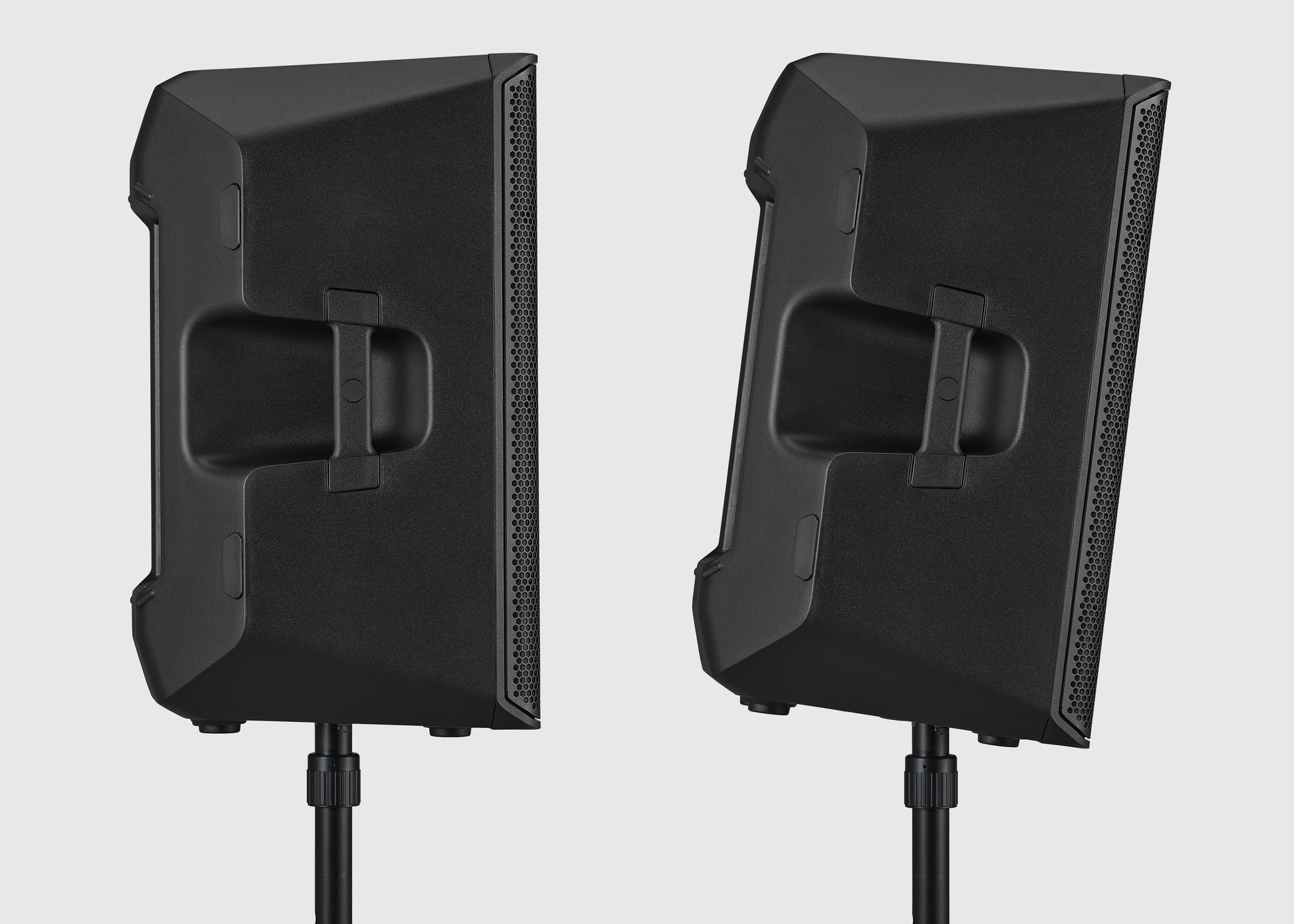

  • 0° and 7° pole angles aid audience aiming

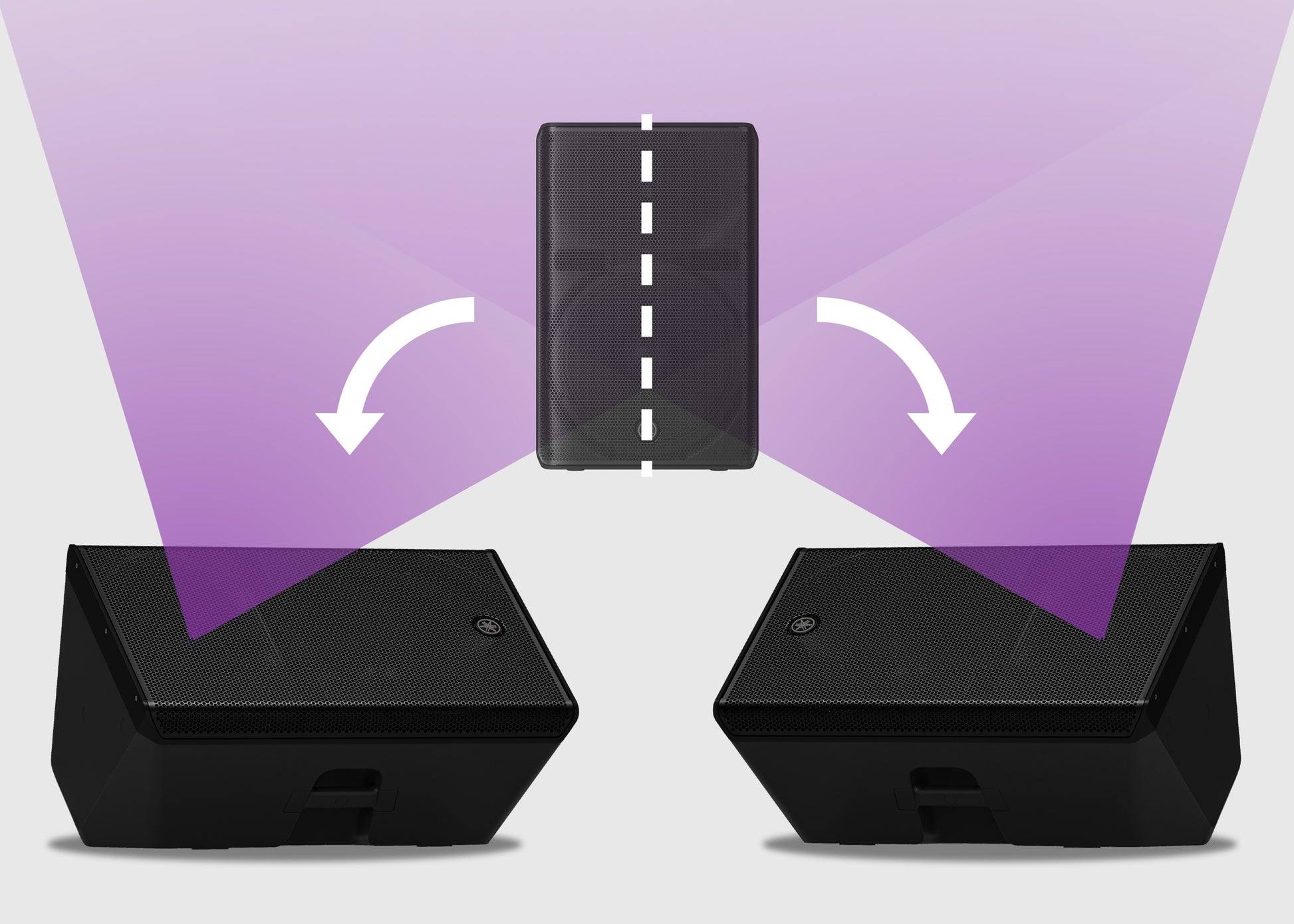

  • Symmetrical layout supports mirror placement
Log in or register for YOUR best price

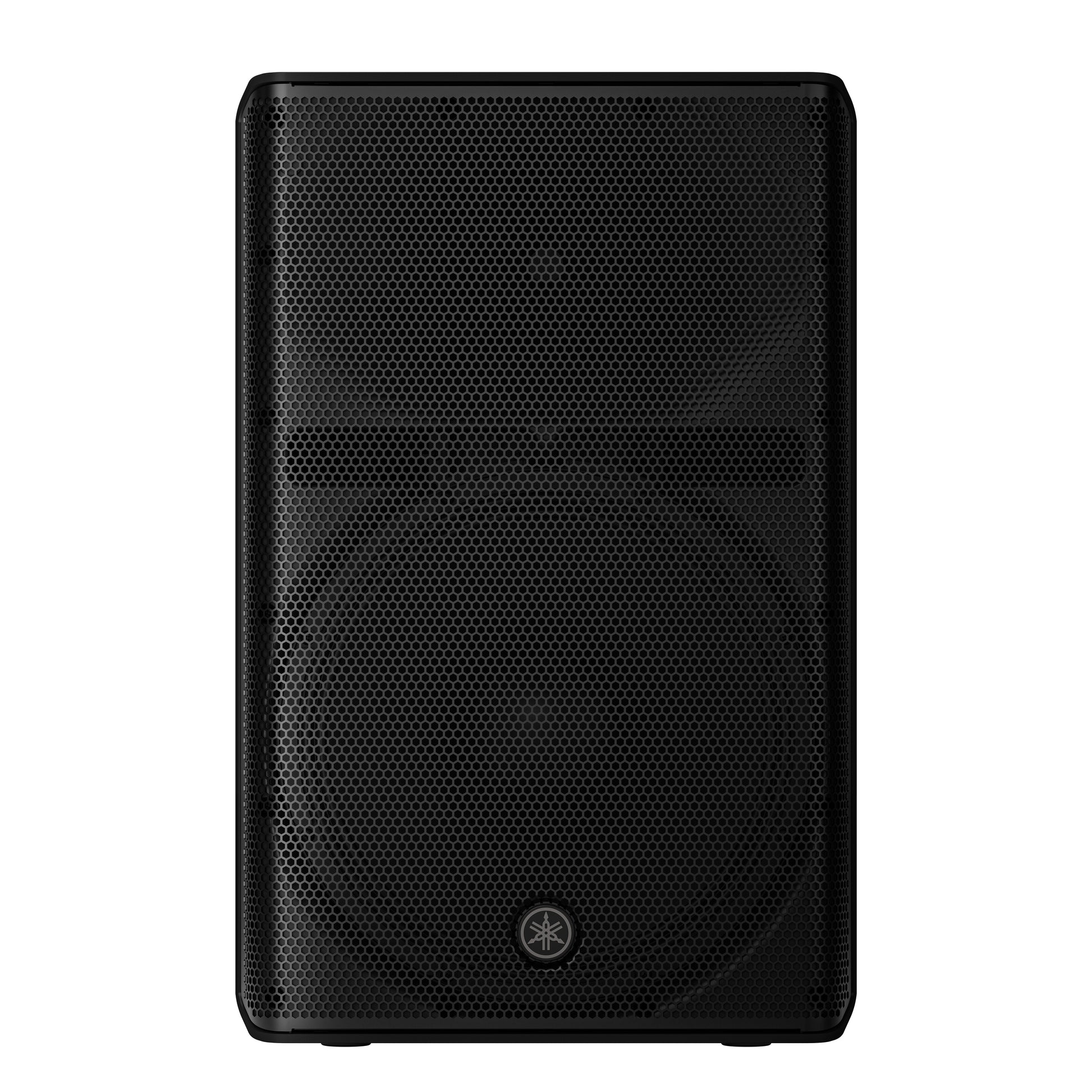

The Yamaha CXR MK3 is a passive loudspeaker series designed for professional sound reinforcement in portable setups and fixed installations. Its updated acoustic design improves high-frequency directivity and low-frequency response for clearer, more controlled coverage.

Yamaha proprietary LF/HF speaker units, a lightweight molded enclosure, and optimized port placement support dependable performance under demanding use conditions. Mirror floor placement, dual-angle pole mounting, and optional bracket compatibility add flexibility for stage monitoring and installed AV applications.

View full details

Specifications

Speaker type
2-way Speaker, Bass-reflex
Frequency range (-10dB)
50 Hz - 20 kHz
Coverage area
H90ﾟ x V60ﾟ
Crossover
1.8 kHz
Nominal impedance
8Ω
Sensitivity (1W; 1m on axis)
95dB SPL
Peak (Calculated)
126dB SPL
LF
Diameter: 15" cone, Voice Coil: 3"
HF
Diaphragm: 1.75", Type: 1" throat compression driver
Power rating NOISE
300 W
Power rating PGM
600 W
Power rating PEAK
1200 W

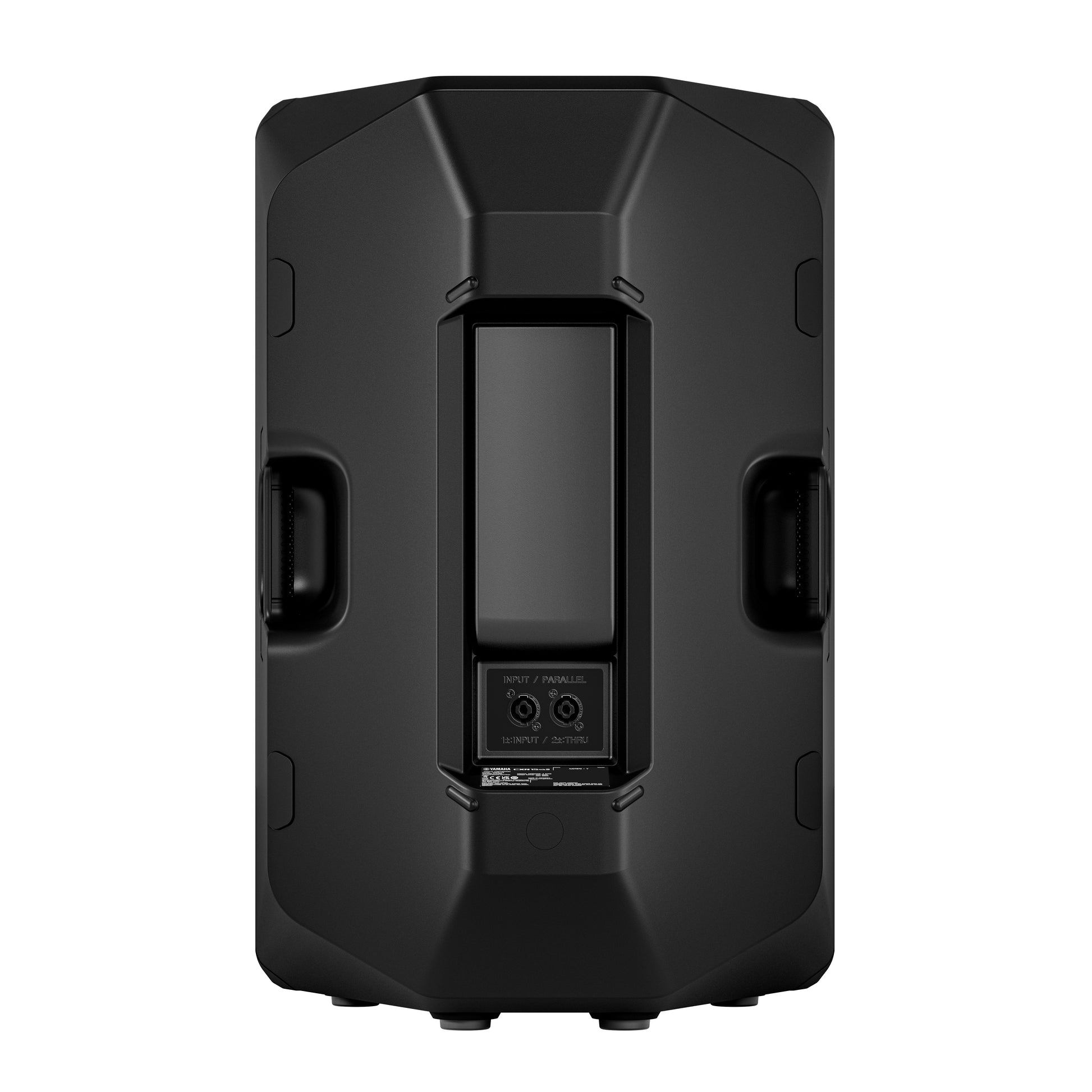

I/O connectors
SpeakON NL4MP x 2 (parallel connected)
Cabinet material
Plastic
Finish
Black

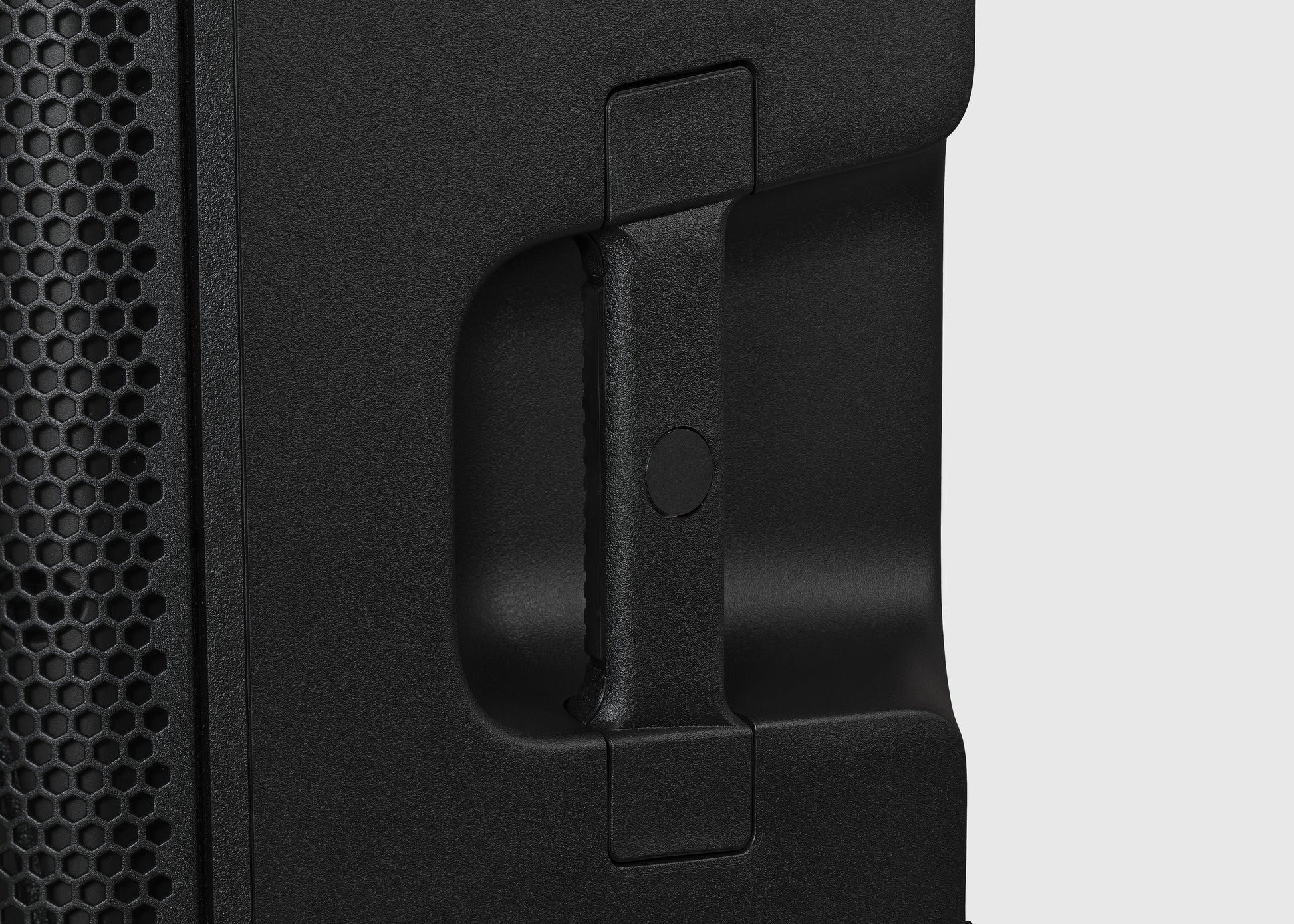

Handle
Side x2
Pole socket
Φ35 mm x2 (Bottom, 0° or -7°)

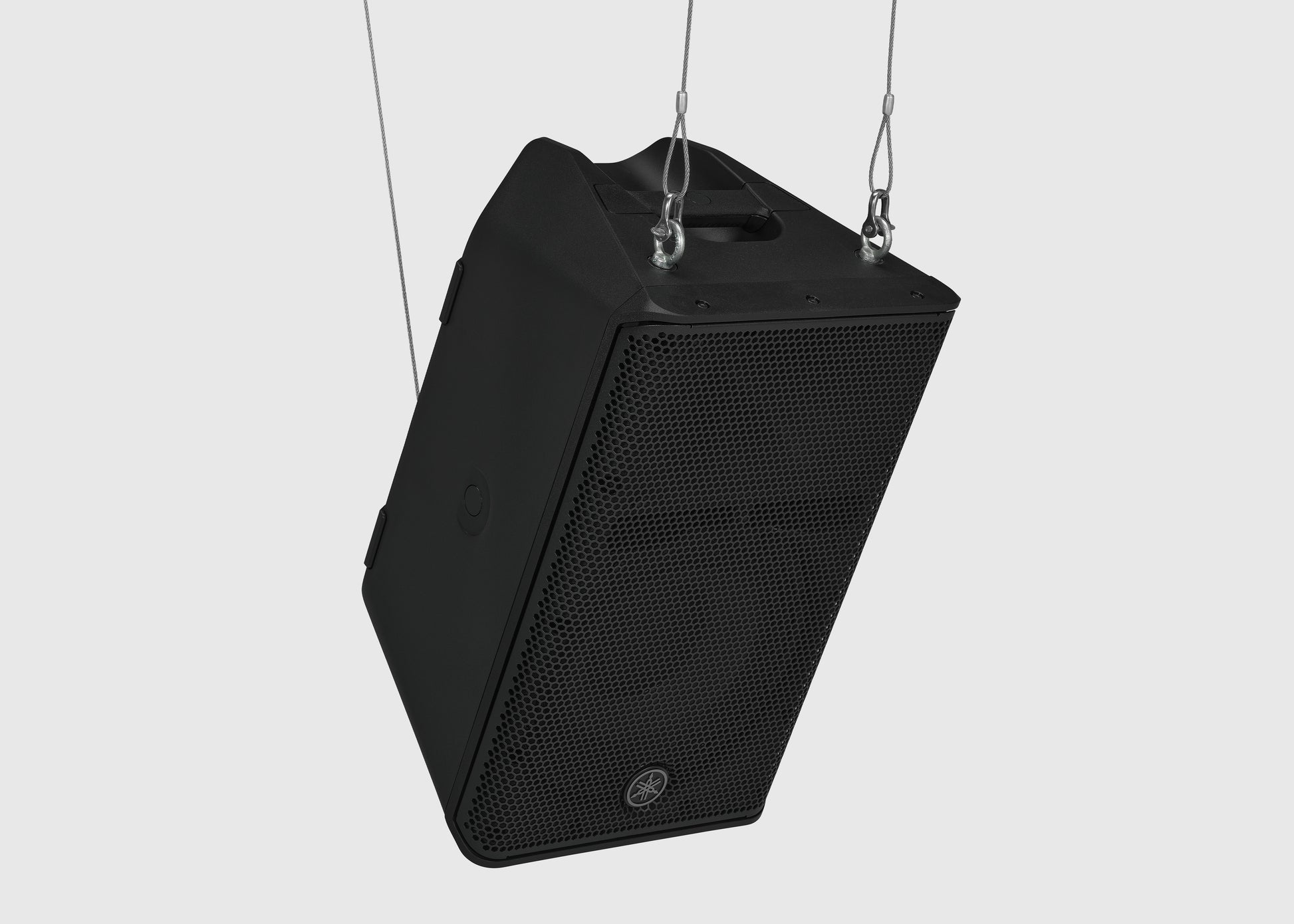

"Rigging
Top x 2, Rear x 1
(Fit for M10 x 18 mm Eyebolts), Bottom x2, Side x 2 (Fit for M8 x 25 mm UB-DXR15A)"
Floor Monitor Angle
52ﾟ
Width
17.6" (447 mm)
Height
27.5" (699 mm)
Depth
15" (380 mm)
Net weight
41.9 lbs (19 kg)
Options

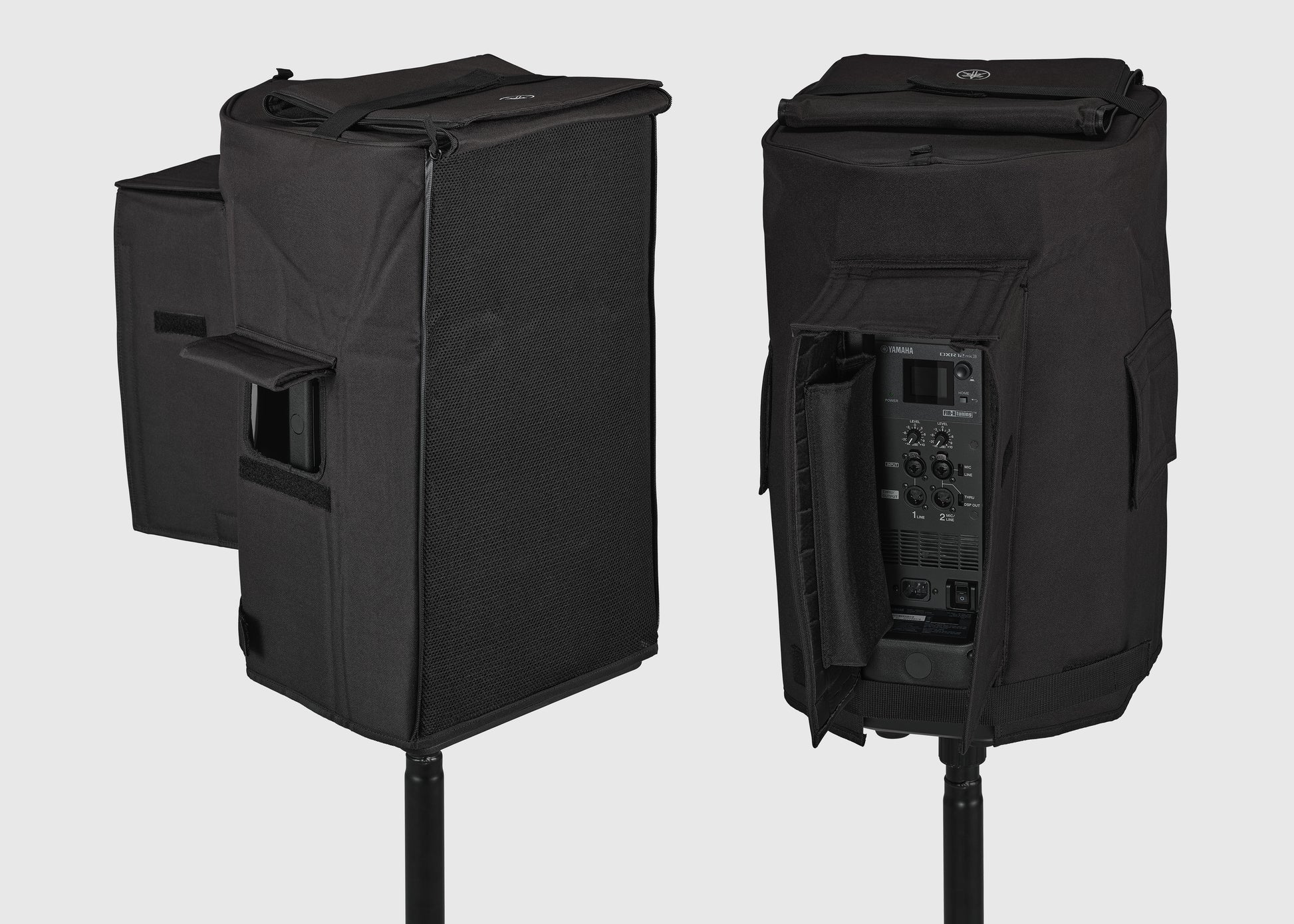

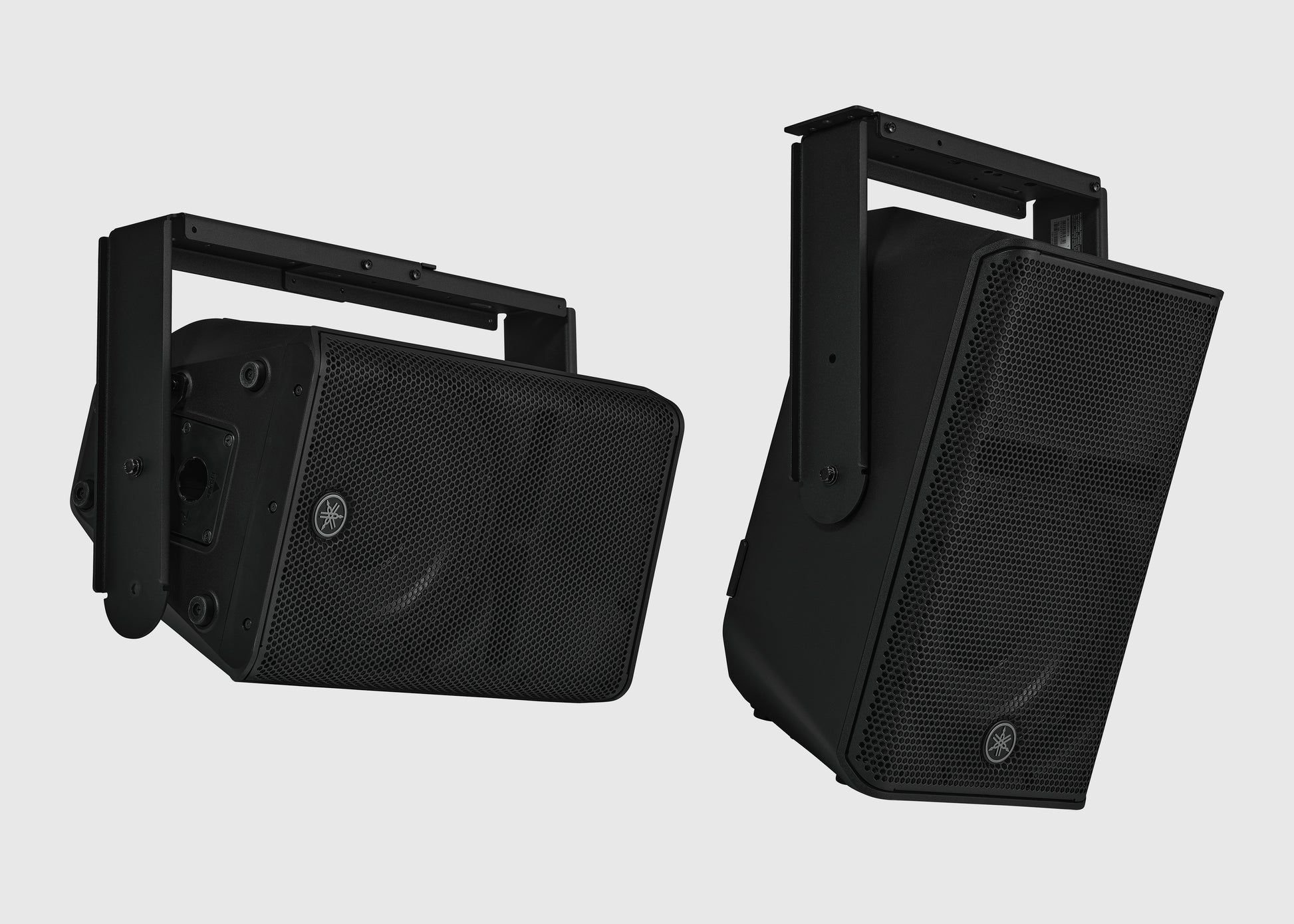

U-bracket: UB-DXR15A, Cover: SPCVR-DXR153
