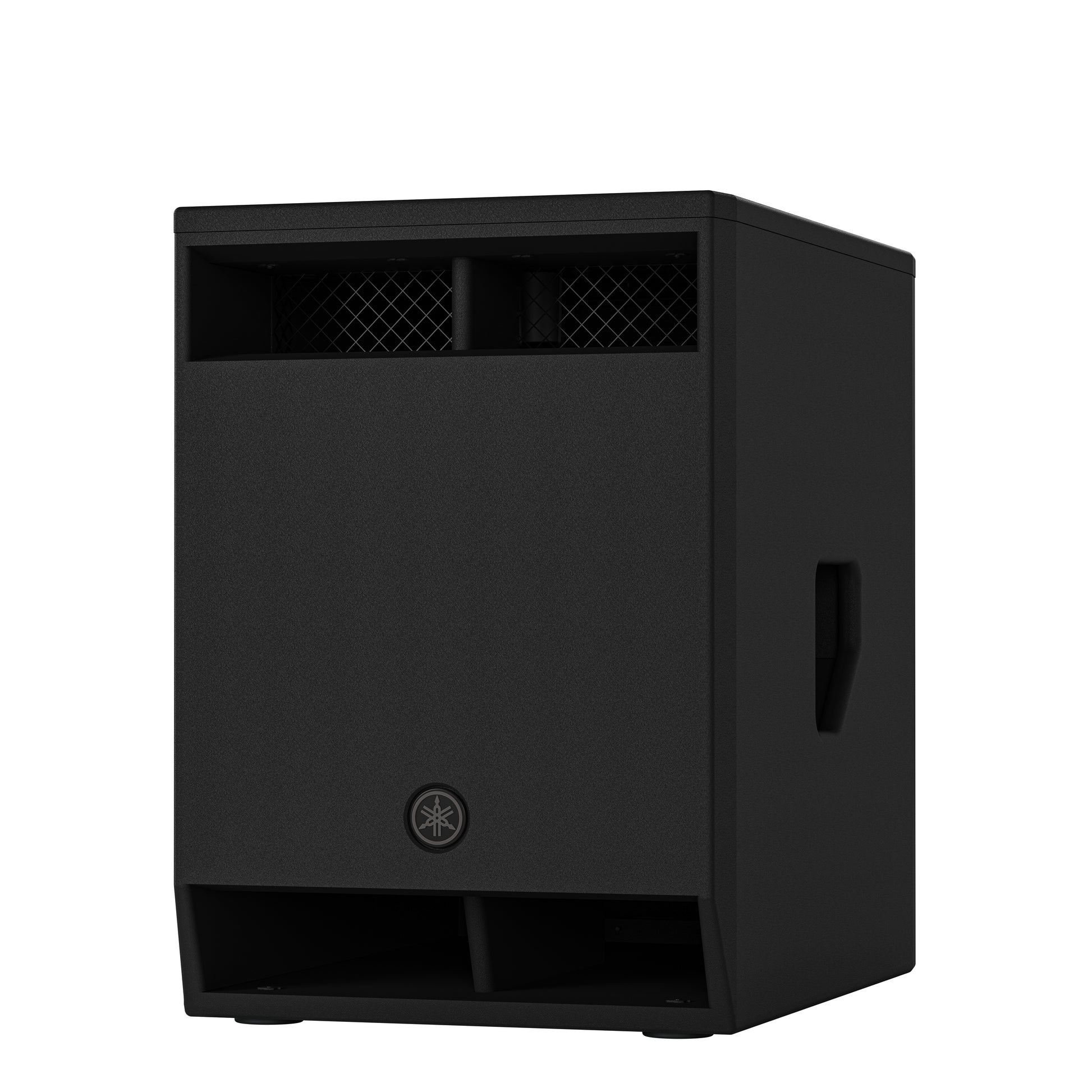

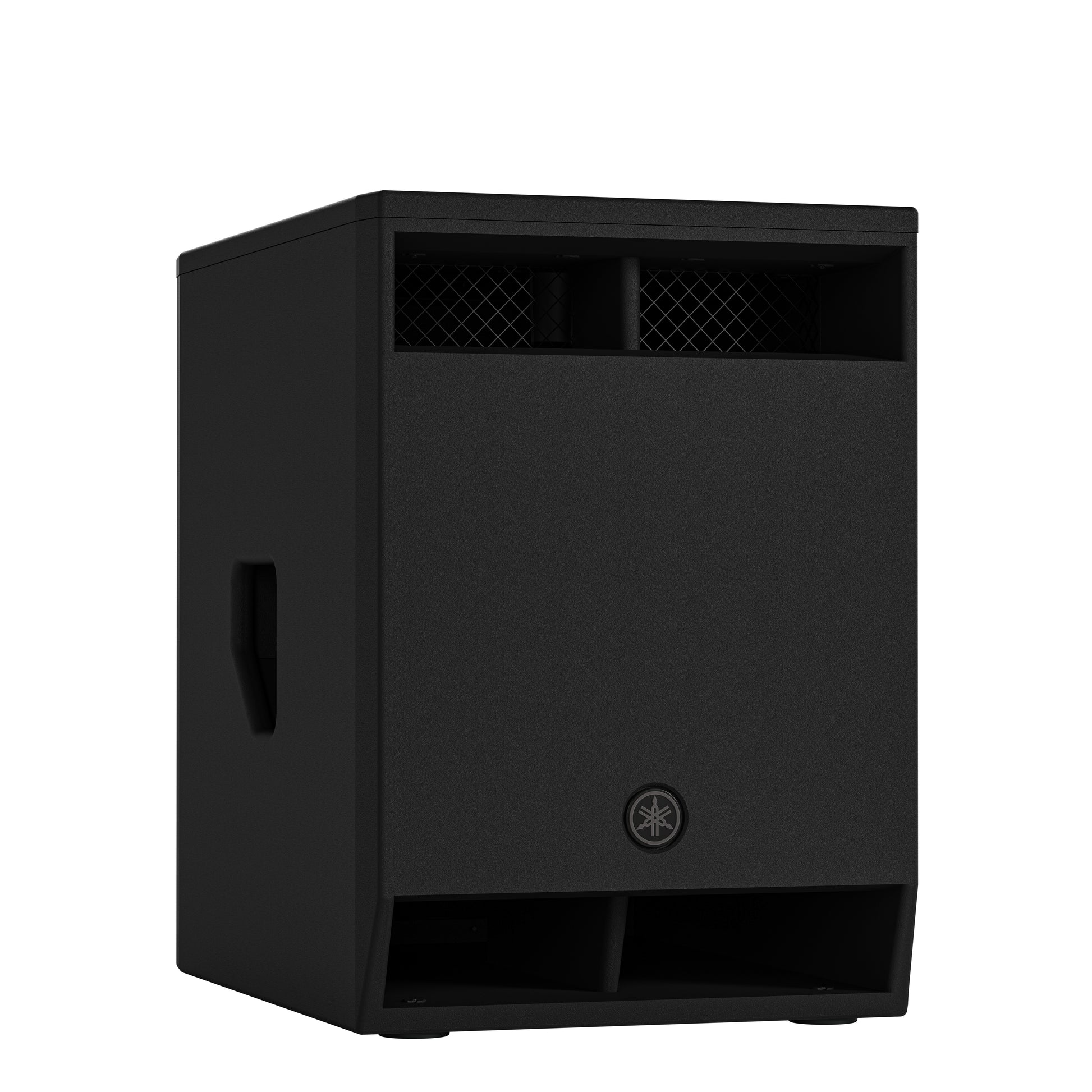

Yamaha CXS12MK3 Passive Subwoofer | Size: 12"

Yamaha CXS12MK3 Passive Subwoofer | Size: 12"

SoundPro Item: 203729 | Part Number: CXS12MKIII

Regular price $899.99
Regular price $940.00 Sale price $899.99
Your Price Sold out
MSRP: $940.00 | MAP: $899.99

Usually ships in 5-7 business days

  • Linear VLF tuning supports consistent bass output

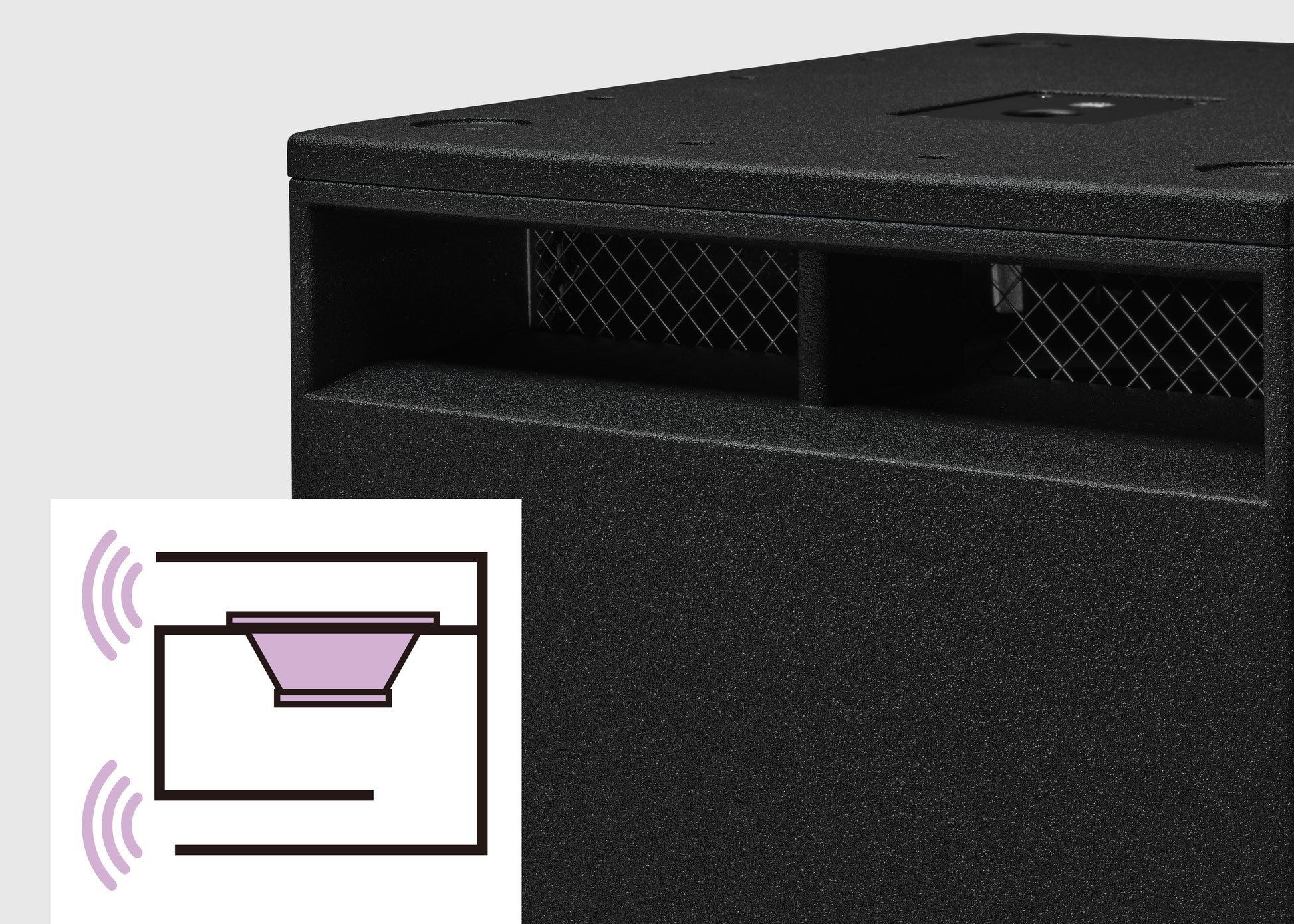

  • Bandpass structure reduces cabinet noise
  • Large ports help minimize wind noise at output

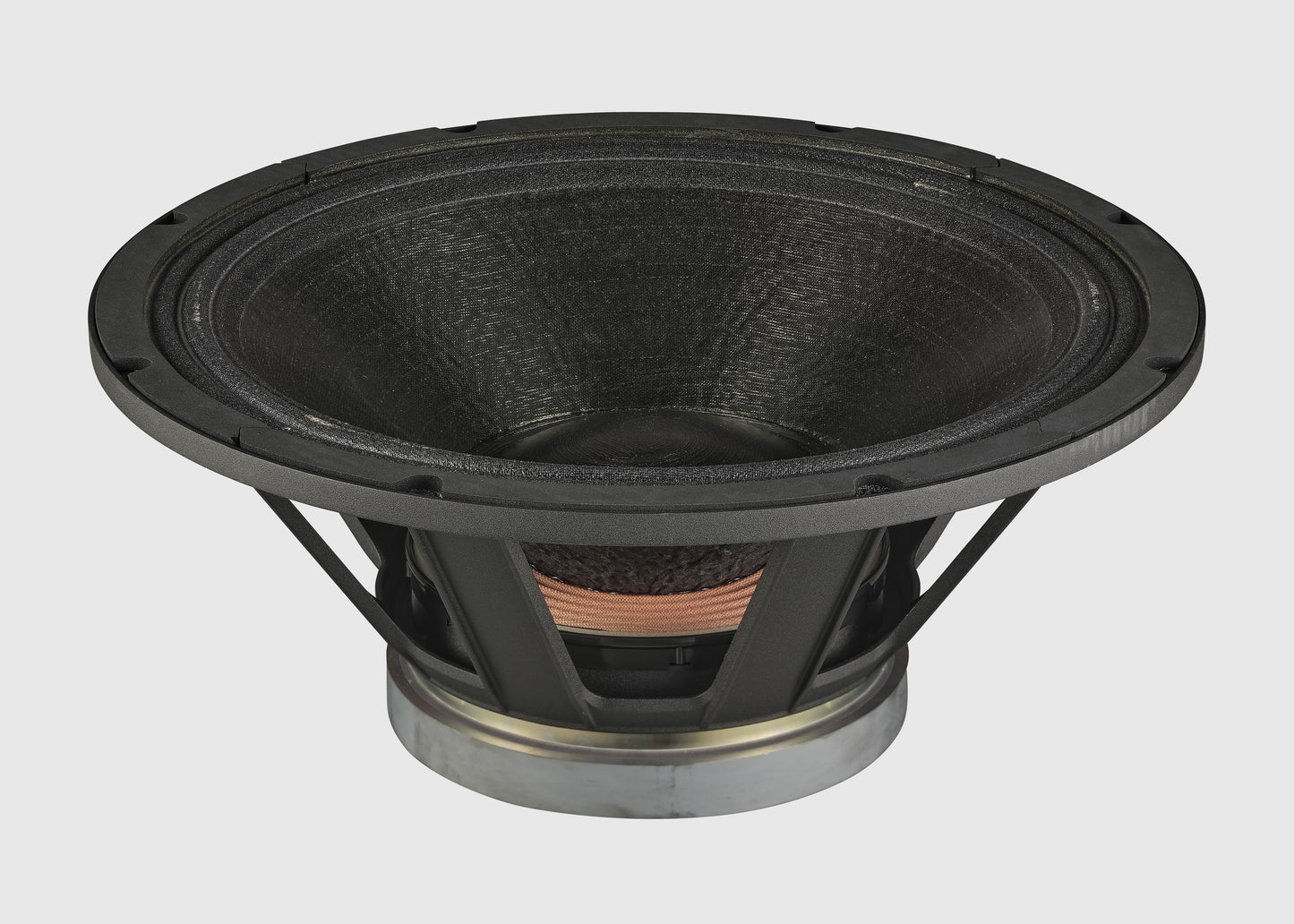

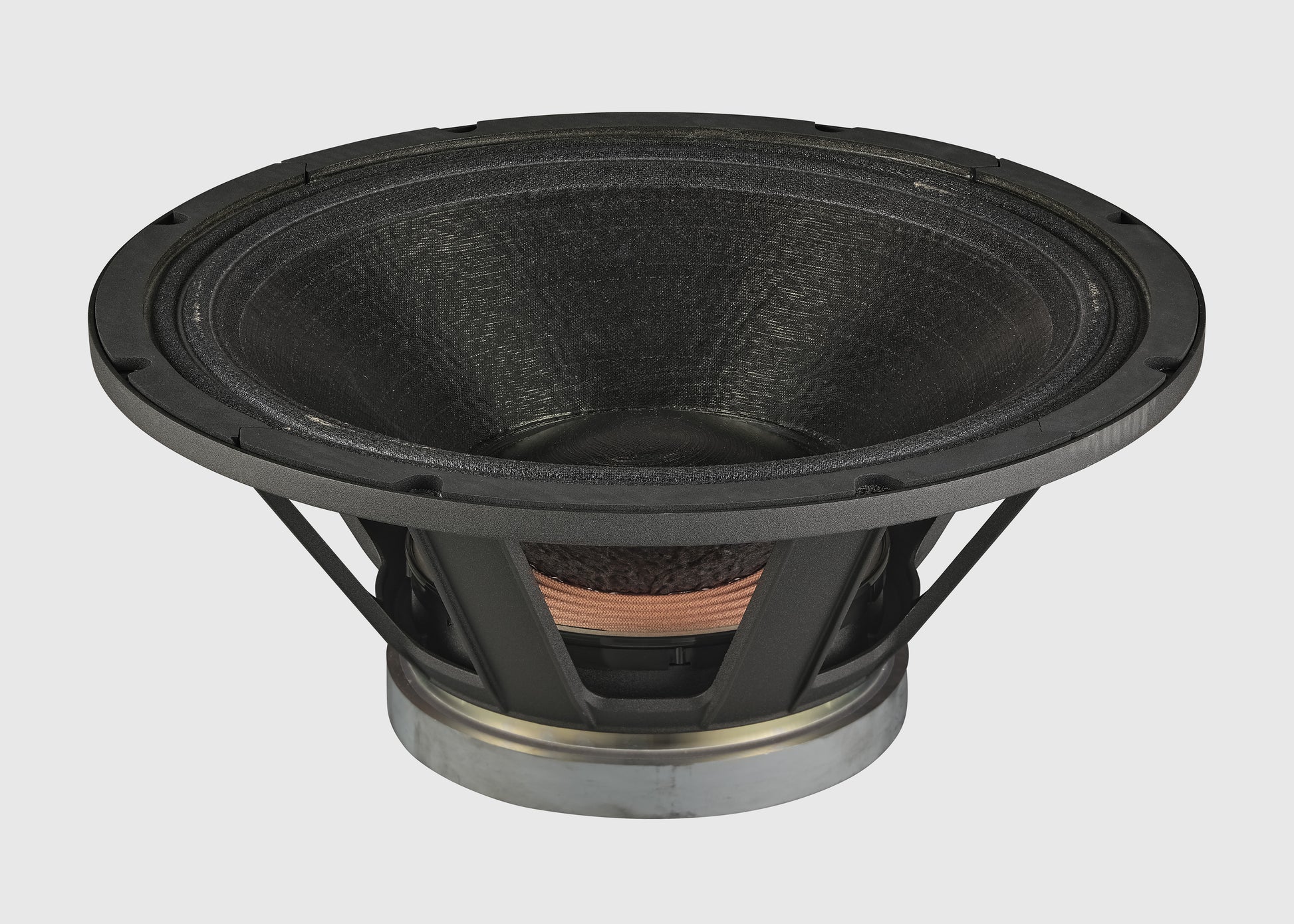

  • Long-excursion driver design aids deep response

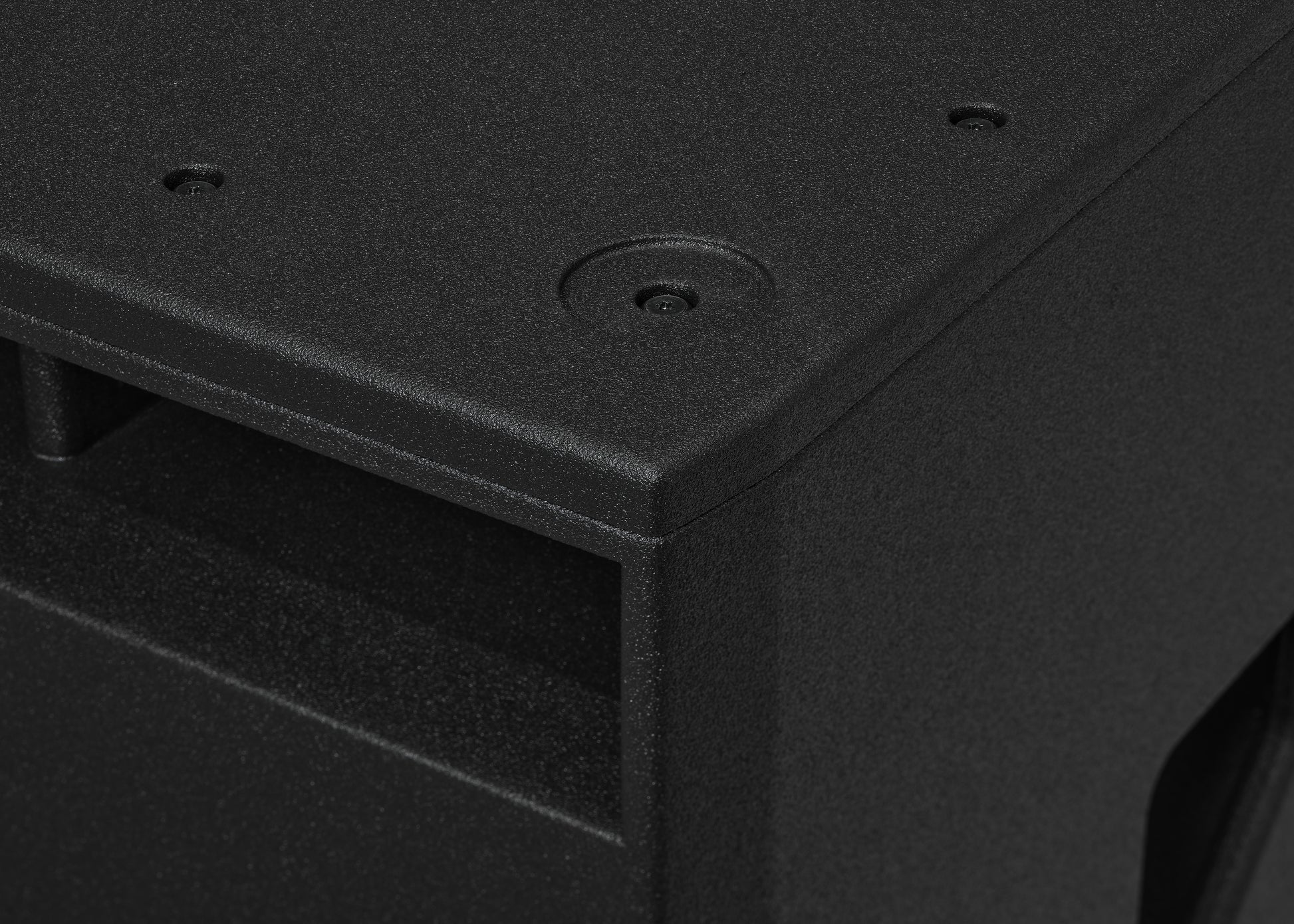

  • Polyurea finish resists scratches and impacts

The Yamaha CXS MK3 passive subwoofer is built for professional environments where consistent low-frequency performance matters. Its acoustic design is engineered for linear VLF output, while the ideal bandpass structure helps maintain smooth, deep bass response and reduce unwanted cabinet noise at higher levels.

A high-performance plywood enclosure with a durable Polyurea coating supports dependable use during transport, installation, and removal. Yamaha proprietary long-excursion, high-durability speaker units complete a design focused on precise, powerful bass reproduction.

View full details

Specifications

Speaker type
Subwoofer, Band-pass
"Frequency range (-10dB)
Passive: 42 Hz - 180Hz, Extend (*1): 38 Hz - 140 Hz"
Nominal impedance
4 Ω
Sensitivity (1W; 1m on axis)
94 dB SPL *2
Peak (Calculated)
125 dB SPL *2
LF
Diameter: 12" cone, Voice Coil: 3"
Power rating NOISE
325 W
Power rating PGM
650 W
Power rating PEAK
1300 W

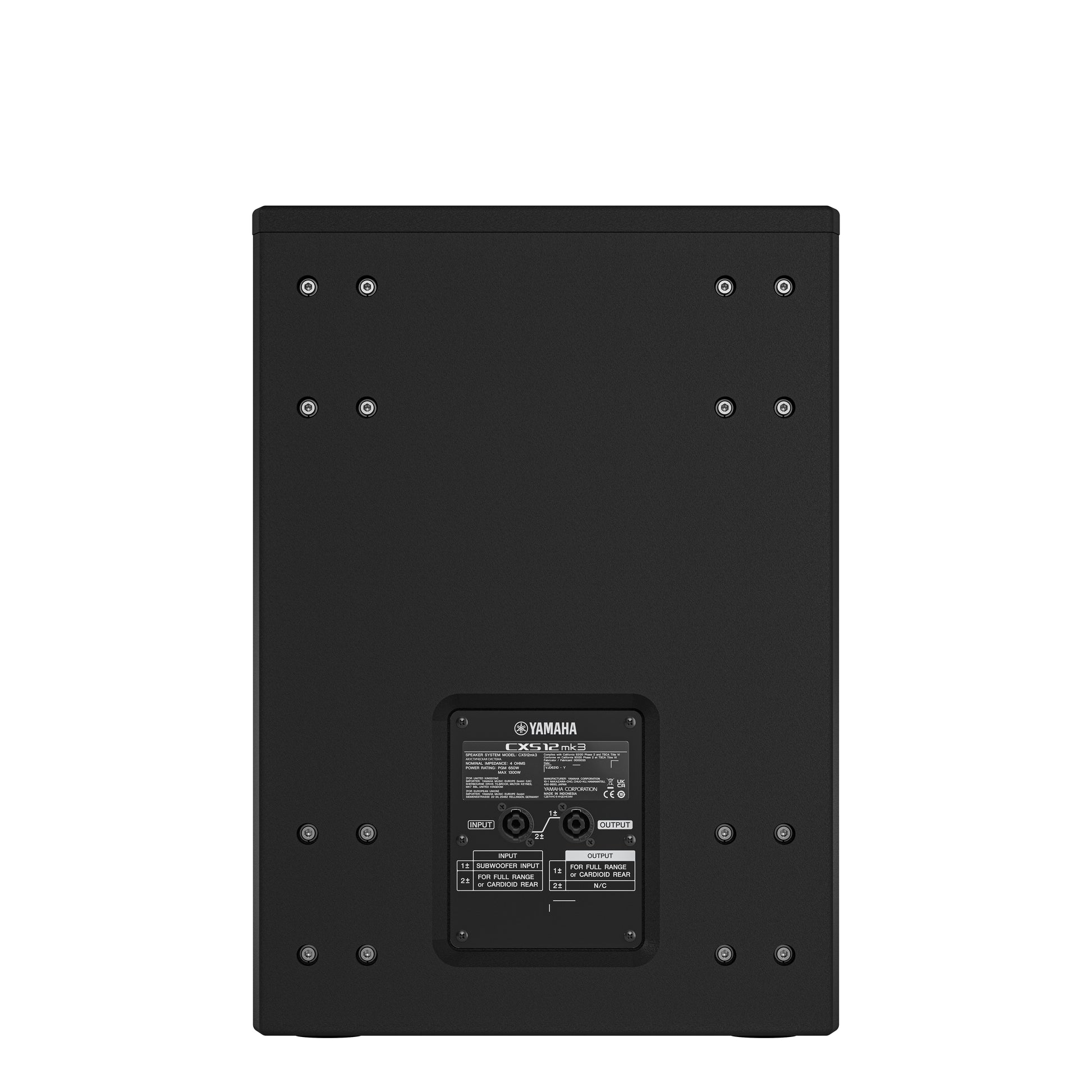

I/O connectors
speakON NL4MP × 2 (Input × 1, Output × 1)
Cabinet material
Plywood
Finish
Durable Polyurea Painting, Black

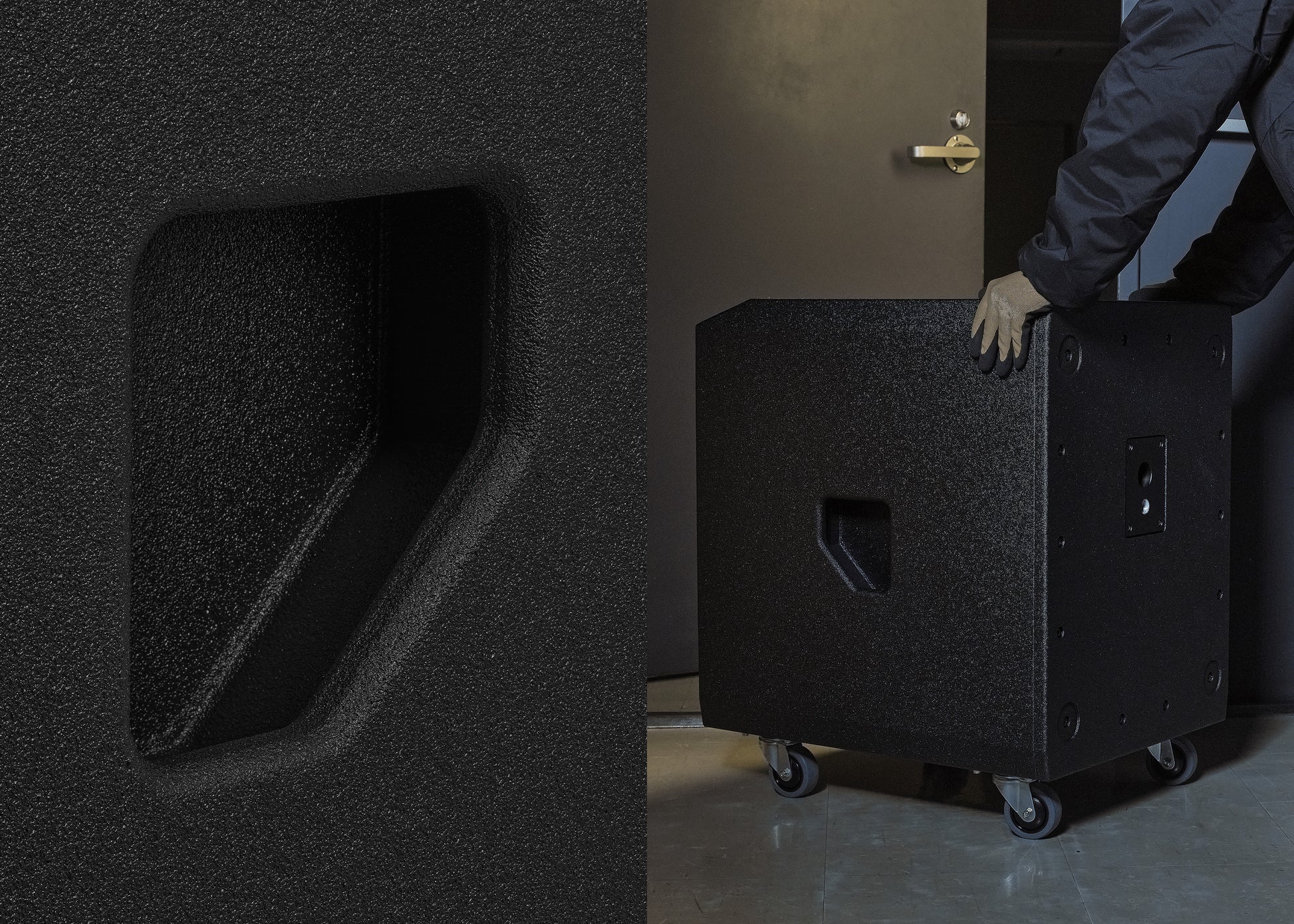

Handle
Side x2

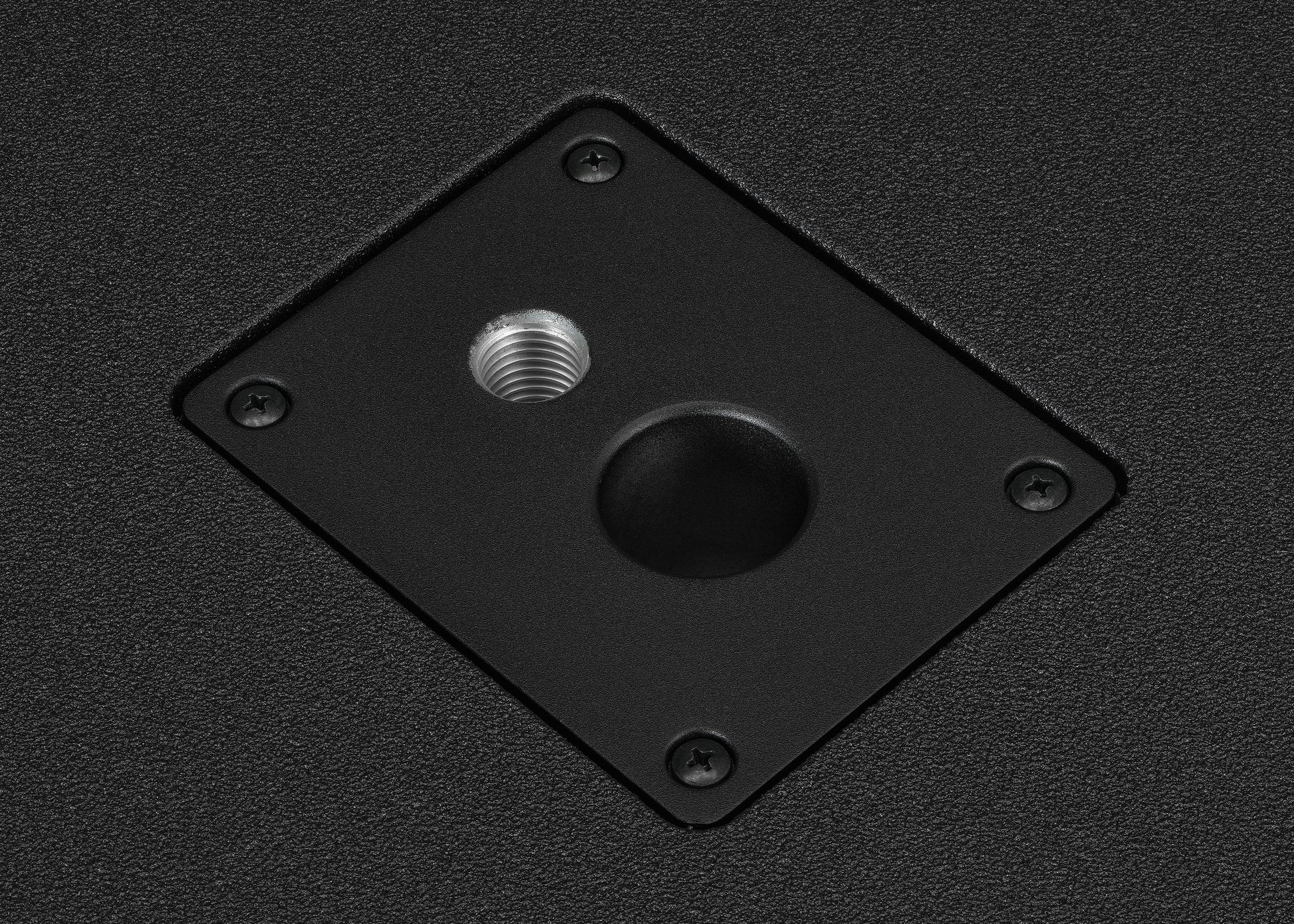

Pole socket
Φ35 mm (Depth 80 mm), M20 (Threaded depth 25 mm)
Width
12" (400 mm)
Height
22.3" (567 mm)
Depth
22.4" (570 mm)
Net weight
70.5 lbs (32 kg)
Options

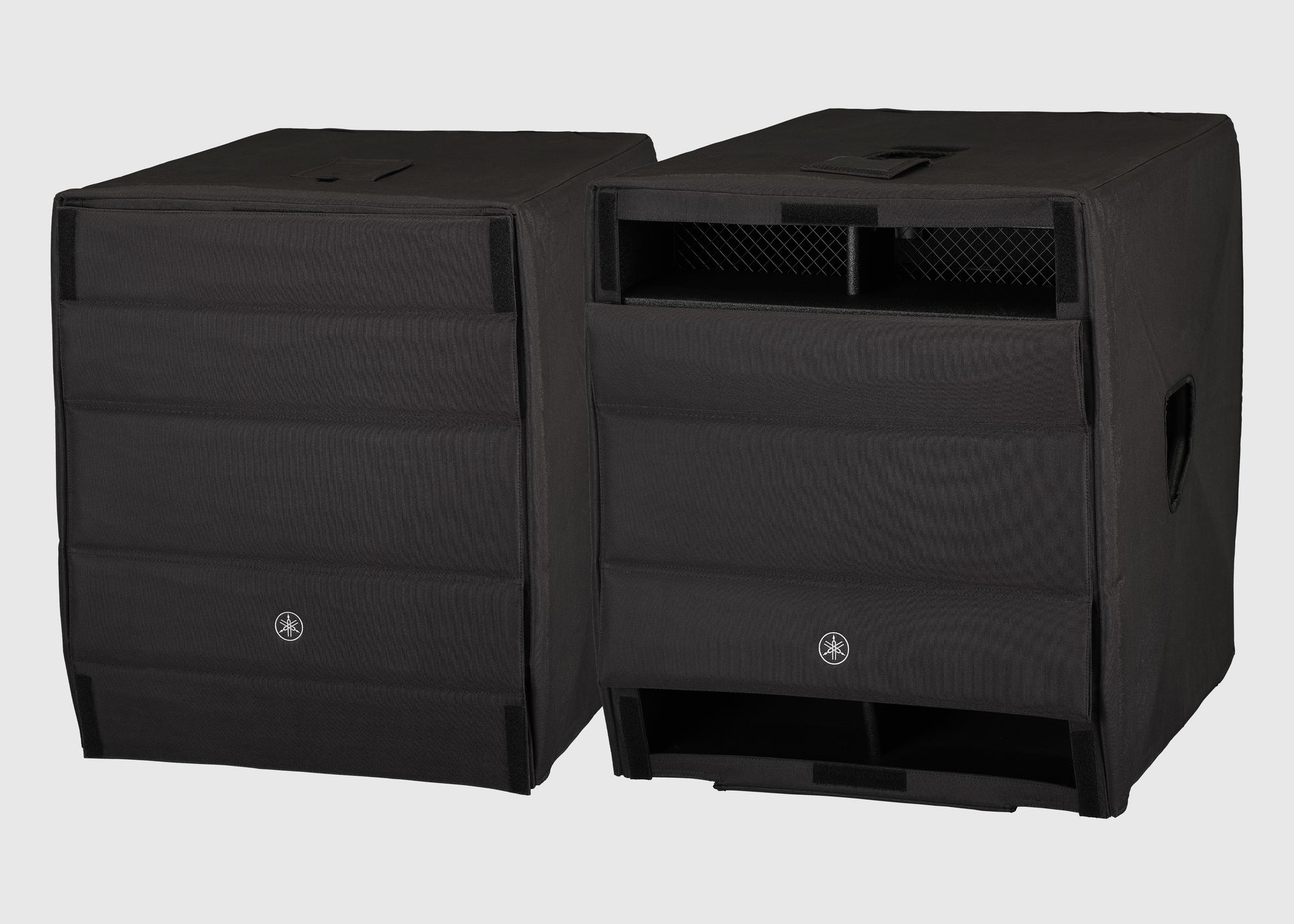

Cover: SPCVR-DXS1823, Caster: SPW-1
