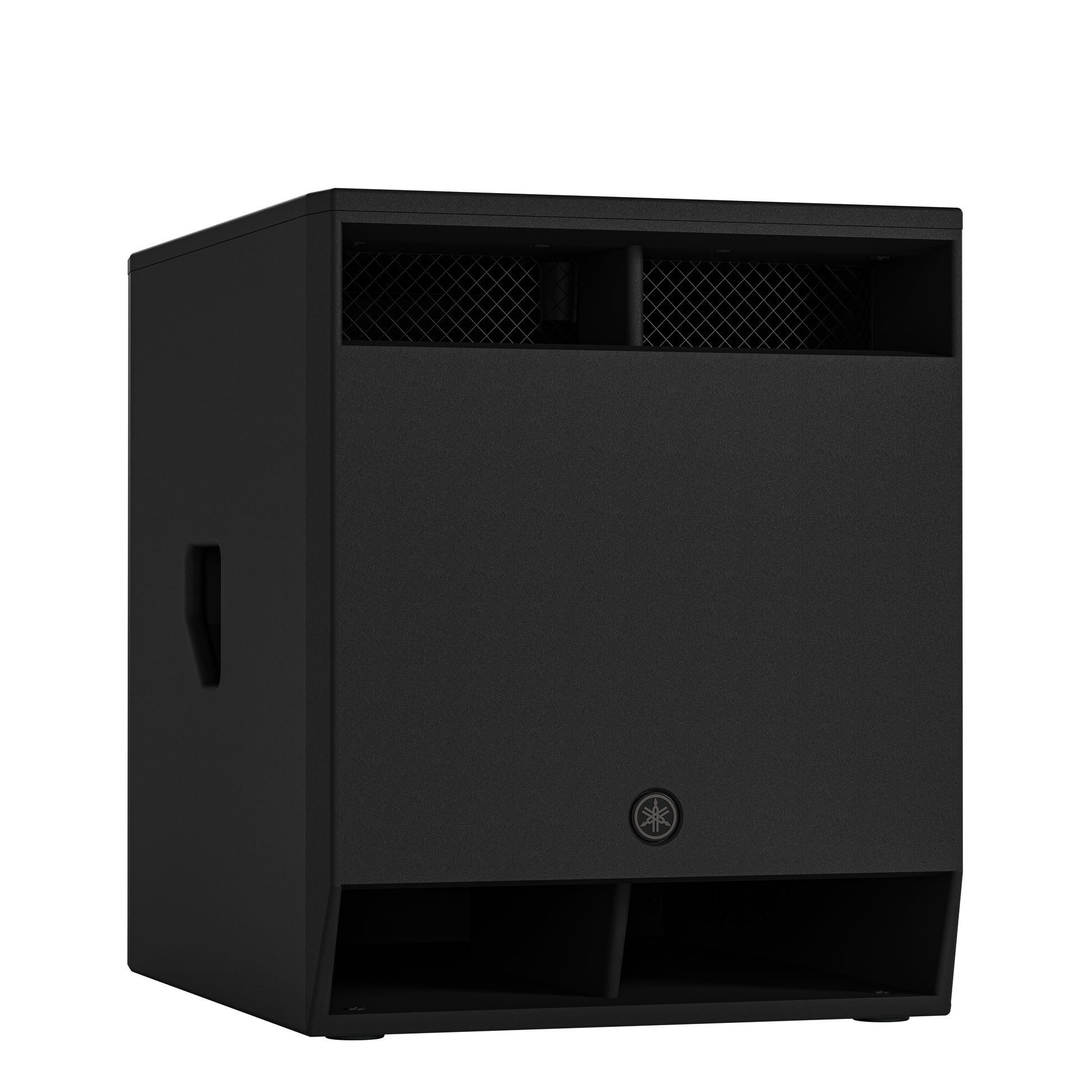

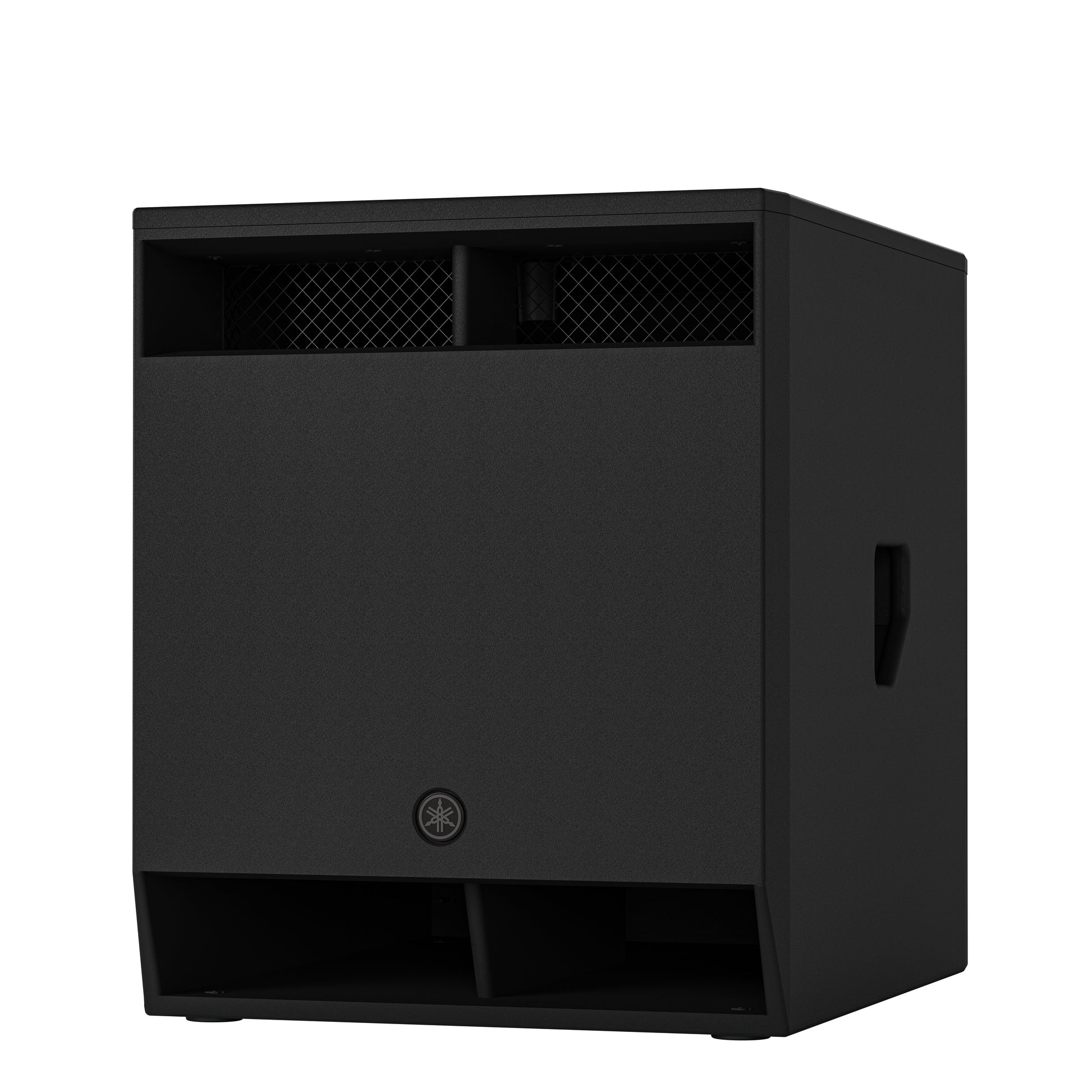

Yamaha CXS18MK3 Passive Subwoofer | Size: 18"

Yamaha CXS18MK3 Passive Subwoofer | Size: 18"

SoundPro Item: 203731 | Part Number: CXS18MKIII

Regular price $1,299.99
Regular price $1,340.00 Sale price $1,299.99
Your Price Sold out
MSRP: $1,340.00 | MAP: $1,299.99

Usually ships in 5-7 business days

  • Linear VLF tuning supports consistent bass output

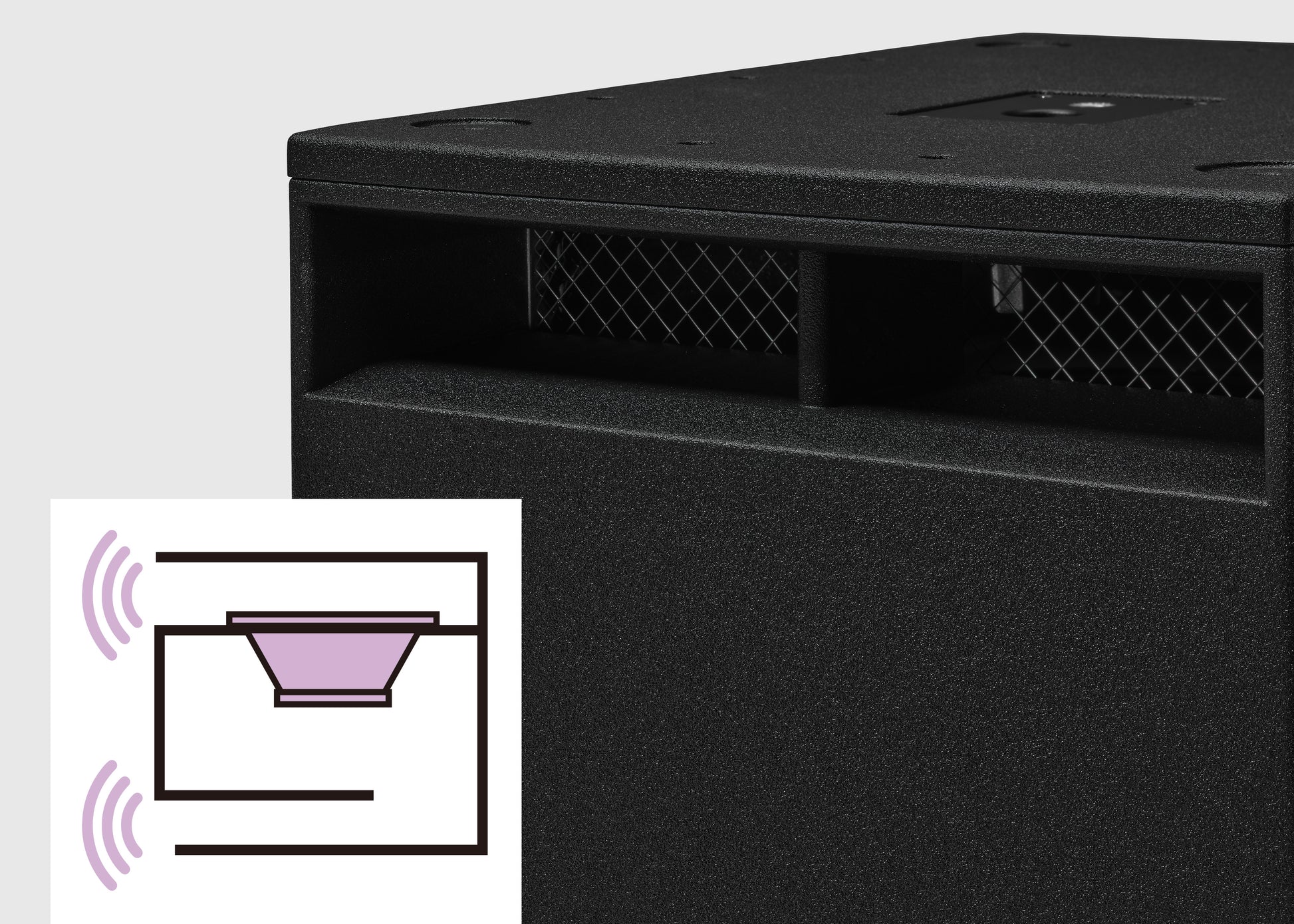

  • Bandpass structure reduces cabinet noise
  • Large ports help minimize wind noise at output

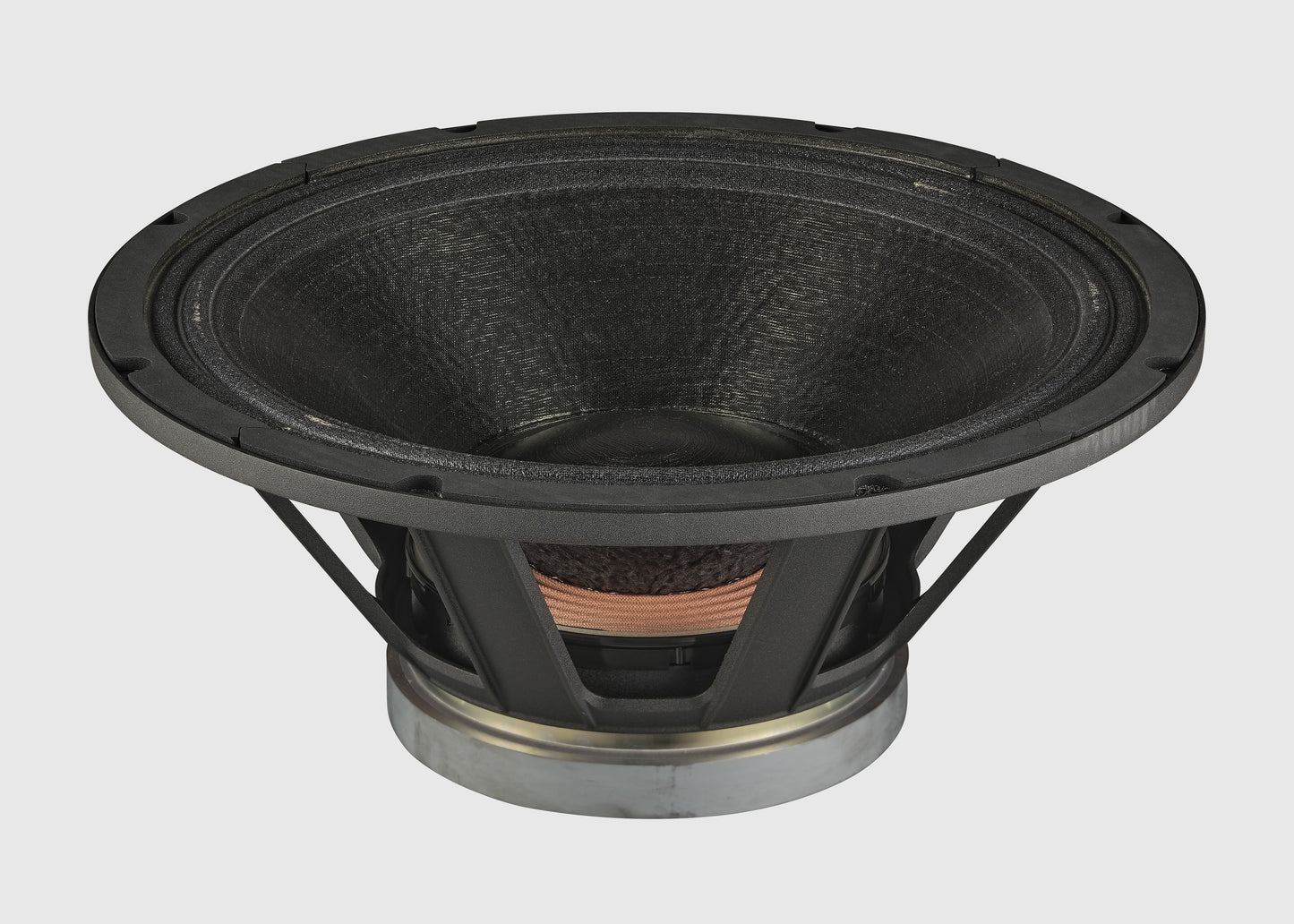

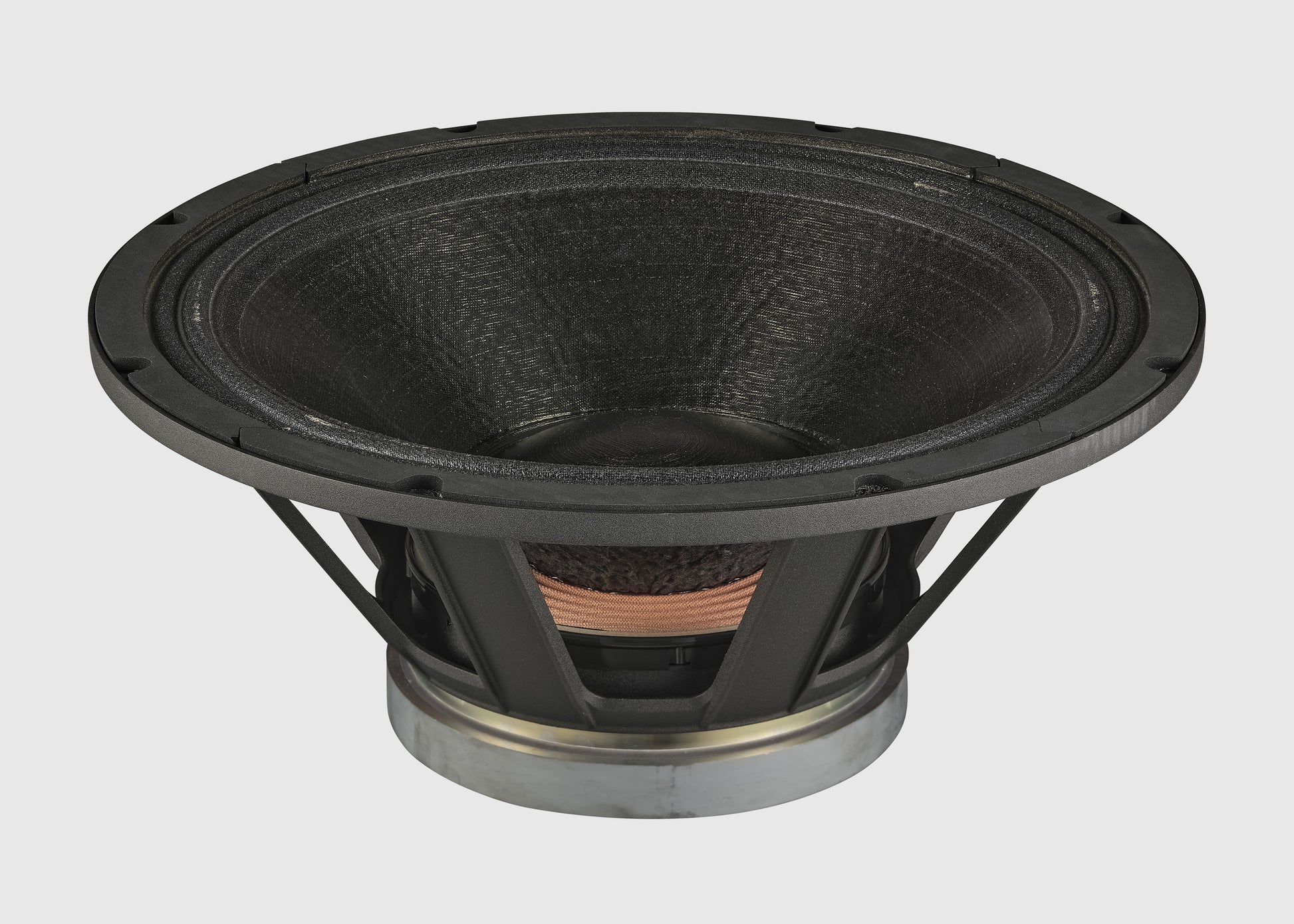

  • Long-excursion driver design aids deep response
  • Polyurea finish resists scratches and impacts

The Yamaha CXS MK3 passive subwoofer is built for professional environments where consistent low-frequency performance matters. Its acoustic design is engineered for linear VLF output, while the ideal bandpass structure helps maintain smooth, deep bass response and reduce unwanted cabinet noise at higher levels.

A high-performance plywood enclosure with a durable Polyurea coating supports dependable use during transport, installation, and removal. Yamaha proprietary long-excursion, high-durability speaker units complete a design focused on precise, powerful bass reproduction.

View full details

Specifications

Speaker type
Subwoofer, Band-pass
"Frequency range (-10dB)
Passive: 35 Hz - 150Hz, Extend (*1): 32 Hz - 120 Hz"
Nominal impedance
4 Ω
Sensitivity (1W; 1m on axis)
96 dB SPL *2
Peak (Calculated)
129 dB SPL *2
LF
Diameter: 18" cone, Voice Coil: 4"
Power rating NOISE
500 W
Power rating PGM
1000 W
Power rating PEAK
2000 W

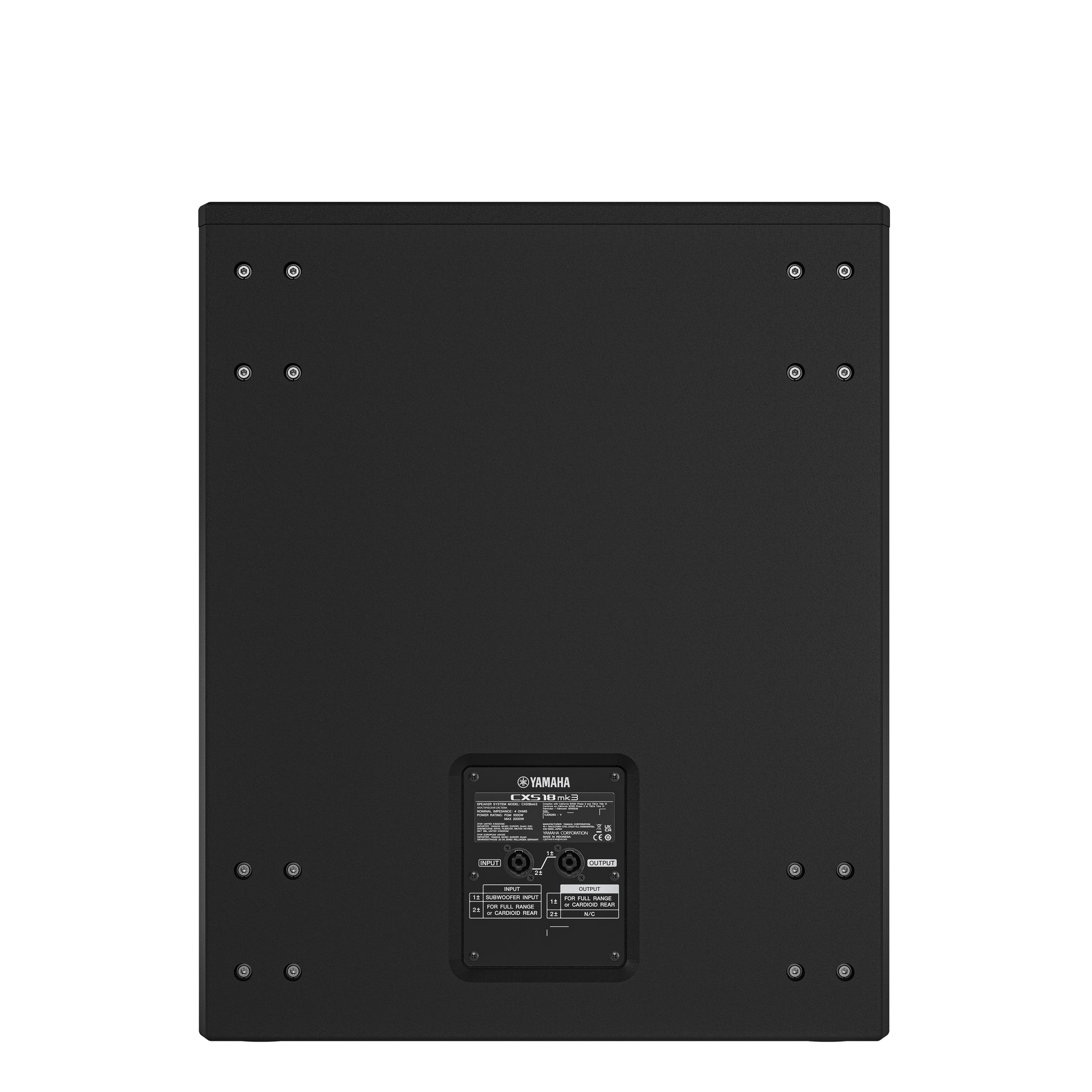

I/O connectors
speakON NL4MP × 2 (Input × 1, Output × 1)
Cabinet material
Plywood
Finish
Durable Polyurea Painting, Black

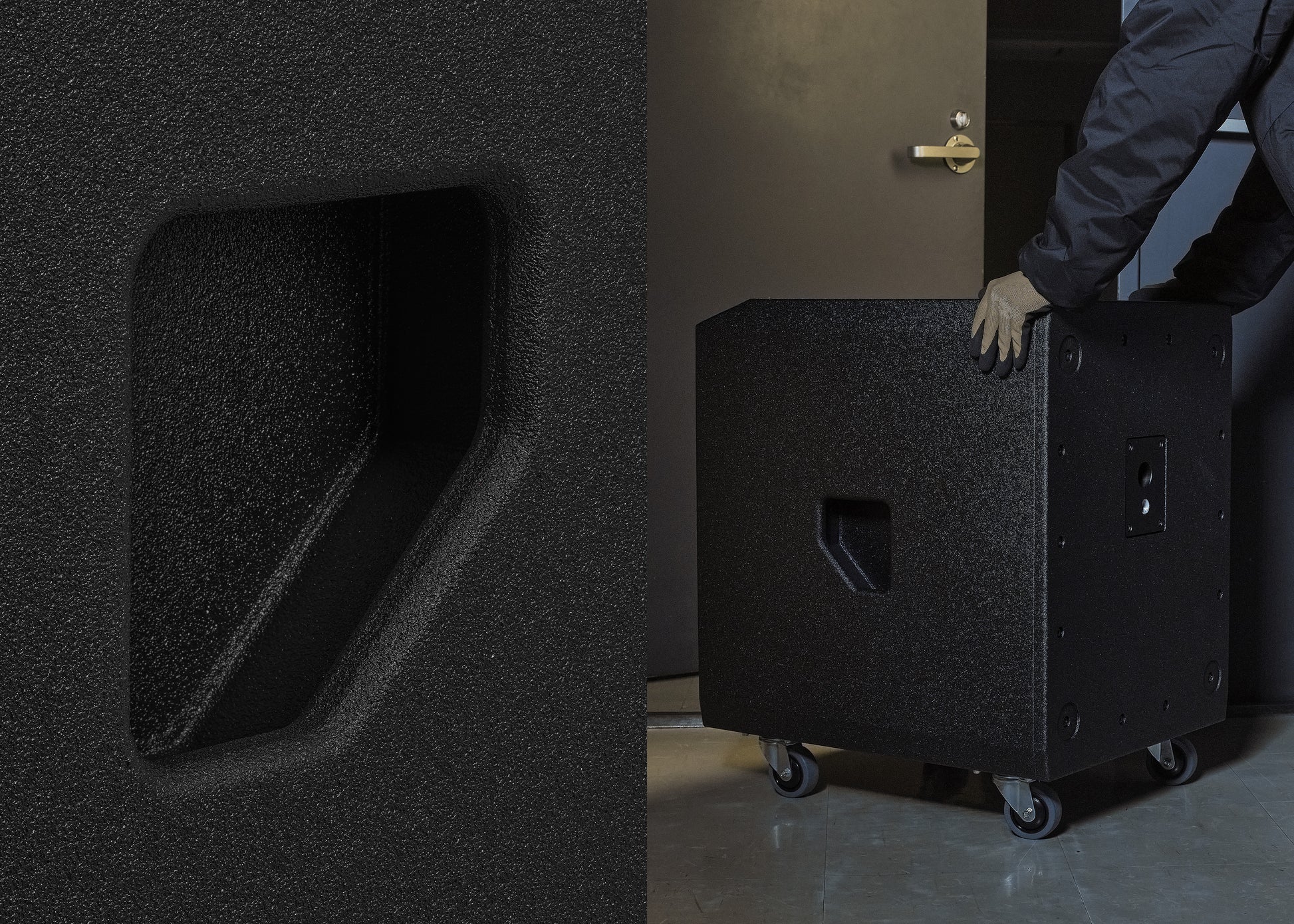

Handle
Side x2

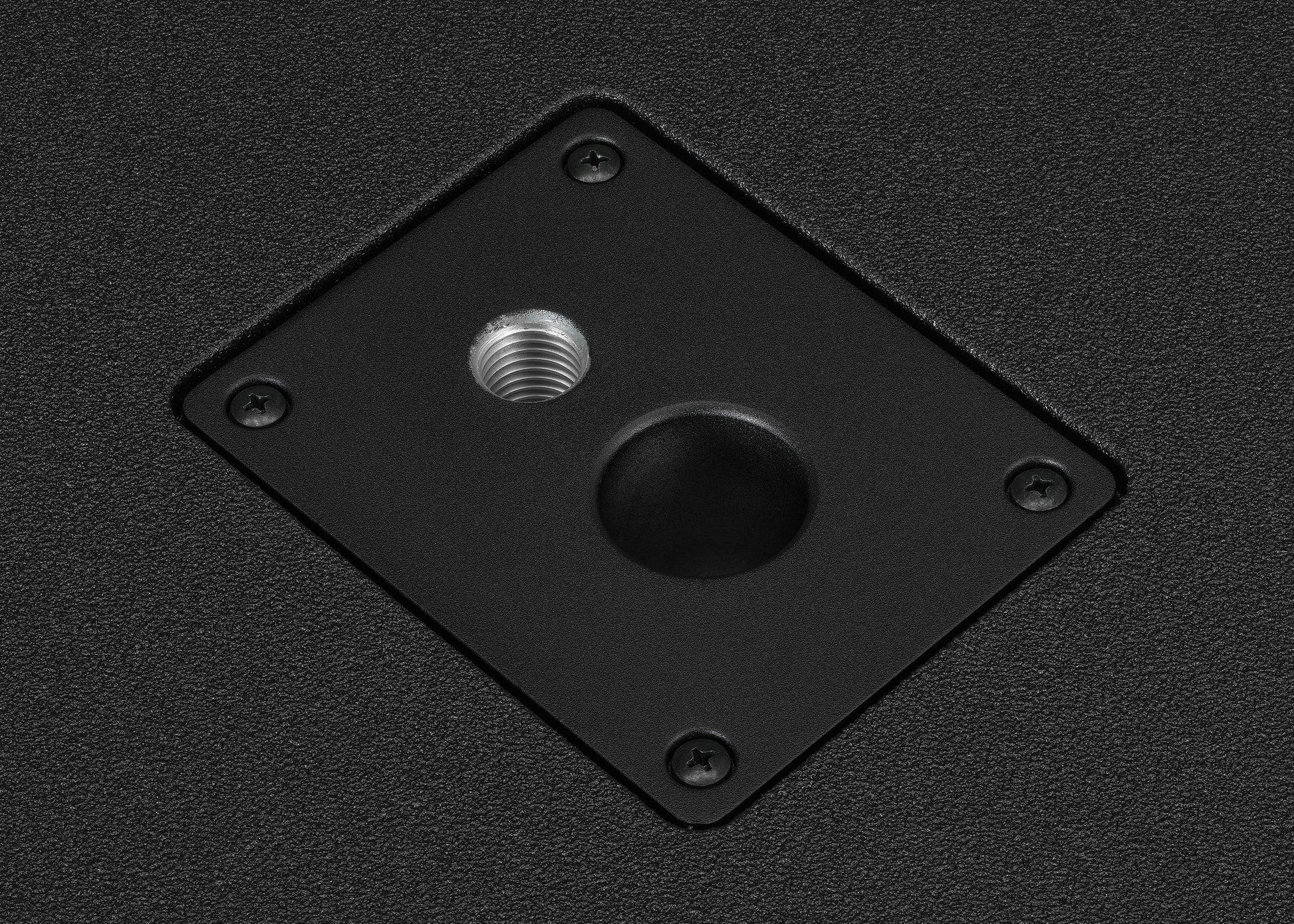

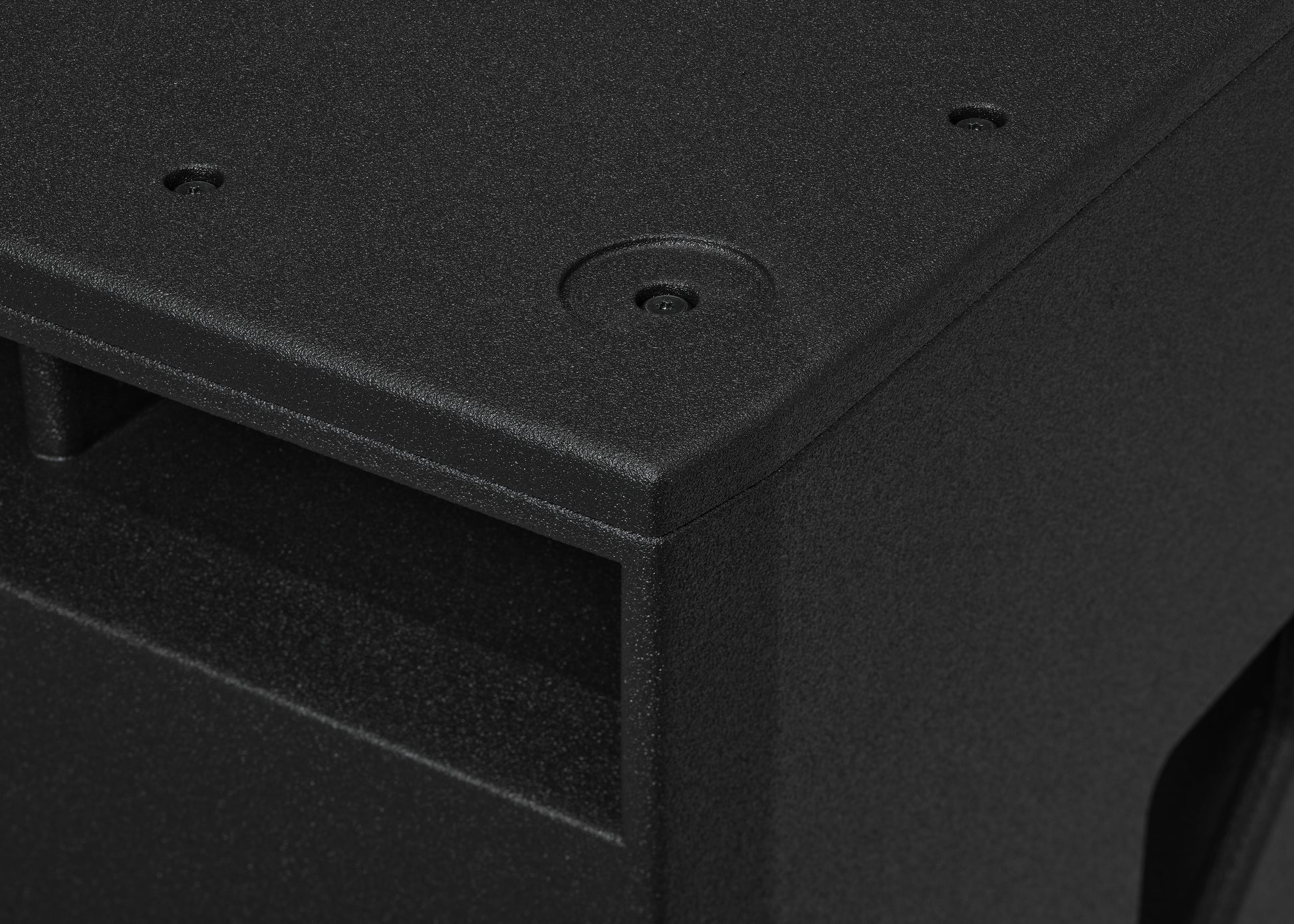

Pole socket
Φ35 mm (Depth 80 mm), M20 (Threaded depth 25 mm)
Width
22.2" (563 mm)
Height
26.9 lbs (683 mm)
Depth
28.4" (721 mm)
Net weight
108 lbs (49 kg)
Options

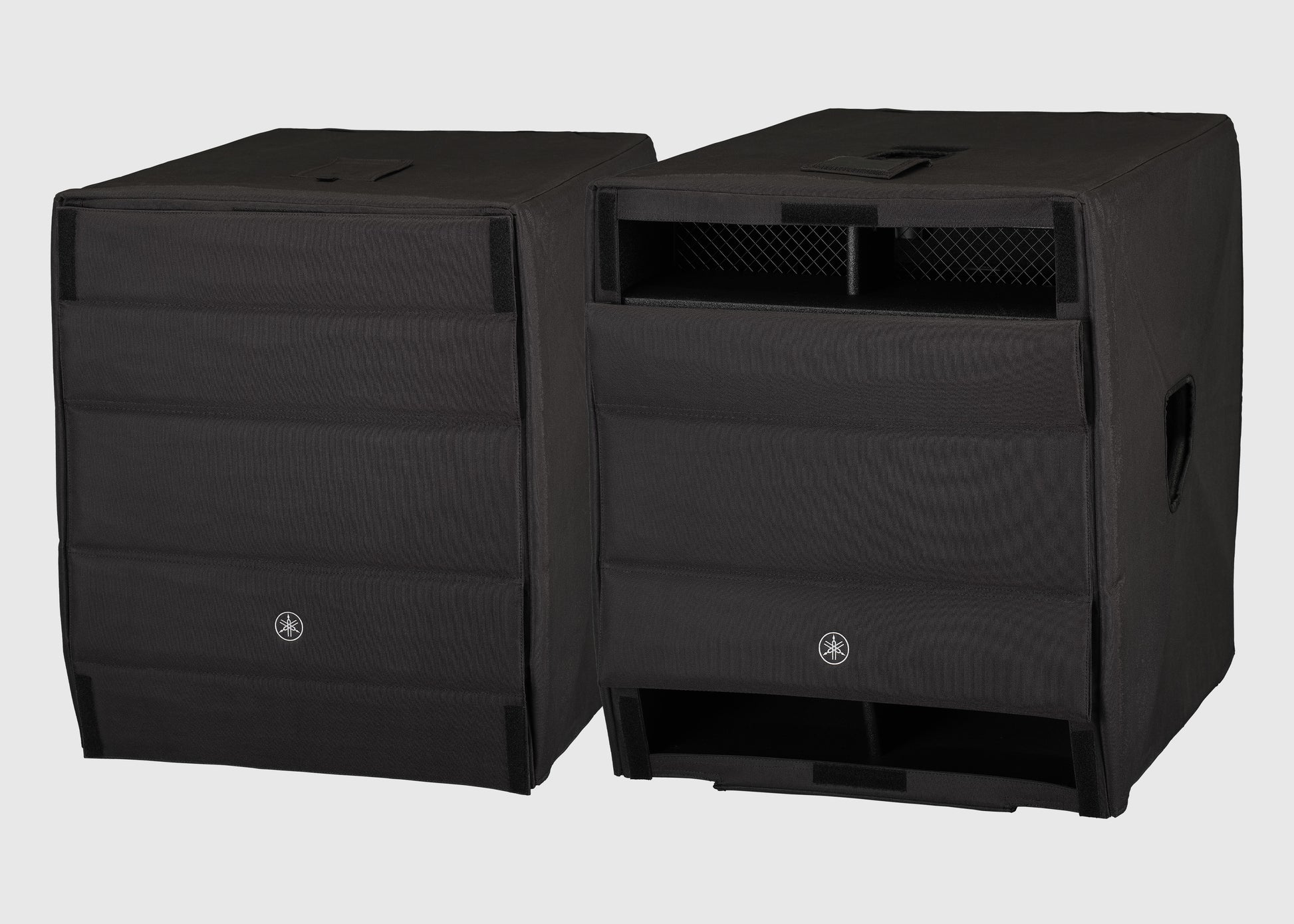

Cover: SPCVR-DXS183, Caster: SPW-1
