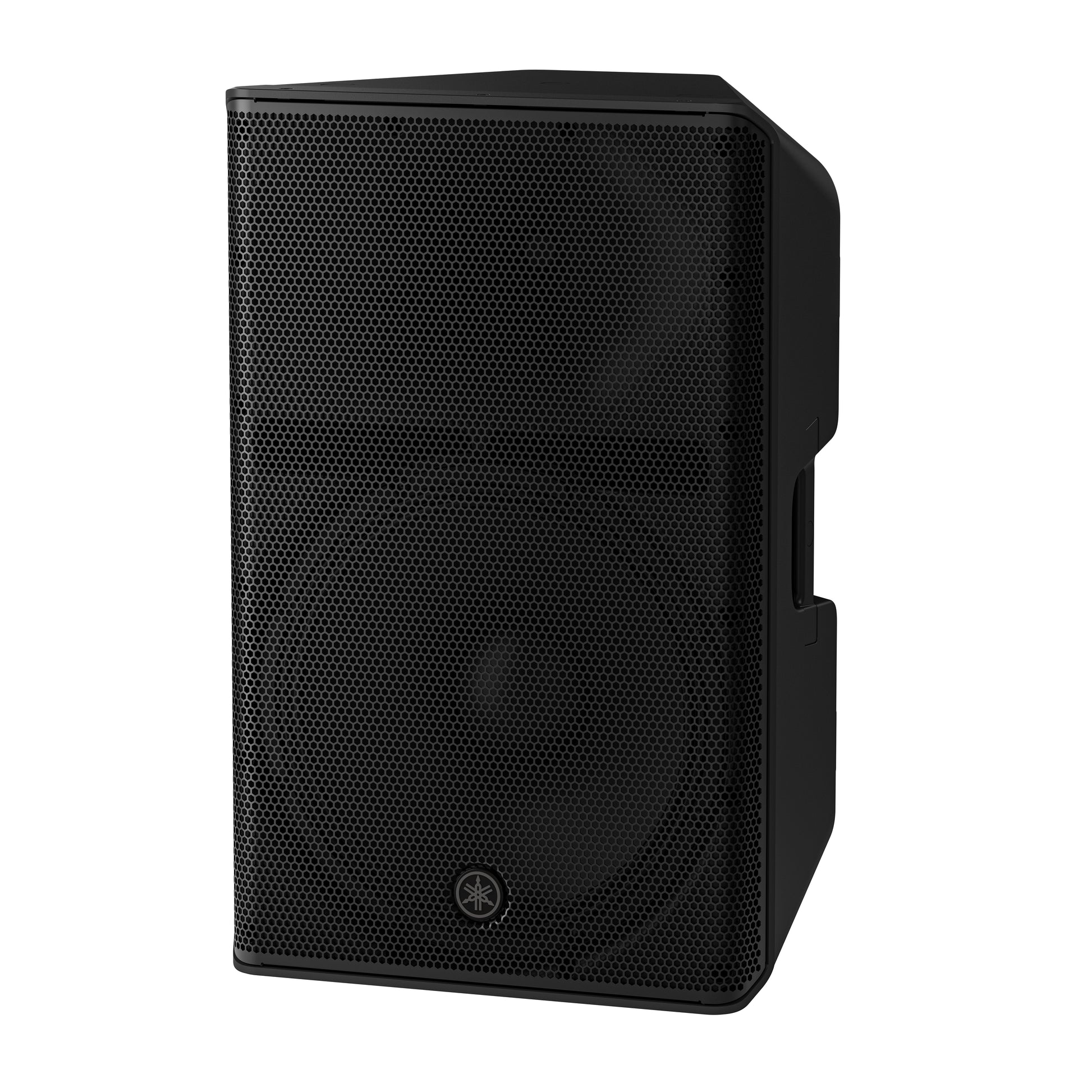

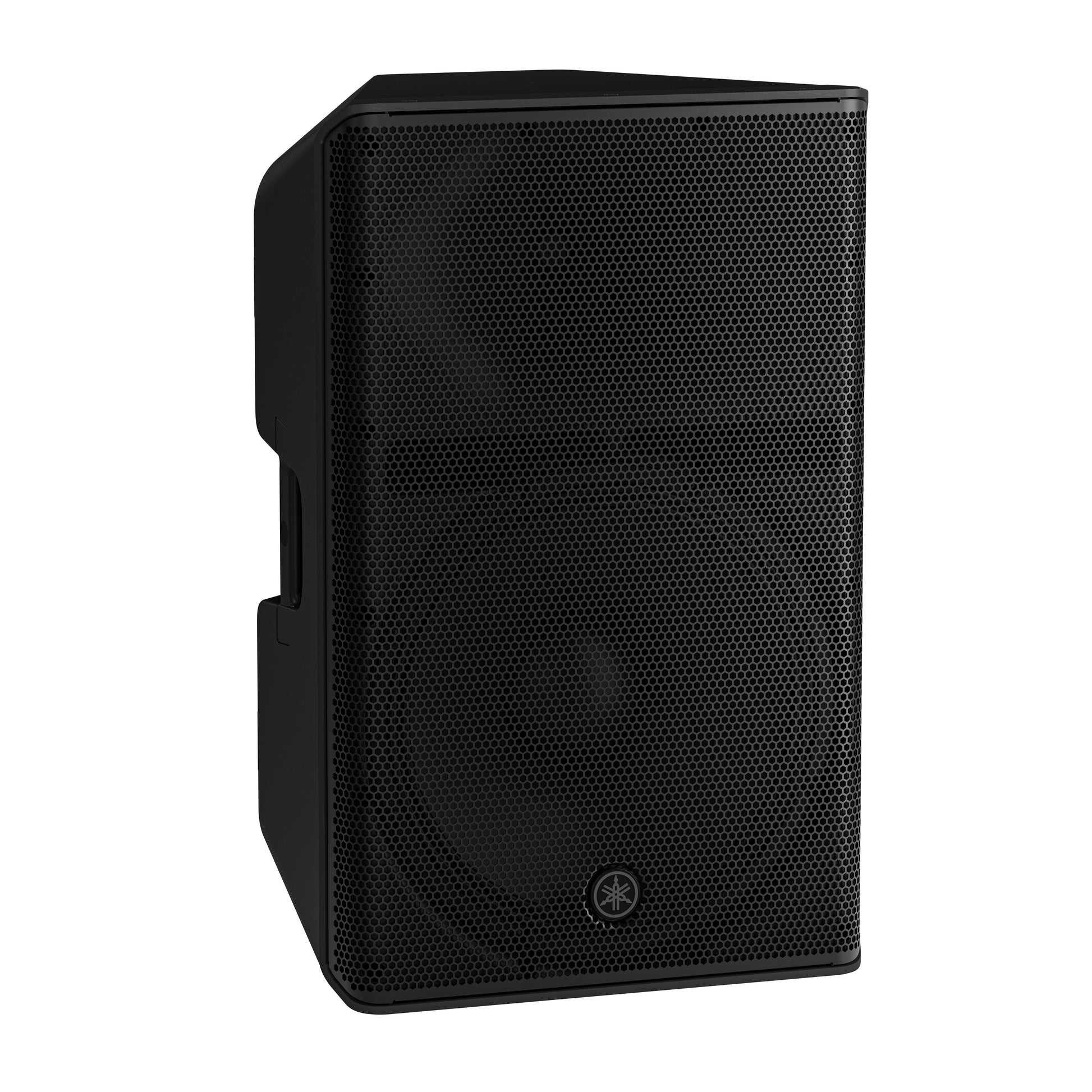

Yamaha DXR15MK3 Powered Loudspeaker with DSP Control | Size: 15"

Yamaha DXR15MK3 Powered Loudspeaker with DSP Control | Size: 15"

SoundPro Item: 203722 | Part Number: DXR15MKIII

$1,099.99
$1,140.00 $1,099.99
Your Price Sold out
MSRP: $1,140.00 | MAP: $1,099.99

Usually ships in 5-7 business days

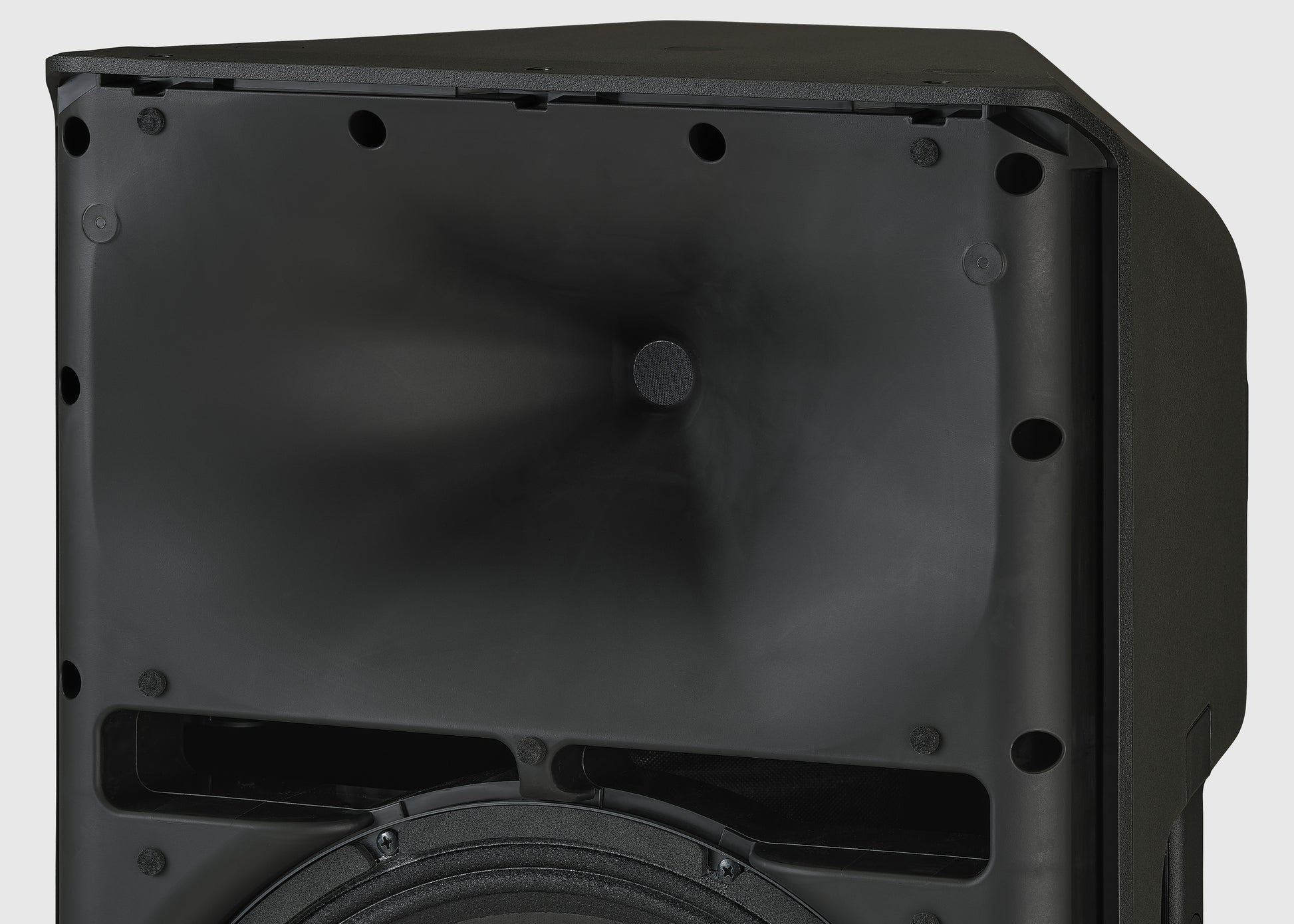

  • Large horn improves HF pattern control
  • Optimized ports smooth LF response

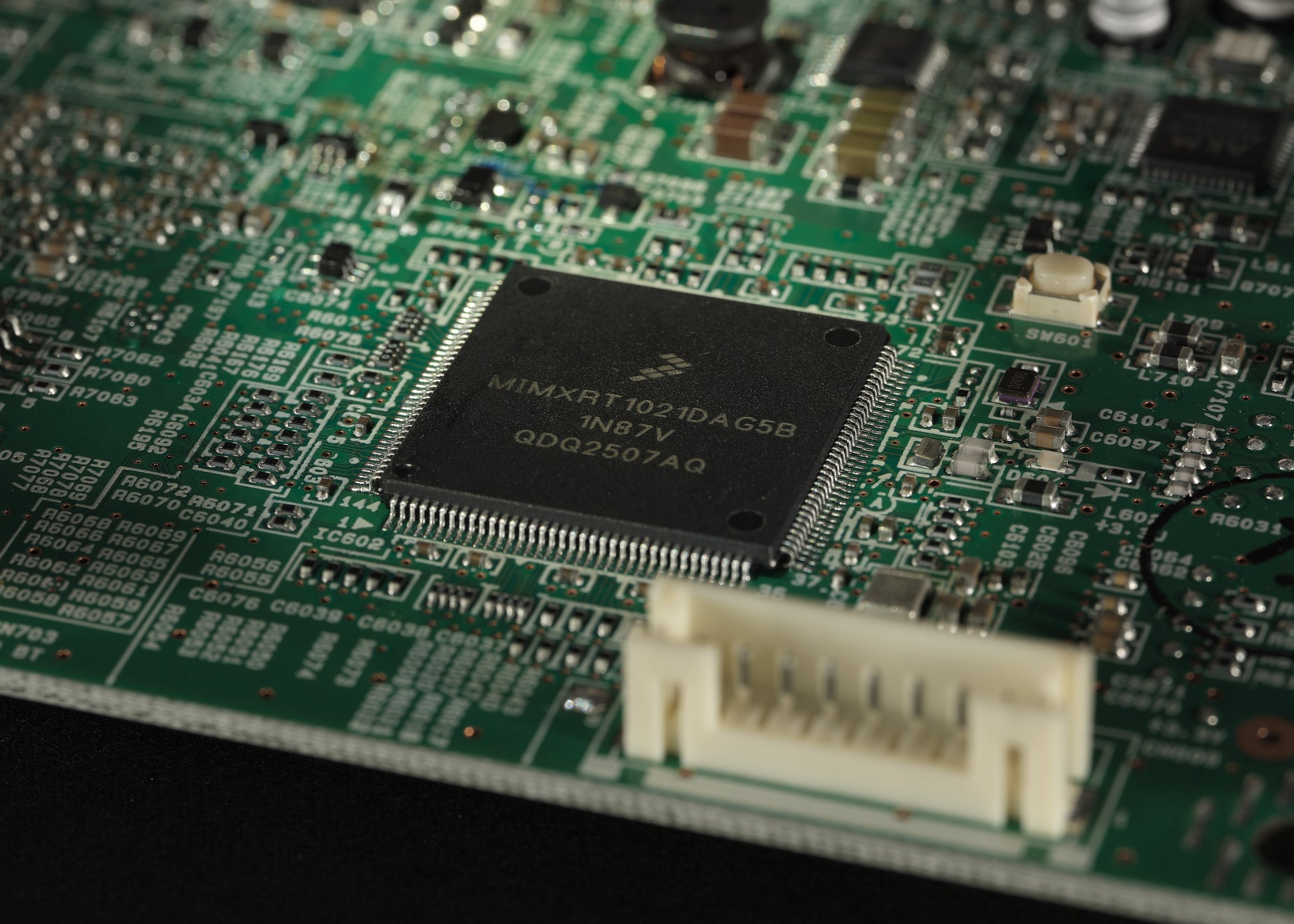

  • 96kHz DSP supports low-latency processing
  • Advanced FIR-X Tuning improves phase response
  • LCD and encoder speed parameter access
  • Bluetooth app enables remote system control

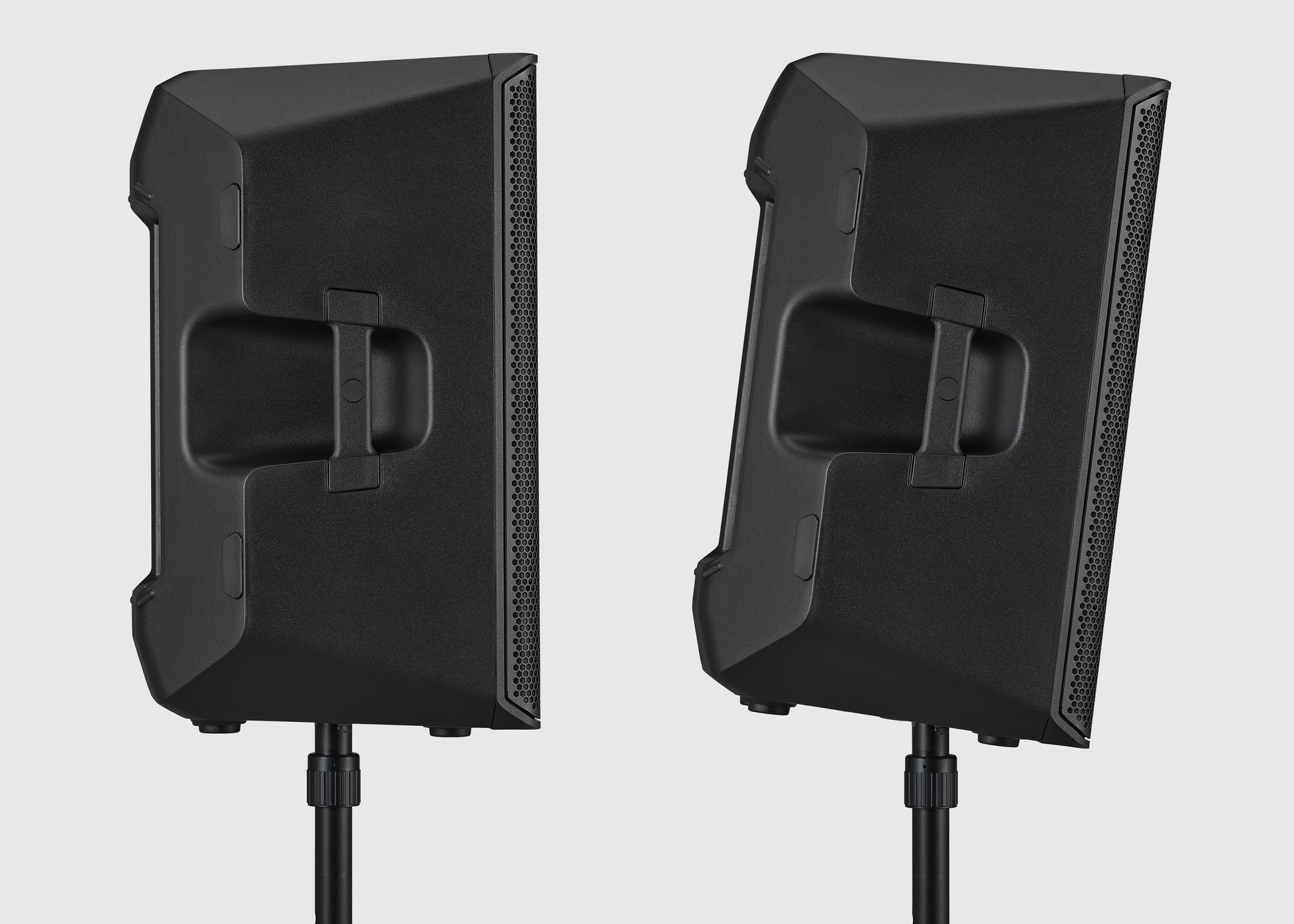

  • Dual-angle pole mount aids coverage aiming
Log in or register for YOUR best price

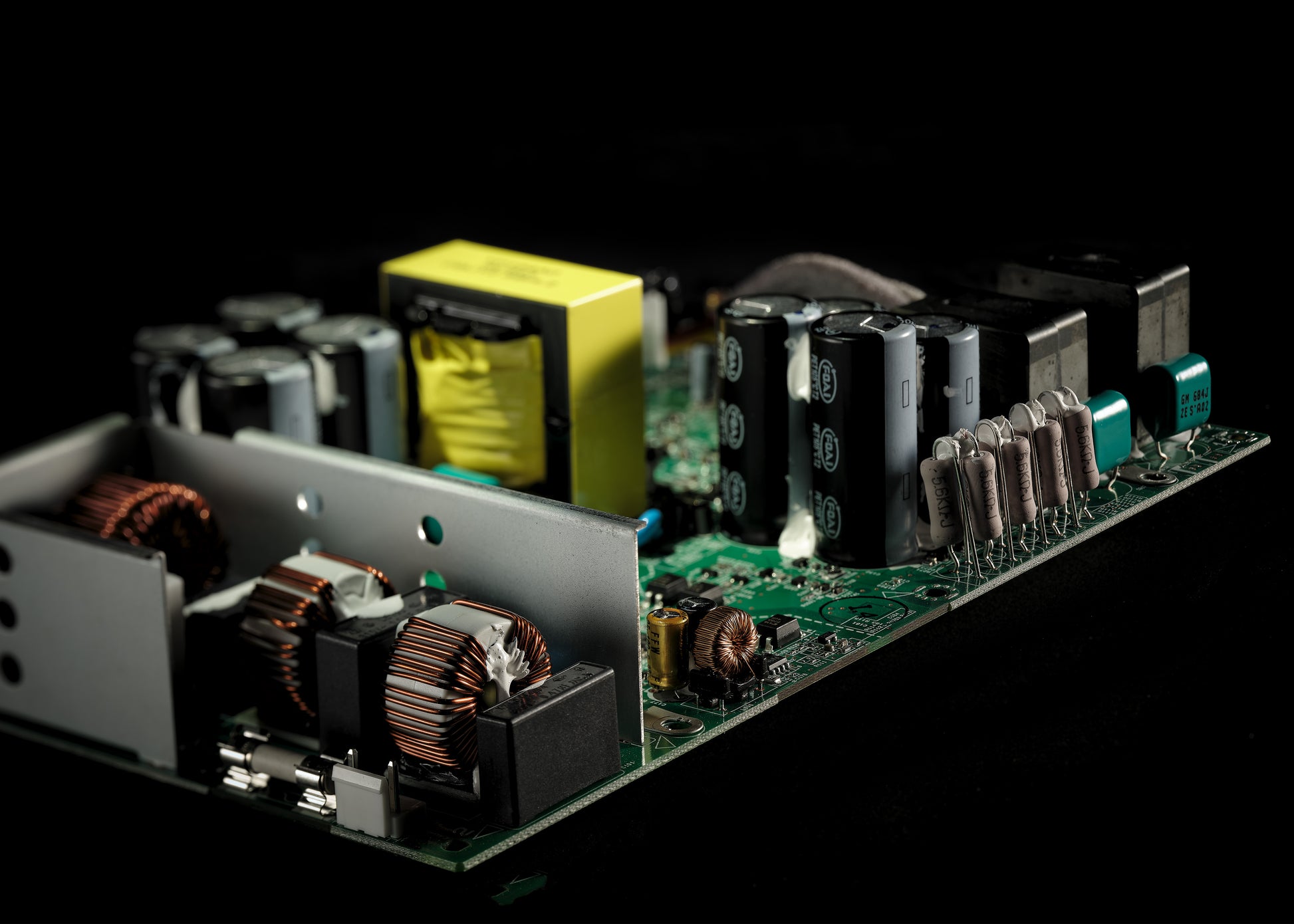

The Yamaha DXR MK3 series is built for professional sound reinforcement where output, control, and deployment flexibility matter. A newly developed 2000W Class-D amplifier and 96kHz internal DSP support high-performance operation with low latency, while Advanced FIR-X Tuning helps maintain smooth phase response and clear audio.

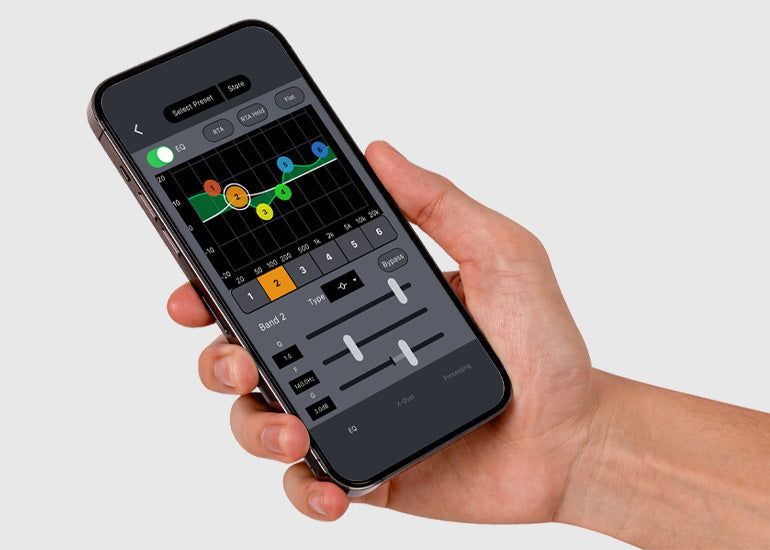

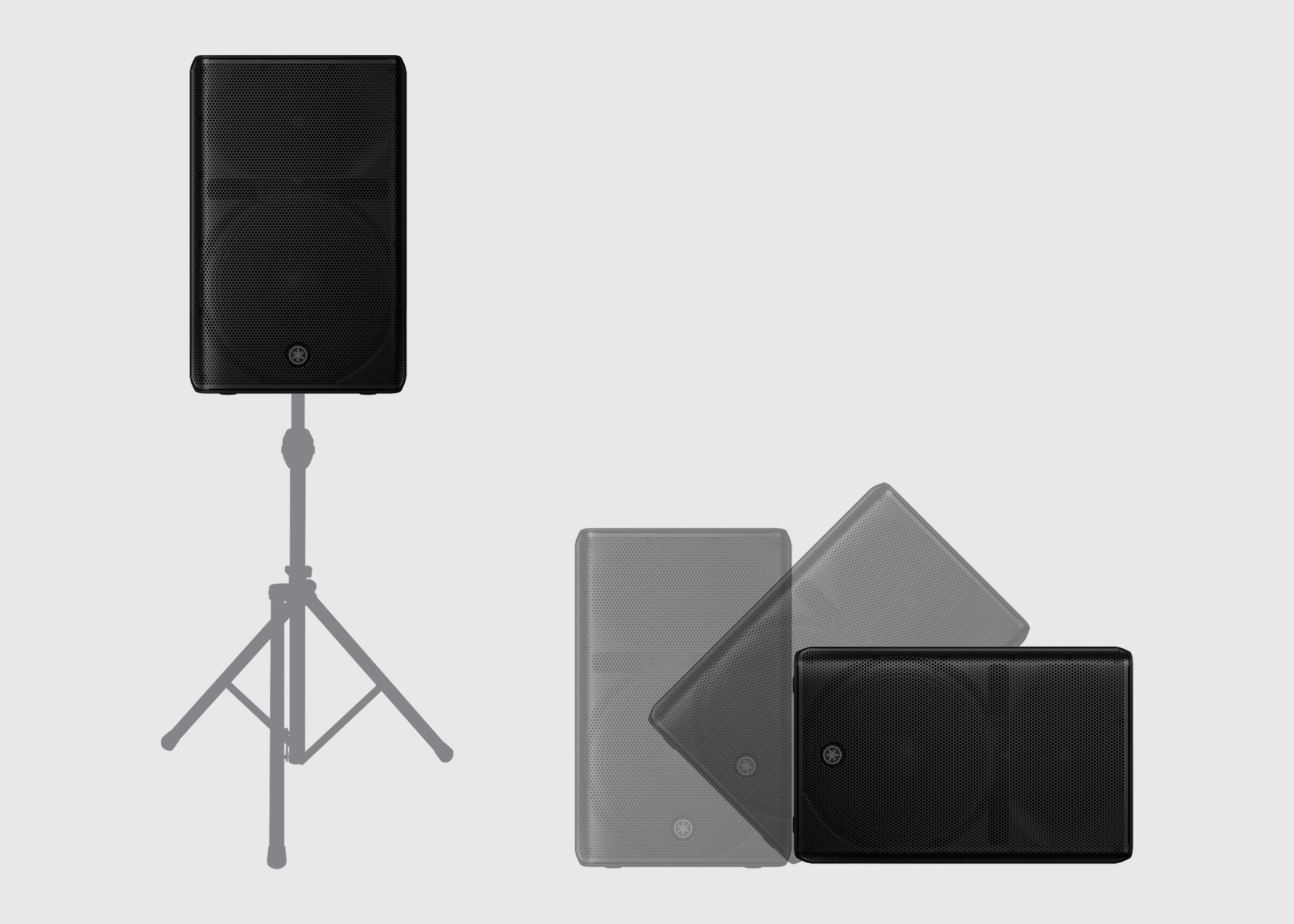

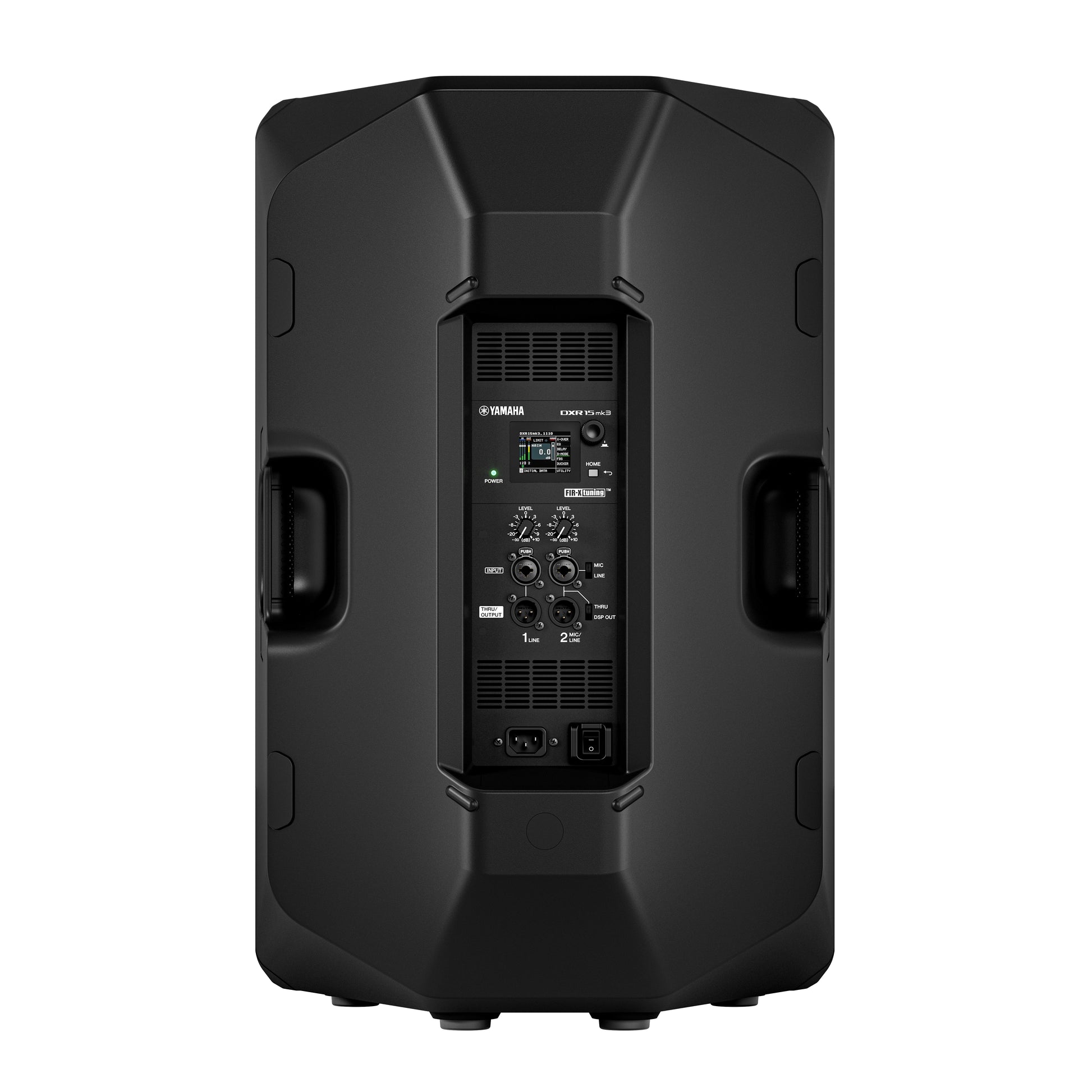

User operation is streamlined by a rear-panel LCD and encoder, onboard preset storage, automatic orientation-based DSP mode selection, and Bluetooth control through the D-Remote app on iOS or Android devices. With support for front-of-house, floor monitor, and other reinforcement setups, the series is designed for demanding event and performance environments.

View full details

Specifications

Speaker type
2-way, Bi-amped Powered Speaker, Bass-reflex
Frequency range (-10dB)
46 Hz - 20 kHz
Coverage area
H90ﾟ x V60ﾟ
Crossover
1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
Maximum Output Level (Measured peak, IEC noise@1m)
134 dB SPL

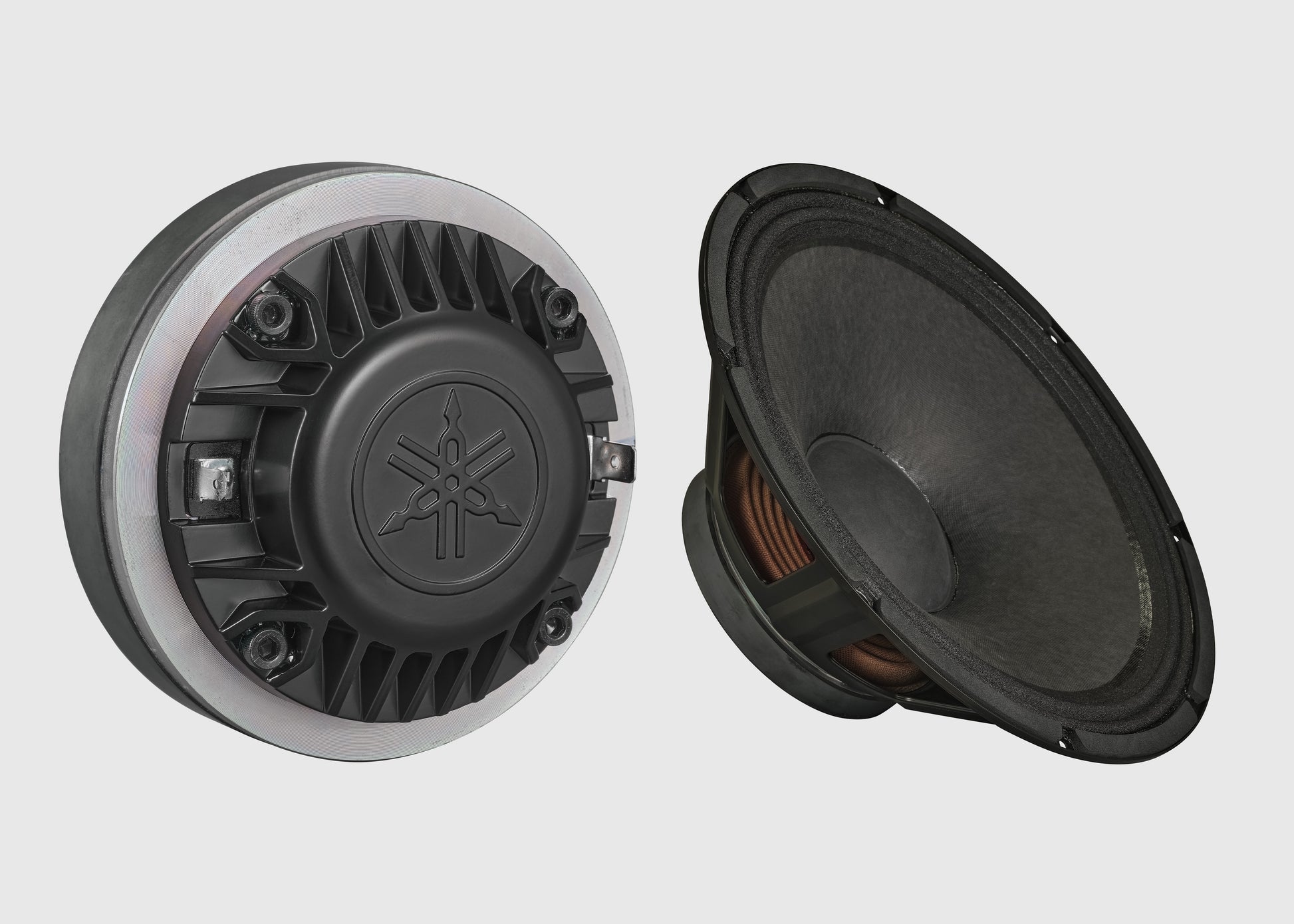

LF
Diameter: 15" cone, Voice Coil: 3"
HF
Diaphragm: 1.75", Type: 1" throat compression driver
Amplifier class
Class-D
Power rating PEAK
2000 W (LF:1700 W, HF:300 W)
Power rating RMS
1000 W (LF:850 W, HF:150 W)
Cooling
Fan Cooling, 5 Speeds
Power consumption
120 W (1/8power), 35 W (Idle)
Power requirements
100 V - 240 V 50/60 Hz
A/D D/A Converters
32 bit/96 kHz Sampling
Processors
HPF: OFF, 50 Hz - 118 Hz, 12dB - 48 dB/Oct.; DSP-MODE: FOH/MAIN, MONITOR, DJ, LIVE MUSIC, SPEECH, OFF
Analog Input
INPUT1: Combo x1, Impedance 20 kΩ (balance) 10 kΩ (unbalance), Maximum Input Level +24dBu; INPUT2: Combo x 1, Impedance 6 kΩ (balance) 3 kΩ (unbalance), Maximum Input Level +24 dBu (Line) -6 dBu (Mic)
Analog Outputs
OUTPUT1: XLR3-32 THRU; OUTPUT2: XLR3-32 THRU or DSP OUT
Bluetooth
Ver.5.0, A2DP (SBC, AAC), Class 1
Others
D-Remote (iOS/Android app)
Cabinet material
Plastic
Finish
Black

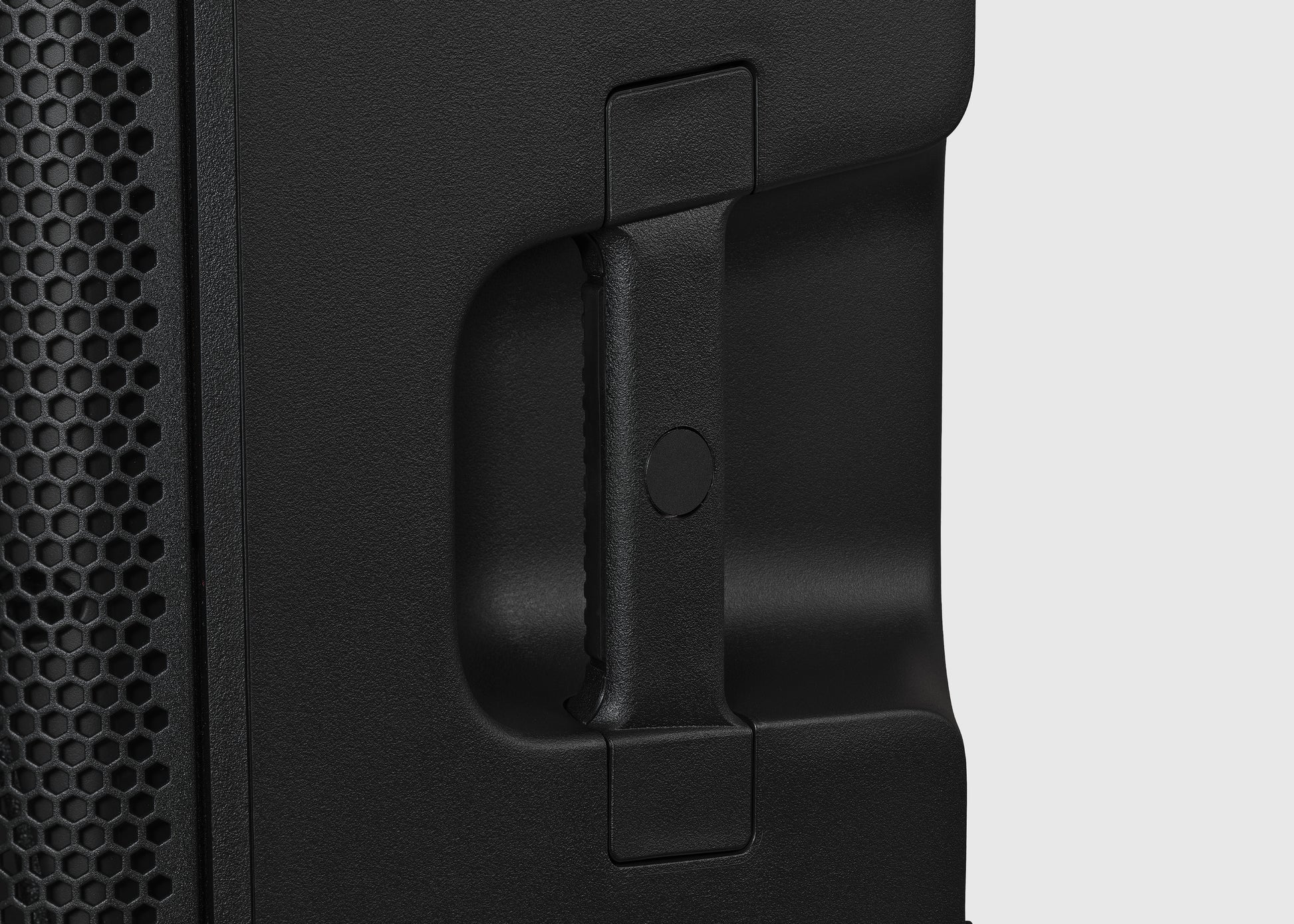

Handle
Side x2
Pole socketΦ35 mm x2 (Bottom, 0° or -7°)

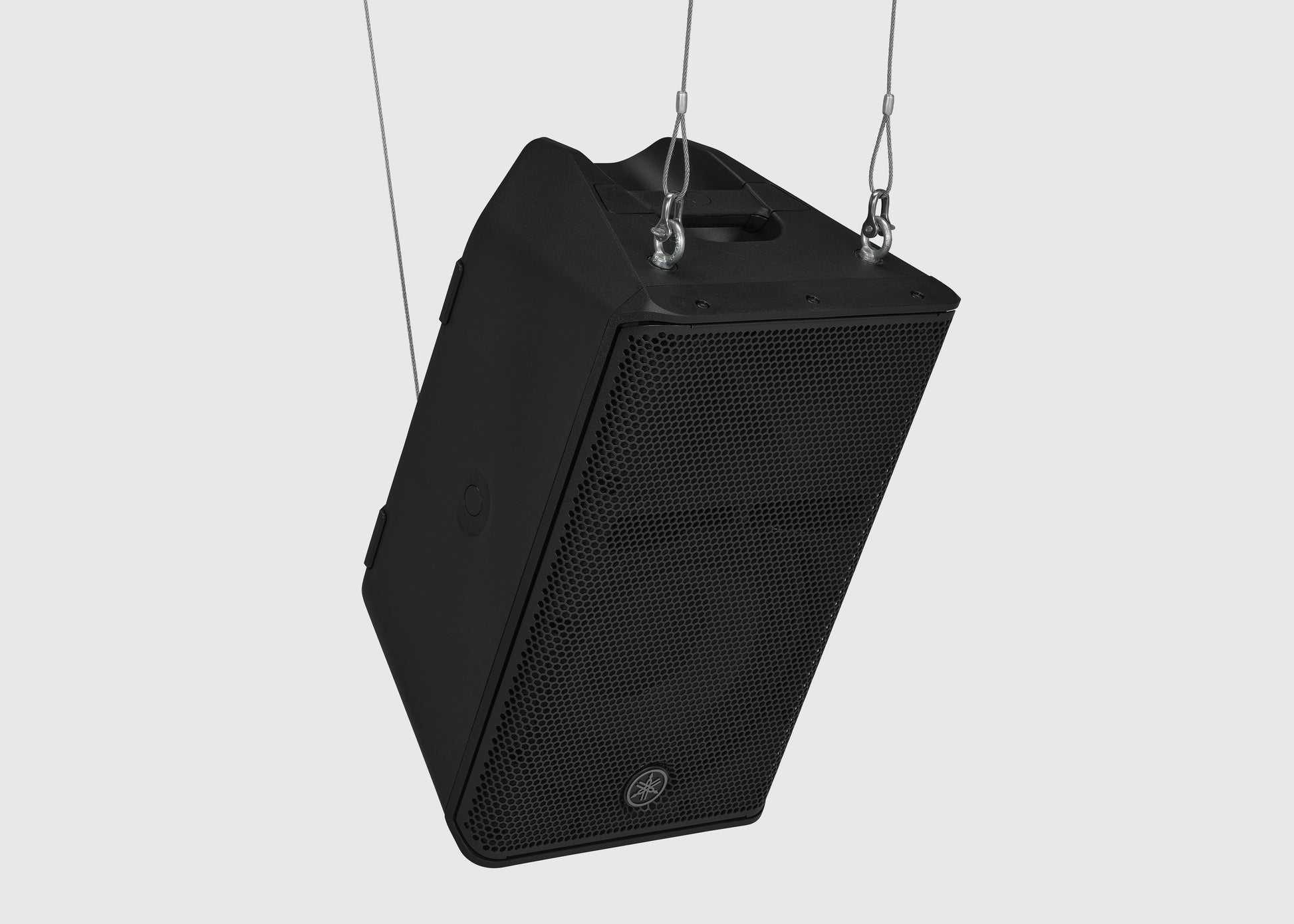

"Rigging
Top x 2, Rear x 1
(Fit for M10 x 18 mm Eyebolts), Bottom x2, Side x 2 (Fit for M8 x 25 mm UB-DXR15A)"

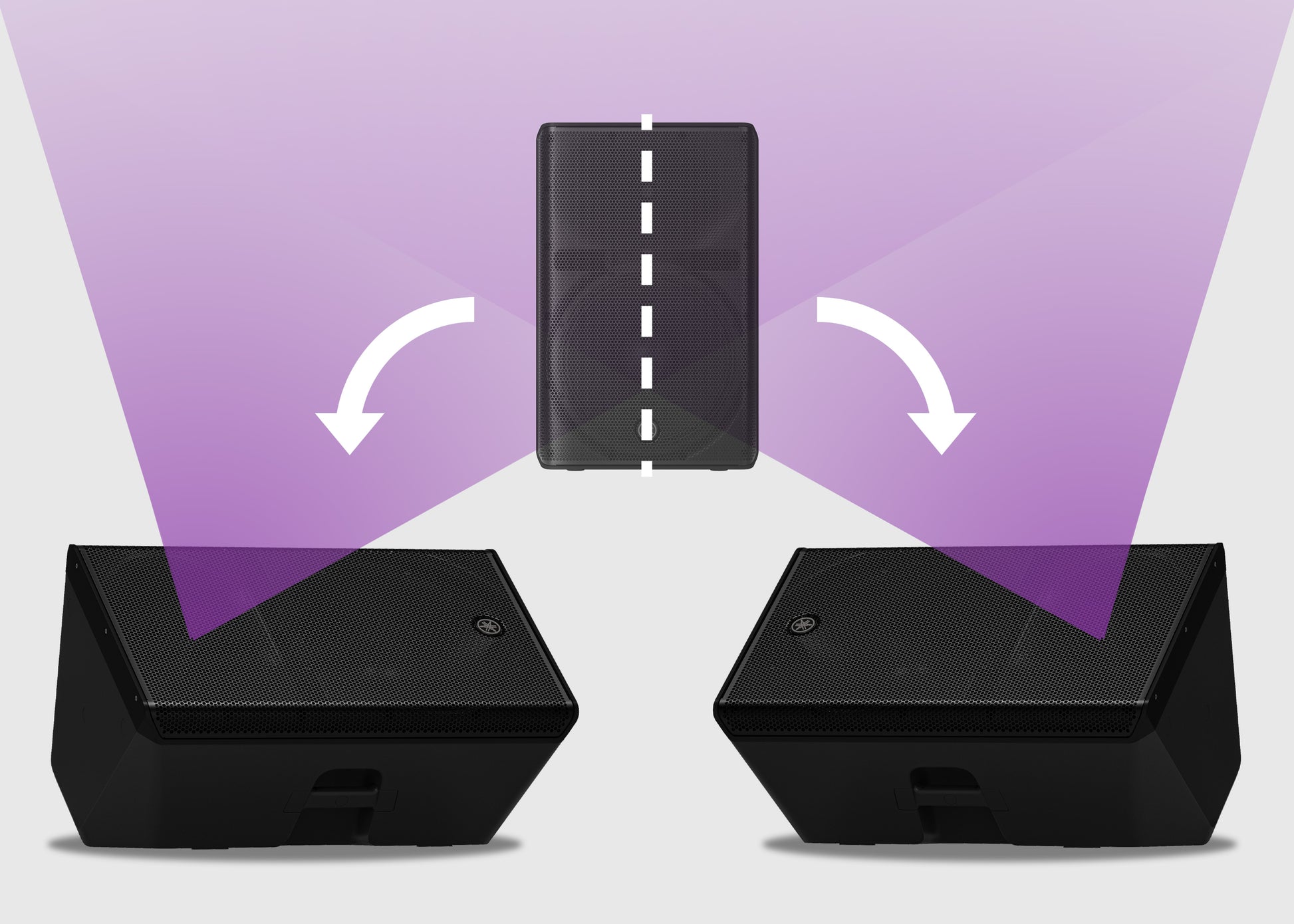

Floor Monitor Angle
52ﾟ
Width
17.6" (447 mm)
Height
27.5" (699 mm)
Depth
15" (380 mm)
Net weight
46.3 lbs (21 kg)
Options

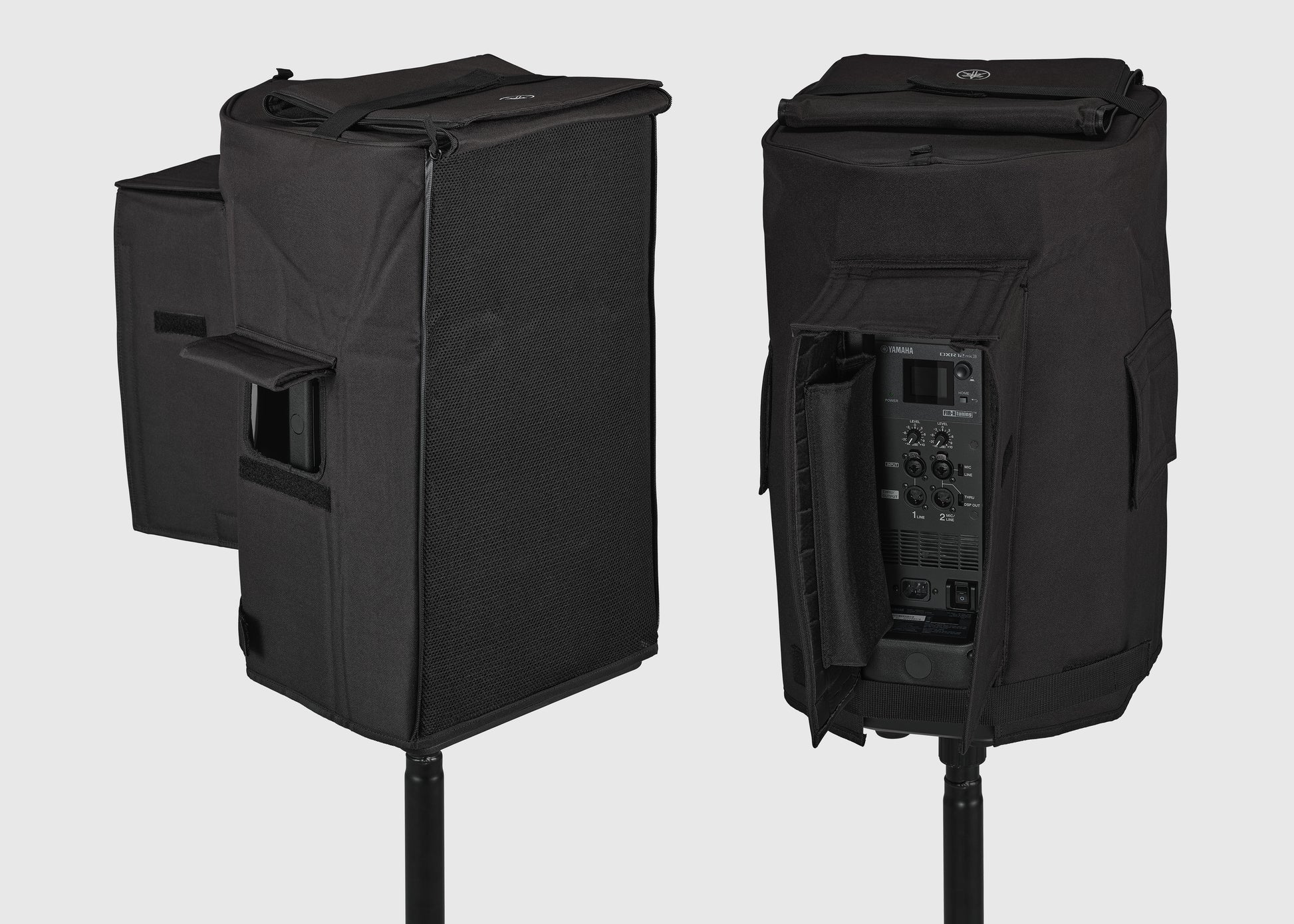

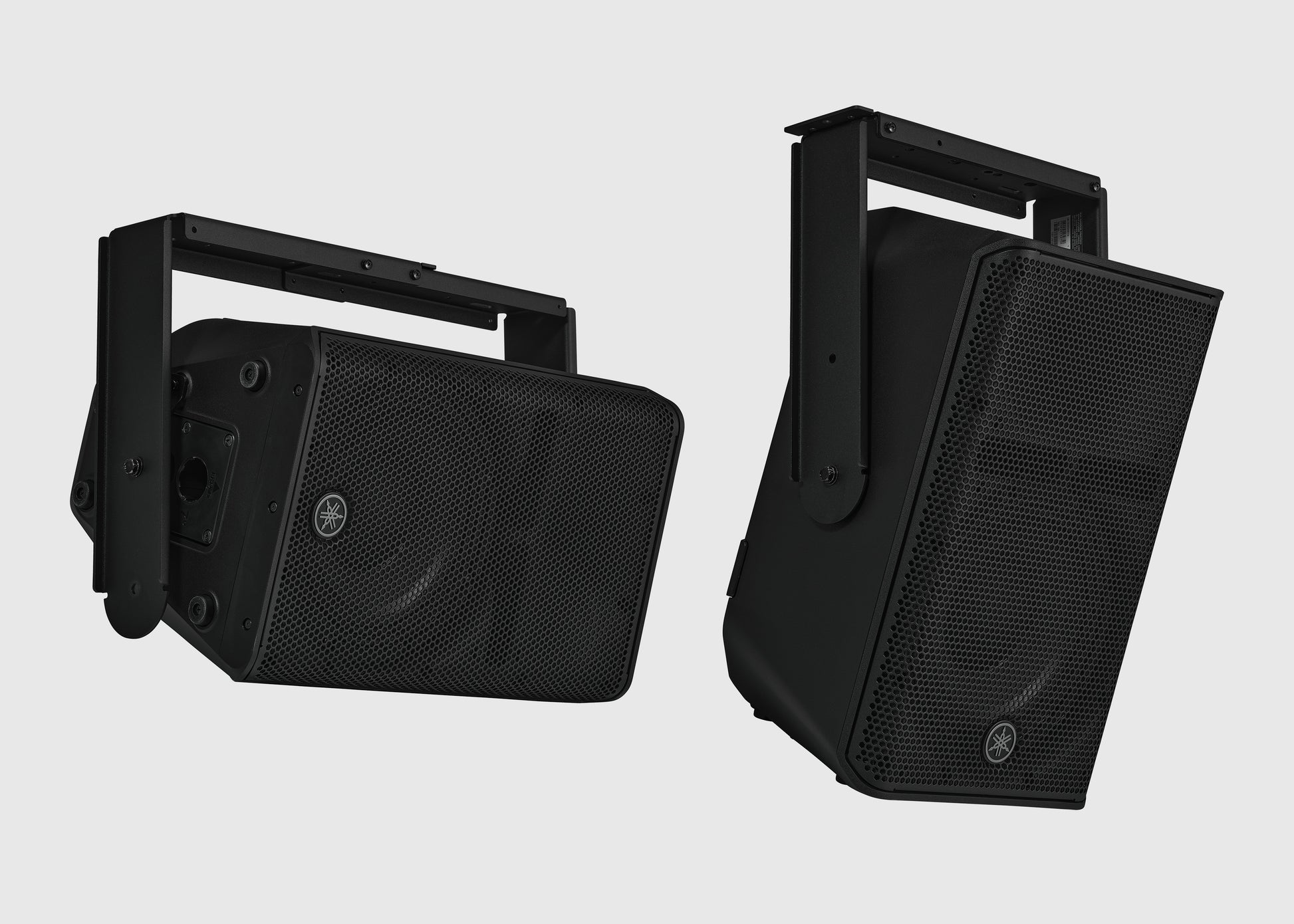

U-bracket: UB-DXR15A, Cover: SPCVR-DXR153
