Specifications
Speaker type

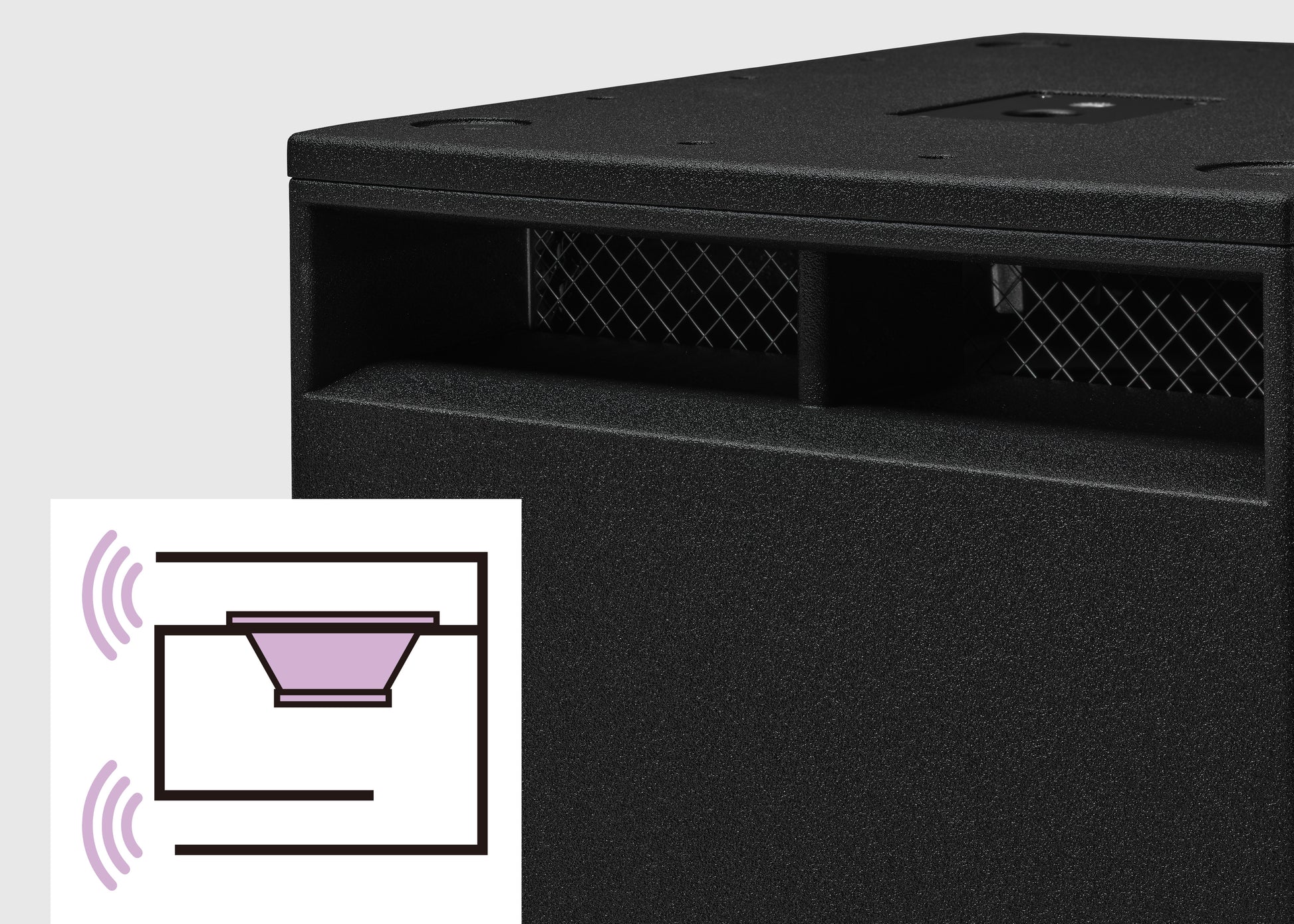

Powered Subwoofer, Band-pass
Frequency range (-10dB)
35 Hz - 140 Hz
Maximum Output Level (Measured peak, IEC noise@1m)
133 dB SPL
LF

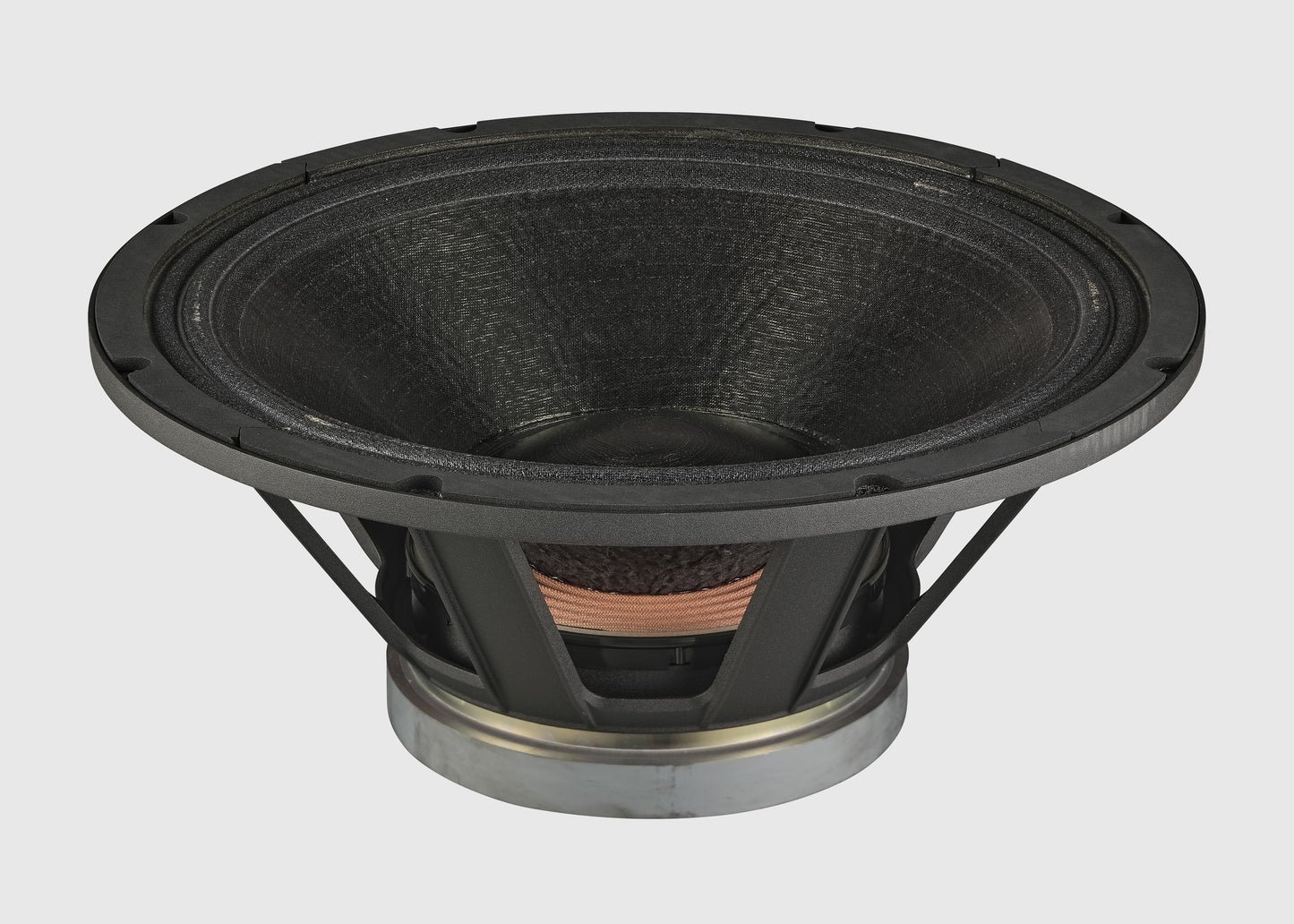

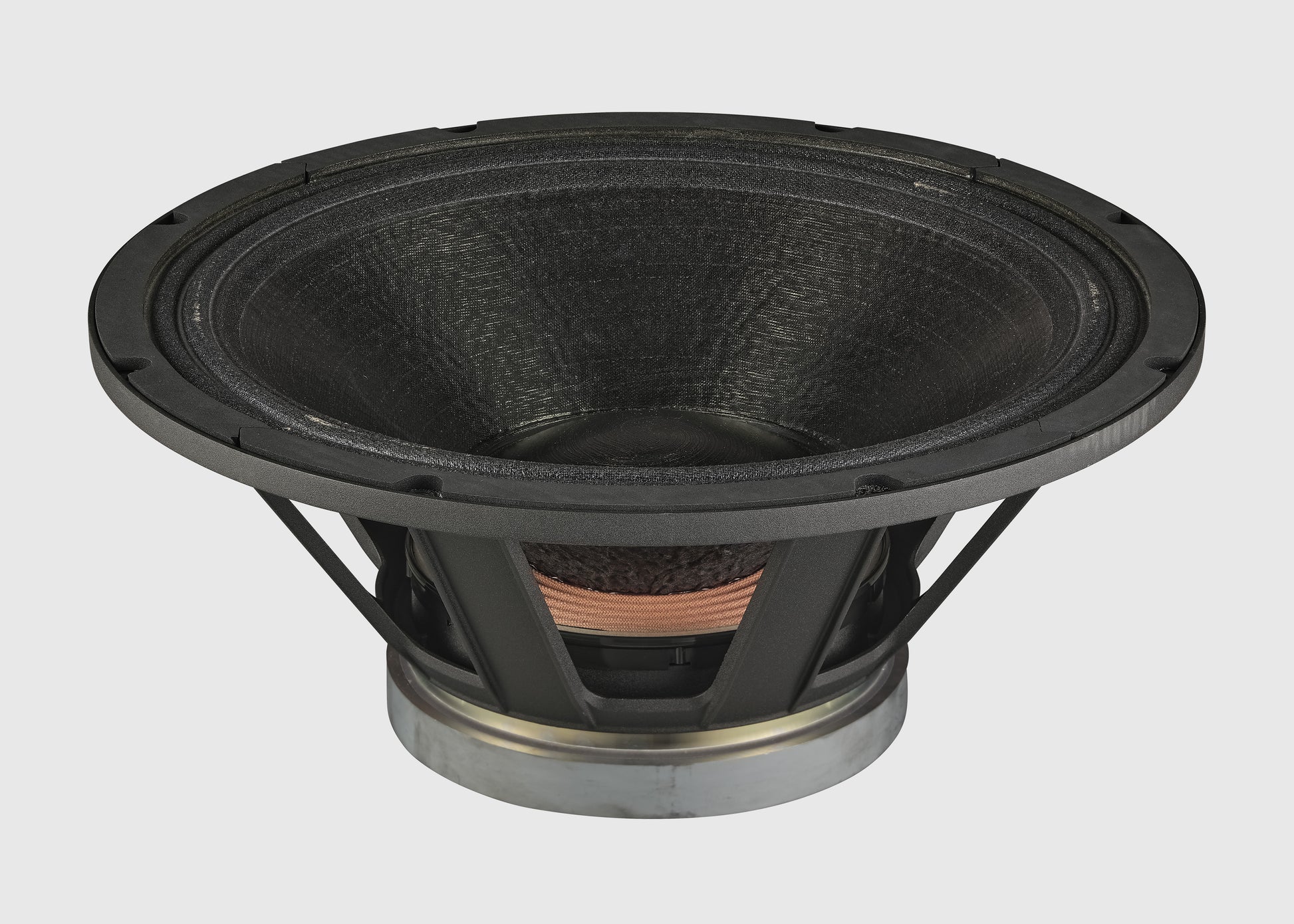

Diameter: 15" cone, Voice Coil: 3"

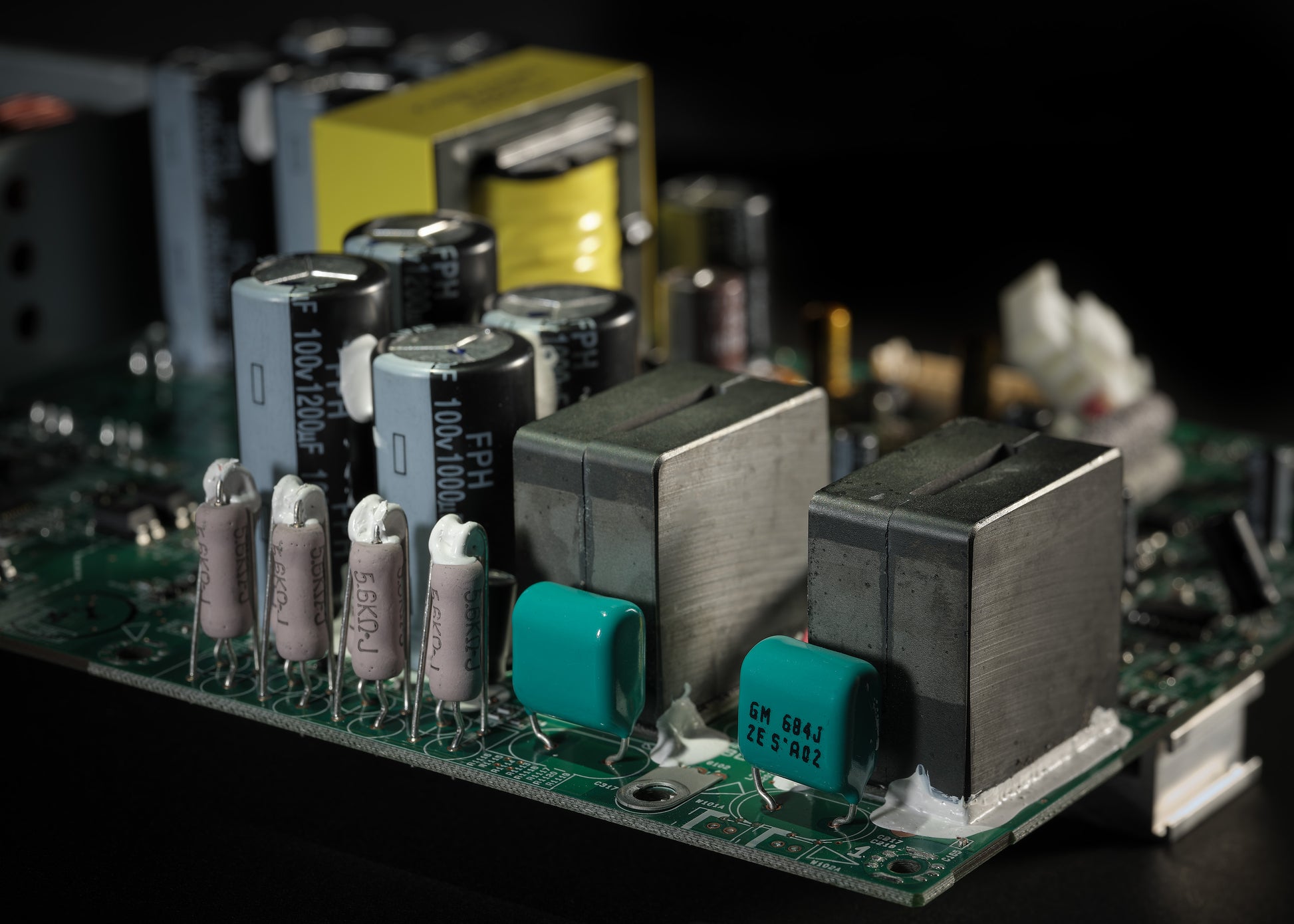

Amplifier class
Class-D
Power rating PEAK
2500 W
Power rating RMS
1250 W *2
Cooling
Fan Cooling, 5 Speeds
Power consumption
130 W (1/8power), 40 W (Idle)
Power requirements
100 V - 240 V 50/60 Hz
A/D D/A Converters
32 bit/96 kHz Sampling
Processors
HPF: OFF, 50 Hz - 118 Hz, 12 dB - 48 dB/Oct.; D-XSUB: NORMAL, XTENDED LF

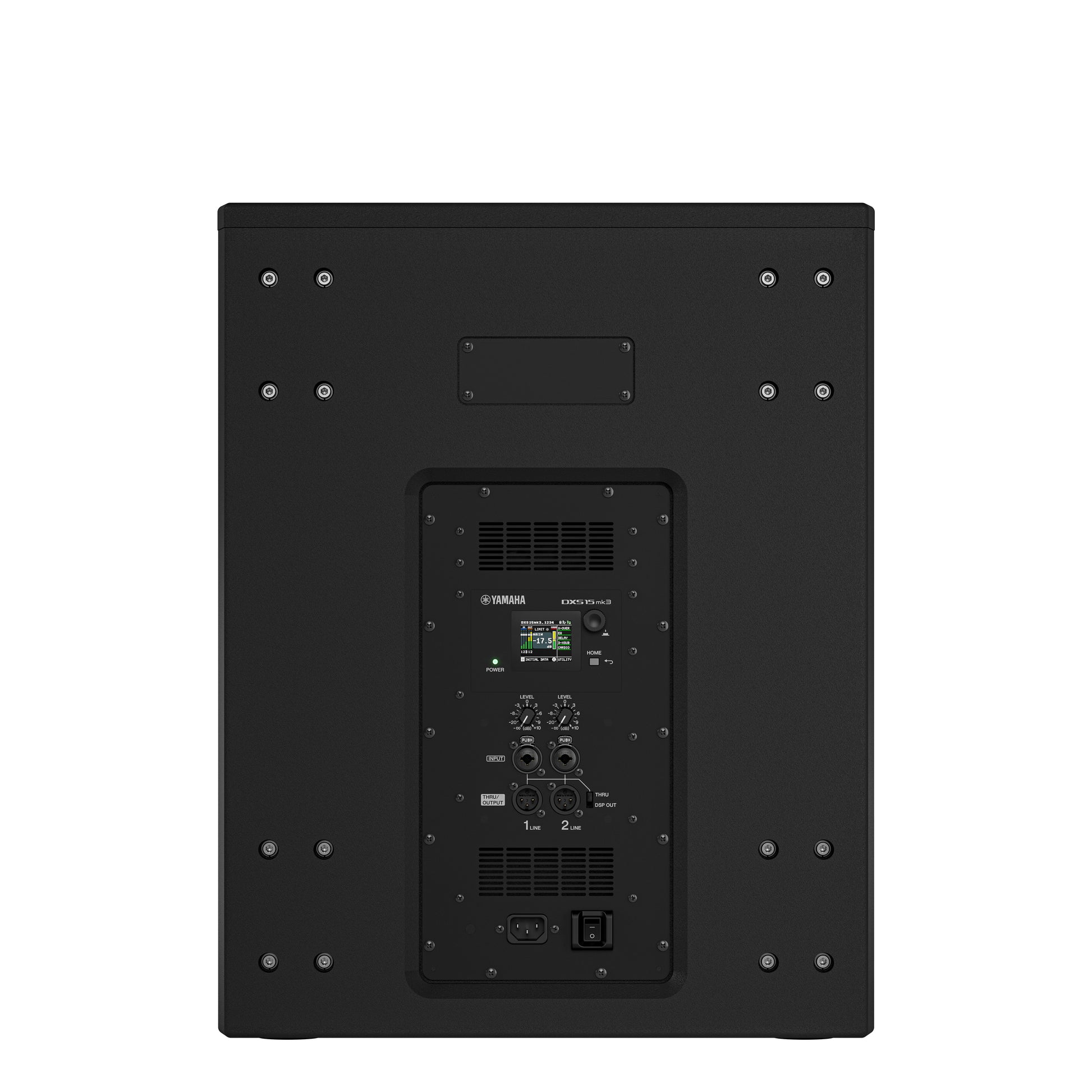

Analog Input
INPUT1 & 2: Combo x1, Impedance 20 kΩ (balance) 10 kΩ (unbalance), Maximum Input Level +24dBu
Analog Outputs
OUTPUT1 & 2: XLR3-32 THRU or DSP OUT
Bluetooth
Ver.5.0, A2DP (SBC, AAC), Class 1
Others

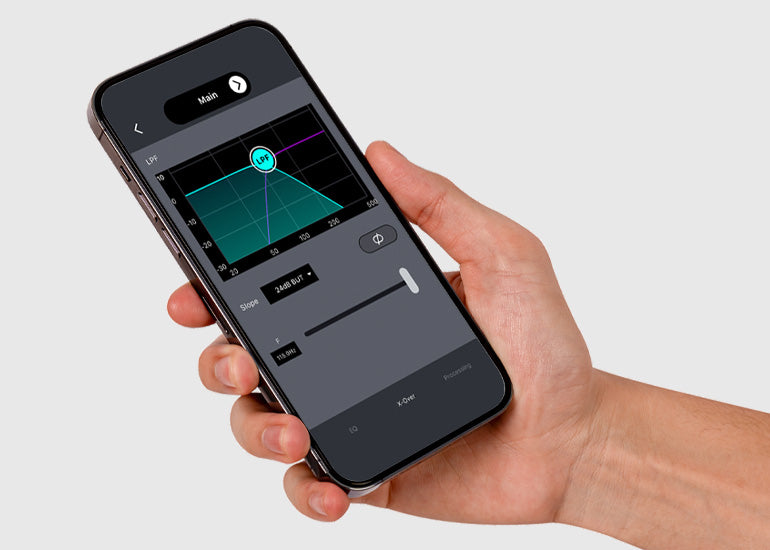

D-Remote (iOS/Android app)
Cabinet material
Plywood
Finish
Durable Polyurea Painting, Black

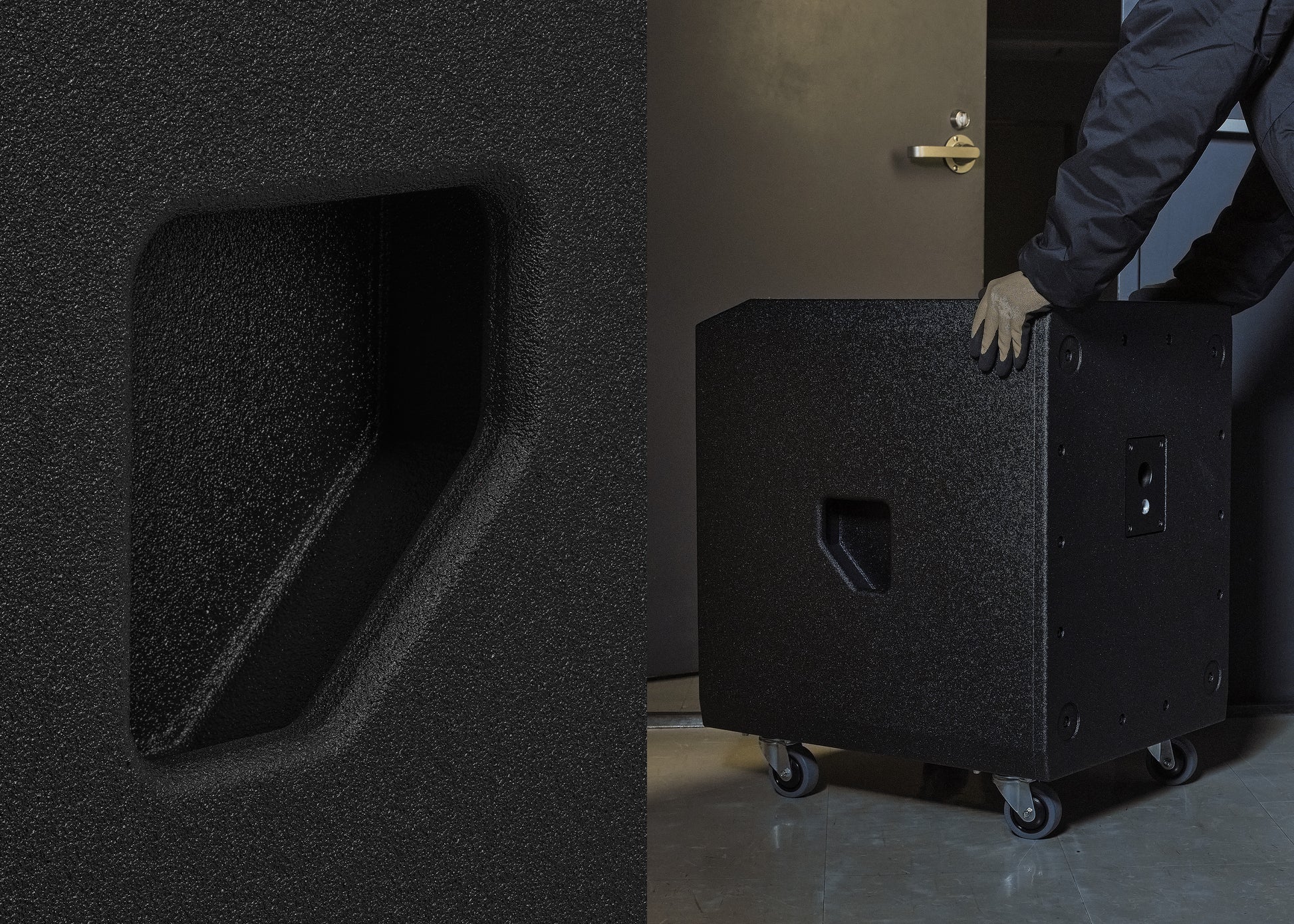

Handle
Side x2
Pole socket

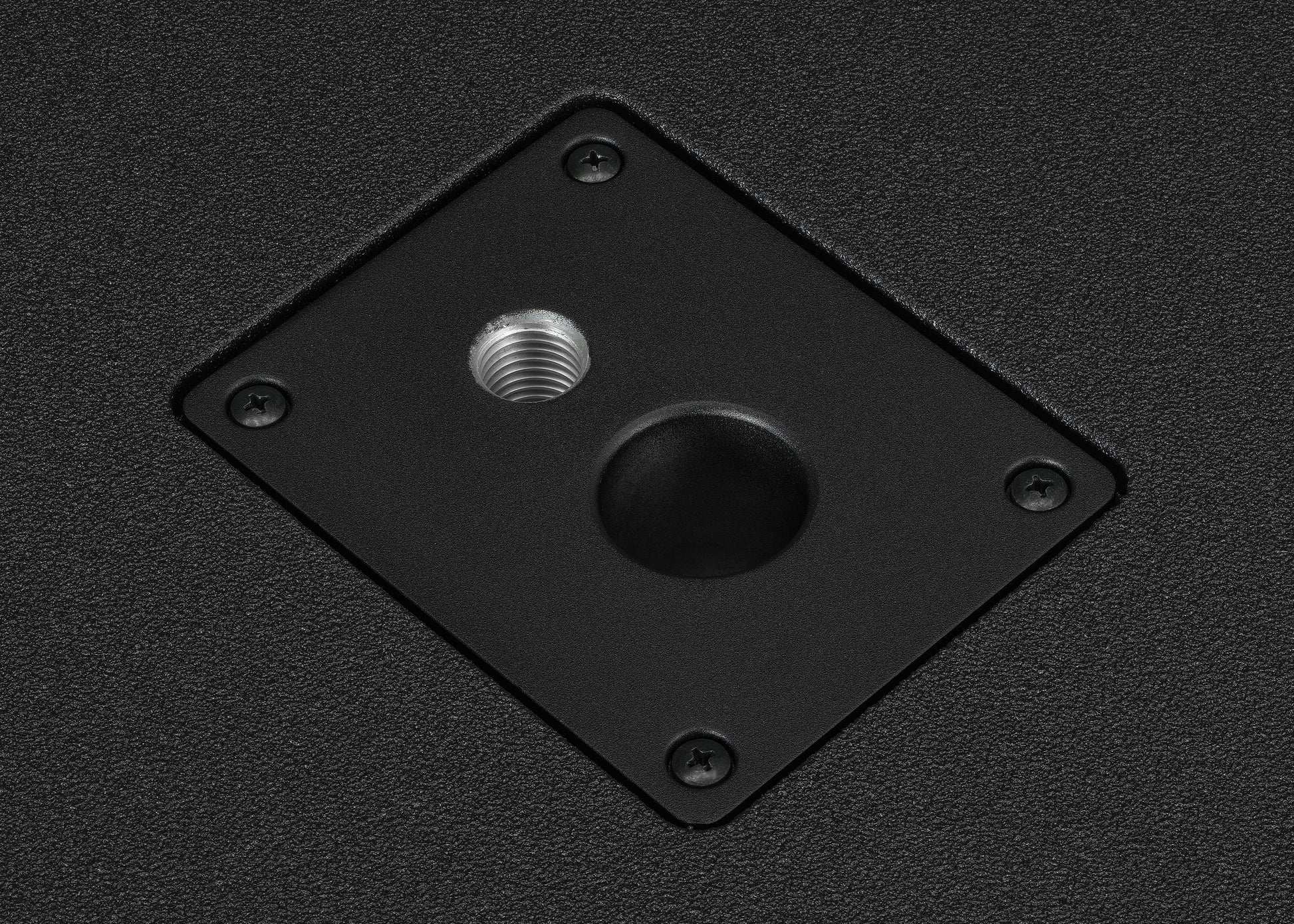

Φ35 mm (Depth 80 mm), M20 (Threaded depth 25 mm)
Weight
18.9" (480 mm)
Height
24.1" (611 mm)
Depth
24.2" (614 mm)
Net weight
81.6 lbs (37 kg)
Options

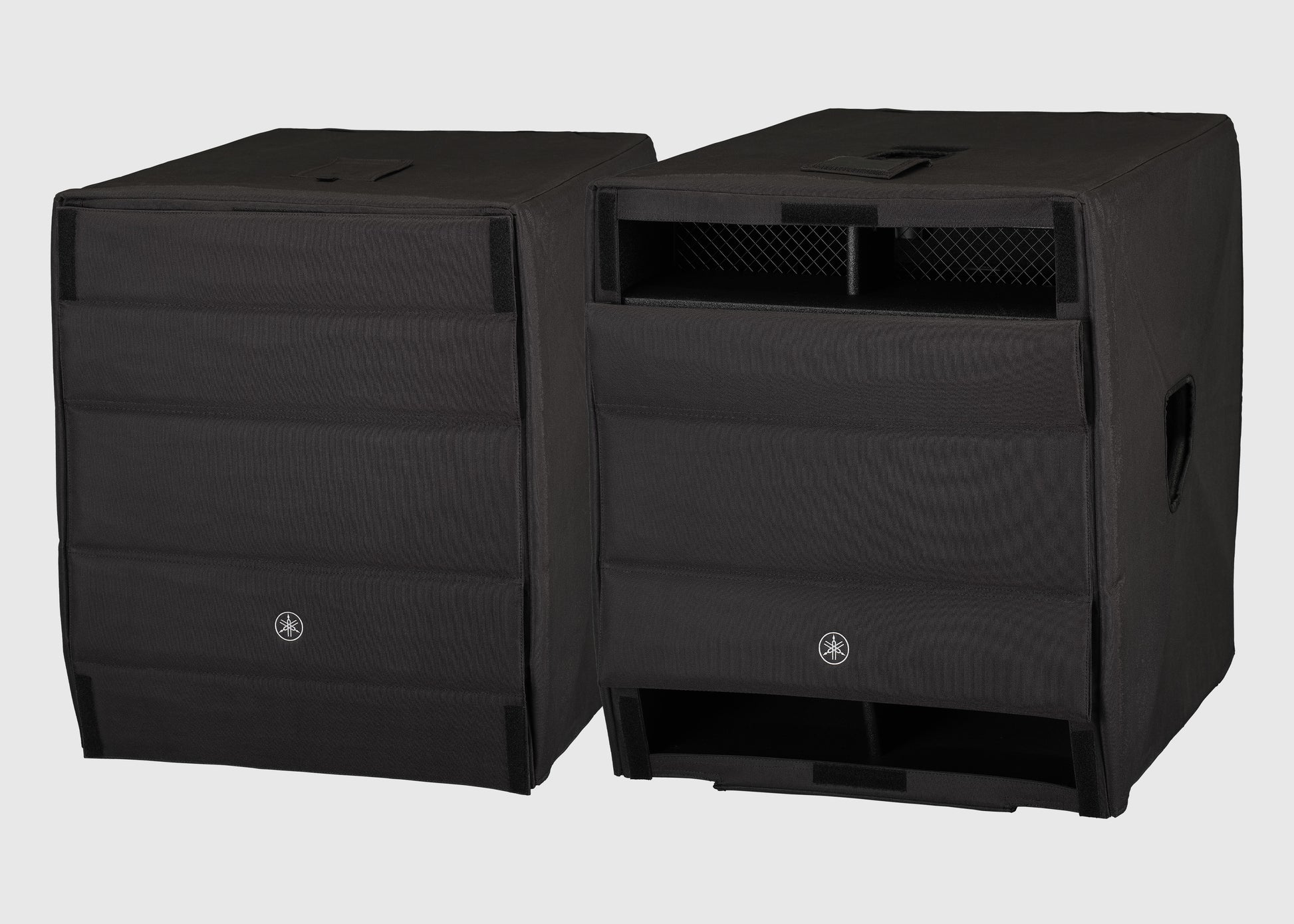

Cover: SPCVR-DXS153, Caster: SPW-1
