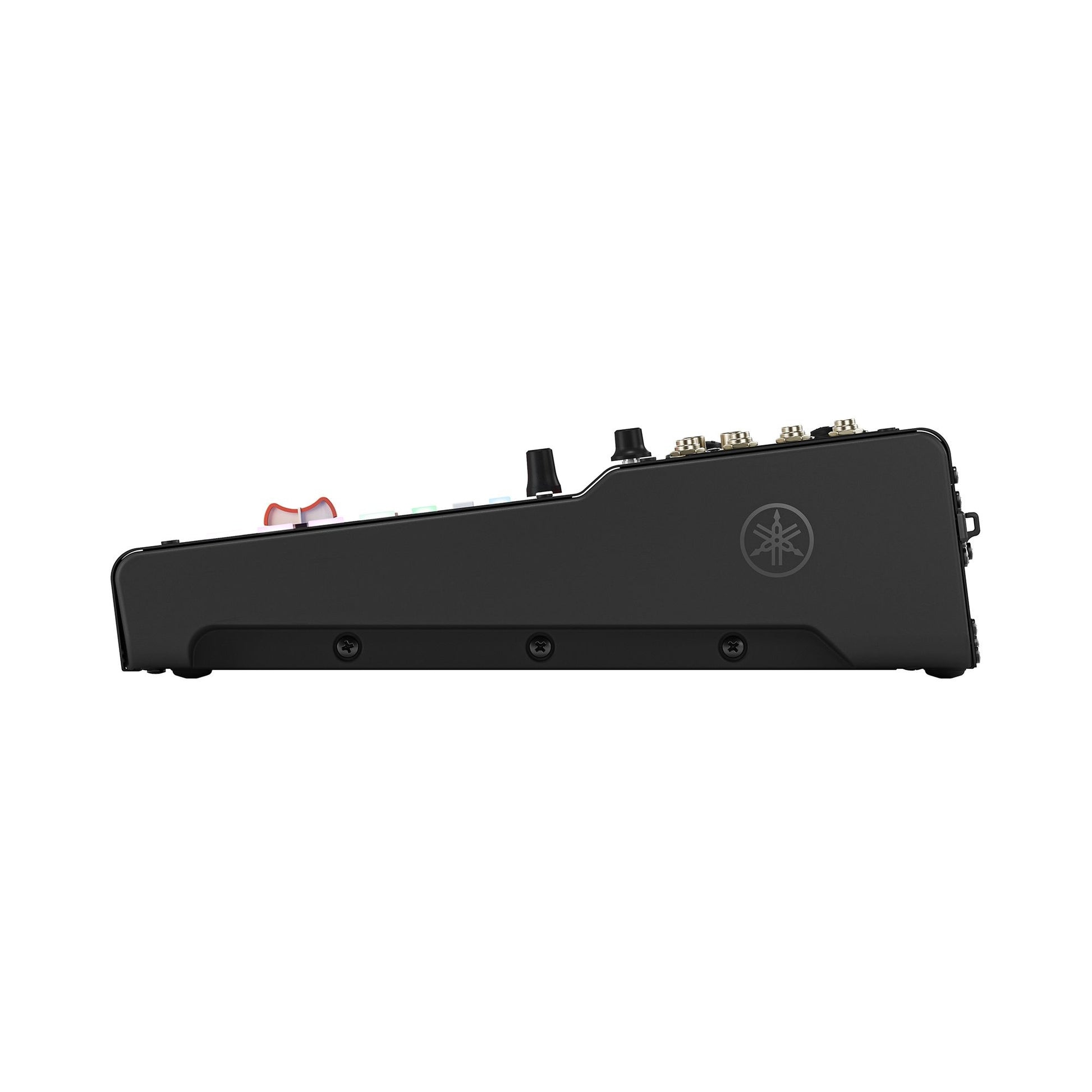

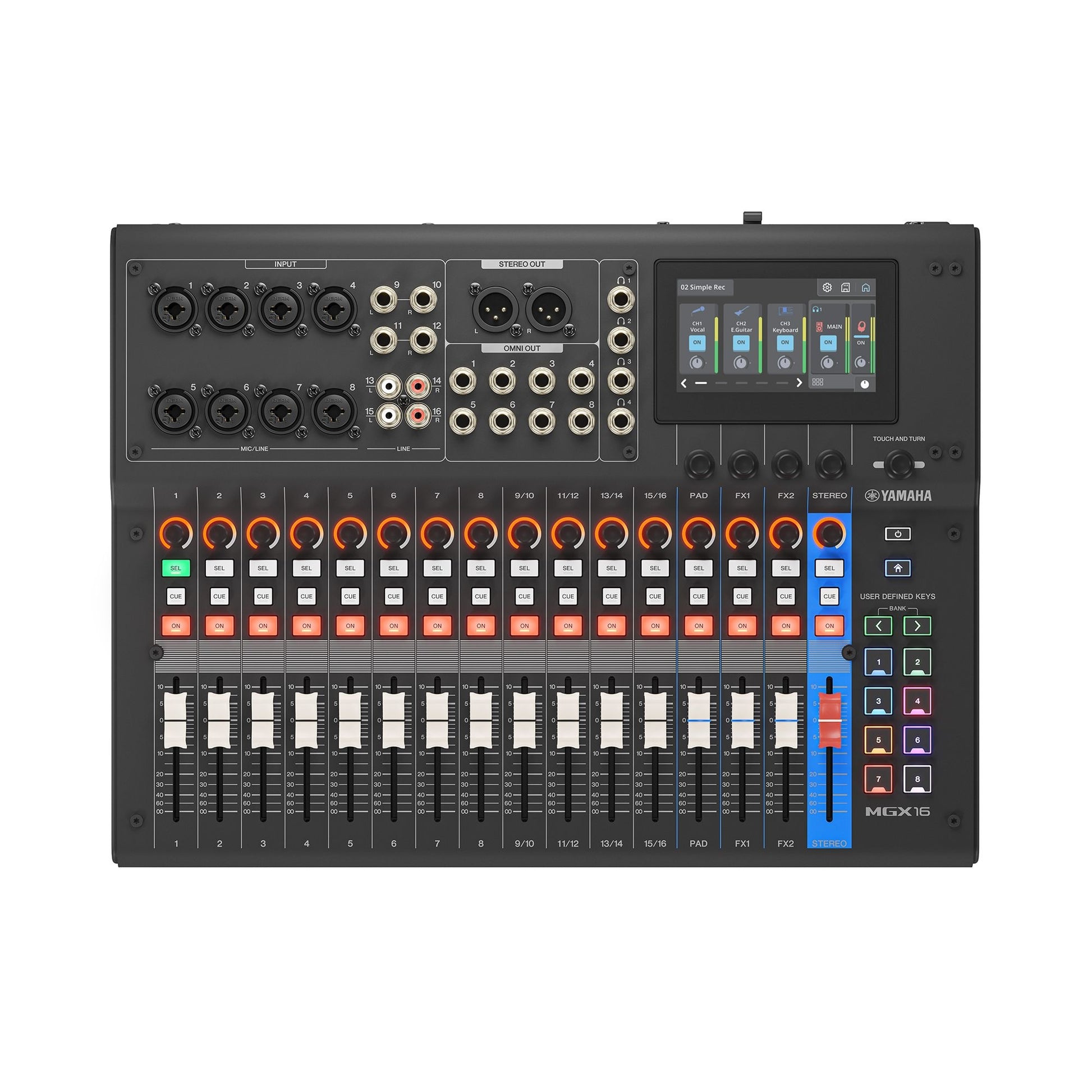

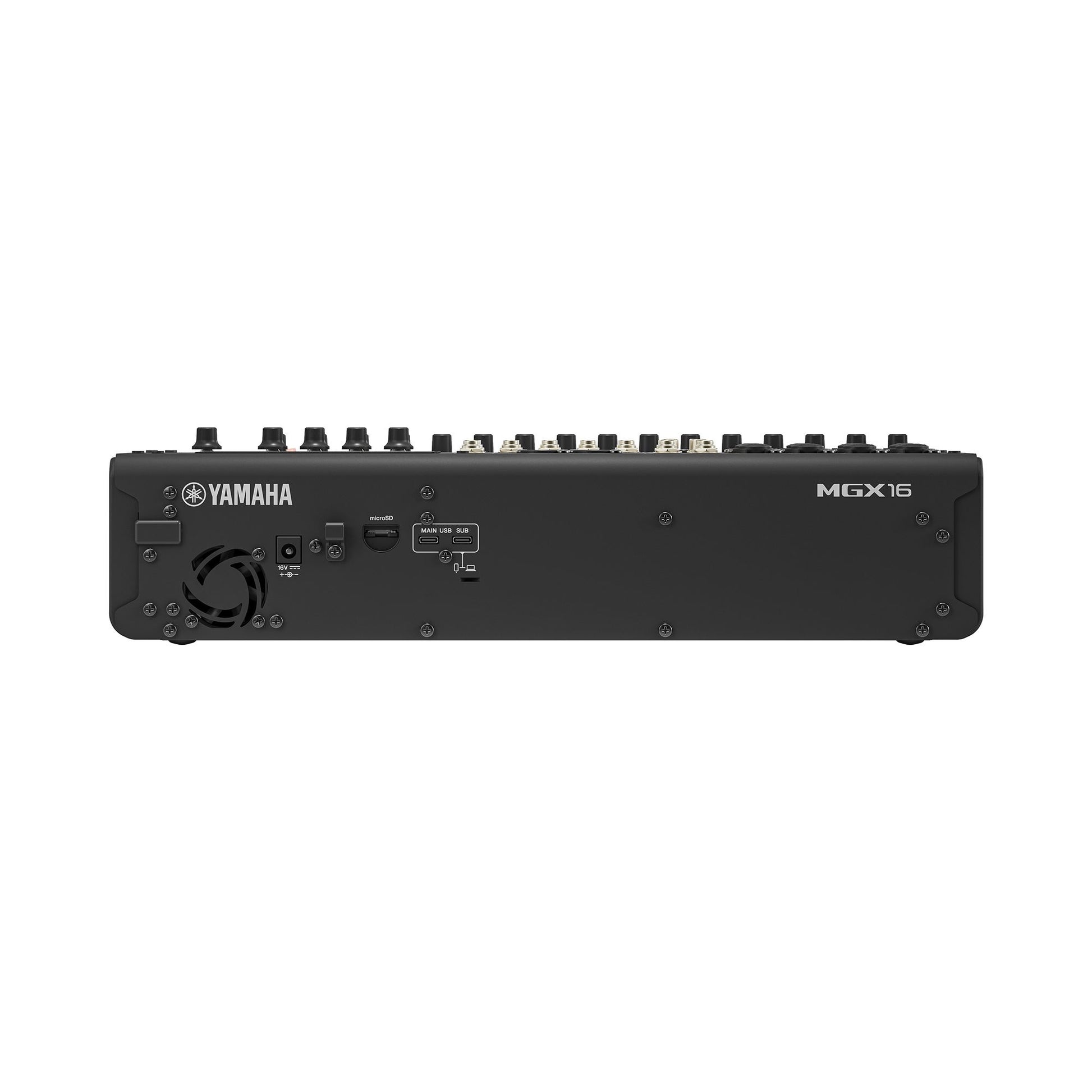

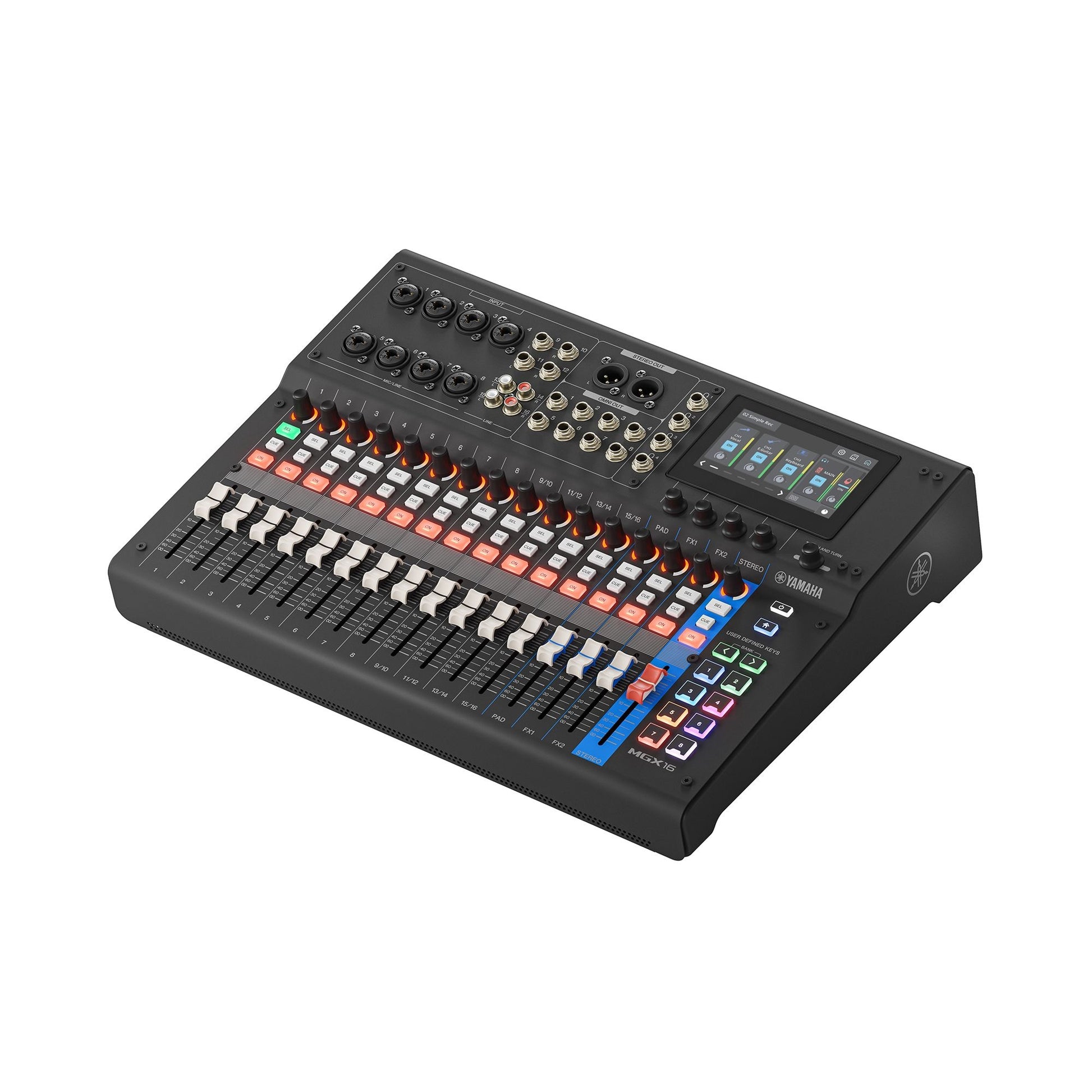

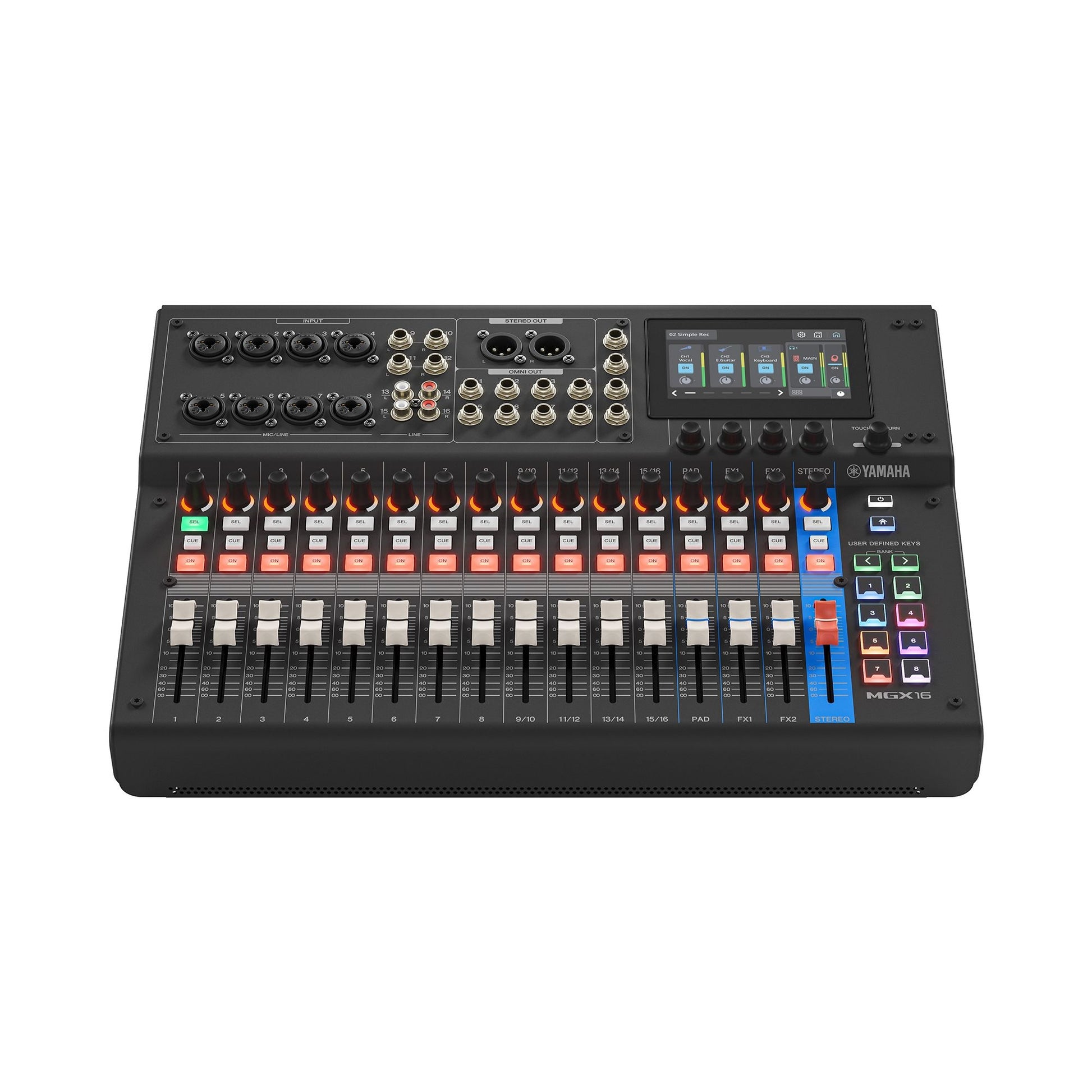

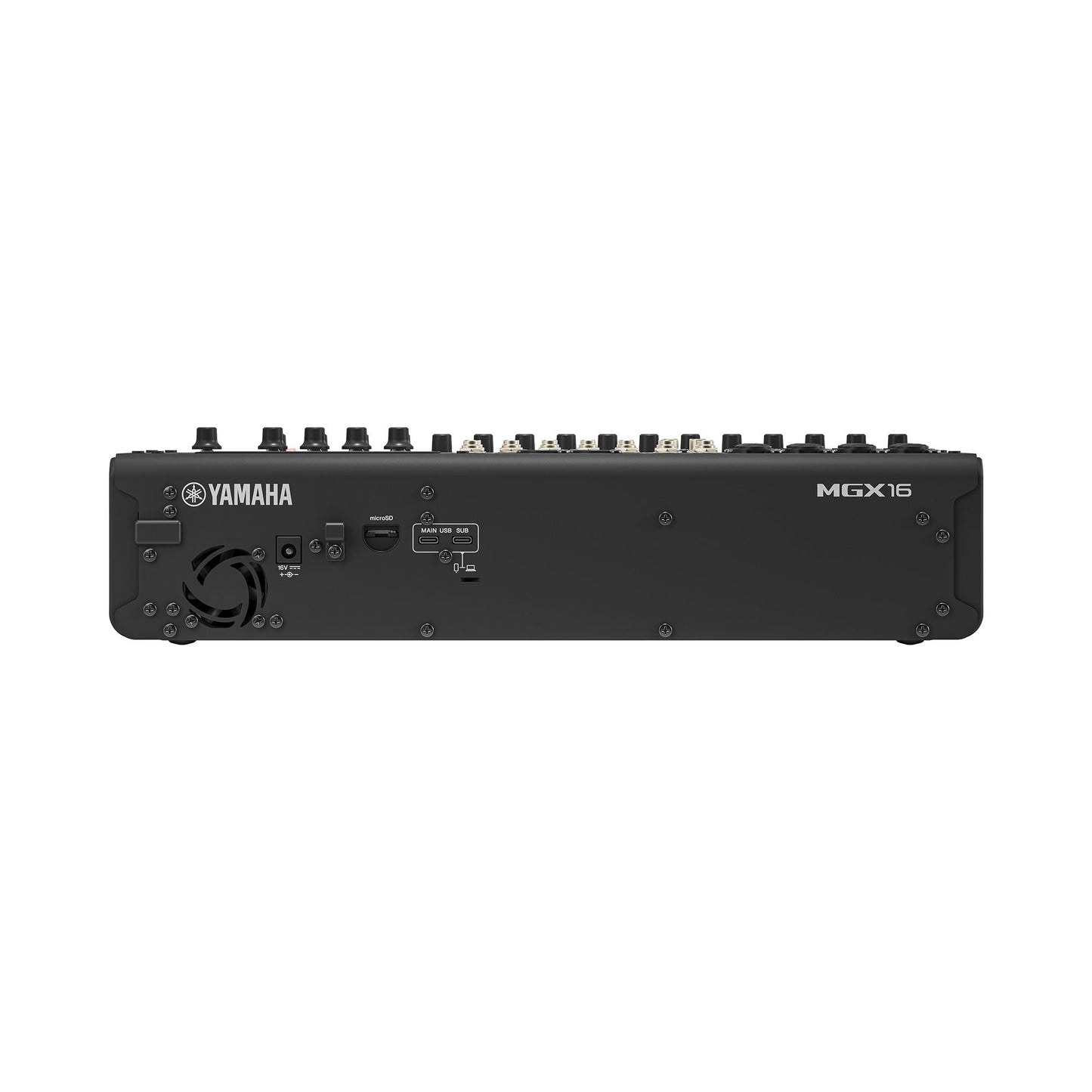

Yamaha MGX16 Compact 22-Channel Digital Mixing Console | Black

Yamaha MGX16 Compact 22-Channel Digital Mixing Console | Black

SoundPro Item: 202438 | Part Number: MGX16 B

Regular price $1,099.99
Regular price $1,330.00 Sale price $1,099.99
Your Price Sold out
MSRP: $1,330.00 | MAP: $1,099.99

In stock and ready to ship

  • Versatile Digital Mixing Console – Designed for live sound, streaming, production, and installed sound environments.
  • Premium MGX Mic Preamps – Eight mic/line combo inputs provide high gain range and low distortion.
  • Built-In DSP Effects – Includes gate, compressor, EQ, reverb, amp simulator, and voice changer.
  • USB Audio Interface – Supports 22-track recording and playback via USB MAIN and 2-track recording/playback via USB SUB.
  • Bluetooth Audio Connectivity – Allows wireless audio sources to be integrated into mixing or streaming setups.
  • Customizable Sound Pads – Eight pads can trigger sound effects or function as user-defined keys.
  • microSD Recording and Playback – Records up to 16 tracks and plays back 2 tracks directly from a microSD card.
  • Touchscreen Control Interface – Touch LCD interface with physical controllers for fast and intuitive operation.

The Yamaha MGX16 digital mixing console delivers flexibility, performance, and premium sound quality for live sound, streaming, music production, recording, and installed sound applications. Designed with intuitive touch-panel GUI operation and physical controls, it offers extensive I/O, onboard DSP processing, and flexible routing for a wide range of setups.

With MGX mic preamps, high-performance AD/DA converters, customizable sound pads, Bluetooth connectivity, USB audio interface, and microSD recording, the MGX16 functions as a versatile mixer, recording tool, and streaming hub in a compact and portable format.

View full details

Specifications

MIXING CAPACITY
Mono Channels
8
Stereo Channels
4
FX Channels
2
Sound Pad
Dedicated sound pad channel
BUS STRUCTURE
Mix Buses
8 MIX buses
FX Buses
2 FX buses
Cue Bus
1 CUE bus
Stereo Bus
1 STEREO bus
INPUTS
Mic/Line Inputs
8 combo inputs with MGX mic preamps
Line Inputs
8 line inputs
OUTPUTS
Main Outputs
2 XLR outputs
OMNI Outputs
8 TRS OMNI outputs
Headphone Outputs
4 headphone outputs
AUDIO PERFORMANCE
Mic Preamp Gain Range
86 dB
Stereo Output Dynamic Range
125 dB
CONNECTIVITY
USB MAIN
22-track recording; 22-track playback
USB SUB
2-track recording; 2-track playback
Bluetooth
Wireless audio input support
microSD Recording
Up to 16-track recording; 2-track playback
CONTROL
Faders
16 x 60 mm faders
Touchscreen
Touch LCD interface
Custom Controls
8 pads; 4 customizable knobs; Touch and Turn control knob
PHYSICAL
Weight
10.4 lb
