Yamaha SWX2322P-16MT 16-Port, L2, 250W Poe++ Multigigabit Network Switch W/4 Sfp+ Ports

Yamaha SWX2322P-16MT 16-Port, L2, 250W Poe++ Multigigabit Network Switch W/4 Sfp+ Ports

SoundPro Item: 151328 | Part Number: SWX2322P-16MT

$3,145.00
$3,145.00 $3,145.00
Your Price Sold out
MSRP: $3,145.00 | MAP: $3,145.00

Usually ships in 5-7 business days

  • 12 multi-gigabit ports (100M/1G/2.5G/5G/10G) with PoE++ and 4 SFP+ ports
  • Built-in RADIUS server for advanced security management
Log in or register for YOUR best price

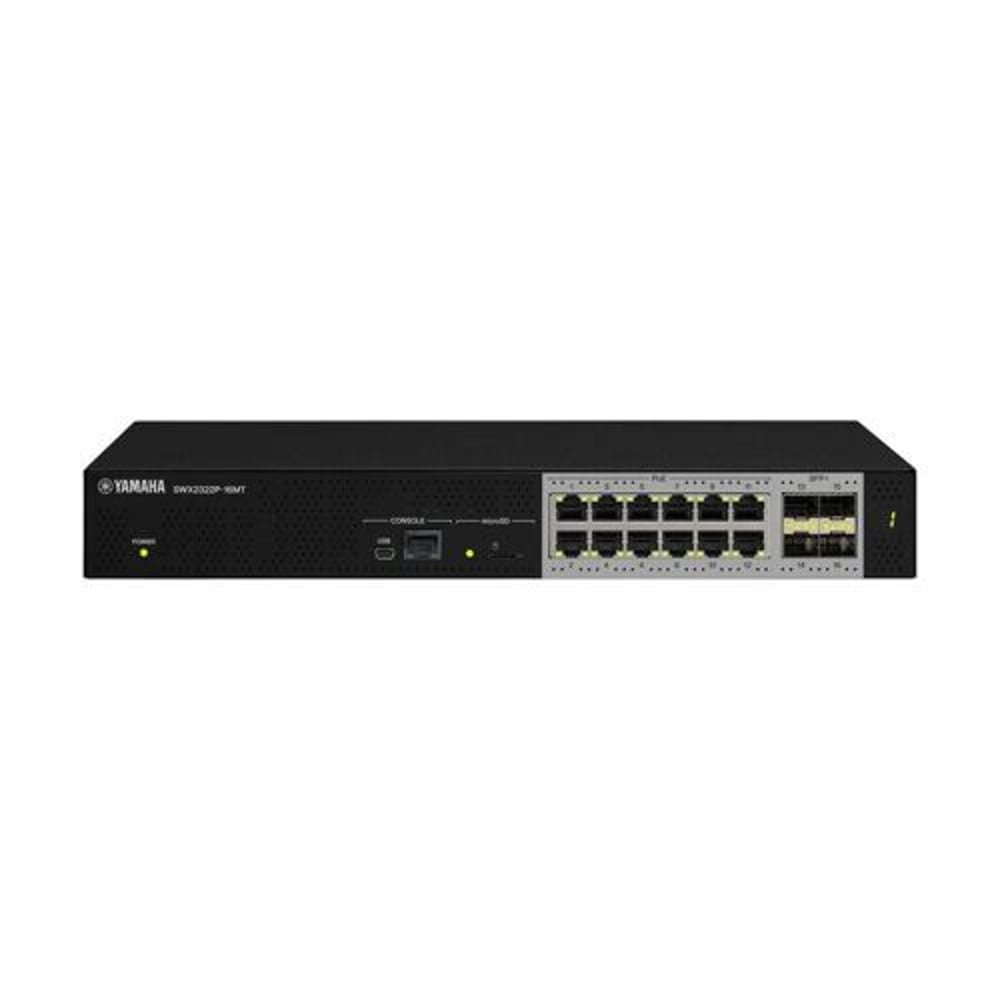

The SWX2322P-16MT is a next-generation intelligent Layer 2 switch designed to meet the evolving demands of high-performance AV networks. Ideal for business environments, concert halls, and large-scale installations, this multi-gigabit switch supports the latest in high-speed Ethernet and is optimized for seamless Dante audio integration. Equipped with 12 multi-gigabit ports (supporting 100M/1G/2.5G/5G/10G) and 4 high-speed SFP+ uplink ports, the SWX2322P-16MT ensures exceptional throughput and low-latency data transmission across your network. Built to power even the most demanding devices, this switch complies with IEEE 802.3bt, delivering PoE++ up to 90W per port (total PoE budget: 250W). Designed with AV-over-IP in mind, it also features support for PTPv2 (Transparent Clock) to ensure precise synchronization-crucial for high-quality audio and video distribution. A built-in RADIUS server adds another layer of secure network access control.

View full details

Specifications

'General Information
Manufacturer
Yamaha Corporation
Manufacturer Part Number
SWX2322P-16MT
Brand Name
Yamaha
Product Series
SWX
Product Model
SWX2322P-16MT
Product Name
SWX2322P-16MT Ethernet Switch
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
12
Network (RJ-45)
Yes
Port/Expansion Slot Details
12 x 1/2.5/5/10BASE-T Gigabit Ethernet PoE++ RJ-45 Network Port
4 x Gigabit Ethernet SFP+ Expansion Slot
1 x Mini-USB Console Port
1 x RJ-45 Console Port
Media & Performance
Media Type Supported
Twisted Pair
Optical Fiber
Ethernet Technology
Gigabit Ethernet
2.5 Gigabit Ethernet
5 Gigabit Ethernet
10 Gigabit Ethernet
Network Technology
2.5GBase-T
5GBase-T
10GBase-T
1000Base-X
100Base-TX
1000Base-T
1000Base-SX/LX
10GBase-SR/LR
Maximum Data Transfer Rate
1.25 GB/s
I/O Expansions
Total Number of Expansion Slots
4
Expansion Slot Type
SFP+
Number of SFP+ Slots
4
Network & Communication
Layer Supported
2
Networking Standards
IEEE 802.3bt
IEEE 802.3
IEEE 802.3z
IEEE 802.3ae
Power Description
PoE (RJ-45) Port
Yes
PoE Budget
250 W
Input Voltage
120 V AC
230 V AC
Frequency
50 Hz
60 Hz
Power Source
Power Supply
AC
Power Consumption
385 W
Physical Characteristics
Compatible Rack Unit
1U
Form Factor
Rack-mountable
Wall Mountable
Miscellaneous
Package Contents
SWX2322P-16MT Ethernet SwitchRack-mount BracketsManual (Read This First)Power CordPower Cord ClampDust CoversLegs19-inch Rack Mount HardwareWall Mount Hardware and Screws
Application/Usage
Network
Business
Traffic
Server
