Specifications
'General Information
Manufacturer
Yamaha Corporation
Manufacturer Part Number
SWX3220-16TMs
Brand Name
Yamaha
Product Model
SWX3220-16TMS
Product Name

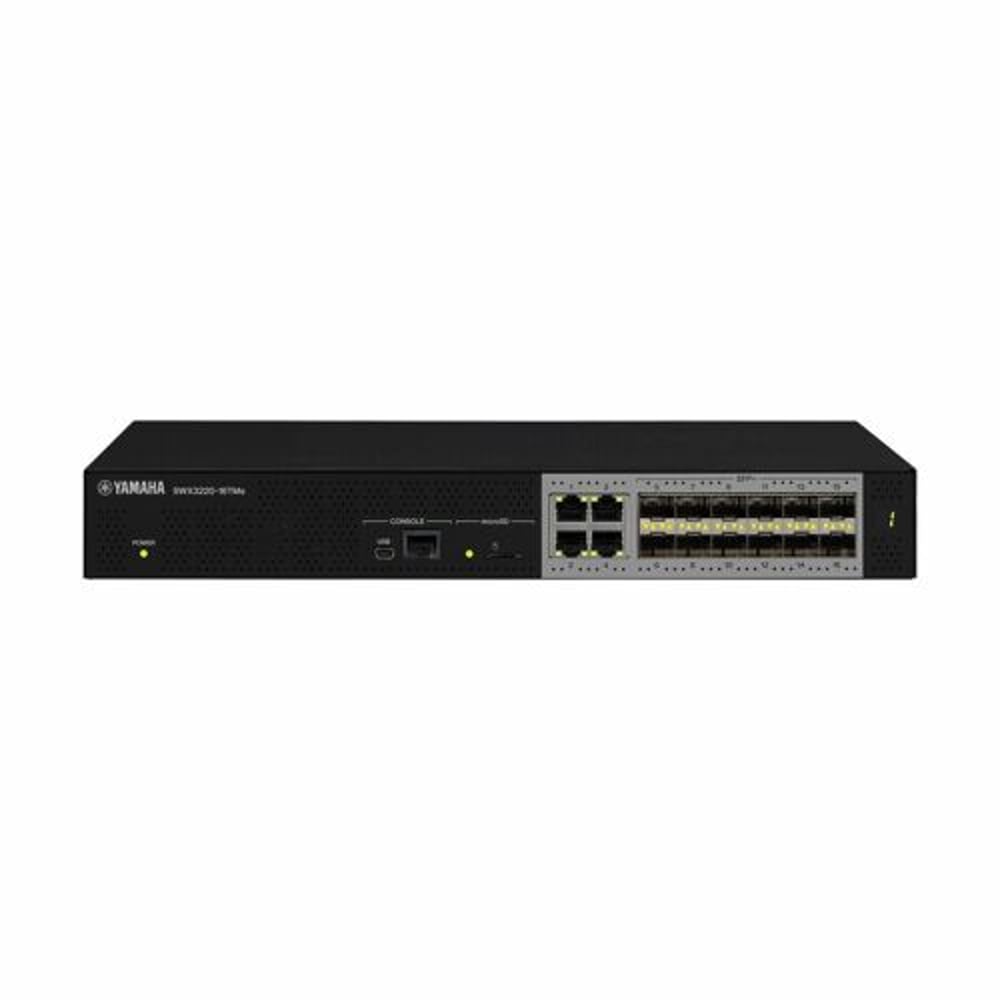

SWX3220-16TMS Ethernet Switch
Product Type
Ethernet Switch
Interfaces/Ports
Total Number of Network Ports
4
Modular
Yes
Network (RJ-45)
Yes
Port/Expansion Slot Details
12 x 1/10 Gigabit Ethernet SFP+ Expansion Slot
4 x 1/2.5/5/10 Gigabit Ethernet RJ-45 Network Port
1 x Mini-USB Console Port
1 x RJ-45 Console Port
1 x MicroSD slot
Media & Performance
Media Type Supported
Twisted Pair
Optical Fiber
Ethernet Technology
Gigabit Ethernet
2.5 Gigabit Ethernet
5 Gigabit Ethernet
10 Gigabit Ethernet
Network Technology
1000Base-T
2.5GBase-T
5GBase-T
10GBase-T
1000Base-SX
1000Base-LX
10GBase-SR
10GBase-LR
1000Base-X
10GBase-X
100Base-TX
Maximum Data Transfer Rate
1.25 GB/s
I/O Expansions
Total Number of Expansion Slots
12
Expansion Slot Type
SFP+
Number of SFP+ Slots
12
Network & Communication
Layer Supported
3
Networking Standards
IEEE 802.3
IEEE 802.3z
IEEE 802.3ae
Power Description
Input Voltage
120 V AC
230 V AC
Frequency
50 Hz
60 Hz
Power Source
Power Supply
AC
Power Consumption
61 W
Plug/Connector Type
C14
Physical Characteristics
Form Factor
Rack-mountable
Wall Mountable
Miscellaneous
Package Contents
SWX3220-16TMS Ethernet SwitchManualPower CordPower Cord ClampLegsDust Covers19-inch Rack Mount hardwareWall Mount hardwareScrews
Application/Usage
Network
Business
Security
Server
Traffic
