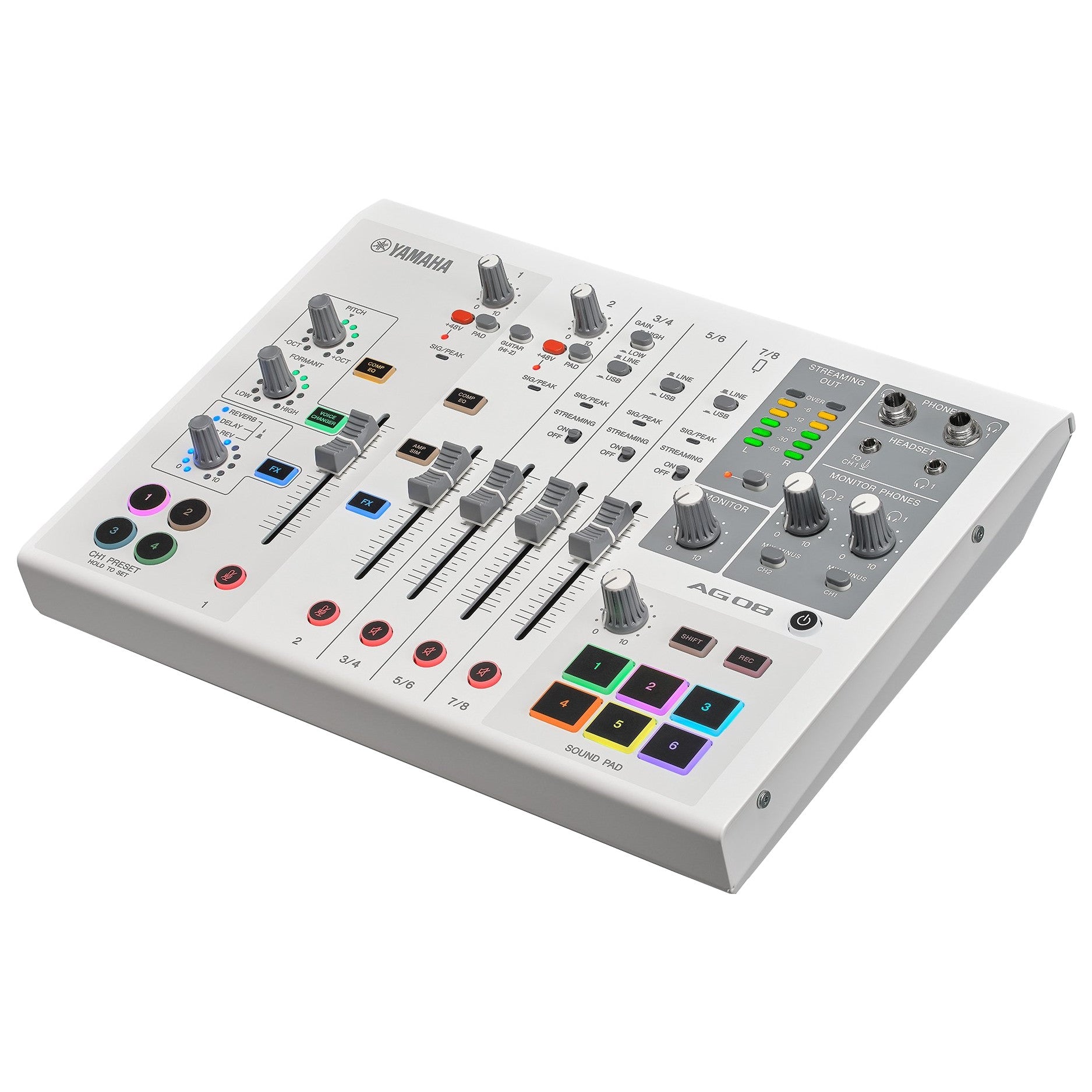

• Yamaha AG08 8-Channel Live Streaming Mixer black

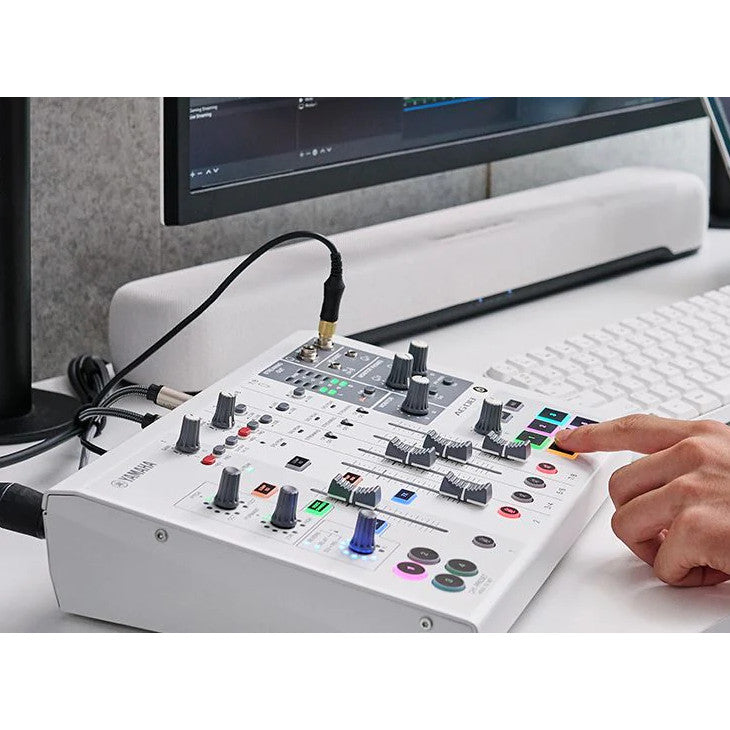

  • Yamaha AG08 8-Channel Live Streaming Mixer lifestyle white
1 2

Yamaha AG08 8-Channel Live Streaming Mixer | Color: White

Yamaha AG08 8-Channel Live Streaming Mixer | Color: White

SoundPro Item: 137472 | Part Number: AG08 W

$499.99
$659.00 $499.99
Your Price Sold out
MSRP: $659.00 | MAP: $499.99

Usually ships in 5-7 business days

  • Two mic/line inputs and two headphone outputs can be used simultaneously
  • +48V phantom power on CH1 and 2 for condenser mics or Dl boxes
  • Four FX preset buttons for CH1, Hi-Z input for guitars on CH2
  • Three stereo inputs with assignable faders, switchable input source for LINE/USB
  • 4-pole mini input/output (TRRS) on CH7/8
  • MONITOR outputs (XLR + TRS) and MIX outputs (TRS)
  • Six sound pads trigger audio samples in real time to add color to live streams
  • Internal circuitry delivers highest sound-quality in the AG series
  • 24-bit, 48 kHz Multi-channel audio recording and playback (Coexistence of ASIO and WDM)
  • Flexible inputs and outputs ideal for live streaming
  • DSP effects (Voice Changer, Amp Simulator, Comp, EQ, Reverb, Delay, Ducker, Maximizer)
  • AG08 Controller (Windows / Mac / iOS) for precise parameter control and detailed audio management
  • 60 mm faders and Mute buttons for each input
  • Foot switch functionality for more versatile system control
  • Windows / Mac support via USB-C connection
  • iOS connectivity via Apple Camera Adapter (requires external USB power supply)
  • Android supported by 4-pole mini input/output (TRRS)
  • USB-C power input (5 V DC, 1.5 A)
  • Cubase Al, WaveLab Cast, Cubasis LE are available
Log in or register for YOUR best price

Experience a powerful, all-in-one streaming solution with the AG08. Part of Yamaha’s AG series of live-streaming mixers, the AG08 boasts 8 channels, intuitive controls, premium circuitry, and versatile features that make it a great choice for musicians, dialog-driven content creators, and more.

View full details

Specifications

Dimensions
Bit Depth
24-bit
Dimensions (WxHxD)
11.5x3.5x8.8" (290x88x222mm)
Weight
Net Weight
4.9 lbs (2.2kg)
Electrical
Power Requirements
DC 12V, 1.5 A / USB-C 5V, 1.5 A
Power Consumptions
Max. 7.5W
Audio
USB USB Audio
8 IN / 14 OUT, USB Audio Class 2.0 Compliant
Connectivity
USB
4 Stereo Audio Channels (Streaming, Voice, AUX, FROM DAW)
Output Channels PHONES
2 - CH1: 6.3 mm (1/4") Stereo / HEADSET mini PHONES *Cannot be used simultaneously, CH2: PHONESSmartphone: 1 - 4-pole mini input/output (TRRS)MONITOR OUT: 2 - LR Stereo: XLR, 1/4 TRS PhoneSTEREO OUT: 1 - MIX: LR Stereo TRS PhoneUSB: 1 - USB: 4 Stereo Audio Channels (Streaming, Voice, AUX, TO DAW), 8 Channels Direct Out *In Windows environment, ASIO channel and USB 2.0 exist independently. Please check the block diagram for details.
Type-CUSB DC Power Input
1 - Type-C, 5V DC, 1.5 A
Compatibility
Compatible Operating Systems
Windows AG08 ControllerYamaha Steinberg USB Driver, Mac AG08 ControllerYamaha Steinberg USB Driver
Environmental
Operating Temperature
0 to + 40°C
General
CH1
Combo (Mic, +48 V phantom power / Line), 3.5 mm (1/8”) stereo mini (Headset mic, Plug-in power)
CH2
Combo (Mic, +48 V phantom power / Guitar input / Line) *CH1 input and Headset mic cannot be used simultaneouslyStereo [LINE]: 3 -
CH3/4
LR Stereo Phone
CH5/6
LR Stereo RCA/3.5 mm stereo mini (AUX)
CH7/8
4-pole mini in/out (TRRS)AUX: 1 -
Stereo Minismartphone
1 - 4-pole mini input/output (TRRS)USB: 1 -
Bus
4 Stereo
Functions
MUTE button x 5, CH1 FX preset button x 4, Sound pad x 6, +48 V phantom power x 2, GUITAR(HI-Z) x 1, PAD x 2, GAIN HIGH/LOW x 1, LINE/USB x 3, STREAMING ON/OFF x 3, CUE x 1, MIX MINUS (CH1, 2)
Onboard Processors - DSP
Voice Changer, Amp Simulator, COMP, EQ, REVERB (SPX Reverb), Delay, Ducker, Maximizer *Detail is operated on AG Controller
Sampling Frequency
Max. 48 kHz
iOS
AG08 Controller for iOS
