Yamaha CHR10 10-Inch Passive Speaker
Yamaha CHR10 10-Inch Passive Speaker
SoundPro Item: 122968 | Part Number: CHR10
Usually ships in 5-7 business days
- Plywood cabinet that delivers a clear sound with minimal vibration
- Compact appearance thanks to the 10" LF driver that provides excellent low frequency response
- Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
- Pole socket for use on a stand
- Rigging points for use with eye bolts
- Optional UB-DXRDHR10 U-bracket allows both for vertical or horizontal use
- Yamaha DSP equipped amplifiers or other compatible signal processors have dedicated speaker processor tuning settings to maximize system performance
Great for fixed installations and utilities, the CHR10 from Yamaha is a 10” passive loudspeaker equipped with a rotatable HF horn.
High-power output woofers deliver well-defined, powerful bass with minimal distortion, while the 1.4” precision compression driver produces accurate mid-range and high frequencies.
An optional UB-DXRDHR10 U-bracket (sold separately) allows for horizontal or vertical mounting.
- Speaker Type2-way Speaker, Bass-reflex
- Frequency Range (-10dB)55Hz - 20,000Hz
- Coverage Area (HxV)90° x 60° (rotatable)
- Crossover2,500Hz
- Nominal Impedance8Ω
- SPL
- Sensitivity (1W; 1m on axis): 93 dB SPL
- Peak (calculated): 122 dB SPL
- Components
- LF
- Diameter: 10" cone
- Voice Coil: 2"
- Magnet: ferrite
- HF
- Diaphragm: 1.4"
- Type: 1" throat compression driver
- Magnet: ferrite
- Power Rating
- Noise: 175W
- PGM: 350W
- Peak: 700W

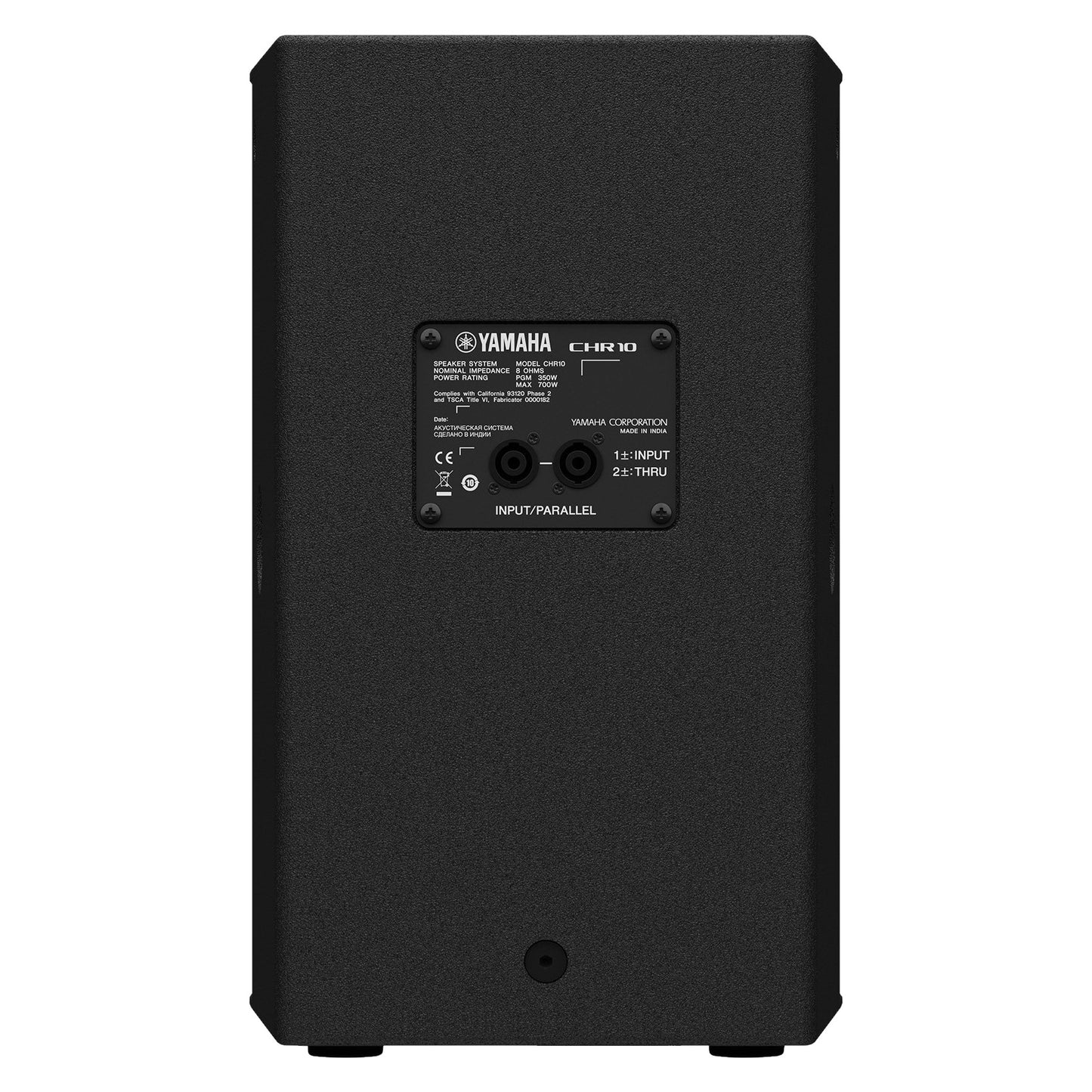

- I/O ConnectorsSpeakON NL4MP x 2 (Parallel)
- Cabinet Materialplywood
- Finishdurable polyurea painting, black
- Handletop (1)
- Pole SocketΦ35 mm x1 (Bottom)
- RiggingTop x 2, Rear x 1 (Fit for M10 x 30 - 50 mm Eyebolts)
- Dimensions (WxHxD)12x19.5x11.8"
- Weight30.2 lbs
