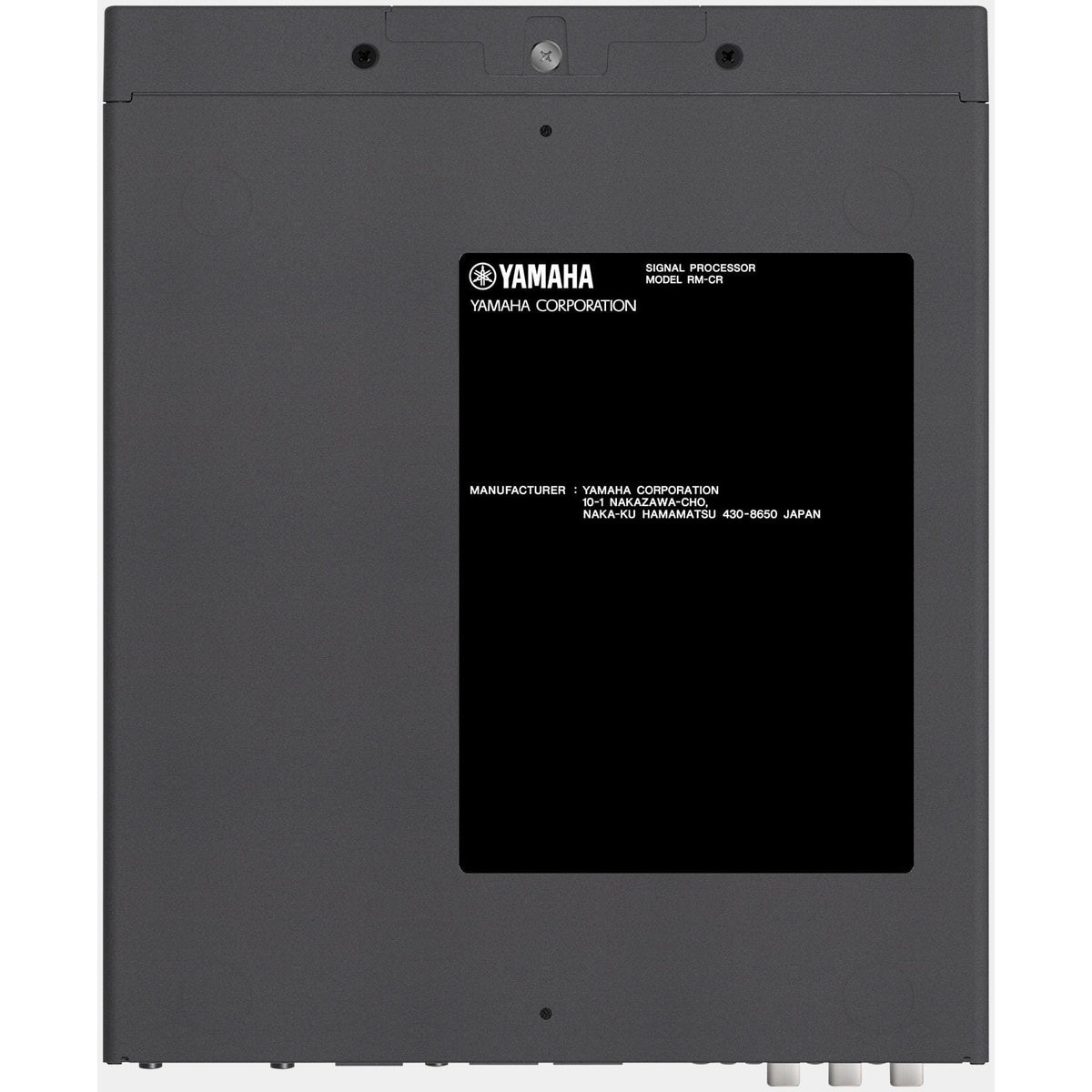

• Yamaha RM-CR RM Audio Processor
  • Yamaha RM-CR RM Audio Processor
  • Yamaha RM-CR RM Audio Processor
1 4

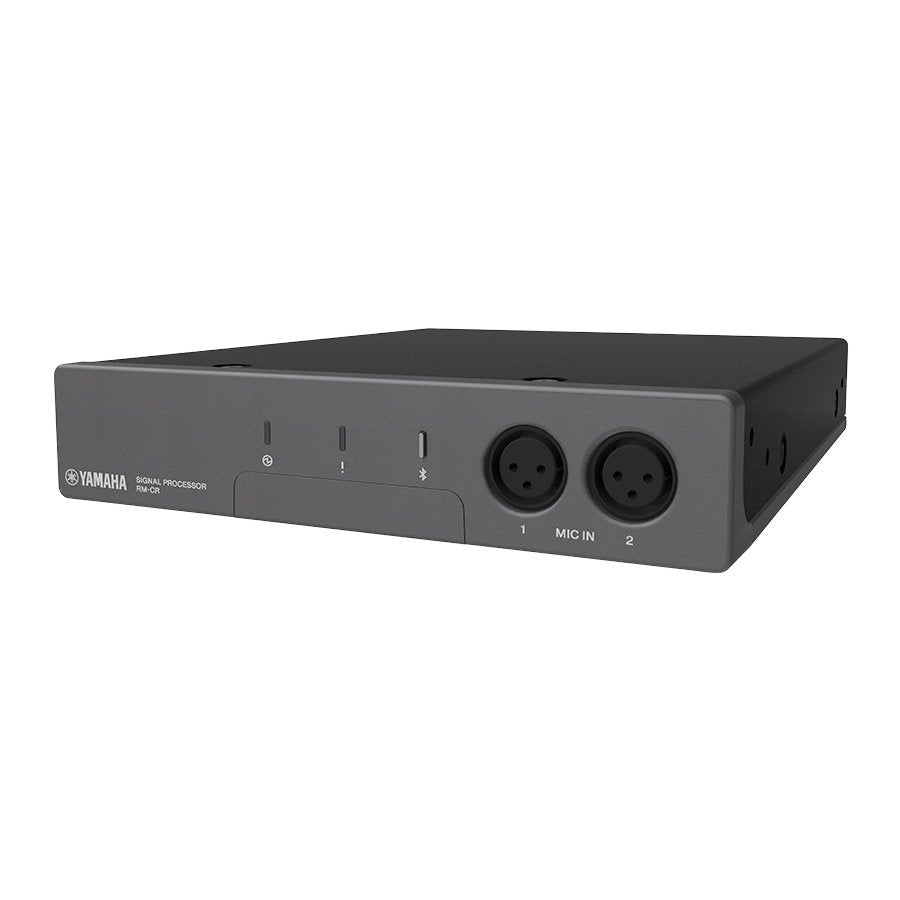

Yamaha RM-CR ADECIA Remote Conference Signal Processor

Yamaha RM-CR ADECIA Remote Conference Signal Processor

SoundPro Item: 138786 | Part Number: RM-CR

$2,099.99
$2,100.00 $2,099.99
Your Price Sold out
MSRP: $2,100.00 | MAP: $2,099.99

Usually ships in 5-7 business days

  • Dante Network Audio Support Connects All Compatible Devices Over A Single Cable
  • Auto Tuning Measures Room Acoustics And Applies Optimum Settings Automatically
  • Auto Mixer Continuously Manages Gain Across All Connected Microphones
  • AI Denoiser Suppresses Background Noise For Clearer Remote Conversations
  • Multi-Protocol Call Bridging Merges SIP, USB, Bluetooth, And AUX Simultaneously
  • PoE+ Power Delivery Eliminates Dedicated Power Runs During Installation
  • Table Mount And Rack Mount Support Adapts To Diverse Deployment Scenarios
Log in or register for YOUR best price

The Yamaha RM-CR is the signal processing core of the ADECIA conferencing ecosystem, purpose-built for AV integrators and corporate IT teams deploying professional meeting room audio. It consolidates Dante network audio, USB, analog, Bluetooth, and SIP into a single unit, reducing infrastructure complexity while delivering consistent, intelligible audio across room types. Auto Tuning measures room acoustics and applies optimized settings automatically, cutting commissioning time compared to manual DSP configuration.

For larger rooms or multi-zone installs, the Auto Mixer continuously manages gain across all connected microphones without manual intervention, while the AI Denoiser suppresses background noise for clearer remote communication. The Voice Lift System auto-setup extends coverage to larger spaces without requiring a separate DSP or additional configuration steps. Call bridging supports simultaneous SIP, USB, Bluetooth, and AUX connections, making the RM-CR a fit for hybrid conferencing workflows where multiple call pathways must merge into a single audio stream.

Installation is simplified by PoE+ power delivery over Ethernet, eliminating a dedicated power run. The unit supports both table mount and rack mount configurations, adapting to furniture-based and AV rack deployments. With Dante audio at 16 in and 16 out, the RM-CR integrates directly into existing Dante-based audio infrastructures, making it a natural fit for organizations standardized on networked AV.

View full details

Specifications

Dimensions
Width
215 mm
Depth
260 mm
Height
44 mm
Weight
Unit Weight
1.6 kg
Electrical
Power Requirements
PoE+ (IEEE 802.3at, LLDP), DC 48 V
Maximum Power Consumption
15.0 W
Audio
Dante Audio I/O
16 in / 16 out
Sampling Rate
48 kHz
Bit Depth
24 bit
Latency
8 ms (Dante In to USB Out, includes signal processing)
Frequency Response
20 Hz - 20 kHz
Mic Input
XLR balanced, 2 ch
AUX Input
RCA unbalanced (Line Level), 2 ch
AUX Output
RCA unbalanced (Line Level), 2 ch
Speaker Out
RCA unbalanced (Line Level), 2 ch
Connectivity
Connectors
RJ45, USB, XLR balanced, RCA
Ether1
Dante Audio/Dante Control, Remote Control, WebUI, PoE+
Ether2/Ether3
Corporate Network, Remote Control, SIP, Web UI
USB (Network Class)
USB 2.0, Network Class, Web UI, Fixed IP
USB (Audio Class)
USB 2.0, Audio Class 1.0, Input: 2 ch, Output: 2 ch @ 48 kHz
Bluetooth Version
Bluetooth 4.2
Bluetooth Profiles
HFP (1.6), A2DP, AVRCP
Bluetooth Codecs
CVSD, SBC, mSBC
Bluetooth Class
Class 2
Maximum Bluetooth Range
10 m (32.8 ft) (no obstacles)
Radio Frequency
2,402 to 2,480 MHz
Maximum Output Power (EIRP)
4.0 dBm (2.5 mW)
SIP
SIP Features
Dial, Answer, Hold, Resume, Forwarding, Do Not Disturb, Call ID, Voice Mail Notifications
Call Bridging
SIP, USB, BT, AUX; 5+1 Lines: up to 2 SIP, 1 USB, 1 Bluetooth, 1 AUX
Voice Codecs
G.711, G.722HD, G.729ab, G.726
DTMF Support
RTP event, SIP in-band, SIP info package
Security
SRTP Support (RFC 1889), IETF SIP support (RFC 3261 and companion RFCs)
Environmental
Operating Temperature
0 - 40 deg C
Operating Humidity
30% - 90% (No condensation)
Storage Temperature
-20 - 60 deg C
Storage Humidity
20% - 90% (No condensation)
Construction
Mount Options
Table Mount, Rack Mount
Indicators
Power, Status, Bluetooth, Network Port (x3)
Compatibility
Supported OS
Windows 11, Windows 10 (32/64-bit), Windows 8.1 (32/64-bit), macOS 12, macOS 11, macOS 10.15
Included Items
Accessories
Installation Manual, USB Cable (A-B) 5 m (16.4 ft), USB Cable (A-micro B) 1 m (3.3 ft), 4x Rubber Foot, Access Panel
Identifiers
Options
RM-MTL: Table Mount Kit, RM-MRK: Rack Mount Kit
