Yamaha CS-R5 RIVAGE PM5 Control Surface
Yamaha CS-R5 RIVAGE PM5 Control Surface
SoundPro Item: 79418 | Part Number: CS-R5
Pricing available upon request
Pricing available upon request
Usually ships in 5-7 business days
- Lightweight and compact control surface with professional-grade features
- Can be easily carried and positioned by just two people
- A good choice for applications on the road or venues where rearranging your sound setup is often necessary
- Adds a third display screen
- Hybrid Microphone Preamplifiers with analog input stages
- Digital sections with immaculate VCM-technology models of Rupert Neve Designs transformer and SILK processing circuitry
- Advanced built-in plug-ins
- Two I/O types: TWINLANe and Audinate Dante network compatibility
- Channel EQ and compression updated and fine-tuned to match innovations to the input section
- Over 50 plug-ins
- Selected Channel section provides direct and fast access to all channel parameters
- Control send levels from Send/User Defined knobs for more control
- Easy-reach layout and improved sight line
- High-visibility fader meters
- Yamaha proprietary immersive sound control (AFC Image)
- Can be integrated with supported wireless receivers
- Overlay filter for rapid response
- Theatre mode
- DSP mirroring for failsafe redundancy
- Console file converter to share data between different Yamaha consoles

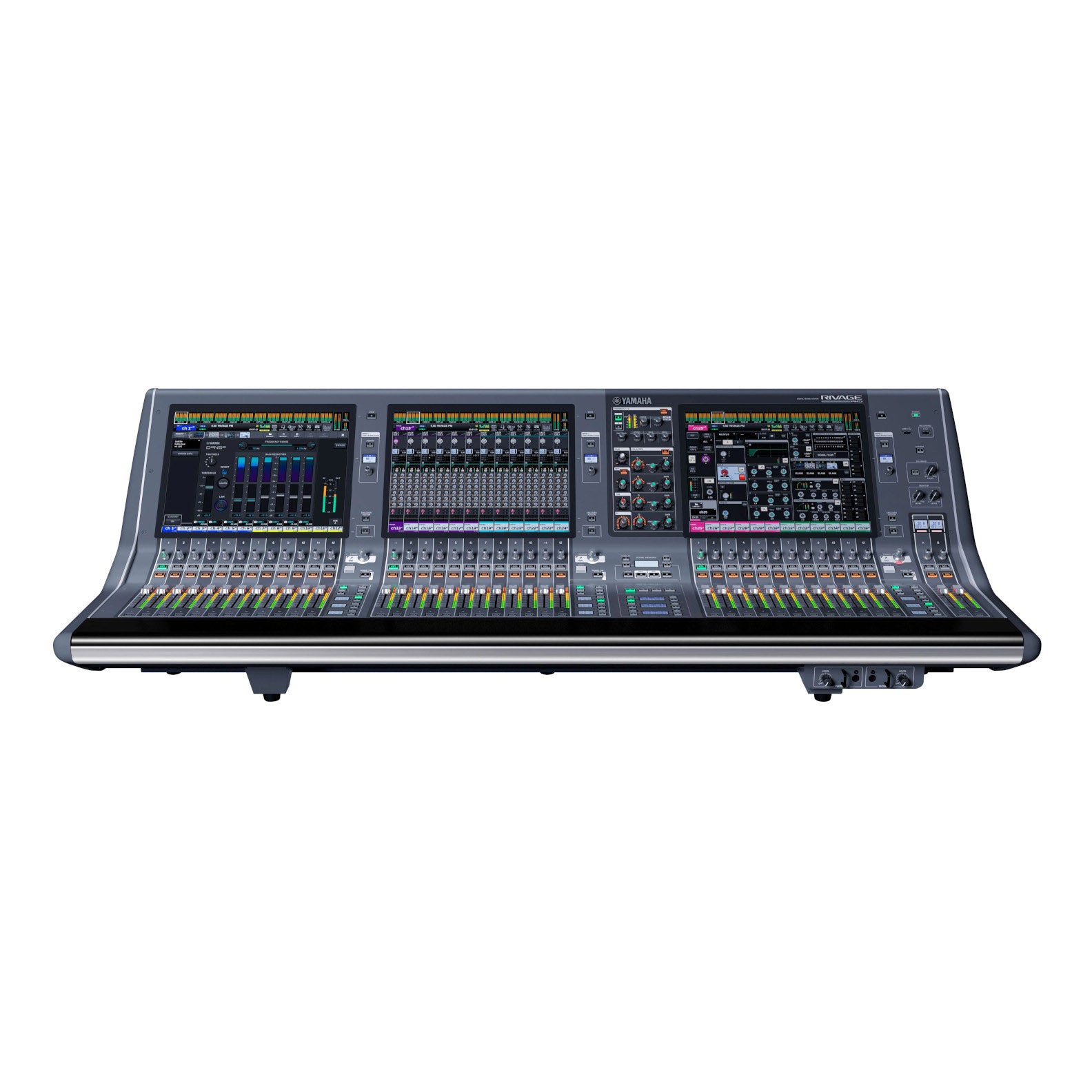

A core component of the RIVAGE PM5 system, the CS-R5 from Yamaha is surprisingly lightweight and compact.
Weighing in at 92.6 lbs. (42kg), it can be easily carried and positioned by just two people, making it a good choice for applications on the road or venues where rearranging your sound setup is often necessary. Innovative mechanical design and the use of lightweight, extremely durable material for its construction have allowed for this impressive weight reduction.
Despite its compact form factor and lower weight, the CS-R3 RIVAGE PM3 offers nearly the same software and operation as its larger counterparts, with premium performance and professional-grade features, such as 96 kHz processing, a spacious and intuitive interface, and more.
- Mixing Capacity288 Inputs, 72 MIX + 36 MATRIX + 2 STEREO (DSP-RX-EX)
- Sampling Frequency, Internal Clock
- Frequency: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
- Accuracy: ±50 ppm
- Jitter: 1.0 ns @Fs=88.2 kHz/96 kHz, 2.0 ns @Fs=44.1 kHz/48 kHz
- User Interface
- 100 mm touch-sensitive motorized fader (resolution=1024 steps) × 38
- 15" multi-touch screen (high brightness, wide view angle) x 3
- Touch sensitive knobs in the Selected Channel section
- Power Requirements100-240V, 50/60Hz
- Power Consumption300W
- Dimensions (WxHxD)56.85x16.29x25.32"
- Weight92.59 lbs
