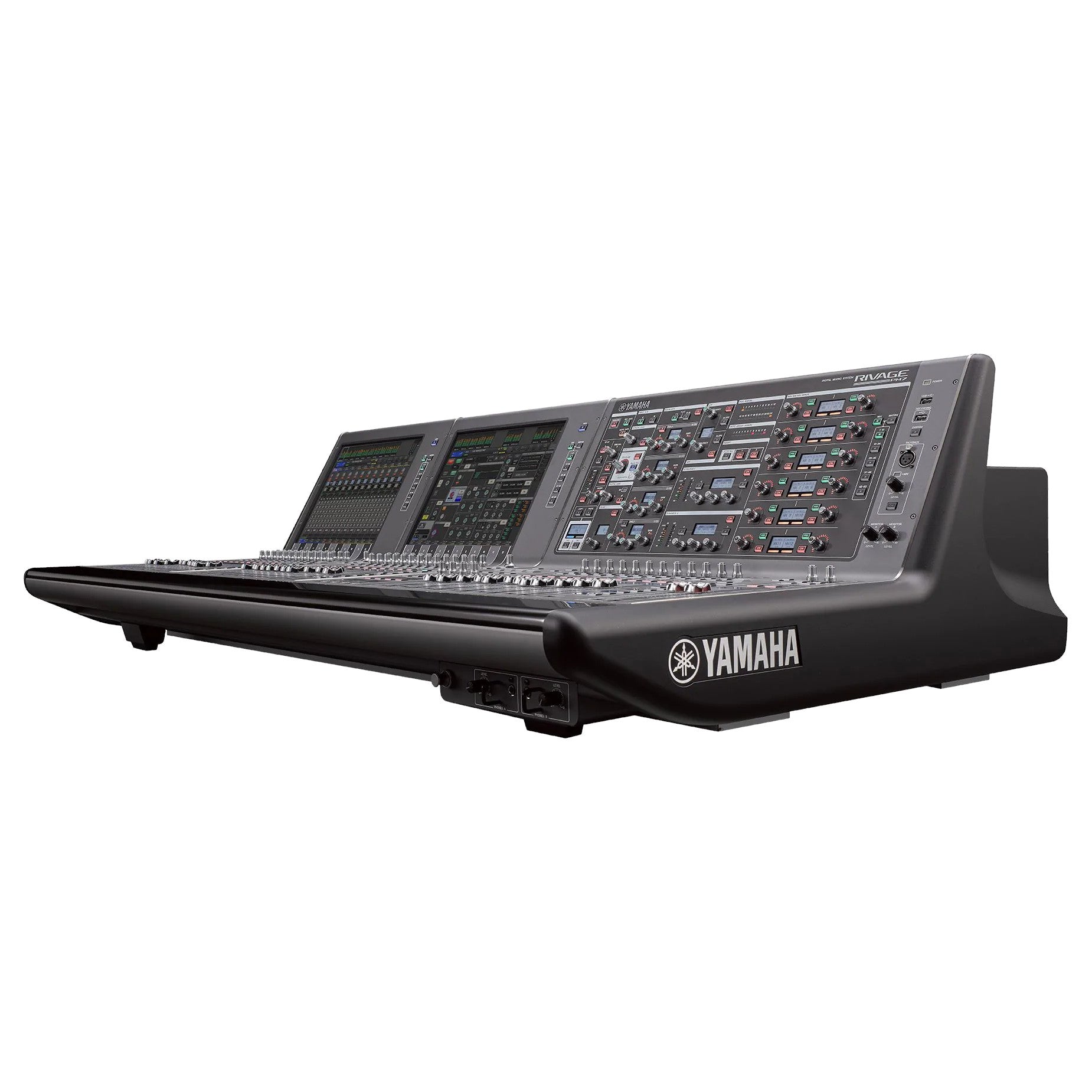

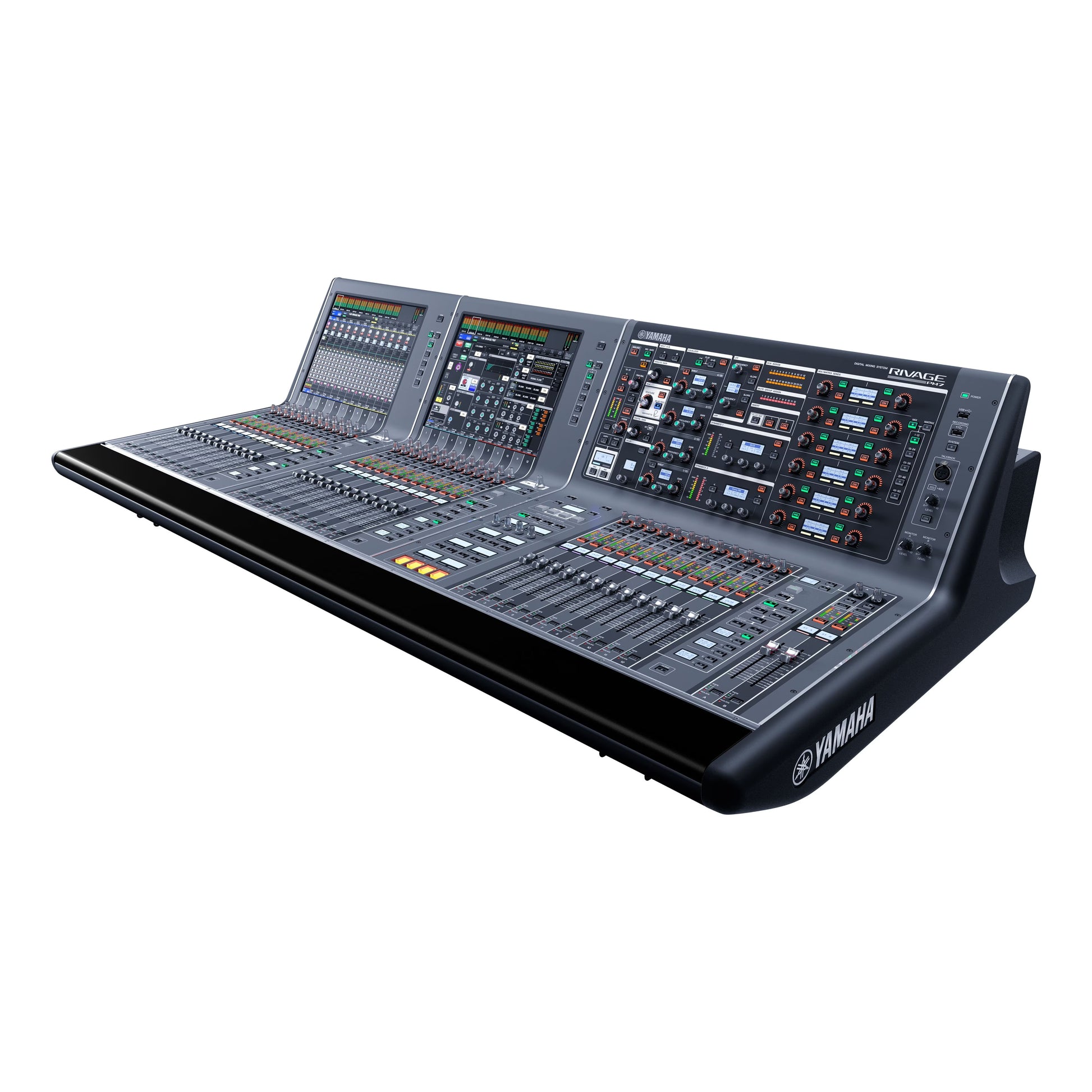

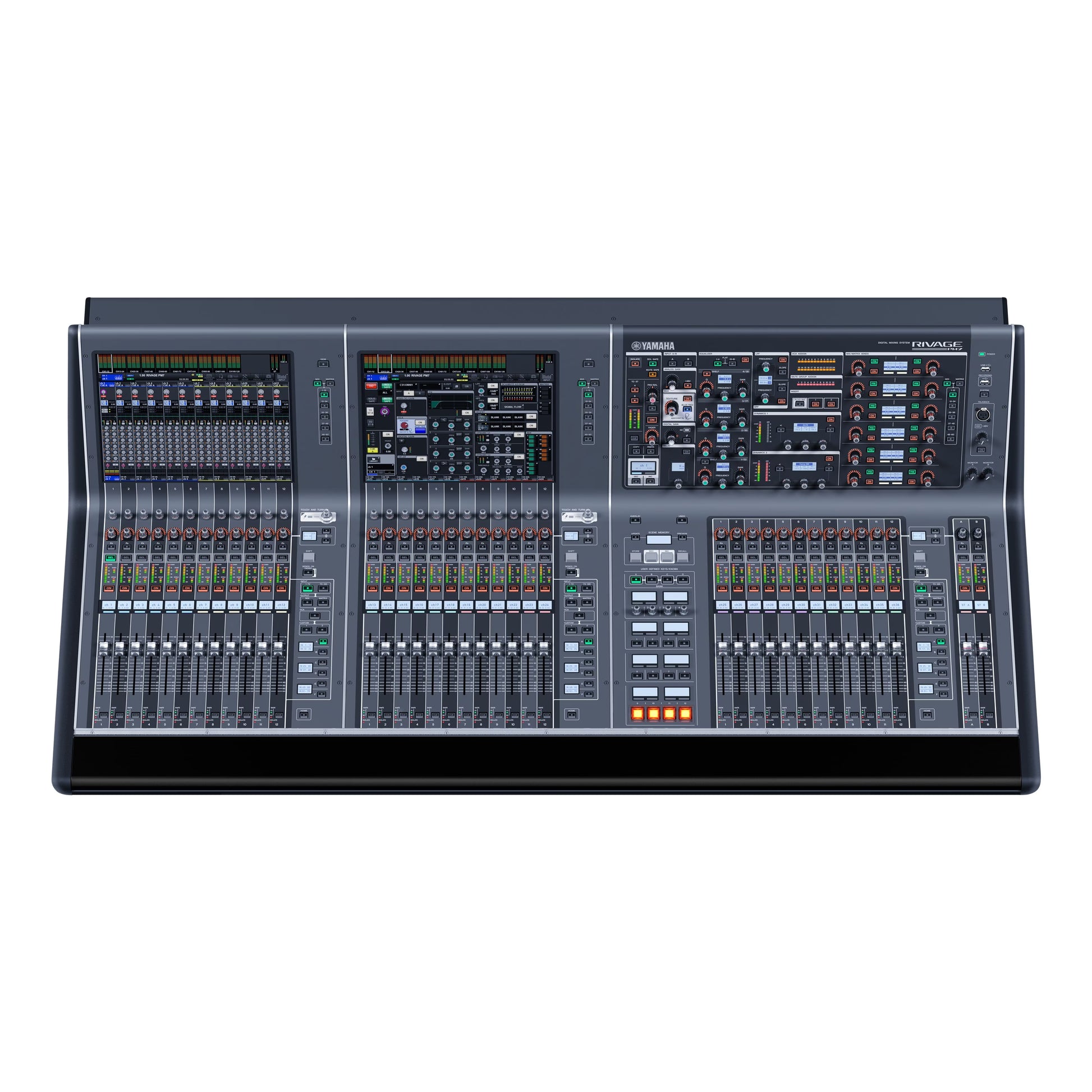

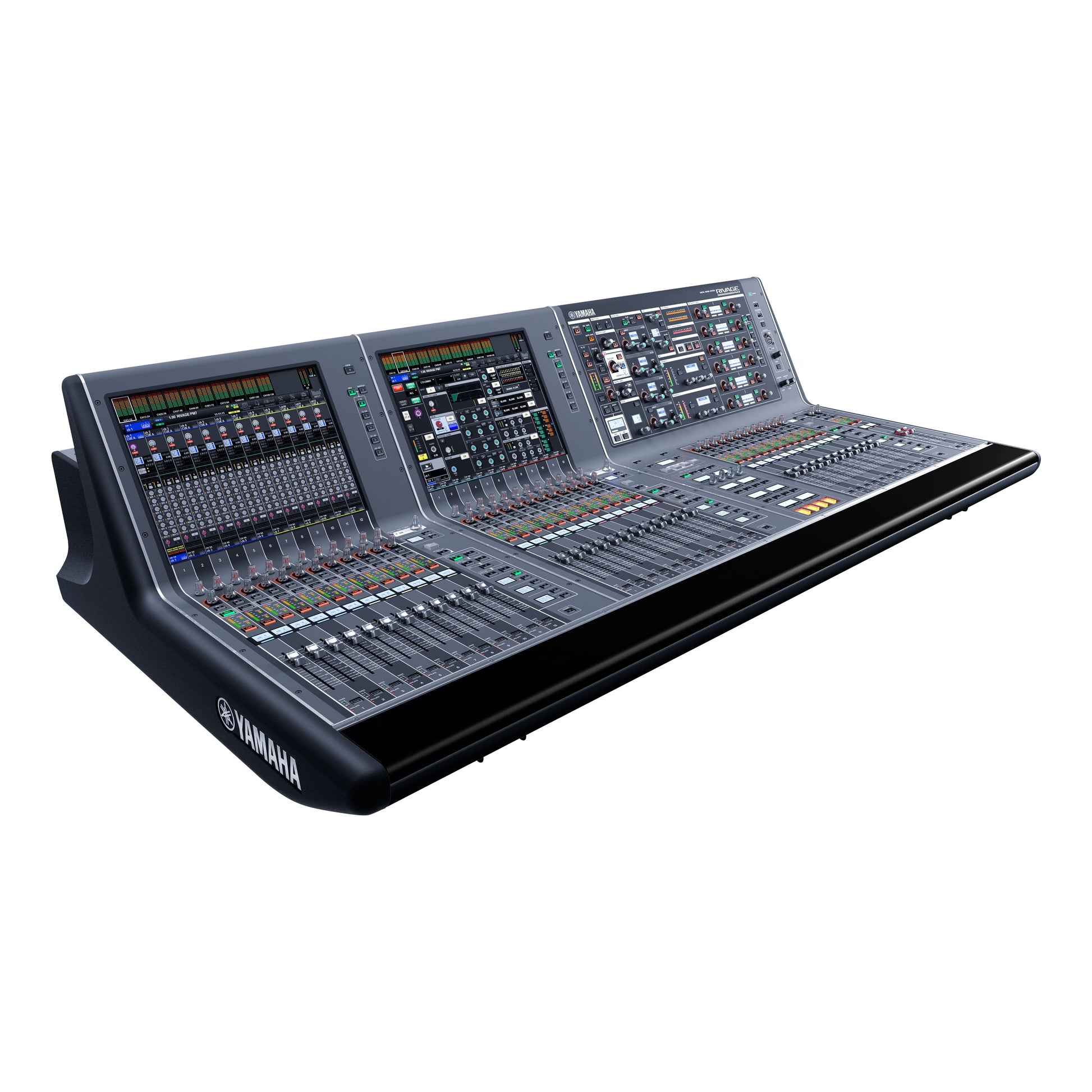

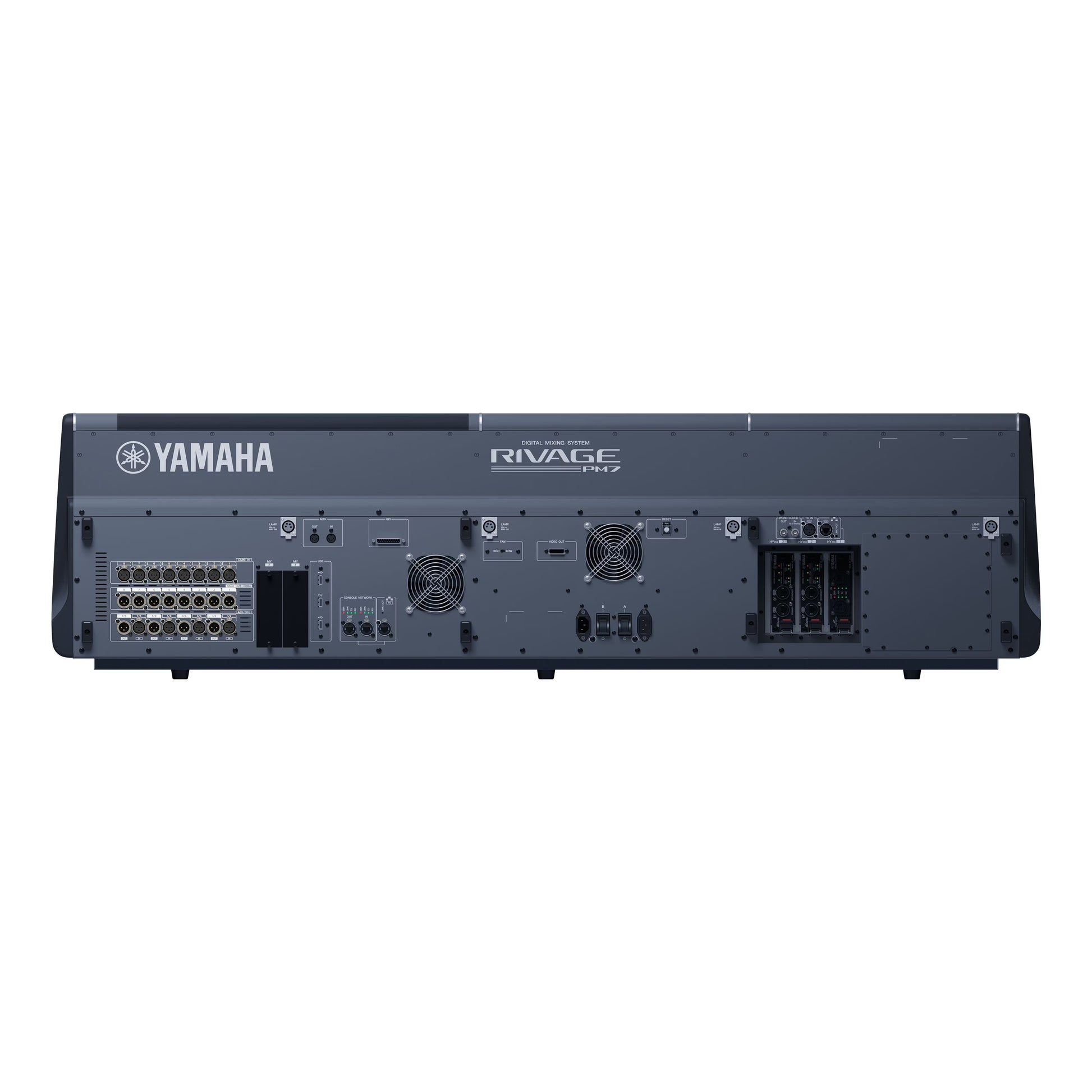

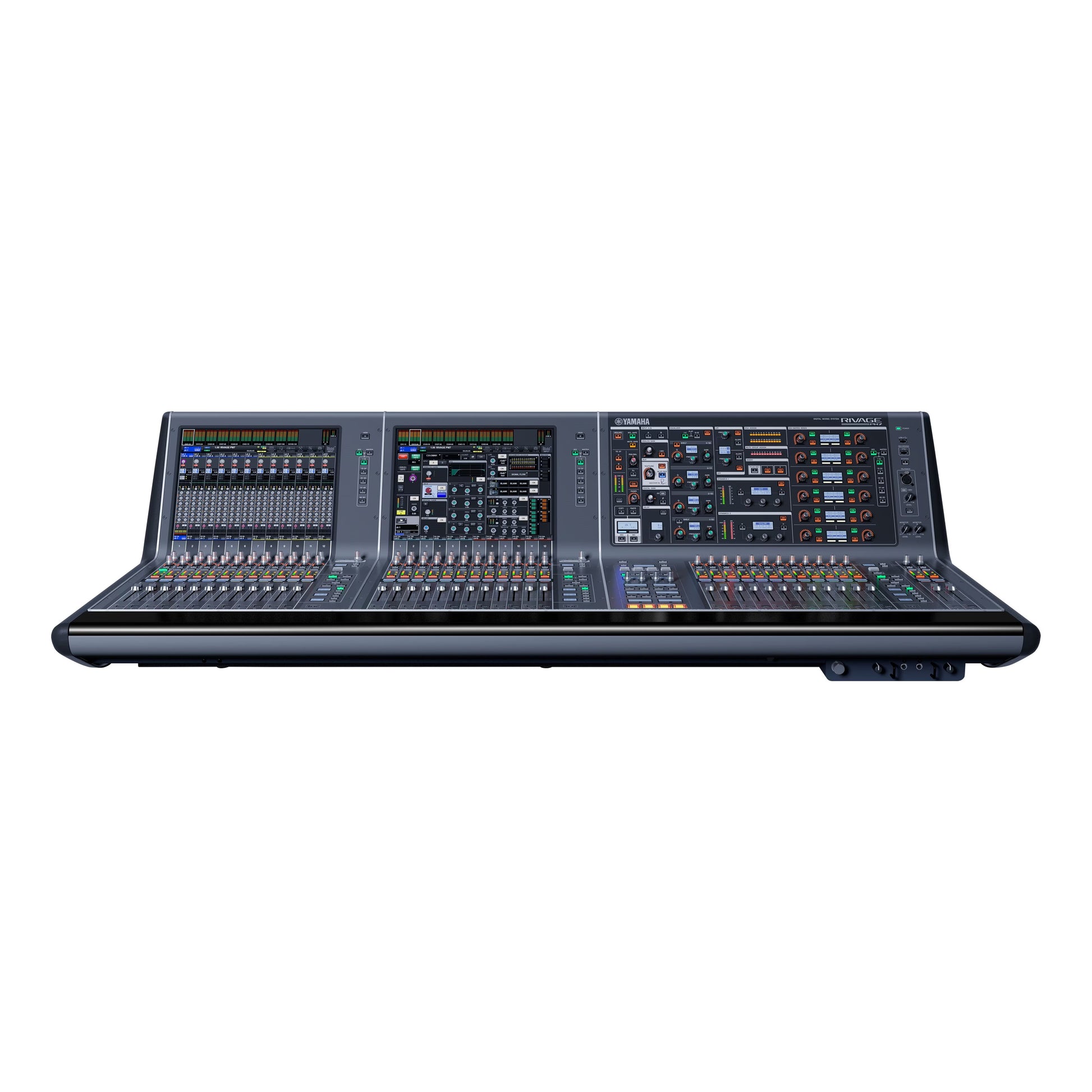

Yamaha CSD-R7 RIVAGE PM7 Digital Mixing Console

Yamaha CSD-R7 RIVAGE PM7 Digital Mixing Console

SoundPro Item: 46182 | Part Number: CSD-R7

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Digital Mixing Console that brings reliability to your audio
  • Two types of I/O
  • Channel EW and compression refined to unprecedented levels
  • Comprehensive selection of plug-ins
  • Refined interface
  • Monitor section for any job
  • Wireless receiver integration
  • Overlay filter for rapid response
  • Theatre mode
  • DSP mirroring for failsafe redundancy
  • Console file conferter
  • Two convenient approaches to live recording
Log in or register for YOUR best price

A central hub to Yamaha’s RIVAGE PM system, the CSD-R7 is a professional-caliber digital mixing console that offers 96 kHz processing, 120 monaural inputs, and a versatile complement of mixing busses (60 MIX, 24 MATRIX, and 2 STEREO).

This mixing console boasts built-in dual power supply units, providing even more reliability to your audio performance so you can mix with confidence.

View full details

Specifications

Dimensions
Dimensions (WxHxD)
61x16.4x33.4" (1,549x417x848mm)
Weight
Net Weight
207 lbs (94 kg)
Optics
Lamp
4
Focus Recall
Yes
Connectivity
Input Mixing Channels Internal
114
USB File
4rec/play: 1
Fault Output
Yes
Output Channel Delay
Yes (0ms ~ 1000ms)
USB Memory Recording
Yes
Port to Port
Yes
Output Port Delay
Yes (0ms ~ 1000ms)
Mix/Matrix to Input
Yes
Construction
Number of Inserts
4 slots on each 2 insert point
Controls
Timecode Reader/Display
Yes
Channel Name / Color Display
Yes
General
Mix Buses Internal
60
Matrices Internal
36 (Input to Matrix supported)
Stereo Buses
2
Mono Buses
1
Cue Bus
2
Analog in
8 (SILK)Out: 8
Digital AES IN
8AES
OUT
8
Expansion Slot HY
3MY: 2
GPI IN
8OUT: 8
Word Clock
Out
MIDI
IN/OUT
Redundant PSU
Yes (Built in dual PSU)
Meter Bridge
On screen
Talkback in
Yes
Video Out
Yes
TC in
Yes
Phones
2 Connectors
AC Inlet
2 (V-Lock Type)
Number of Scenes
1000
Recall Safe
Yes
Fade Time
Yes (0s ~ 60s)
Preview
Yes
Selective Load/Save
Yes
Global Paste
Yes
Event List
Yes
Overlay
Yes
Isolate
Yes
Tactile Control Keys
Yes
PEQ
8 Band Full PEQ
GEQ
Plug-in
Dynamics 1
Legacy Comp / Comp260 / Gate / De-Esser / Expander / Ducking
MUTE Group
12
Number of Slots DSP-RX Internal
384 (CSD-R7)
Number of Effect Programs
More than 50
Number Or GEQ Racks
48
Mountable Device
31BandGEQ / Flex15GEQ / 8Band PEQ (RTA overlay support) / Dugan Automixer
Number of I/O Channels (per card)
256 in / 256 out (with HY256-TL)
Dante
Number of I/O devices that can be discovered from the console *1: 127 (with HY144-D/HY144-D-SRC), Number of I/O devices that can be mounted *2: 48(with HY144-D/HY144-D-SRC), Number of I/O devices with HA remote control *2: 48(with HY144-D/HY144-D-SRC)
DVS Recording
Yes (with HY144-D)
5.1 Surround Panning
Yes
Surround Monitor
Yes
Mix Minus
Yes
L-Mono / R-Mono / LR-Mono
No
Solo Mode
Yes
Oscillator
Sine Wave 1ch / Sine Wave 2ch / Pink Noise / Burst Noise
Dual Console
Yes
DSP Mirroring
No
Timecode Chase (Event List)
Yes
GPI/MIDI
Yes
RTA
Yes
Sub in
Yes
Theatre Mode
Yes
Centralogic Section
Yes
Faders
12 + 12 + 12 + 2
Selected Channel Encoders
All parameters
Channel Encoder
Yes
Custom Fader Banks
Yes (6 x 5 on each bay)
User Defined Keys
12 (x 4 banks)
User Defined Knobs
4 (x 4 banks)
Touch and Turn Knob
Yes (2)
Monitor Level Knob
Yes (2: A and B)
Wooden Arm Rest
Yes
Editor
RIVAGE PM Editor
StageMix
RIVAGE PM StageMix
MonitorMix
Yes (V4.0 or later)
Console File Converter
Yes
Indicators
Display
15 inch Touch Panel x 2
