Yamaha CXS18XLF 18" Passive Subwoofer With 1000W Program Handling

Yamaha CXS18XLF 18" Passive Subwoofer With 1000W Program Handling

SoundPro Item: 34566 | Part Number: CXS18XLF

$1,034.99
$1,551.00 $1,034.99
Your Price Sold out
MSRP: $1,551.00 | MAP: $1,034.99

Usually ships in 5-7 business days

  • Bass-Reflex Port Tuning Achieves 32 Hz Extension For Subsonic Content Reproduction
  • 4-Inch Voice Coil Design Sustains 500 Watts Continuous Without Thermal Compression
  • Polyurea Cabinet Finish Resists Impact And Moisture In Touring Environments
  • Cardioid Array Processing Compatibility Enables Directional Low Frequency Control
  • Dual Pole Socket Design Accommodates Both 35mm And M20 Mounting Standards

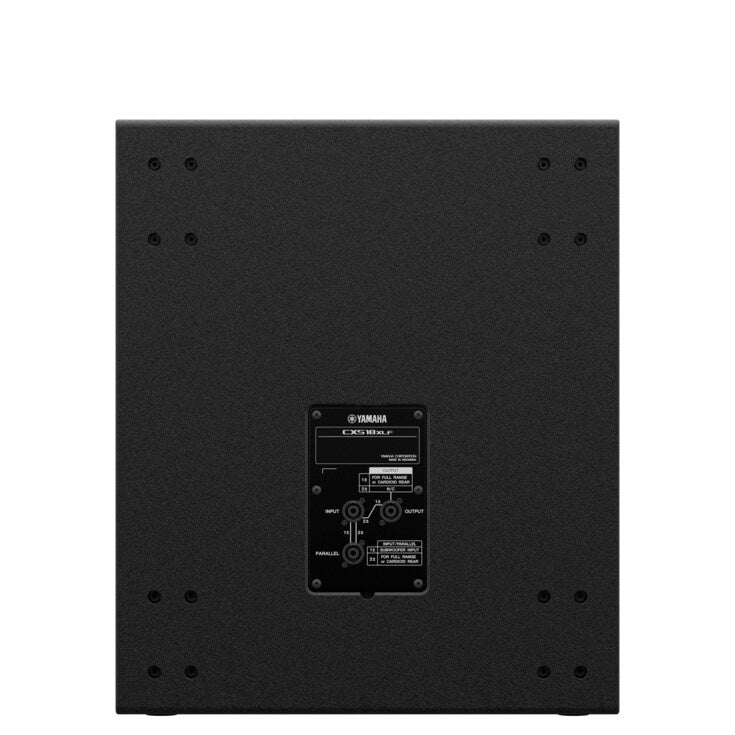

  • Three SpeakON Connectors Provide Parallel Input And Thru Wiring Without Splitters
Log in or register for YOUR best price

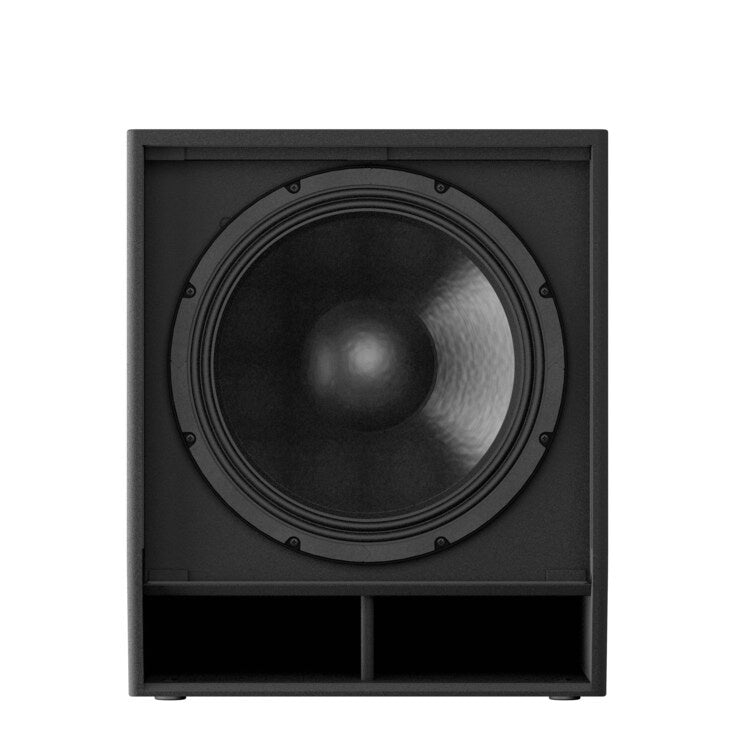

The CXS18XLF addresses the need for subsonic extension in professional sound reinforcement where full-range cabinets cannot reproduce content below 60 Hz. Its bass-reflex design pushes usable response to 32 Hz while maintaining 133 dB peak capability, making it suitable for electronic music playback, cinema effects, and outdoor festival stages where low-frequency impact determines audience experience. The 18-inch woofer uses a 4-inch voice coil and ferrite magnet structure sized for continuous 500-watt thermal dissipation.

Cardioid array compatibility allows integrators to configure multiple units with outboard processing for directional bass control in reflective venues. Polyurea-coated plywood construction survives load-in cycles and weather exposure common to mobile production work. Dual pole sockets accommodate both standard 35 mm and M20-threaded stands, while side handles and optional wheel kit support setup workflows. Three speakON connectors enable parallel input distribution and loop-through to additional enclosures without external splitters.

Downloads

View full details

Specifications

Audio
Frequency Range
32 Hz to 150 Hz (-10 dB)
Maximum SPL
133 dB (Peak)
Speaker Sensitivity
100 dB
Power
Total Passive Power Handling
500 W RMS / 1000 W Program / 2000 W Peak
Nominal Impedance
8 Ohms
Drivers
LF Driver
1x 18" Woofer
Voice Coil
4"
Magnet
Ferrite
Connectivity
Audio I/O
2x speakON NL4 Input/Thru, 1x speakON NL4 Output
Construction
Enclosure Type
Bass-Reflex
Construction Material
Plywood
Finish
Polyurea Coating
Color
Black
Physical
Mounting
1x 1.38" Pole Socket (Top), 1x M20-Threaded Pole Socket (Top)
Handles
1x Each Side
Dimensions
21.7 x 25.9 x 28.3"
Weight
96.1 lbs
Shipping
Package Weight
110 lbs
Box Dimensions
33 x 31 x 26.5"
