Specifications
Weight
Net Weight
18.0 kg (39.7 lbs)
Audio
Speaker Type
2-way Speaker, Bass-reflex
Crossover
2.5 kHz
Sensitivity (1W; 1m on axis)
Passive: 97dB SPL, Bi-amp: LF: 97dB SPL, HF: 108dB SPL
Connectivity

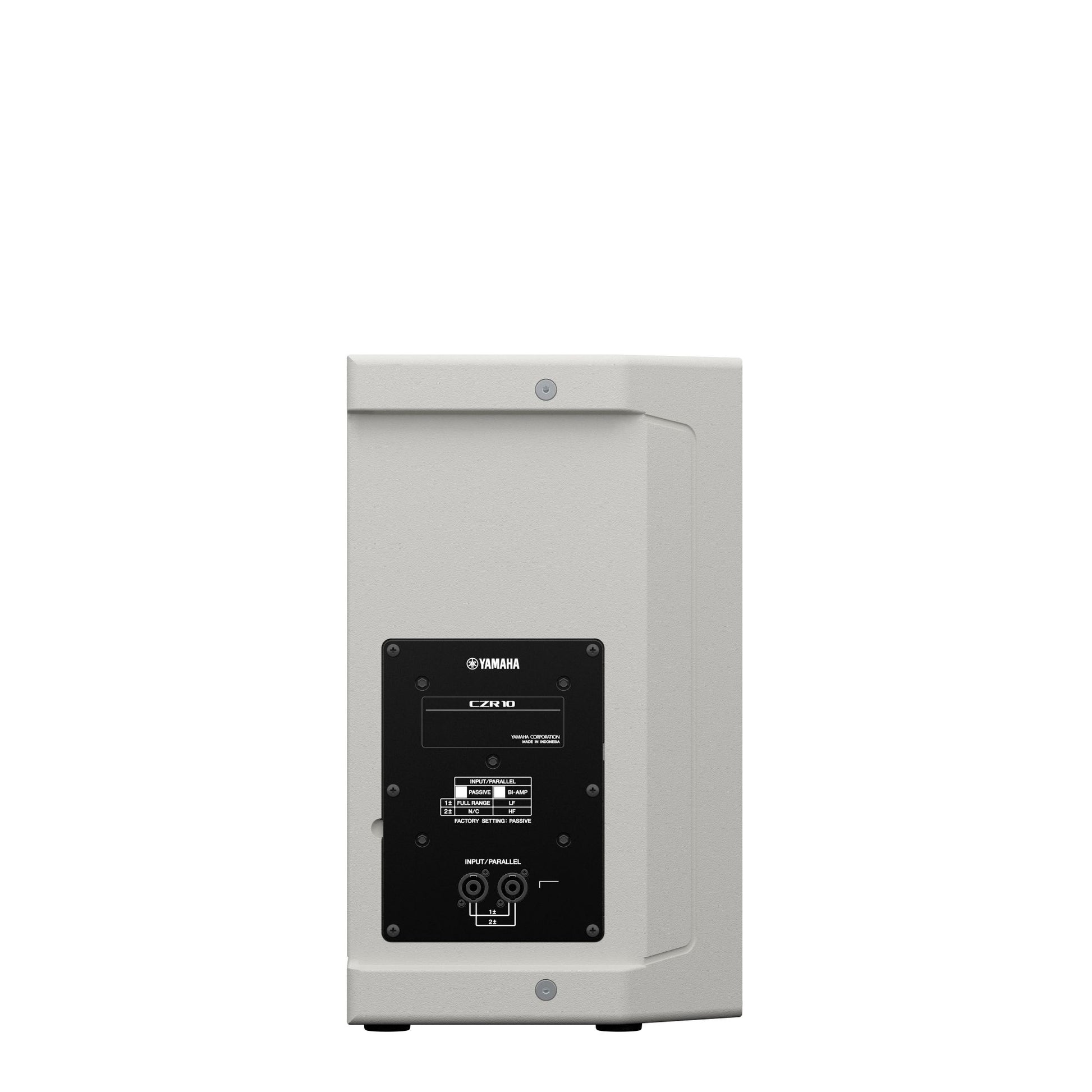

I/O Connectors
SpeakON NL4MP x 2 (Parallel)
Pole Socket
Φ35 mm x2 (0° or -7°)
General
Frequency Range (-10dB)
Passive: 43 Hz - 20 kHz, Normal (*1): 46 Hz - 20 kHz, FOH (*1): 43 Hz - 20 kHz
Floor Monitor Angle
50° Symmetrical
LF
10" Cone, 3" Voice Coil, Neodymium magnet
HF
2" Voice Coil, 1" Throat Compression Driver, Titanium diaphragm, Neodymium magnet
NOISE
Passive (EIA 426-A) 400 W, Bi-amp LF (EIA 426-A): 400W
HF (AES)
50W
PGM
Passive (EIA 426-A) 800 W, Bi-amp LF (EIA 426-A): 800W
PEAK
Passive (EIA 426-A) 1600 W, Bi-amp LF (EIA 426-A): 1600W
Nominal Impedance
Passive: 8Ω, Bi-amp: LF: 8Ω, HF: 16Ω
Peak (Calculated)
Passive: 129 dB SPL, Bi-amp: LF: 129dB SPL, HF: 131dB SPL
Handle
Aluminium die-cast, Side x2
Rigging
M10 x 12
W
410 mm (16.1")
H
646 mm (25.4") (with rubber feet)
D
394 mm (15.5")
Options
Bracket: UB-DZR12H/V, Cover: SPCVR-DZR12
Others
Enclosure Material, Finish, Color: Plywood, Durable Polyurea coating, Black/White
IR
Coverage Area
H90° x V60° Rotatable Constant Directivity Horn
