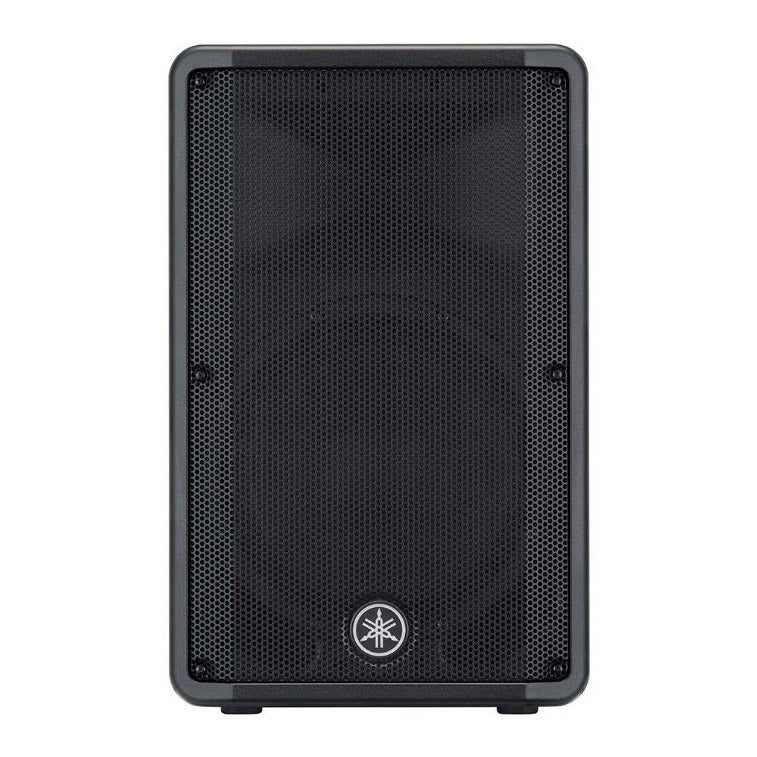

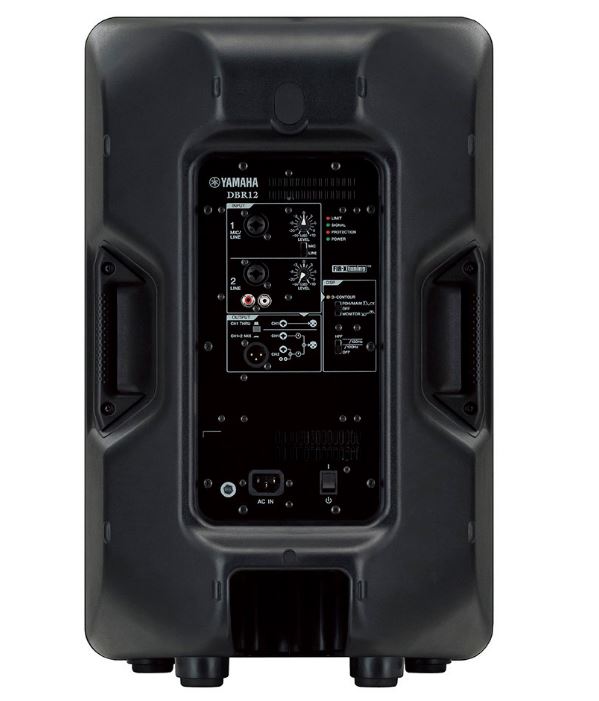

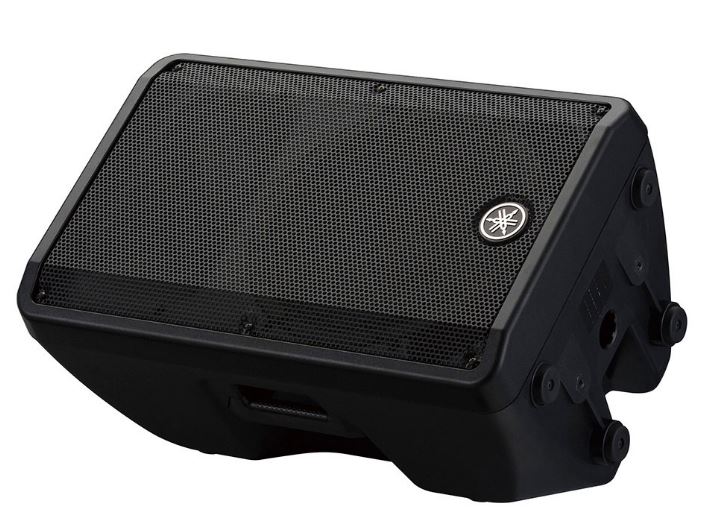

Yamaha DBR12 12-Inch Powered Speaker
Yamaha DBR12 12-Inch Powered Speaker
SoundPro Item: 99805 | Part Number: DBR12-CA
Usually ships in 5-7 business days
- High-efficiency 1000W Class D amplifiers
- Custom designed transducer
- Rugged, highly portable cabinet
- Easy-to-use onboard 2-channel mixer
- Smart enclosure design for floor monitoring
- Rigging points for installation applications
An ideal blend of size and performance, the DBR12 12" 2-Way Powered Speaker from Yamaha is the middle option of the DBR series. It has 1000W of power and outstanding resolution at any output level, making it ideal for front of house, floor monitoring, or stage side fills.
- Speaker type2-way, Bi-amp powered speaker, Bass-reflex type
- Frequency range (-10dB)52Hz – 20kHz
- Nominal coverage (HxV)90° x 60°
- LF componentDiameter:12" cone, Voice Coil:2", Magnet:Ferrite
- HF componentDiaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
- Crossover2.1kHz: FIR-X tuning™ (linear phase FIR filter)
- Output powerDynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)/span>
- Max output level (1m; on axis)131dB SPL
- I/O connectorsINPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
- ProcessorsD-CONTOUR: FOH/MAIN, MONITOR, OFF
- Heat dissipationFan cooling, 4 speeds
- Power requirements100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
- Power consumption74W(1/8 Power Consumption), 18W(Idle)
- Cabinet materialPlastic
- FinishBlack
- HandleSide x2
- Flying and mounting hardwareBottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
- Pole socket35mm (Bottom x 1)
- Dimensions (WxHxD)14.8x23.7x13.7" (376x601x348mm)
- Weight34.8 lbs (15.8kg)
