Yamaha DBR15 15-Inch Powered Speaker
Yamaha DBR15 15-Inch Powered Speaker
SoundPro Item: 99806 | Part Number: DBR15-CA
Usually ships in 5-7 business days
- High-efficiency 1000W Class D amplifiers
- Custom designed transducer
- Rugged, highly portable cabinet
- Easy-to-use onboard 2-channel mixer

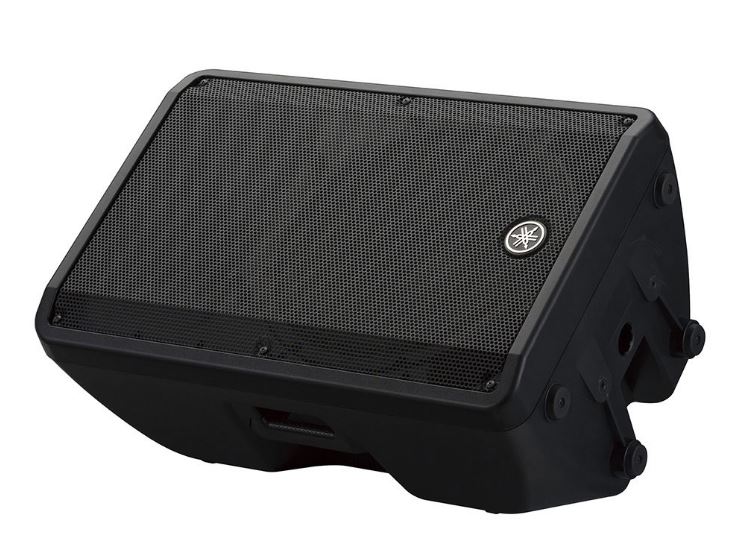

- Smart enclosure design for floor monitoring
- Rigging points for installation applications
The largest of the DBR options, the DBR15 15" 2-Way Powered Speaker from Yamaha is still portable enough to change locations as you do. It provides the lowest frequency of the DBR speakers and produces a maximum SPL of 132dB, making it perfect for main front of house sound or DJ events.
- Speaker type2-way, Bi-amp powered speaker, Bass-reflex type
- Frequency range (-10dB)50Hz – 20kHz
- Nominal coverage (HxV)90° x 60°
- LF componentDiameter:15" cone, Voice Coil:2.5", Magnet:Ferrite
- HF componentDiaphragm:1.4", Type: 1" throat compression driver, Magnet:Ferrite
- Crossover2.1kHz: FIR-X tuning™ (linear phase FIR filter)
- Output powerDynamic:1000 W (LF: 800 W, HF: 200 W) / Continuous: 465 W (LF: 400 W, HF: 65 W)
- Max output level (1m; on axis)132dB SPL
- I/O connectorsINPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
- ProcessorsD-CONTOUR: FOH/MAIN, MONITOR, OFF
- Heat dissipationFan cooling, 4 speeds
- Power requirements100 V, 100-120V, 220-240 V, 110/127/220V (Brazil), 50/60Hz
- Power consumption74W(1/8 Power Consumption), 18W(Idle)
- Cabinet materialPlastic
- FinishBlack
- HandleSide x2
- Flying and mounting hardwareBottom x 2, Rear x 1 (Fit for M8 x 15 mm eyebolts)
- Pole socket35mm (Bottom x 1)
- Dimensions (WxHxD)17.9x27.6x14.9" (455x700x378mm)
- Weight42.6 lbs (19.3kg)
