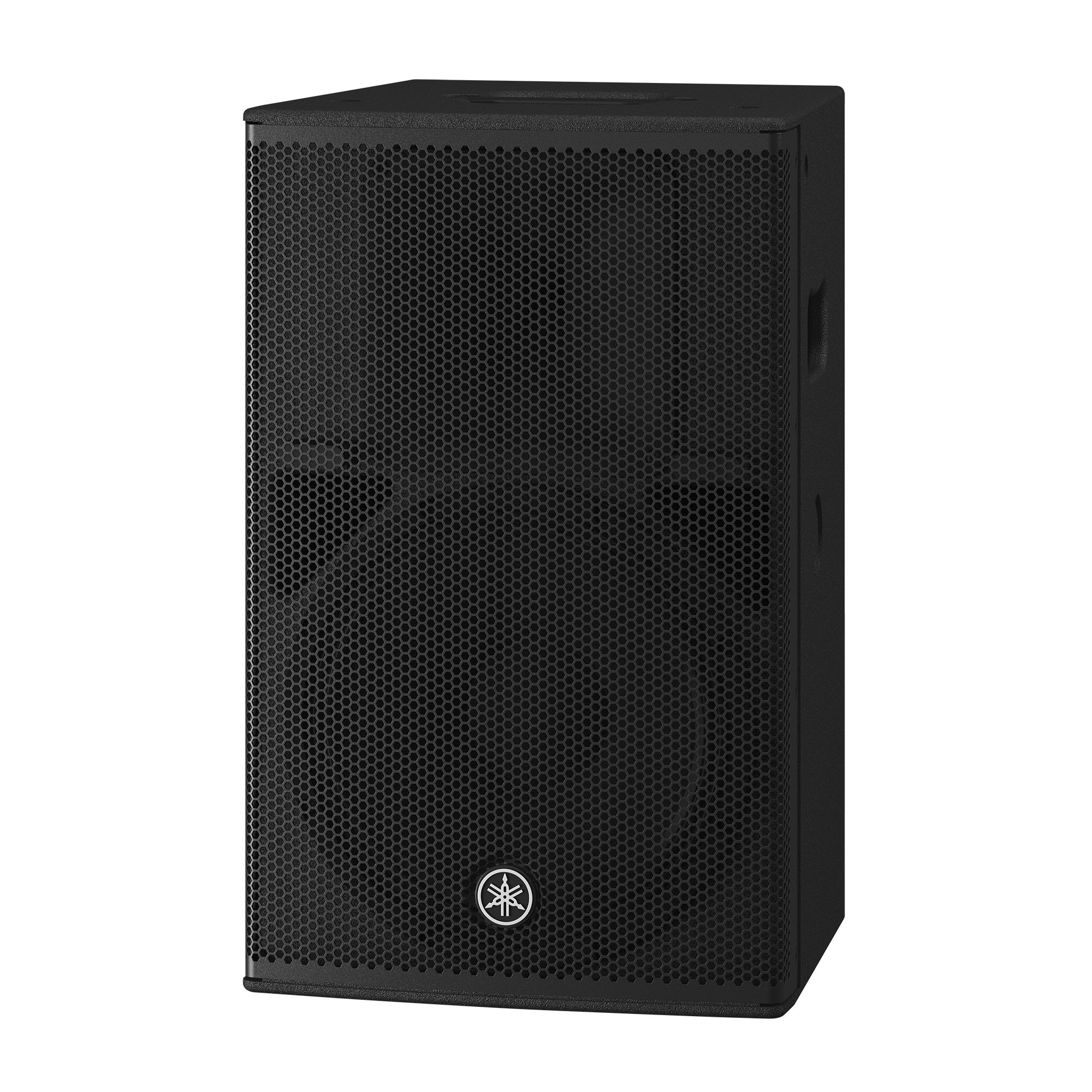

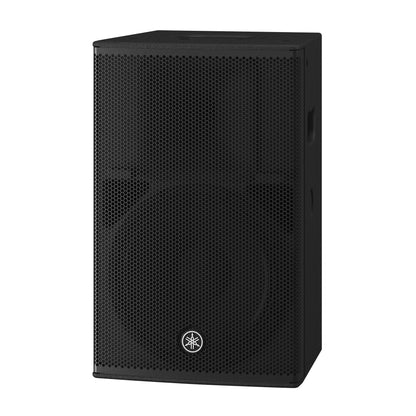

• Yamaha DHR12 12-Inch Powered Speaker

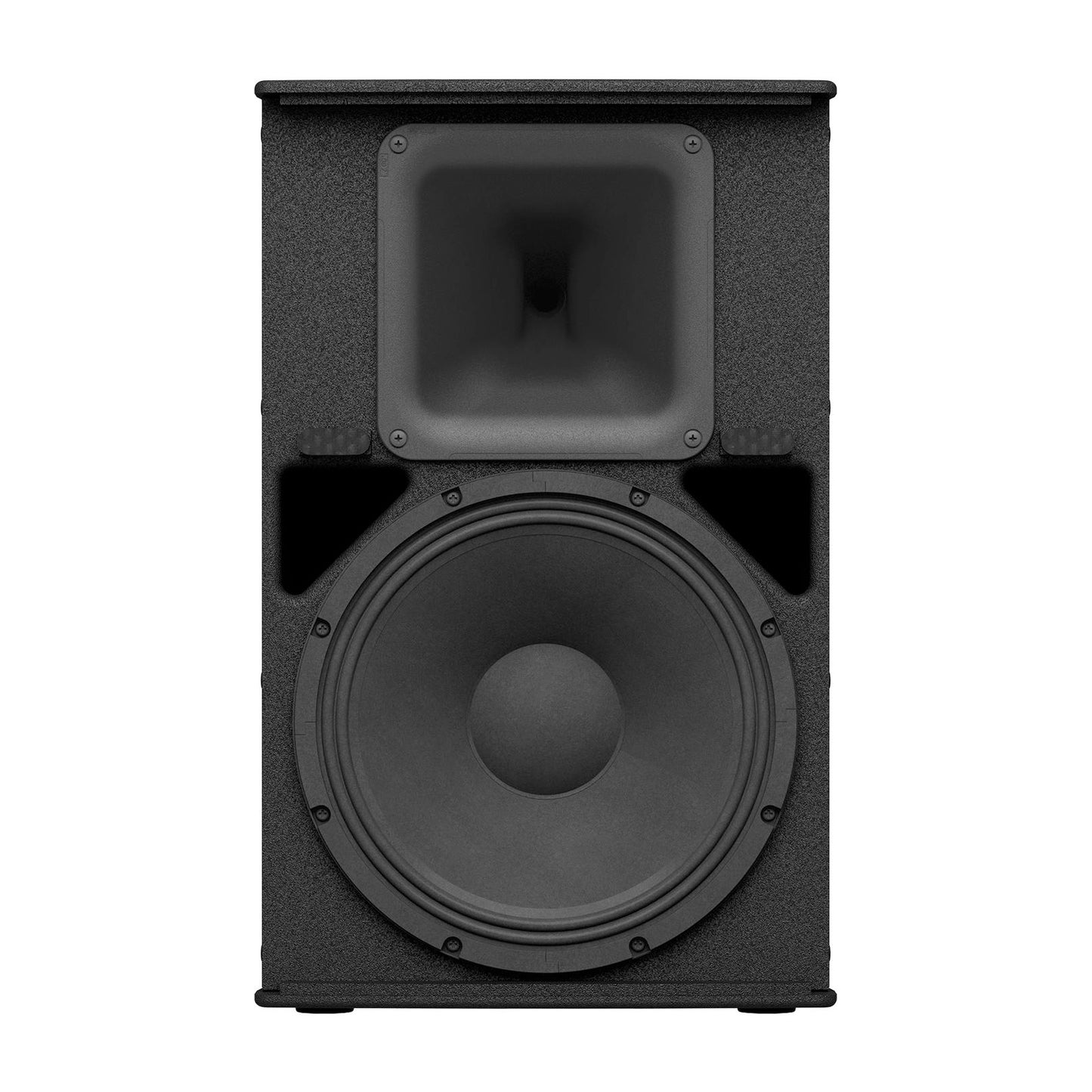

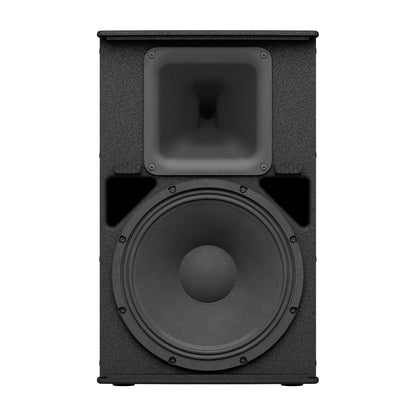

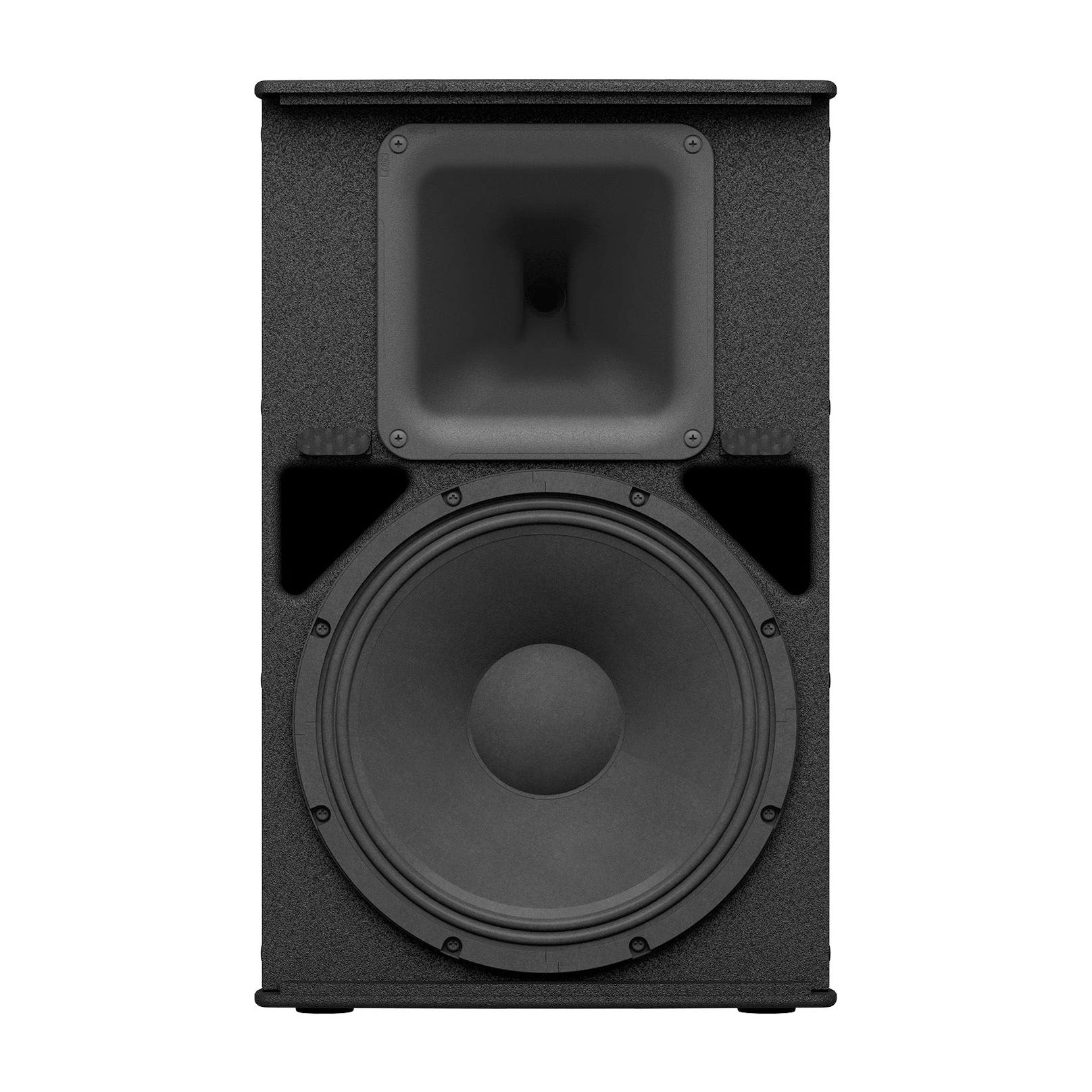

  • Yamaha DHR12 12-Inch Powered Speaker front

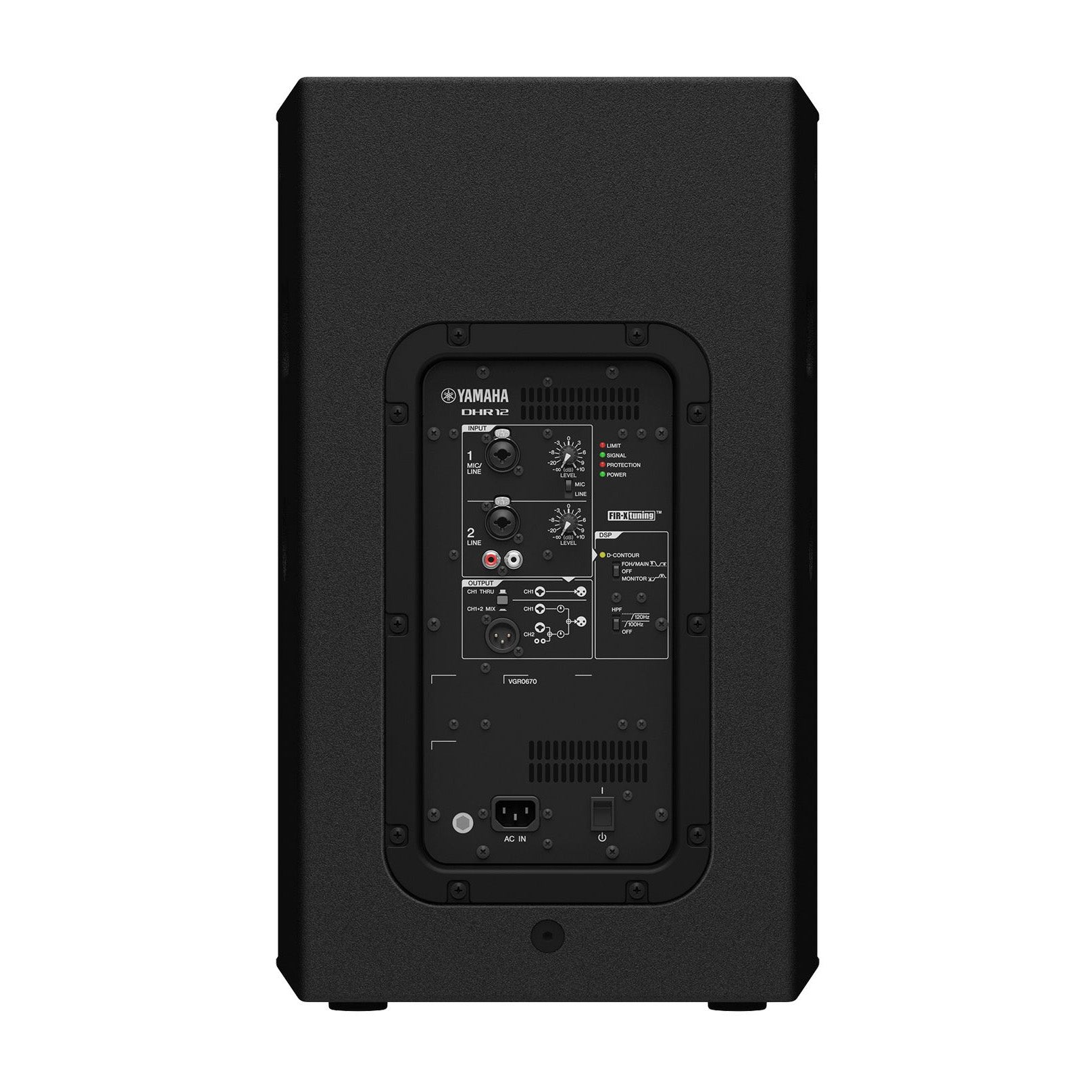

  • Yamaha DHR12 12-Inch Powered Speaker back
1 3

Yamaha DHR12 12-Inch Powered Speaker

Yamaha DHR12 12-Inch Powered Speaker

SoundPro Item: 144450 | Part Number: DHR12

$650.24
$985.00 $650.24
Your Price Sold out
MSRP: $985.00 | MAP: $650.24

Usually ships in 5-7 business days

  • Featuring a plywood cabinet that delivers a clear sound with minimal vibration
  • Plywood enclosure with a polyurea coating for a robust, scratch resistant surface
  • Compact size despite the 12-inch LF driver that provides excellent low frequency response
  • Can be installed in a horizontal or vertical configuration with a rotatable HF horn offering the flexibility needed for installation in a wide range of environments
  • Optional UB-DXRDHR12 U-bracket allows both for vertical or horizontal use
  • Dual-angle pole sockets offer both 0° or a -7° down tilt
  • Rigging points for use with eye bolts
  • Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
Log in or register for YOUR best price

The DHR12 is a 2-way bi-amp powered loudspeaker equipped with a 12-inch woofer and a 1.4-inch HF driver, perfect for use as a main or utility speaker. Combining a 1000W amplifier and high-performance DSP with the same plywood construction found on our high-end DZR Series, the DHR12 offers best-in-class sound quality and durability.

View full details
  • Speaker type2-way, Bi-amped Powered Speaker, Bass-reflex
  • Frequency range (-10dB)55 Hz - 20 kHz
  • Coverage areaH90° x V90°
  • Crossover1.8 kHz: FIR-X tuning™ (linear phase FIR filter)
  • Maximum Output Level (Measured peak, IEC noise@1m)129 dB SPL
  • Components
    • Diameter: 12" cone, Voice Coil: 2.5", Magnet: Ferrite
    • Diaphragm: 1.75", Type: 1" throat coaxial compression driver, Magnet: Ferrite
  • AmplifierClass-D
  • Power Rating
    • Dynamic: 1,000W (LF: 800W, HF: 200W) *1
    • Continuous: 465W (LF: 400W, HF: 65W)
  • CoolingFan cooling, 4 speeds
  • Power consumption74W (1/8power), 18W (Idle)
  • Power requirements100V, 100-120V, 220-240V, 110/127/220V (Brazil), 50/60 Hz
  • A/D D/A Converters24 bit 48 kHz Sampling
  • ProcessorsHPF: OFF, 100 Hz, 120 Hz, 24 dB/Oct.; D-CONTOUR: FOH/MAIN, MONITOR, OFF
  • I/O connectorsINPUT1: Combo x1, INPUT2: Combo x 1 + RCA pin x 2 (Unbalanced), OUTPUT: XLR3-32 x 1 (CH1 Parallel Through or CH1+CH2 Mix)
  • Cabinet materialPlywood
  • FinishDurable Polyurea Painting, Black
  • HandleSide x1
  • Pole socketΦ35 mm x1 (Side)
  • Floor Monitor Angle57°
  • Dimensions (WxHxD)14.1x22.8x13.4" (500x343x454mm) (height includes rubber feet)
  • Net weight42.3 lbs (19.2kg)
